HILO HIL Smart Mirror User Manual

HILO HIL Smart Mirror

Quick Guide

Package

Standard Smart Mirror package contains the following items as below. Please contact your local retailer if anything is missing. Some of the items in this manual may differ because of customization or model.

Mirror1| WallBracket1
---|---
UserManual1| Crewhead 6 Dilating screw *6

Introduction

Smart Mirror is a mirror that comes with a touch screen, display and integrated speakers, microphone and motion sensors. Mirror is an interactive terminal and a comprehensive hub for all smart devices. Smart Mirror helps to connect to health devices or simply be used as entertainment device.

Front View

Back View

Quick Guide

Startup & Shutdown

① Start up: Press RED touch button below the display area for 2 seconds, Smart Mirror will boot up until home page appears. Touch button turns white

② Shut down: Press WHITE touch button below the display area for 10 seconds, Smart Mirror will shut down. Touch button turns red.

Motion Sensor

When Smart mirror is on standby, it’ll turn on the screen when the motion sensor detects a person is approaching. Smart mirror will turn OFF the display after 15 seconds if not in use. Screen timer can be set by users through the build-in HILO APP (Available on the home screen)

Wifi network setting

Home page>setting>> Wi-Fi > Select your personnal Wifi > Once connected, you will be able to browse internet and download Apps.

Bluetooth

HILO bluetooth is ON by default. Once external devices (Smart Scale, Sleep monitor, Blood pressure monitor, Blood sugar monitor and etc..) are ON, they will be available for pairing from the blutooth menu in settings

Connect toexternal smartdevices

Different smart devices work with mirror through different protocols, Smart mirror supports Wifi, and bluetooth. Refer to smart device user manual for demonstration.

Installation

Installation

Flush Mount
Open a recess as shown in the wall where you want to install the mirror N.B: Must be installed by a professionnal

Hang Mirror directly to the wall.

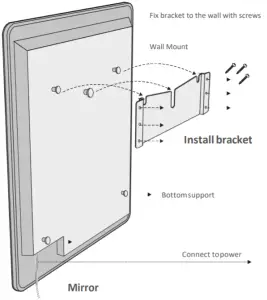

Installation Demonstration

Notes: Be careful during installation to avoid scratching the mirror surface.

Dimension

Size/mm

No further notice on small changes on the same model. 10

Specification

Consumption

Power/Consumption

Power input| AC 100-240V 2AMax 50/60Hz
Consumption| ≤45W
Standby Consumption| ≤1W
Display size| 21.5″
Display type| IPS
Display ratio| 16:9
Resolution| 1920 x R.G.B x 1080
Brightness| 1000 cd/m2(Original LED screen)
Contrast Ratio| 4000:1
Viewing angle| 178° (H) X 178° (V)
Display color| 16.7M
Reponse time| 5ms
Working life| ≥25000 Hour
General Dimension
General Size| 800X600mm
Thickness| 40mm
Mirror panel| Coated Silver Mirror
Material| Stainless steel bracket, metal casing, plastic parts and etc.
IP level| IP65

Connection

Connect topower

1. Connect Mirror to power as shownabove.
2. Once successfully connected, touch button below display area isRED.

Connect to USB device

Insert USB drive or portable hard drive to Mirror through USB port.

Note: Please do NOT insert USB devices to OTG port.

Others

Notes

1. Use only original power cable that comes with the Smart Mirror.
2. Keep power cable in good shape and condition.
3. In any case of malfunction, unplug Smart Mirror immediately.
4. Unplug the Smart Mirror if you won’t be using it for a long time.

In any case of malfunction, before sending Smart Mirror for maintenance, please read the following instructions and solution.

Troubleshooting

Troubleshooting is only for users who are facing major operating issues on Smart mirror. If users should have problems with specific functional page, please go to your retailer to get user manuals on specific functions.

Couldn’t start up Smart Mirror

1. Check if power jack is loose.

No image/sound or bad display

1. Make sure settings are properly adjusted
2. Call yoursupplier.

• HILO-HIL-Smart-Mirror-User-ManualCorrect disposal of this product
  (Waste Electrical & Electronic Equipment) This making on the mirror, accessories or literature indicates that the Mirror and its electronic accessories should not be disposed of with other household waste at the end of their working life.Household users should contact either the retailer where they purchased the Mirror ortheirlocal government office, for details of where and how they can take these items for environmentally safe recycling
