AYellowSock AYS-002 Motorcycle DVR Camera Instruction Manual
- June 6, 2024
- AYellowSock
Table of Contents
AYellowSock AYS-002 Motorcycle DVR Camera
Installation Notes
In order to install the system correctly, please read the below information first.
- Please use the USB cable to connect a mobile phone charger or PC USB port to test the whole kit before installation.
- Recorder support 12V-24V power input, it may be broken or can not start if the power input out of this range.
- Please use the original 16GB-256GB Micro SD.
- The recorder, camera, and extended controller are rainproof designed, but can not use in water.
- The recorder will not start working if one of the cameras is disconnected or broken.
- Please contact the local seller for after service when the kit has a problem. Please do not open or repair it by yourself, or you will have after-service charged from us.
introduction

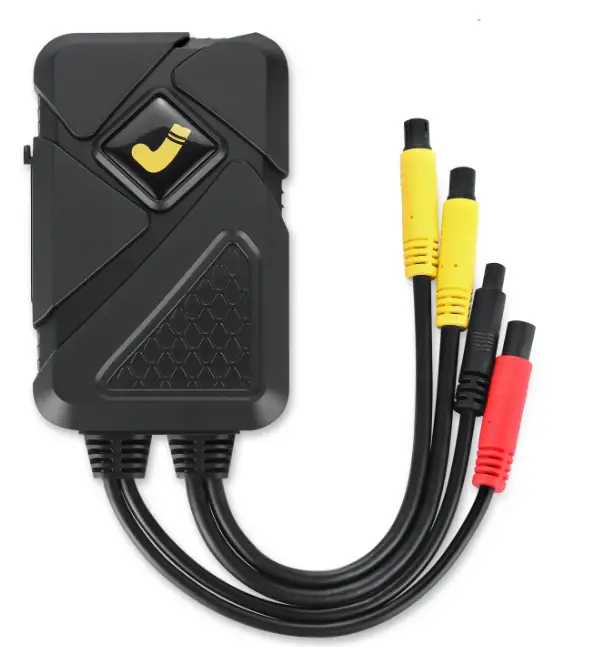

camera
Connection and Working：
a. Connectors pluged in same color
b. DVR will not start if one of the cameras is disconnected or broken.
c. DVR start recording automatically after power on.
Installation
APP Instruction
APP Download
** Operation Instruction**
Connect to DVR WIFI for preview
App interface instruction
DVR Setting
-
Change WIFI password
DVR default password is 12345678, you can change new password here, 8 numbers only. -
Audio Switch
Set up DVR recording with audio or not. -
Gsensor
Set up Gsensor sensitive level. Higher level will trigger dvr easier. -
Video Seg.
Set up video clip time in 1/3/5/10 minutes. Longer time will make recording file size bigger, and it cost more time to download. -
Video Resolution
FHD(1080P)/720P/D1 optional. Higher resolution will cost more memory. -
Device information
Check DVR FW version number. -
Format
Format micro SD card. All files will be deleted and can not get back again. -
Restore to default setting
Reset all data in default.
Playback,Download,Delete
Playback
Click SD Card icon in preview mode, recording will stop and then access to SD
card. Select the file by different time and then click it to start playback.
Download and Delete
Click “Edit” in file list page,and click the round icon in front of the file
name to select the file. And then click “Download” or “Delete” icon at the
bottom of the page to download or delete the selected files.
Note: The downloaded files will saved in APP album first.
Sync. files to mobile phone
Click “local album” icon in first page or preview page to access to file list. In first page, WIFI connection is not necessary.
Select the file in the file list, click it to playback. On the playback page, click the download icon to sync. this file to a mobile phone. In the file list, click “Edit” to select more files, and then click “Delete” at the right down corner to delete files.
APP Setup
General Setting: Set up APP language. Map Switch: Set GPS map.
Help: DVR function introducing and FAQ. About: APP version number.
Specification
| Item | Data |
|---|
DVR
| CPU| NT96663
Working mode| Recording/Snap shot
Video Format| MP4
Video resolution| 1080P@30f/s
Video clip| 1/3/5/10 minutes optional
G-SENSOR| Support
Picture format| JPG
Picture resolution| 1920×1080
DVR waterproof class| IP65
Memory card| 16GB-256GB
GPS| Support
Overwriting| Support
Housing Material| TPU+ABS
Audio recording| Support
DVR dimension| 1016025mm
DVR Weight| 130g
Language| Czech/English
Camera
| Sensor| SONY IMX323
Lens| 6 layers
View angle| 140 degree wide view
Waterproof glass| IP67
APP
| WiFi| Support
APP| Support IOS and Android
Rotation| Vertical and horizontal
Snap shot| Manually
File download| Support
Camera shift| Support
OTA| Support
Working Condition
| Power input| 12V-24V
Working voltage| 5V 2A
SD working temp.| -25℃-+85℃
DVR working temp.| -30℃-+60℃
DVR working humidity| 75%
Accessroies
| DVR cable| 20cm
Camera cable| 30cm
Power cable| 80cm
Extended controller| 250cm
Video extension cable| 150cm
USB Testing cable| 100cm
Packing info| Box dimension| 215x130x80mm
G.W.| 650g+E3:G44
