EGYPTLAPTOP NO.S2DDB50GV1 2D Barcode Scanner User Guide
- June 5, 2024
- EGYPTLAPTOP
Table of Contents
EGYPTLAPTOP NO.S2DDB50GV1 2D Barcode Scanner
Product Chart
Press trigger to remove cable
Features
- Brand new decoding chip to read various 1D & 2D barcodes;
- Advanced technology which can read &payment barcodes like Ali-pay,apple-pay etc;
- Easy to use ,plug and play;
- Strong case to withstand 1.5m drop to concrete.
Basic Configuration
Interface
Interface notes:
- USB-HID Mode:Factory default mode, automatically identify and install driver;
- RS232 Mode:Require special customized RS232 c3ble and designated serial port APP; (Default parameters :Baud Rate 9600 Data Bit:8bits Stop Bit :1 bit Check Bit :None)
- USB-COM ,Required to install special driver (Claim it from distributor).

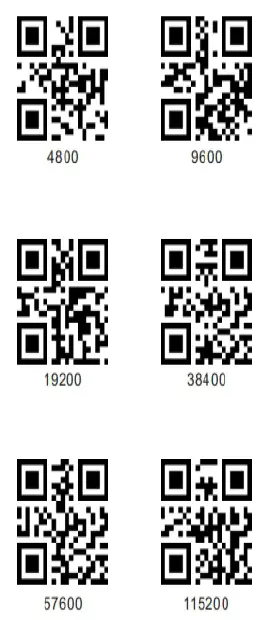

Baud Rate Setting
Note :Baud Rate must be same between baroode scanner and serial port APP Eg:BaroJde Scanner default Baud Rate is 9600, the APP must choose same Baud Rate 9600.
Scan Mode
Buzzer
Suffix Setting
Keyboard Language
Aiming
Lighting
Keyboard Caps Lock Control
Prefix settings
Eg: Add Prefix ‘A’
- Step 1, Scan setting code “Prefix+ Data
- Step 2, Scan setting code ‘Prefix’
- Step 3, Scan the numeric code correspond to”A’ ,theASCllvalueofAis 1065 Refer to Appendix 1 & Appendix 2
- Step 4, Scan ‘save’ code to save
