PYLE PLTLD19 ELED RV Digital TV User Guide
- June 5, 2024
- Pyle
Table of Contents
pyleusa.com
NTSC, ATSC
PLTLD19 – PLTLD22 – PLTLD24

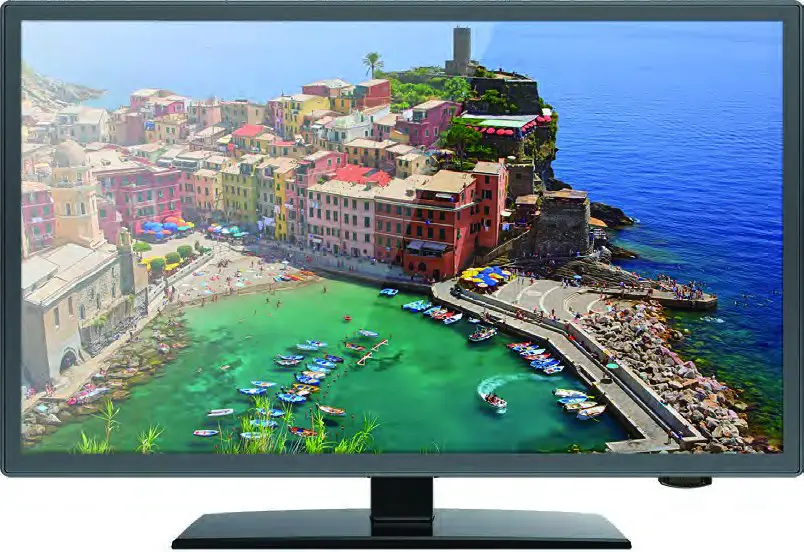

LED RV Digital TV
HD Flat Screen TV with DVD Combo
with Digital Antenna and 12V/24V Car Adapter
User Guide
Note: Keep this document for operation and performance reference. Please visit us online for further reference and detailed product specifications.
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS- READ CAREFULLY BEFORE USE.
Take note of the following safety information which appears on the back of the
TV.
CAUTION TO PREVENT ELECTRICAL SHOCK, DO NOT REMOVE ANY COVER SCREWS.
NO USER-SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
****This symbol indicates that there are important operating maintenance
instructions in the literature accompanying this unit.
This symbol indicates that dangerous voltage constituting a risk of electric
shock is present within this unit.
KEEP THESE INSTRUCTIONS
- Do not use this TV near water.
- Clean only with a slightly damp cloth.
- Do not block any ventilation openings.
- Install in accordance with the supplied Quick Start Guide and this User Guide.
- Protect the power chord from being walked on or pinched, particularly at plugs, and the point where it exits from the TV.
- Do not allow the power chord to overhang the edge of a table.
- Unplug this TV during lightning storms or when unused for long periods of time.
WARNING!
TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS TV TO RAIN
OR MOISTURE. THE TV MUST NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO
OBJECTS FILLED WITH LIQUIDS SHOULD BE PLACED ON THE TV.
NOTE: No naked flames such as candles should be placed on the TV.
This unit has been produced according to aII current safety regulations.
The following safety tips should safeguard users against careless use and
dangers.
-
Although this appliance has been carefully manufactured and rigorously checked prior to leaving the factory, as with all electrical appliances it is possible for problems to develop. If you notice smoke, an excessive build-up of heat, or any other unexpected phenomena, you should disconnect the plug from the mains power socket immediately.
-
Ensure that the unit is sufficiently ventilated! Never place next to or underneath curtains!
-
The mains plug or appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
-
This set should only be connected to a mains power supply that matches what is stated on the label on the rear of the- do not attempt to connect it to any other type of supply.
-
The socket -outlet must be installed near the equipment and easily accessible.
-
To prevent overload, don’t share the same mains supply socket with too many other items of equipment.
-
Apparatus with Class 1 construction shall be connected to a mains socket outlet with a protective earthing connection.
-
Keep away from rodents. Rodents enjoy biting into electric flexes.
-
Always hold the plug when pulling out the plug from the main supply socket.
Do not pull on the flex, the flex can become overloaded and cause a short circuit. -
Set up the unit so that no one is able to trip over the flex.
-
Do not place heavy items on the flex, which may damage it.
-
Take note that the flex cannot be reached and pulled by young children to avoid injury.
-
Do not set up the unit near heat sources.
The casing and the flex could be damaged by the impact of heat. -
The screen is made of plastic and can break if the damage is done.
Be careful when collecting sharp-edged plastic splinters to avoid injury. -
Avoid placing the unit on any surface that may be subject to vibrations or shocks.
-
To protect the unit during a thunderstorm unplug the AC power cable and disconnect the aerial.
Caution: Do not touch the aerial (RF) connector. -
When you leave your home for a long period of time, unplug the AC power cable for safety reasons.
-
The unit becomes warm when in operation. Do not place any covers or blankets on the unit in order to prevent overheating. The ventilation holes are not to be blocked. Do not set up near radiators.
Do not place in direct sunshine. When placing on a shelf leave 5cm (2″) free space around the whole unit. -
Do not allow water or moisture to enter the TV. Do NOT use in wet or moist areas such as Bathrooms, steamy kitchens, or near swimming pools.
-
Do not use this unit when moisture condensation may occur.
-
Any repairs must be carried out by qualified personnel only.
-
Do not open this unit. A non-expert attempting to repair the unit could be dangerous and potentially cause a fire hazard.
-
Liquids spilled into the unit can cause serious damage. Switch the set OFF and disconnect the mains power supply, then consult a qualified service person before attempting to use the unit again.
-
Do NOT remove the safety covers. There are no useable or serviceable parts inside. You may invalidate the warranty. Qualified personnel must only service this apparatus.
-
Do NOT tap or shake the screen, you may damage the internal circuits. Take good care of the remote control, do not drop it.
-
Never place hot objects or open frame sources on or close to the TV.
-
High temperatures can melt plastic and lead to fires.
-
To clean the TV use a soft dry cloth. Do NOT use solvents or petrol-based fluids. For stubborn stains, you may use a damp cloth with diluted detergent.
HEADPHONE WARNING
Loud music can damage your hearing irreversibly, therefore do not set the
volume to a high level when listening through headphones, particularly for
lengthy listening periods.
WHERE TO INSTALL
Locate the television away from direct sunlight and strong lights, soft
indirect lighting is recommended for comfortable viewing. Use curtains or
blinds to prevent direct sunlight from falling on the screen.
Place the TV on a sturdy platform on which the surface should be flat and
steady.
This will prevent it from falling over. Make sure the television is located in
a position where it cannot be pushed or hit by objects, as pressure will break
or damage the screen, and so that small objects cannot be inserted into the
ventilation slots or openings in the cabinet.
Product Introduction
Front View
The functions of the TV buttons are described below.
PLAY/PAUSE: Play/pause the disc playing.
EJECT: Eject the disc.
SOURCE: Press to select the source.
MENU: Press to display the OSD menu, and press again to exit the menu.
CH+/CH-: Press to scan through channels. Use to move down/up in the OSD
menu screen.
VOL+/ VOL-: Press to adjust the volume.
Use to move left/right in the OSD menu screen VOL+ button can be used to skip
forward to the next menu.
POWER: Turn on/off the TV set.
CONNECTIONS
1/2.
Audio output to connect power amplifier stereo equipment.
3. Connect a stereo headphone (3.5mm) for private listening.
4. Connect an optional coaxial digital cable through a compatible
amp/receiver to enjoy the superior audio sound.
5/6/7. Connect to an AV device that features component video and audio output
jacks.
8. Connect it to the HDMI of DVD or other equipment.
9. Connect an optional VGA cable from your personal computer.
10. Connect an optional 3.5mm audio cable for sound when using VGA.
11. Connect antenna or cable for television reception.
12. For service technician use only.
13. Connect to the mains adaptor or the car adapter (Input for the 12V/24V
power supply)
REMOTE CONTROL
The remote control is using Infra-Red (IR). Point it towards the front of
the LED TV.
The remote control may not work correctly if it is operated out of range or
out of angle.
|
POWER: Turn the TV on/standby.
MUTE: Press to mute the sound, press again, or press VOL+ to unmute.
NUMBER BUTTONS
Press 0-9 to select a TV channel directly when you are watching TV. Return
to the previous channel viewed.
S.MODE: Select the sound mode.
P.MODE: Select the picture mode.
EPG: To show the Electronic Program Guide during no-menu state only in
DTV mode.
TV MENU: System setup menu.
SOURCE: Press to display the input source menu.
CURSOR KEYS ( \ \ \ ENTER) Allows you to navigate the on-screen menus and
adjust the system settings to your preference-
MTS: Press to select an alternate audio language (if applicable).
EXIT: Exit the OSD menu.
AUTO: When you connect the TV with a PC through VGA input, press to
adjust the screen resolution automatically.
DISPLAY: Provides information on the currently viewed program.
CCD: Select closed caption subtitles (if available) OFF > ON > CC on Mute
VOL + / – : Adjust the volume. CH^F: Scan through channels.
: Fast Reverse.
: Fast Forward
: Previous Chapter.
: Next Chapter.
: Play/pause Program.
■: Stop Program.
: Load/Eject DVD Disc
ZOOM: Select viewable display options: Normal > Wide > Zoom > Cinema.
SLEEP: Press to activate the Sleep function to turn off theN
automatically 5 Min > 10 Min > 15 Min > 30 Min > 45 Min > 60 Min > 90 Min >
120 Min > 180 Min > 240 Min > OFF.
FAV: Press to display a list of favorite TV channels you have added.
FAV-: Press to scan to a lower channel from your list of favorites.
FAV+: Press to scan to a higher channel from your list of favorites.
REPEAT: Repeat playing the title or chapter
SUB-T: Turn on/off the subtitle display in DTV mode and DVD mode.
A-B: Select and play the preferable paragraph of the
DVD program by pressing this key twice at the beginning and end of it.
PROG: The track programming DVD MENU: DVD to return to menu
TITLE: DVD title.
DVD SETUP: DVD Menu Settings
---|---
SET UP WIZARD
STEP 1: Choosing your Picture mode
Use the \ arrow buttons to select the Home Mode standard. Press the ENTER
button to complete the step.
STEP 2:
Use the \ arrow buttons to select Menu Language.
Use the arrow buttons to select English-Francais-Espanol.
Use the \ arrow buttons to select AIr/Cable.
Select Cable, then press the \ button to select Cable System. Then press the
button to select Auto-STD-IRC-HRC.
AUTO SCAN
Press ENTER/ button to start auto scan.
SELECT INPUT SOURCE
Press the SOURCE button to display the input source list;
Press \ or SOURCE button to select the input source;
Press ENTER button to enter the input source;
Press the EXIT button to quit. MAIN MENU
Press
MENU to display the main menu or return to the previous menu or close the
main menu.
Press to highlight the desired menu icon, and press ENTER to select.
MAIN MENU OPERATION
Picture Menu
Press MENU to enter the main menu. Press the button to select. Press ENTER /
to enter.
Press MENU again to exit or back to the parent menu.
Press \ button to select among Picture
Mode/Brightness/Contrast/Color/Tint/Sharpness/
Color Temperature/Blue Screen.
Press ENTER / to enter.
Press the button to adjust.
Press MENU again or back to the parent menu.
PICTURE MENU
Adjust picture mode to change picture appearance.
Press the button to select (Standard/Dynamic/Mild/Energy saving/User).
Note: The brightness, contrast, color, tint, and sharpness are only
available in User mode, you can adjust as you like.
Standard: Produces a highly defined image in a normally lit room.
Dynamic: Produces a highly defined image in a brightly lit room.
Mild: Produces a highly defined image in a soft-lit room.
User: Select to customize picture settings.
Energy saving: Produces a highly defined image in an Energy saving lit
room.
[Brightness]
Adjust the visual perception output of the entire picture, it will efiect the
luminousness of the picture.
Press the button to adjust.
[Contrast]
Adjust the highlight intensity of the picture, but the shadow of the
picture is invariable.
Press the button to adjust.
[Color]
Adjust the saturation of the color based on your own like. Press the button to
adjust.
[Tint]
Adjust the hue (Red, Green, Blue) of the picture. Press the button to adjust.
[Sharpness]
Adjust the peaking in the detail of the picture. Press the button to adjust.
[Color Temperature]
Increase or reduce the warm color of the picture personally (red), and the
cool color personally (blue) according to your like.
Normal: The most balanced setting
Warm: Increase the red color for the white.
Cool: Increase the blue tone for the white.
Blue Screen
Press the button to select (off/on).
SOUND MENU
Press MENU to enter the main menu, and press the button to select.
Press ENTER / to enter.
Press MENU again to exit or back to the parent menu.
Press \ button to select among Sound
mode/Bass/Treble/Balance/Surround sound/Auto Volume/ SPDIF
type/Accessibility/TV Speaker.
Press ENTER / to enter.
Press the button to adjust.
Press MENU again or back to the parent menu.
SOUND MODE
Select a sound mode to achieve the ideal sound.
Press the button to select (Standard/Music/Movie/Sports/User).
Note: The bass and treble are only available in User mode, you can adjust
as you like.
Standard: Produces a balanced sound in all environments.
Music: Preserves the original sound. Good for musical programs.
Movie: Enhances treble and bass for a rich sound experience.
Sports: Enhances vocals for TV audio.
User: Select to customize audio settings.
BASS: Adjust the bass effect. Increases or decreases lower-pitched
sounds. Press button to adjust.
TREBLE: Adjust the treble effect. Increases or decreases high-pitched
sounds. Press button to adjust.
BALANCE: Adjust the balance between left and right speakers to adapt to
your listening position. Press button to adjust
SPDIF Type:
Send digital audio to the external audio system. Press button to select. PCM
Select to output audio in 2-channel stereo. Raw Original image coded date. Off
Set digital audio output off.
MTS Configures the multi-track sound. It is only available on ATVs.
Press the button to select (Mono/Stereo/SAP).
Mono Sets the sound to mono.
Stereo Sets the sound to stereo when stereo is not available, the sound
is automatically switched to mono.
SAP Sets the sound to the second audio program.
Accessibility: Adjust Accessibility settings and press ENTER button to
enter.
Voice Guide
Press button to select (off-on)
Volume
Press the button to Volume. Press button to select (Middle-Strong-weak)
Speed
Press the button to speed. Press button to select (Middle-Strong-weak).
Pitch
Press the button to Pitch. Press button to select (Middle-Strong-weak).
TV Speaker:
Press P-button to select (off/on).
AUDIO LANGUAGE Select the language supported by the chosen digital
channel. It is only available in DN. Press the button to select (English /
French / Spanish).
NOTE:
Balance: This Item can adjust the speaker’s output, it enables you to
listen to best at your position.
SURROUND SOUND
Set the Surround Sound. Press button to select (On / Off).
AVL Set the auto volume control. Press button to select (On / Off).
AVL: This item is used for reducing the difference between the channel
and program’s volume automatically. it made the overall water to be even. This
function will also reduce the fluctuation of the sound.
TIME MENU
Press MENU to enter the main menu, and press the button to select.
Press ENTER / to enter.
Press MENU again to exit or back to the parent menu
Press \ the button to select among Sleep Timer/Time Zone/Daylight Saving
Time/Time Format/Auto Clock/ Clock.
Press ENTER / to enter.
Press the button to adjust.
Press MENU again or back to the parent menu.
SLEEP TIMER
Set a timer for the TV to turn off automatically.
Press button to select (Off/ 5min/10min /15min/ 30min / 60min / 90min /
120min/180min/240min).
TIME ZONE
Select your time zone.
Press the button to select
(Eastern/Central/Mountain/Pacific/Alaska/Hawaii/Samoa/Newfoundland/Atlantic).
DAYLIGHT SAVING TIME
Set the daylight saving time for your area. Press the button to select (On/Off
).
TIME FORMAT
Select your time format.
Press the button to select (12-hour/24-hour).
AUTO CLOCK
Use to synchronize the display automatically. It is only available on DTV.
Press the button to select (On/Off ).
SETUP MENU
Press MENU to enter the main menu, and press the button to select.
Press ENTER / to enter.
Press MENU again to exit or back to the parent menu.
Press \ button to select among Menu
Language / Transparent / Zoom Mode/Noise Reduction/ Advanced/Source
Label/Closed Caption/DLC/Setup Wizard/Overscan/HDMI CEC/Restore Default/OSD
Timeout.
Press ENTER / to enter.
Press the button to adjust.
Press MENU again or back to the parent menu.
MENU LANGUAGE
Select an OSD menu language that can be displayed. Default English is selected
as the menu language.
Press the button to select the language (English / Français / Español).
TRANSPARENT
Adjust the transparency of the OSD (on-screen display) menu.
Press the button to select (ON/OFF).
ZOOM MODE
Adjust how the picture fills the screen.
Normal Automatically adjust Aspect Ratio based on TV size and TV program.
Wide Use to watch widescreen (16:9) content.
Zoom Expands images to fill the screen. The top and bottom may be cut
off.
Cinema Stretches the image at the edges but keeps a clear image in the
center.
Noise Reduction
Set options to reduce video noise.
Off Select to turn off video noise detection.
Low Detect and reduce low video noise.
Medium Detect and reduce moderate video noise.
High Detect and reduce enhanced video noise.
Advanced Adjust advanced video features to fine-tune the picture. Press ►
button to enter the sub-menu.
Source Label: Create labels for the devices connected to your TV. Press ENTER / ► button to enter.
CLOSED CAPTION
Adjust Closed Captioning settings. Only available under TV and AV source.
CC MODE: Turn Closed Captioning on/off. Press the button to select
(Of/On/CC On Mute).
Basic Selection: Set Closed Captioning for standard (analog) program.
Press button to select (CC1/CC2/CC3/CC4/TEXT1/TEXT2/TEXT3/TEXT4).
Advanced: Set Closed Captioning for the digital program.
Press the button to select (Of/Service 1/Service 2/Service 3/Service 4/Service
5/Service 6).
OPTION: Adjust the digital Closed Captioning setting. Press the button to
enter.
MODE: Set the look of digital Closed Captioning. Automatic uses the
broadcaster’s style.
Press the button to select (Default/Custom).
FONT STYLE: Select from 8 font styles.
Press button to select (Default/Font 0/Font 1/Font 2/Font 3/Font 4/Font 5/Font
6/Font 7).
FONT SIZE: Adjust the size of the digital Closed Captioning font.
Press the button to select (Default/Normal/Large/Small).
FONT EDGE STYLE: Adjust the edge of the digital Closed Captioning box.
Press the button to select (Default/None/Raised/Depressed/Uniform/Left
Shadow/Right Shadow).
FONT EDGE COLOR: Adjust the color of the digital Closed Captioning box.
Press button to select
(Default/Black/White/Red/Green/Blue/Yellow/Magenta/Cyan).
FG COLOR: Adjust the color of the digital Closed Captioning font.
Press button to select (Default/White/Red/Green/Blue/Yellow/Magenta/Cyan).
BG COLOR: Adjust the digital Closed Captioning background color.
Press the button to select (Default/Black/Red/Green/Blue/Yellow/Magenta/Cyan).
FG OPACITY: Adjust the transparency of the digital Closed Captioning
font.
Press button to select (Default/Solid/Flashing/Translucent/Transparency).
BG OPACITY: Adjust the digital Closed Captioning background transparency.
Press button to select (Default/Solid/Flashing/Translucent/Transparency).
DLC: Automatically adjust picture detail and brightness. Press the button
to select (Off/On).
Setup Wizard: Set the first time installation.
Overscan: Press the button to select (On/Off ).
It is only available to enter 1080i/720p/1080p in DTV/Component/HDMI. Default
is On.
It is flxed set to be On in ATV/AV. It is flxed set to be Off in PC.
HDMI CEC: Press the button to highlight CEC, then press the ENTER/►button
to enter.
Restore Default: Change power on options or reset the TV to factory
default. Press ENTER/►button to enter.
OSD TIME OUT: Adjust the duration of the OSD (on-screen display) menu.
Press the button to select (5 Sec.1, 5 Sec., 30 Sec., 45 Sec., 60 Sec.)
Auto sleep: Adjust the time for automatic standby without signal display.
Select the ON mode: When there is no signal input, the TV will
automatically enter the standby state after about 15 minutes.
Select Off mode: The TV will not automatically stand by when there is no
signal input.
LOCK MENU
Press MENU to enter the main menu, and press the button to select. Press ENTER
/►to enter.
Press MENU again to exit or back to the parent menu.
Press \ the button to select among
Set Password/System Lock/Input Block/US/Canada/RRT Setting/
Reset RRT/ Clear LOCK.
Press ENTER / to enter. Press the button to adjust.
Press MENU again or back to the parent menu.
Enter your 4-digital password. The default password is 0000, if you forgot
your password, please call the
service center.
Set Password
Enter a new 4-digital password then re-enter it to confirm. Press the ►button
to enter.
SYSTEM LOCK
Lock or unlock the buttons on the TV. Press the button to select (Off/On).
INPUT BLOCK
Block or unblock the input sources. Press► the button to enter. Press the
button to select (Unblock/Block).
US RATING: Restrict movie and TV programs by US
Ratings. Only available when “System Lock” is “ON”.
Press ►the button to enter.
CANADA RATING: Restrict movie and TV programs by Canadian Ratings. Only
available when “System Lock” is “ON”. Press ►the button to enter.
RRT SETTING: Display an advanced V-Chip rating table for digital
channels.
The item is available only When the current stream has downloadable rating
data.
RESET RRT: Reset the RRT to default. The item is available only when the
current stream has downloadable rating data
US RATING: For the United States, the rating setting basically includes
the following options: TV, MPAA.
TV: The TV rating composes of two aspects: age-based and content-based.
| Age | Define |
|---|---|
| TV-Y | General Audience |
| TV-Y7 | Parental Guidance Suggested |
| TV-G | Parents Strongly Cautioned |
| TV-PG | Restricted |
| TV-14 | No one 17 and under admitted |
| TV-MA | Adult Audience Only |
Note: The content ratings will increase depending on the level of the
age-based rating.
For example, a program with a TV-PG V (violence) rating may contain moderate
violence, while a TV-14 V (violence) rating may contain intense violence. So
locking a higher level option will automatically cause locking of the options
that have a more sensitive level.
CHANNEL MENU
Press MENU to enter the main menu, press the button to select.
Press ENTER /► to enter. Press MENU again to exit or back to the parent menu.
Press button to select among Air/Cable/Auto Scan/Favorite/Channel
List/Show/Hide/ Channel Number / Channel Label. Press ENTER /► to enter. Press
the button to adjust. Press MENU again or back to the parent menu. AIR/CABLE
Select signal type. Press the button to select (Air/Cable).
AUTO SCAN
Automatically search for channels. Press ENTER /► button to enter.
FAVORITES
Add channels to create a favorite list. Press ► button to enter.
CHANNEL
LIST Display your program list. Press ► button to enter.
SHOW/HIDE
Show or hide the channels in your program list. Press ► button to enter.
CHANNEL NUMBER
Show the channel number. Press button to adjust.
CHANNEL LABEL
Create labels for channels, up to 7 characters. Press button to adjust.
PC MENU
ress SOURCE to select PC source.
Press MENU to enter the main menu, Press the button to select the Setup menu.
Press to select Advanced.
Press \ button to select among H-Pos /V-Pos / Clock / Phase / Auto.
Press ENTER /► to enter. Press button to adjust.
Press MENU again or back to the parent menu. H-POS
Adjust the horizontal position of the picture. Press the button to adjust.
V-POS
Adjust the vertical position of the picture. Press the button to adjust.
CLOCK
Adjust the vertical position of the picture. Press the button to adjust.
PHASE
Adjust the horizontal Interfering lines. Press the button to adjust.
AUTO
Adjust the screen automatically to the optimal position of the picture. Press ► button to enter.
“Notes:- Cobra, Tint, Sharpness, Noise Reduction, Dynamic Contrast, and HDMI Mode in PICTURE are invalid.
- MTS and Audio Language in the SOUND menu are invalid.
- Auto Clock in the Time menu is invalid.
- The closed Caption in the SETUP menu is invalid.
- US Rating, Canada Rating, RRT Setting, and Reset RRT in the LOCK menu are invalid.
- PC mode has no CHANNEL menu.
DVD OPERATION
BASIC OPERATION
-
Press the Power button on the TV or the remote control, then press the INPUT button to select DVD mode.
-
If there is no disc in the DVD player the screen will show “NO DISC”.
-
Insert Disc according to the picture next to the disc slot.
-
Do not touch the playing surface.
-
Hold the disc around the outside with your fingers and place the disc into the slot.
The player will automatically draw the disc into the player. -
To “Eject” the disc, press the EJECT button on the TV or the “ ” button on the remote control.
DVD SETUP MODE
- Setup Mode provides the menu for the configuration of the General Setup Page, Audio Setup Page, Dolby Digital, Setup, and Preference Page.
- Item selection in the Setup Menu is done by using the Navigation Arrows, SETUP button, and the OK button.
- Press the SETUP button first, enter it into the SETUP menu, then press the DIRECTION RIGHT button, you can enter it into the next Sub-menu.
- Press the SETUP button again to exit the Setup Menu.
GENERAL SET UP
TV DISPLAY
-
4:3 Pan Scan: This is selected when the DVD player is connected to a normal TV.
Wide-screen images are shown on the screen, but with some parts out automatically. -
4:3 Letter Box: This is selected when the player is connected to a normal TV.
Wide-screen images are shown on the screen, with a black belts on the top and bottom. -
Wide: This is selected when the player is connected to a wide-screen TV.
OSD
LANGUAGE
This is used to select the OSD language.
SCREEN SAVER
Start the screen saver, the screen saver image will appear when the player
stops or the picture is frozen for a few minutes. This saver can keep the
screen from being damaged.
- ON (Start the screen saver)
- OFF (Remove the screen saver).
LAST MEMORY
Can set the items on the last memory, “ON” and “OFF” options.
Select “ON” the shutdown will shutdown the machine before the settings for
memory, and re-boot the machine settings. Set near the same time.
Select “OFF” every time the machine automatically switches back to the default
settings
- On (Start the memory)
- Off(Remove the memory).
AUDIO SETUP
- SPEAKER SETUP: In the “Audio Setup page” press ” ” button to select the “Speaker Setup” item, and press the “OK ENTER” or ” ►” button (play) into the “Speaker Setup Page”.
DOWNMIX
- LT/RT: A disc recorded multi-channel soundtrack. The output signal will be incorporated to the left and right channel
- STEREO: A disc recorded multi-channel soundtrack. The output signal will be incorporated into stereo.
PREFERENCE SETUP You must press STOP twice to enter the Preference Page
or NO disc
TV TYPE
- PAL: This is selected when the player is connected to a PAL System TV.
- MULTI: The player will set the TV system according to the disc in the tray.
- NTSC: This is selected when the player is connected to an NTSC System TV.
AUDIO: If the language listed below is recorded on the disc, you can play
the sound in such language.
If not, the language recorded will be used.
SUBTITLE: If a language listed below is
recorded on the disc, you set the subtitle to be displayed in such language.
If not, the language recorded will be used.
DISC MENU: If the language listed below is
recorded on the disc, you can set the Menu to be displayed in such language.
If not, the language recorded will be used.
PLTLD19 – PLTLD22 – PLTLD24 SPECIFICATION
| Display technology | LED Display (Pixel Class 1) |
|---|---|
| Screen size, visible | 18.5 inch |
| Screen format | 16:09 |
| Resolution | 1366*768 |
| Contrast ratio | 3000:1 |
| Minimum brightness | 200cd/m2 |
| Display colors | 16.7M colors |
| Minimum viewing angle | 178°H,178°V |
| Response time | 14ms |
| Picture repetition rate | 50/60Hz |
| Video Color systems | NTSC |
| TV Functions | TV Standard |
| CATV(optional) | CABLE(CH1—CH135)/AIR(CH2—CH69) |
| CC | 608CC |
| Connections | DC 12 Volt input |
| USB | Only for the use of upgrade |
| DVD | 1 |
| HDMI | 1 |
| PC AUDIO IN | 1 |
| VGA | 1 |
| AV-IN | 1 |
| COAXIAL OUTPUT | 1 |
| EARPHONE OUTPUT | 1 |
| AUDIO OUT | 1 |
| OSD language | English/French/Spanish |
| Audio output | 2×3 Watt |
| Power requirement | AC 100V-240V / DC 12V 3A / 24V 1.5A |
| Power consumption maximum | 36W |
| Peak luminance ratio in % | <75% |
| Power consumption in standby mode | 0.5W |
| Mercury content in mg I contain lead | 0,00 mg / Yes |
| VESA | 100 x100 mm |
California Prop 65 Warning
WARNING:
This product contains Ethylene Oxide which is known to the state of California
to cause cancer birth defects and other reproductive harm. Do not ingest.
For more Into going to:
www.P65warnings.ca.gov
PLTLD19 – PLTLD22 – P
www.PyleUSA.com
pyleusa.com
Questions? Comments?
We are here to help!
Phone: (1)718-535-1800
Email:support@pyleusa.com
Read User Manual Online (PDF format)
Read User Manual Online (PDF format) >>
