SDA 500 Active TV Outdoor Antenna for DVB-T and T-DAB User Manual
- June 16, 2024
- SDA
Table of Contents
SDA 500 Active TV Outdoor Antenna for DVB-T and T-DAB
IMPORTANT SAFETY INSTRUCTIONS
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED“DANGEROUS VOLTAGE“ WITHIN THE UNIT´S CABINET THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.
THE EXCLAMATIONPOINTWITHINANEQUILATERALTRIANGLE IS INTENDEDTOALERTTHEUSERTOTHE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE MANUAL ACCOMPANYING THE UNIT.
THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACEDTHE APPARATUS.
THE APLIANCE COUPLER IS USED AS THE DISCONNECT DEVICE, THE DISCONNECT DEVICE SHALL REMAIN READILY OPERABLE.
ALWAYS REMEMBER TO REMOVE THE PLUG FROM THE MAINS SOCKET BEFORE DISCONNECTING THE POWER LEAD FROM THE BACK OF THE UNIT.
DO NOT PLACE NAKED FLAME SOURCES, SUCH AS CANDLES, ON THE TOP.
WARNING :
TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE.
NEVER ATTEMPT TO OPEN THE CABINET. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
This symbol indicates
that this product incorporates double insulation between hazardous mains
voltage and user accessible parts. When servicing use only identical
replacement parts.
-
Read Instructions
All the safety and operating instructions should be read before the product is operated. -
Retain Instructions
The safety and operating instructions should be retained for future reference. -
Heed Warnings
All warnings on the product and in the operating instructions should be adhered to. -
Follow Instructions
All operating instructions should be followed. -
Cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth from cleaning. -
Attachments
Do not use attachments not recommended by the product manufacturer as they may cause hazards. -
Water and Moisture
Do not use this product near water for example, near a bathtub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like. -
Accessories
Do not place this product on an unstable stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer´s instructions, and should use a mounting accessory recommended by the manufacturer. -
Ventilation
Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer´s instructions have been adhered to. Do not cover the ventilation slots and opening by any objects, such as newspapers, tablecloths, curtains, etc. -
Power Sources
This product should be operated only from the type of power source indicated on the marking label. If you are tonsure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power or other sources, refer to the operating instructions. -
Grounding or Polarization
This product may be equipped with a polarized alternating current line plug (a plug having one blade wider than the other).
This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. -
Power Cord Protection
Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product. -
Outdoor Antenna Grounding
If an outside antenna or cable system is connected, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges.
Lightning For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning or power lines surges. -
Power Lines
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. -
Object and Liquid Entry
Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind to the product. -
Servicing
Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. -
Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:
A ) When the power-supply cord or plug is damaged.
B ) If liquid has been spilled, or objects have fallen into the product.
C ) If the product has been exposed to rain or water.
D ) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment or other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
E ) If the product has been dropped or damaged in any way.
F ) When the product exhibits a distinct change in performance this indicates a need for service. -
Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling only as recommended by the manufacturer. -
Heat
The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
INSTALLATION MANUAL
Excellent reception for digital terrestrial signals: TV (DVB-T/T2) & radio
[T-DAB] programs.
Built-in amplifier for best UHF and VHF signals reception, critical for
digital television.
360° orientation for both horizontal and vertical reception.
Scientifically designed fiat panel array improves reception for digital and
analog signals.
Can be wall mounted, mast mounted or railing mounted (balcony).
Weather resistant: waterproof, UV resistant.
Outdoor easy mounting kit included for installation.
Reception frequency:
VHF: Band 111 174-230 MHz (T-DAB & DVB-T)
UHF: Band IV & V 470-790 MHz (DVB-T /T2)
Output level: MAX 100 dB/μV
Impedance: 75 0
Input Voltage: AC220-240 V
Working Voltage: DC5,0V/0,55A/2,75W
Connector: F-connector
Gain:
VHF: max. 30 dB
UHF: max. 25 dB
Note:
- Do not use while thunderstorm and turn off the power.
- If you do not use the device or you are not using it for a long time, turn off the device and unplug from power outlet.
- If reception is not sufficient enough using this device, relocate the antenna to suitable place.
ANTENNA INSTALLATION
A. Adjustment to the Mast
Place U-bolt through the mast, adjust the antenna bracket and fasten screws.
Tie approx. 1 meter of the signal wire looses to the fixing pole at approx.
0.5 m below the antenna to allow the antenna to rotate.
B. Wall Mounting
Drill holes in the wall according to the holes position on the antenna bracket, hammer plastic anchors into the holes, attach bracket to the wall and secure with screws.
C. Railing Mounting (Balcony)
Install the antenna bracket to the railing using the U-bolt, adjust the rotation base to the bracket, clip the signal cable and fix the antenna onto the rotation base after adjusting to the right direction.
Fixing the waterproof cap
-
Connect the signal cable to the signal output jack of the antenna and secure cable.
-
Fix the waterproof cap covering the connections to avoid water filtration.

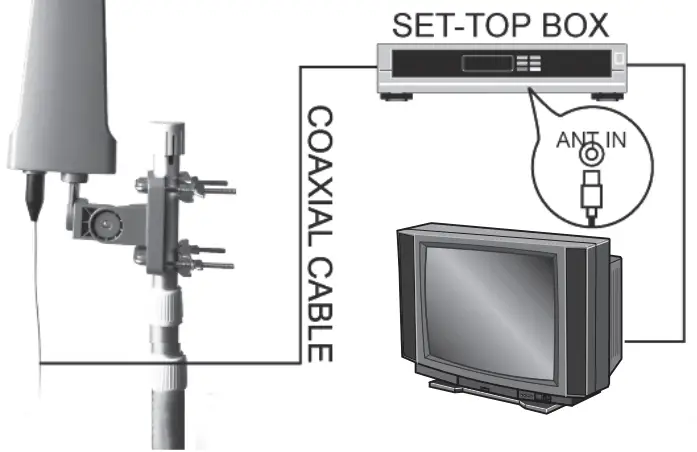

Connection and Usage
-
Connect the signal cable from the antenna to the signal input jack of the power supply, connect the power supply output jack to the digital receiver, plug the power adaptor with the power supply and connect to power socket, and finally join the TV and the digital receiver.
-
Connect the signal cable from the antenna to the signal input jack of the power supply, connect the power supply output jack to the TV, plug the power adaptor with the power supply and connect to power socket.
-
Connect the signal cable from the antenna to the signal input jack of the power supply, connect the power supply output jack to the TV, plug the power adaptor with the power supply and connect to power socket.
Adjustment on Receiving Directions
Adjust the antenna position according to the broadcast of horizontal or
vertical signals.
INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING
MATERIALS
Dispose of packaging material at a public waste disposal site.
DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES
The meaning of the symbol on the product, its accessory or packaging indicates
that this product shall not be treated
as household waste. Please, dispose of this product at your applicable
collection point for the recycling of electrical
& electronic equipment waste. Alternatively in some states of the European
Union or other European states you may
return your products to your local retailer when buying an equivalent new
product. The correct disposal of this product
will help save valuable natural resources and help in preventing the potential
negative impact on the environment and human health, which could be caused as
a result of improper liquidation of waste. Please ask your local authorities
or the nearest waste collection centre for further details. The improper
disposal of this type of waste may fall subject to national regulations for
fines.
For business entities in the European Union
If you wish to dispose of an electrical or electronic device, request the
necessary information from your seller or supplier.
Disposal in other countries outside the European Union
If you wish to dispose of this product, request the necessary information
about the correct disposal method from local
government departments or from your seller.
This appliance complies with EU rules and regulations regarding electromagnetic and electrical safety
Changes to the text, design and technical specifications may occur without
prior notice and we reserve the right to make these
changes.
