LIEBHERR IXRF5125 Plus Integrated American Fridge Freezer User Guide

Quality, Design and Innovation
User Guide

IXRF5125 Plus Integrated American Fridge Freezer

home.liebherr.com/fridge-manuals

The manufacturer is constantly working to improve all types and models. Therefore, please be aware that we reserve the right to make changes to the shape, equipment and tech‐ nology.

Please read the information in these instruc‐ tions carefully to understand all of the benefits of your new appliance.
| Full instructions on the internet
You can find detailed instructions on the internet using the QR code on the front of these instruction or by entering the service number at home.liebherr.com/fridgemanuals.
The service number can be found on the serial tag:
| Check appliance
Check all parts for transport damage. If you have any complaints, please contact your agent or customer service.
| Differences
These instructions apply to a range of models, so there may be differences. Sections that apply to certain models only are indicated by an asterisk (*).
| Instructions and results
Instructions are marked with .
Results are marked with .
| Videos
Videos about the appliances are available on the YouTube channel of Liebherr- Hausgeräte.

These operating instructions apply to:

Note
If your appliance has an N in its appliance designation, it is a NoFrost appliance.*

The appliance at a glance

1.1 Delivered contents
Check all parts for damage during transport. If you have any complaints, please contact the dealer or Customer Service (see 9.4 Customer service) .
Delivery contains the following parts:
– Integrated appliance
– Equipment (depending on your model)
– Installation parts (depending on your model)
– “Quick Start Guide”
– “Installation Guide”*
– Service brochure
1.2 Appliance and equipment overview

1. Operating and control elements
2. Drawers
3. VarioSpace
4. Serial tag
5. Soft-close mechanism
6. Adjustable feet

Note
The shelves, drawers, and baskets are arranged for optimal energy efficiency in the factory configuration. However, changes to the arrangement within the given insertion options – for example the arrangement of shelves in the fridge compartment – have no effect on energy consumption.
1.3 SmartDevice
SmartDevice is the networking solution for your freezer.
If your appliance is SmartDevice-enabled or compatible, you can quickly and easily connect your appliance to your WiFi. With the SmartDevice app, you can operate your appliance from a mobile device. Additional functions and setting options are available in the SmartDevice app.
SmartDevicecompatible appli‐ ance: Your appliance is compatible for use with the SmartDeviceBox. You must first purchase and install the Smart‐ DeviceBox. In order to connect your appliance to the WiFi, you need to download the SmartDevice app.
More information about SmartDe‐ vice: smartdevice.liebherr.com Purchase the
SmartDeviceBox in the LiebherrHausgeräte store: home.liebherr.com/shop/de/deu/smartdevicebox.html
Downloading SmartDevice-app: After installing and configuring the SmartDevice app, you can connect your appliance to the WiFi using the SmartDevice app and the WiFi appli‐ ance function (see WiFi) . https://go.liebherr.com/4f27x2
Note
You cannot use the SmartDeviceBox in the following coun‐ tries: Russia, Belarus, Kazakhstan. The SmartDevice func‐ tion is not available.
1.4 Range of appliance use
Normal use
The appliance is only suitable for cooling food for residential or other similar environments.
This includes the following types of uses
– in staff kitchens, bed and breakfasts,
– by guests in country homes, hotels, motels and other types of accommodations,
– for catering and similar wholesale services.
All other types of uses are not permitted.
Foreseeable misuse
The following uses are specifically prohibited:
– Storage and cooling of medication, blood plasma, laboratory preparations or similar substances and products in accordance with the Medical Device Directive 2007/47/EC
– Use in areas at risk of explosion
Incorrect appliance use can cause damage to the stored products or cause them to spoil.
Climate ratings
The appliance is set to operate within specific ambient temperature limits according to its climate rating The climate rating for your appliance is printed on the rating plate
Note
To guarantee trouble-free operation, comply with the indicated ambient temper‐ atures.

1.5 Conformity
The refrigerant circuit has been tested for leaks. When installed, the appliance complies with the applicable safety regulations and with the corresponding directives. The full text of the EU Declaration of Conformity is available on the following website: www.Liebherr.com
1.6 EPREL Database
Details about energy labeling and ecodesign requirements will be available on the European product database (EPREL) from March 1, 2021. You can access the product database at the following link: https://eprel.ec.europa.eu/ You will be asked to enter the model ID. You can find the model ID on the type plate.

General safety instructions

Please keep these operating instructions in a safe place so you can refer back to them at any time.
If you pass the appliance on, please hand these operating instructions to the new owner.
Read these operating instructions before use in order to use the appliance safely and correctly. Follow the instructions, safety instructions and warning messages included at all times. They are important for ensuring you can operate and install the appliance
safely and without any problems.
Dangers for the user:
– This appliance can be operated by children as well as by persons with reduced phys‐ ical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed in the safe use of the appliance and understand the associated risks. Children must not play with the appliance. Cleaning and user maintenance must not be performed by children unless they are supervised. Chil‐ dren between the ages of 3 and 8 may load and unload the appliance. Children under the age of 3 must be kept away from the appliance if they are not constantly super‐ vised.
– The socket must be easily accessible so that the appliance can be disconnected quickly from the electricity in an emer‐ gency. It must not be located in the area behind the appliance.
– When disconnecting the appliance from the outlet, always take hold of the plug. Do not pull on the cable.
– Disconnect the power plug or switch off the power if a fault occurs.
– Do not damage the mains power line. Do not operate the appliance from a defective mains power line.
– Repairs and work on the appliance may only be carried out by after sales service or other specifically trained qualified personnel.
– Only install, connect and dispose of the appliance in accordance with the instruc‐ tions.
– Only operate the appliance after it has been installed.
Risk of fire:
– The refrigerant contained within the appli‐ ance (specifications on the rating plate) is environmentally friendly, but flammable. Leaking refrigerant can ignite.

• Do not damage the pipes of the refrig‐ erant circuit.
• Do not handle ignition sources inside the appliance.
• Do not use electrical devices inside the appliance (e.g. steam cleaners, heaters, ice cream makers, etc.).
• If refrigerant leaks: Remove naked flames or ignition sources located near the area of the leak. Air the room well. Contact the customer service department.

– Do not store explosive materials or spray cans with flammable propellants, such as e.g. butane, propane, pentane, etc. in the appliance. You can recognize such spray cans by the printed contents or a flame symbol. Any leaking gasses can be ignited by electrical components.
– Keep lit candles, lamps and other objects with naked flames away from the appliance so they do not cause a fire.
– Alcoholic beverages or other containers holding alcohol must always be tightly sealed for storage purposes. Any leaking alcohol can be ignited by electrical compo‐ nents
Tipover hazard:
– Do not stand or climb on the base, drawers, doors, etc. This applies in particular to chil‐ dren.
Risk of food poisoning:
– Do not consume food that has passed its best before date.
Danger of frostbite, feelings of numbness and pain:
– Avoid prolonged skin contact with cold surfaces or chilled/frozen food or take protective measures, e.g. wear gloves.
Risk of injury and damage:
– Hot steam may lead to injuries. Do not use any electrical heating or steam cleaning equipment, naked flames or defrosting sprays for defrosting
– Do not remove ice with sharp objects
Risk of crushing:
– Do not reach into the hinge when opening and closing the door. Fingers may get trapped.
Symbols on the device:
The symbol can be on the compressor. It refers to the oil in the compressor and refers to the following danger: Can be lethal if swallowed or inhaled. This notice only applies for recycling. There is no danger during normal operation.
The symbol is located on the compressor and indicates the danger of inflammable materials. Do not remove the label.
This label or a similar one can be located on the rear of the appliance. It refers to the foamed-in panels in the door and/or the housing. This notice only applies for recy‐ cling. Do not remove the label.
Observe the warning messages and other detailed information in the other sections:

| DANGER| indicates a hazardous situation, which if not avoided, will result in death or serious injury.
---|---|---
| WARNING| indicates a hazardous situation, which if not avoided, could result in death or serious injury.
| CAUTION| indicates a hazardous situation, which if not avoided, will result in minor or moderate injury.
| NOTICE| indicates a hazardous situation, which if not avoided, could result in damage to property.
| Note| indicates useful advice and tips.

Start-up

3.1 Turning on the appliance
Make sure that the following requirements are met:

• Appliance is installed and connected according to instal‐ lation instructions.
• All adhesive strips, adhesive and protective films, as well as transport safety devices in and on the appliance are removed.
• All advertising material has been removed from the drawers.

Switch on the appliance using the control panel next to the display.
The status display appears.
The appliance starts in DemoMode:
If the appliance starts in DemoMode, you can deactivate DemoMode within the next 5 minutes. Press Confirm next to the display for 3 seconds.
DemoMode is deactivated.
Note
The manufacturer recommends:
Store frozen foods at -18 °C or colder.
3.2 Insert the equipment
Insert the supplied equipment to help you make the most of the appliance.
Note
You can purchase accessories from the Liebherr household appliance store (home.liebherr.com).

Food management

4.1 Storing food
WARNING
Danger of fire
Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
Note
Insufficient ventilation results in an increase in energy consumption and reduction of the refrigerating performance
Always keep the air slots unobstructed.
When storing food, remember these basic rules:

• Do not obstruct the air vents on the back wall.
• Do not obstruct the air vents on the fan.
• Food is well sealed.
• Raw meat or fish is in clean, sealed containers so that other food cannot be touched or drip on them.
• Food is stored spaced apart to ensure good air circula‐ tion.

Note
Failure to follow these guidelines can lead to food perishing.
4.1.1 Freezer
This provides a dry, frosty storage climate at -18 °C. A frosty climate is suitable for storing frozen food and goods for several months, preparing ice cubes, or freezing fresh food.
Freezing food
You can freeze as many kilograms of fresh food within 24 hours as indicated on the nameplate (see 9.5 Rating plate) under “freezing capacity … kg/24h”.
To ensure that the food freezes quickly to the core, keep to the following quantities per pack:
– Fruit, vegetables up to 1 kg
– Meat up to 2.5 kg
Before freezing, please note the following:

• **Appliances without NoFrost:**
  SuperFrost is activated (see 6.3 Functions) when the amount of food to freeze exceeds approx. 1 kg.

• **Appliances with NoFrost:**
  SuperFrost is activated (see 6.3 Functions) when the amount of food to freeze exceeds approx. 2 kg.

• With a small amount of frozen goods: SuperFrost is acti‐ vated approx. 6 hours prior.

• With the maximum amount of frozen goods: SuperFrost is activated approx. 24 hours prior.

Arranging the food:
CAUTION
There is a risk of injury from pieces of broken glass!
Bottles and cans containing drinks can split or crack when frozen. This applies in particular to carbonated drinks.
The BottleTimer function must be used when freezing bottles and cans with drinks.
For appliances smaller than 122 cm:
With a small amount of frozen goods:
Distribute packaged groceries across all drawers.
If possible, place groceries at the back of the drawer near the rear wall.
With the maximum amount of frozen goods:
Distribute packaged groceries across all drawers.
  If possible, place groceries at the back of the drawer near the rear wall.
For appliances larger than or exactly 122 cm:
With a small amount of frozen goods:
Distribute packaged groceries across all drawers, but do not place any groceries in the top drawer.
With the maximum amount of frozen goods:
Distribute packaged groceries across all drawers.
If possible, place groceries at the back of the drawer near the rear wall.
For all appliances:
With the maximum amount of frozen goods:
Once SuperFrost deactivates automatically, place food into the drawer.
Defrosting food
– in the fridge compartment
– in the microwave
– in the oven/fan oven
– at room temperature
WARNING
Danger of food poisoning!
Do not re-freeze defrosted food.
Remove only the food you need for now.
Use defrosted food as quickly as possible Freezer tray*
Use the freezer tray for berries, herbs, vegetables and other small goods without them freezing together in the process.
The food keeps its shape and is easier to separate into portions later on.
Spread food, unsealed, at a good distance apart, over the whole surface of the freezer tray.
4.2 Storage times
The storage times given are guidelines
Food with a “use by” date must still be consumed by the date indicated on the package

Guidelines for storage periods for various foods

Ice cream| at -18 °C| 2 to 6 months
Sausage, ham| at -18 °C| 2 to 3 months
Bread, bakery prod- ucts| at -18 °C| 2 to 6 months
Game, pork| at -18 °C| 6 to 9 months
Fish, fatty| at -18 °C| 2 to 6 months
Fish, lean| at -18 °C| 6 to 8 months
Cheese| at -18 °C| 2 to 6 months
Poultry, beef| at -18 °C| 6 to 12 months
Vegetables, fruit| at -18 °C| 6 to 12 months

Energy saving

– Always ensure good ventilation. Do not obstruct ventila‐ tion openings or grilles.
– Never block air slits in the fan.
– Do not install the appliance in direct sunlight or next to a stove, heater or similar heat source.
– Energy consumption depends on installation conditions such as the ambient temperature (see 1.4 Range of appli‐ ance use) . A warmer ambient temperature can increase the energy consumption.
– Avoid opening the appliance door for any longer then necessary
– The lower the temperature is set the higher the energy consumption.
– All food stored in the appliance should be well wrapped and covered. This prevents frost buildup.
– Insertion of warm foods: first let the food cool down to room temperature.
– If there is a thick layer of frost in the appliance Defrost the appliance.*

Use

6.1 Controls and displays
The display provides a quick overview of the temperature setting and the status of functions and settings. You can control the functions and settings either by deactivating/ activating them or by selecting a value.
6.1.1 Status display

1. Temperature display

The Status display shows the set temperatures and is the home display. From there, you can navigate to the options and settings.
6.1.2 Navigation
Navigate in the menu to access the individual functions. An audible signal sounds after confirming a function or setting. If no selection is made after 10 seconds the display switches to the Status display.
The appliance is operated with the buttons next to the display.

1. Left/right navigation arrow
2. Confirm

Left/right navigation arrow Fig. 5 (1):
– Navigating in the menu. After the last menu page, it goes back to the first one.
Confirm Fig. 5 (2):
– Activating/deactivating a function.
– Opening a submenu.
– Confirming a selection. After confirmation the display switches back to the menu.
Back to the Status display: in the fastest possible manner:
– Close and open the door.
– or wait 10 seconds. The display changes to the Status display.

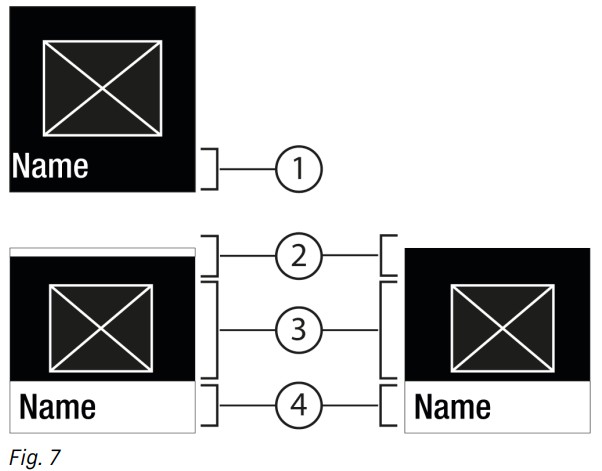

6.1.3 Operating structure
The controls are explained by a template. The display changes depending on the function or settings.
Menu without submenu

1. Status deactivated / status activated white bar in the top area
2. Symbol or selected value
3. Menu: Function name or menu: Setting name

1. Menu: Function name or menu: Setting name
2. Status
3. Off / On
4. Symbol or selected value
5. Submenu: Function name or submenu: Setting name

You can navigate as follows:
– Navigate with the left/right navigation arrow Fig. 5 (1).
– Press Confirm Fig. 5 (2) to go to the submenu Fig. 7 (4).

• Navigate with the left/right navigation arrow Fig. 5 (1).
• Set new level: Press Confirm Fig. 5 (2) to select a dese‐ lected value Fig. 6 (1).
• Back to menu: Press Confirm Fig. 5 (2) to select the selected value Fig. 6 (2).

6.1.4 Display symbols
The display symbols provide information about the current appliance status.

The appliance or temperature zone is turned off.
| Flashing number
Appliance is working. Temperature flashes, until the set value is reached.
| Flashing symbol
Appliance is working. Setting is made.
| Bar grows steadily
Function is activated.

6.2 Operating logic
6.2.1 Activating/deactivating settings
You can activate/deactivate the following functions:

x When function is on, the appliance works harder. This means appliance noise when operating may be louder for a short while, and more energy will be consumed.
Press the navigation arrows Fig. 5 (1) repeatedly until the function is displayed.
Press Confirm Fig. 5 (2).
You hear the confirmation tone.
Status appears in the menu.
Function is on/off.
6.2.2 Selecting function value
With the following functions you can set a value in the submenu:

Switch the appliance on/off

Press the navigation arrows Fig. 5 (1) repeatedly until the function is displayed.
Press Confirm Fig. 5 (2).
Select the setting value with the navigation arrows Fig. 5 (1).
Setting the temperature
Press Fig. 5 (2) confirm.
You hear the confirmation tone.
Status: on Fig. 6 (1) appears briefly in the submenu Fig. 7 (4).
Display switches back to the menu.
6.2.3 Activating/deactivating settings
You can activate/deactivate the following settings:

Press the navigation arrows Fig. 5 (1) repeatedly until the settings are displayed.
Press Confirm Fig. 5 (2).
Press the navigation arrows Fig. 5 (1) repeatedly until the desired setting is displayed.
1 Activate setting (short press)
Press Confirm Fig. 5 (2).
You hear the confirmation tone.
Status appears in the menu.
Setting is activated / deactivated.
2 Activate setting (long press)
Press Confirm Fig. 5 (2) for 3 seconds.
You hear the confirmation tone.
Status appears in the menu.
Display changes.
6.2.4 Selecting the setting value
With the following settings you can set a value in the submenu:

Press the navigation arrows Fig. 5 (1) repeatedly until the settings are displayed.
Press Confirm Fig. 5 (2).
Press the navigation arrows Fig. 5 (1) repeatedly until the desired setting is displayed.
Press Confirm Fig. 5 (2).
Select the setting value with the navigation arrows Fig. 5 (1).
Press Confirm Fig. 5 (2).
You hear the confirmation tone.
Status appears briefly in the submenu.
Display switches back to the menu.
6.2.5 Calling up the customer menu
The customer menu provides the following settings:

Press the navigation arrows Fig. 5 (1) repeatedly until the settings appear.
Press Confirm Fig. 5 (2).
Press the navigation arrows Fig. 5 (1) repeatedly until appliance information appears in the display.
Press Confirm Fig. 5 (2).
Enter the numerical code 151.
The customer menu appears.
Press the navigation arrows Fig. 5 (1) repeatedly until the desired setting appears.
1 Select the setting value
Press Confirm Fig. 5 (2).
You hear the confirmation tone.
Status appears briefly in the display.
The display switches back to the menu.
2 Activate setting
Press Confirm Fig. 5 (2) for 3 seconds.
You hear the confirmation tone.
Status appears in the display.
The symbol flashes as long as the appliance is working.

6.3 Functions
Turn off appliance
This setting turns off the whole appliance.
Switch off whole appliance Activating/deactivating (see 6.2 Operating logic) .
Off: Display turns black.
WiFi
Use this function to connect your appliance to the WiFi. You can then operate it via the SmartDevice app on a mobile device. You can also use this function to disconnect or reset the WiFi connection. To connect your appliance to the WiFi, you need the SmartDeviceBox. For more information about the SmartDeviceBoxand how to use the SmartDevice app: (see 1.3 SmartDevice)
Note
You cannot use the SmartDeviceBox in the following countries: Russia, Belarus, Kazakhstan. The SmartDevice function is not available.
Establishing a WiFi connection
Make sure that the following requirements are fulfilled:

• You have a SmartDeviceBox and it is switched on. (see 1.3 SmartDevice)
• You have installed the SmartDevice app (see apps.home.liebherr.com).

Activate the setting. (see 6.2 Operating logic)
Connection is established: Status: enabled Fig. 6 (1) and WiFi connecting appears. The symbol flashes.
Connection is established: Status: activated Fig. 6 (1) appears.
Connection failed: Status and Connect appears. The symbol is permanently visible.
Disconnecting from the WiFi
Deactivate the setting. (see 6.2 Operating logic) There is no connection: Symbol is permanently visible.
Resetting the WiFi connection
  Reset settings. (see 6.2 Operating logic)   The connection and other settings are reset to the factory settings.

Temperature
The temperature depends on the following factors:
– the number of times the door is opened
– The duration the door is opened
– the room temperature of the installation location
– the type, temperature and amount of food

Setting the temperature Set the value. (see 6.2 Operating logic) .
The set temperature is shown on the bottom right of the display.
SuperFrost
Select this function for the maximum freezing setting, to reach lower freezing temperatures.
Use:
– To freeze more than 2 kg fresh food a day.
– Freezing fresh food quickly to the core.
– Increasing the cold reserves in the stored goods before defrosting the appliance.
Activating/deactivating settings
With a small volume of frozen goods:
Activate 6 hours before use. With the maximum volume of frozen goods:
Activate 24 hours before use.
Activating/deactivating (see 6.2 Operating logic) .
The function automatically turns off. The appliance goes back to normal mode. The temperature adjusts itself to the set level.
PartyMode
This option offers an assortment of special functions and settings that are useful if you are having a party.
The following functions are activated:
– SuperFrost
You can set any functions you like. Your changes are lost when the option is switched off.
Activating/deactivating settings
  Activating/deactivating (see 6.2 Operating logic) .
On: All functions are activated at the same time.
  Deactivated: Previously set temperatures are restored.
The function is automatically switched off after 24 hours.
SabbathMode
With this function you can activate or deactivate the SabbathMode. If you activate this function, some electronic functions will be switched off. This allows your device to meet religious requirements on Jewish holidays such as the Sabbath and comply with STAR-K Kosher certification.
Appliance status with active SabbathMode
The status display continuously shows SabbathMode.
All functions in the display except the Deactivate SabbathMode function are locked.
Active functions remain active.
The display stays lit when you close the door.
Reminders are disabled. The set time intervals are paused.
Reminders and warnings are not displayed.
There is no door alarm.
There is no temperature alarm.
The defrost cycle only works for the specified time without
taking account of appliance use.
After a power failure, the appliance returns to
SabbathMode.
Appliance status
Note
This appliance has certification from the “Institute for Science and Halacha”. (www.machonhalacha.co.il) You can find a list of STAR-K-certified appliances at www.star-k.org/appliances.

Activating SabbathMode

WARNING
Danger of poisoning from spoiled food!
If you have SabbathMode activated and a power failure occurs, no message appears in the status display about the power failure. Once the power is restored, the appliance continues to operate in SabbathMode. The power failure may mean that food spoils and the consumption of this food could lead to food poisoning.
After a power failure:
Do not consume food that has been frozen and thawed.
Call up the settings menu. (see 6.2 Operating logic)
Tap the navigation arrow repeatedly until the corresponding function is displayed. Complete the steps (see Fig. 664) .
SabbathMode is activated.
  Status display continuously shows SabbathMode.
Deactivating SabbathMode
Call up the settings menu. (see 6.2 Operating logic)
Tap the navigation arrow repeatedly until the corresponding function is displayed.
Complete the steps (see Fig. 665) .
SabbathMode is deactivated.
E-Saver
This function reduces energy consumption. If you activate this function, the cooling temperature increases.

Temperature zone| Recommended setting (see Temperature)| Temperature when E-Saver activated
---|---|---
| -18 °C| -16 °C

Use:
– Save energy.
Activating/deactivating settings
Activating/deactivating (see 6.2 Operating logic) .
Activated: Higher temperatures are set in all temperature zones.
Deactivated: Previously set temperatures are restored.
Display brightness
With this setting, you can choose a brightness level for the display.
You can set the following brightness levels:
– 40%
– 60%
– 80%
– 100%
Choosing the setting
Set the level (see 6.2 Operating logic) .
Door alarm
Set the time before the door alarm (see Close the door) sounds.
Options are as follows:
– 1 min
– 2 min
– 3 min
– Off
Choosing the setting
Set the level (see 6.4 Error messages) .
Entry lock
This setting avoids accidental operation of the appliance, e.g. by children.
Use:
– Avoid unintentional changing of settings and functions.
– Avoid unintentional switching off of the appliance.
– Avoid unintentional temperature adjustments.
Activating/deactivating settings
Activating/deactivating (see 6.2 Operating logic) . Info
This setting allows the appliance information to be read out as well as access to the customer menu.
It provides the following information:
– Model name
– Index
– Serial number
– Service number
View appliance data
  Press the navigation arrows Fig. 5 (1) repeatedly until the settings are displayed.
Press Confirm Fig. 5 (2).
Press the navigation arrows Fig. 5 (1) repeatedly until the information display appears.
Read the appliance data.

Reset
This function resets all settings to the factory settings. All settings that you have made thus far will be reset to their original values.
Activate the setting
Activating (see 6.2 Operating logic) .
6.4 Error messages
Error messages appear in the display. There are two categories of error message:

eliminate the message.
Warning| Appears when there are malfunctions. A signal sounds in addition to the display. The signal becomes louder until you acknowledge by
tapping the display. You can eliminate simple defects yourself. For more serious defects, you must contact customer service.

6.4.1 Warnings
Close the door
This message appears if the door is open too long.
You can set the time before this message appears .
Stop alarm: Confirm the message.
-or
Close the door.

Equipment

Power failure.
This message appears if the freezer temperature rises after a power outage. When the power outage is over, the appliance will continue to operate at the last temperature setting.
Stop alarm: Confirm the message.
Temperature alarm appears (see Temperature alarm) .
Temperature alarm
This message appears if the temperature does not match the set temperature.
Temperature differences may be caused by:
– Hot fresh food was placed in the appliance.
– When sorting and removing food from the appliance, too much warm ambient air got in.
– There has been a prolonged power outage.
– The appliance is faulty.
When the cause is eliminated, the appliance will continue to operate at the last temperature setting.
Confirm the display.
w Warmest temperature is displayed.
Confirm the display again.
The status display is displayed.
Current temperature is displayed.
Error
This message appears when there is a fault with the appliance. An appliance component has an error.
Open the door.
  Take note of the error code.
Confirm the message.
w The signal tone stops.
w The status display appears.
Close the door.
Contact customer service. (see 9.4 Customer service)
6.4.2 DemoMode
If “D” appears in the display, demo mode is on. This feature is designed for retailers. The cooling features are disabled.
Switching off DemoMode
When you see a time counting down:
Confirm within the countdown.
  DemoMode is off.
If there is no countdown:
Disconnect the power plug.
Reconnect the power plug.
  DemoMode is off.
7.1 Drawers
You can remove the drawers for cleaning.
You can remove the drawers to use VarioSpace.
The way to remove/insert the drawers varies depending on the pull-out system. Your appliance can contain a variety of pull-out systems.
**For appliances with NoFrost:*
Note
Insufficient ventilation results in an increase in energy consumption and reduction of the refrigerating perform‐ ance.
Leave the bottom drawer in appliance!
Never obstruct the vents on the interior rear wall!
For appliances without NoFrost:
Note
Insufficient ventilation results in an increase in energy consumption and reduction of the refrigerating perform‐ ance.
Never obstruct the vents on the interior rear wall!
7.1.1 Drawer on appliance base or glass shelf
The drawer runs directly on the appliance base or on a glass shelf. There are no rails.
When you remove the drawers, you can use the glass shelves below them as storage shelves.
Removing drawer Remove drawer as shown in the diagram.
Inserting drawer Insert drawer as shown in the diagram.
7.1.2 Top tilting drawer
When you pull out the top drawer, it tilts forward. This gives you a better view into the drawer. The function depends on the height of the appliance.
When you remove the upper tilting drawer, you can use the glass shelf below it as a storage shelf.
Removing drawer Pull out drawer as far as it will go.
Lift drawer at the front and simultaneously push up at the back from below.
Remove drawer to the front.
Inserting drawer Place on the drawer as shown in the diagram.
The drawer rests on the glass panel.
Lift drawer slightly from below at the back and slide over the lip.
Slide in drawer to the back.
7.1.3 Drawer on molded rib
The drawer runs directly on the molded rib. There are no rails.
Removing drawer Pull out drawer as far as it will go.
Lift drawer at the front. Fig. 19 (1)
Remove drawer to the front. Fig. 19 (2)
Inserting drawer Place drawer at an angle behind the stoppers on the molded rib. (see Fig. 671)
Lower drawer.
Slide in drawer to the back.
7.2 Glass shelves
You can remove the glass shelf under the drawers for cleaning.
You can remove the glass shelf under the drawers to use VarioSpace.
7.2.1 Removing / inserting the glass shelf under the tilting drawer
The glass shelf is located under the top tilting drawer.
Make sure that the following requirements are fulfilled:
Drawer has been removed. (see 7.1.2 Top tilting drawer)
Removing glass shelf   Press the glass shelf upwards from below on both sides.  (see Fig. 672)
  Remove the glass shelf to the front.
Inserting glass shelf Position glass shelf at an angle behind the stoppers. (see Fig. 673)
Lower glass shelf.
Slide in glass shelf to the back.
Glass shelf clicks into place.
7.2.2 Removing / inserting the glass shelf
Depending on the equipment, the glass shelf may be
located under the drawer.
Make sure that the following requirements are fulfilled:
Glass shelf under the drawer: Drawer has been removed.
(see 7.1 Drawers)
Removing glass shelf** Lift glass shelf at the front. Fig. 23 (1)
Remove glass shelf to the front. Fig. 23 (2)

Inserting the glass shelf Position glass shelf at an angle behind the stoppers. (see Fig. 675)
Lower glass shelf.
Slide in glass shelf to the back.
7.3 VarioSpace![LIEBHERR IXRF5125 Plus Integrated American Fridge Freezer

• fig 19](https://manuals.plus/wp-content/uploads/2023/09/LIEBHERR-IXRF5125 -Plus-Integrated-American-Fridge-Freezer-fig-19.jpg) You can remove drawers and glass panels from your appliance. This provides more room for large food items such as poultry, joints of meat, large game and bulky baked goods. You can then freeze these items whole for later preparation.
  Note the load limits on the drawers and glass panels (see 9.1 Technical specifications) .

Maintenance

8.1 Disassembling / assembling pullout systems
8.1.1 Notes on disassembly

You can disassemble some of the pull-out systems for cleaning. Your appliance can contain a variety of pull-out systems.
The following pull-out systems can be disassembled or cannot be disassembled:

8.1.2 Top tilting drawer
Disassembling pull-out system
Make sure that the following requirements are fulfilled:

• Drawer has been removed. (see 7.1.2 Top tilting drawer)
• Glass shelf has been removed. (see 7.2 Glass shelves)

Remove side part from glass shelf sideways.
Installing pull-out system Place on side part at the back.
Press side part onto glass shelf at the front.
8.1.3 Drawer on molded rib
Disassembling pull-out system
Make sure that the following requirements are fulfilled:
Drawer has been removed. (see 7.1.3 Drawer on molded rib) Grab attachment at the back from below.
Pull off attachment at the back sideways. Fig. 28 (1)
Pull off attachment at the front sideways. Fig. 28 (2)
Installing pull-out system There are two different attachments in the appliance. The attachment above the lowest drawer Fig. 29 (2) has a threecornered edge. All other attachments Fig. 29 (1) have a straight edge.
Fit attachment Fig. 29 (2) with the three-cornered edge above the lowest drawer.
Fit attachment Fig. 29 (1) with straight edge in all other positions. Position attachment on molded rib at the front. Fig. 30 (1)
Press on attachment at the back. Fig. 30 (2)
8.2 Defrosting the appliance
WARNING
Appliance incorrectly defrosted!
Injuries and damage.
Do not use mechanical devices or other means to accel‐ erate the defrosting process, other than those recom‐ mended by the manufacturer.
Do not use any electrical heating or steam cleaning equipment, naked flames or defrosting sprays.
Do not remove ice with sharp objects.
8.2.1 Defrosting with NoFrost
Defrosting is performed automatically by the NoFrost system. The moisture condenses on the evaporator and is periodically defrosted and evaporated.
The appliance does not have to be defrosted.
8.2.2 Defrosting the freezer compartment manually*
8.2.2 Manual defrosting
A layer of frost or ice forms after longer periods of opera‐ tion.
The following factors may accelerate frost or ice formation:
– The appliance is opened frequently.
– Hot food is placed in the appliance.
One day before defrosting:
Activate SuperFrost (see 6.3 Functions) .
“Cold storage accumulators” are applied to the frozen produce.
Switch off the appliance .
Disconnect the power plug or fuse.
Wrap the frozen food in newspaper or blankets and store in a cold place.
Put a pot with hot (but not boiling) water on a middle shelf of the compartment.
-or
Fill the bottom two drawers halffull with lukewarm water and place them inside the appliance.
This speeds up defrosting.
Water from the defrosting process will collect in the drawers.
Leave the appliance door open during the defrosting process.
Remove pieces of ice that come loose.
Make sure that the defrosted water does not run into the surrounding furnishings.
If necessary, soak up the water with a sponge or a cloth several times.
Clean the appliance (see 8.3 Cleaning the appliance) .
8.3 Cleaning the appliance
8.3.1 Preparation
WARNING
Danger of electric shock.
Unplug refrigerator or disconnect power.
WARNING
Danger of fire
Do not damage the refrigerant circuit.
Empty appliance.
Pull out the power plug.
8.3.2 Cleaning the interior
NOTICE
Improper cleaning!
Damage to the appliance.
Only use soft cleaning cloths and ph-neutral all-purpose cleaners.
Do not use steel wool or sponges that scour or scratch.
Do not use caustic or abrasive cleaning materials or those containing sand, chloride, or acids.
Plastic surfaces: clean by hand with a soft clean cloth, lukewarm water and a little detergent.
Metal surfaces: clean by hand with a soft clean cloth, lukewarm water and a little detergent.
Drain hole: remove any deposits with a thin item such as a cotton bud.
8.3.3 Cleaning the equipment
NOTICE*
Improper cleaning!
Damage to the appliance.
Only use soft cleaning cloths and ph-neutral all-purpose cleaners.
Do not use steel wool or sponges that scour or scratch.
Do not use caustic or abrasive cleaning materials or those containing sand, chloride, or acids.
Clean with a soft, clean cloth, lukewarm water and a little washing up liquid:
– Drawer
– Freezer tray
Clean in the dishwasher up to 60 °C:*
– Ice cube tray
Disassemble the equipment: see the relevant section.
Clean the equipment.
8.3.4 After cleaning
Wipe dry the appliance and items of equipment
Connect and switch on the appliance.
Activate SuperFrost (see 6.3 Functions) . When the temperature is sufficiently cold
Place the food inside.
Customer support
Repeat cleaning regularly.

Customer support

9.1 Technical specifications

Temperature zone

Freezing| -28 °C to -15 °C
Maximum freezing capacity / 24 hrs

Freezer| See  nameplate,  “Freezing  capacity … /24h”
Max. equipment capacity

Equipment| Appliance width 550 mm (see instal‐ lation instruc‐ tions, appliance dimen‐ sions)| Appliance width 600 mm (see installa‐ tion instruc‐ tions, appliance dimen‐ sions)| Appliance width 700 mm (see instal‐ lation instruc‐ tions, appli‐ ance dimen‐ sions)
Drawer on glass shelf (see 7.1.1 Drawer on appliance base or glass shelf)| 12 kg| 15 kg| —
Drawer on molded rib (see 7.1.3 Drawer on molded rib)| 14 kg| 19 kg| 19 kg

9.2 Operating noises
The appliance makes noises while in operation.
– At less cooling output the appliance saves energy but takes longer to cool items. The volume is lower.
– At a higher cooling output the food cools more quickly. The volume is higher.
Examples:

• Activated functions (see 6.3 Functions)
• Running fan
• Freshly sorted food
• High ambient temperature
• Door opened for long periods

noise
Spitting hissing and| Coolant is spraying into the cooling circuit.| Normal noise
Humming| The appliance cools. The volume depends on the cooling output.| Normal noise
Sipping noises| The self-closing door is being opened and closed.| Normal noise
Whirring murmuring and| The fan is running.| Normal noise operating
Clicking| Components are being switched on and off.| Normal noise switching
Rattling humming or| Valves are active.| Normal noise switching
Noise| Possible cause| Type of noise| How to resolve
---|---|---|---
Vibration| Unsuitable installation| Error noise| Check instal‐ lation.
Set up the appliance.
Clattering| Equipment, Objects inside the appliance| Error noise| Secure equipment parts.
Leave a gap between items.

9.3 Technical faults
Your appliance is designed and manufactured for reliable operation and a long service life. If a malfunction nonethe‐ less occurs during operation, please check whether the malfunction is due to an operating error. In this case, you will have to be charged for the costs incurred, even during the warranty period.
You may be able to rectify the following faults yourself.
9.3.1 Appliance function

The appliance does not work.

| → The appliance is not switched on.| ▶ Switch on the appliance.
→ The power plug is not properly inserted in the wall socket.| ▶ Check the power plug.
→ The powerfuse in the wall socket is not OK.| ▶ Check the fuse.
→ Power failure.| ▶ Keep the appliance closed.
▶ Protect your food: Lay freezer packs on top of the food or use another freezer if the power is off for a prolonged period.
▶ Do not re-freeze defrosted food.
→ The appliance connector is not correctly inserted in the appliance.| ▶ Check the appliance connector.
The temperature is not cold enough| → This means that the door of the appliance is not closed properly| ▶ Close the appliance door
→ Insufficient ventilation| ▶ Clear and clean the ventilation grille.
→ The ambient temperature is too high| ▶ Solution: (see 1.4 Range of appliance use) .
→ The appliance was opened too frequently or for too long| ▶ Wait to see whether the required temperature resets itself by itself. If not, contact Customer  Service (see 9.4 Customer service) .
→ Too much fresh food was placed inside without SuperFrost.| ▶ Solution: (see SuperFrost)
→ The temperature is incorrectly set| ▶ Set to a colder temperature and check after 24 hours.
→ The appliance is too near to a heat source (stove, heater etc).| ▶ Change location of appliance or the heat source.
→ The appliance was not properly installed in the recess.| ▶ Make sure the appliance was installed correctly and the door closes properly.
The door seal is defective or should be replaced for other reasons.| → The door seal is interchangeable. You can replace it without the use of any special tools.| ▶ Contact Customer Service (see 9.4 Customer service) .
The appliance is iced up or conden‐ sation is building.| → The door seal may have slipped out of its groove.| ▶ Check the door seal is well placed in the groove.
Concentrated ice accumulation in the middle of the top of the appli‐ ance on the inside.*| → This ice accumulation is normal. The physical conditions makes the ice build up and compact at the top of the appliance.| ▶ Use an ice scraper to remove the ice.

9.4 Customer service
First check if you can fix the error yourself (see 9 Customer support) . If this is not the case, please contact customer service.
Please refer to the enclosed “Liebherr Service” brochure for the address.
WARNING
Unprofessional repair!
Injuries.
Repairs and work on the appliance and the power supply cable not described in the Manual (see 8 Maintenance) should only be carried out by a qualified service provider.
A damaged power cable may only be replaced by the manufacturer, the manufacturer’s Customer Service or a similarly qualified person.
For appliances with an IEC connector, the change can be made by the customer.
9.4.1 Contact Customer Service
Make sure to have the following appliance information to hand:

• Appliance name (model and index)
•  Service no. (service)
• Serial no. (S no.)

Showing appliance info on the display (see Info) .
-or
Referring to appliance info on the nameplate (see 9.5 Rating plate) .
Take note of the appliance information.
Inform Customer Service: Tell us the problem and the appliance details.
This will help us give you fast and accurate support.
Further instructions from customer service will follow.
9.5 Rating plate
The nameplate is located behind the drawers on the inside of the appliance. Fig. 31

1. Appliance name
2. Serial no.
3. Service no.

 Information from the nameplate.

Decommissioning

Empty appliance.
Switch off the appliance .
Pull out the power plug.
Remove the appliance connector if necessary: Pull it out and, at the same time, move it from the left to the right.
Clean the appliance (see 8.3 Cleaning the appliance) .
Leave the door open to prevent bad smells

Disposal

11.1 Preparing appliance for disposal
Liebherr uses batteries in some of its appli‐ ances. In the EU, for environmental reasons, legislation obliges the end user to remove these batteries before disposing of the old appliances. If your appliance contains batteries, a corresponding notice is attached to the appliance.
Lamps If you can remove the lamps yourself without destroying them, also remove these before disposal.
Take the appliance out of operation.
Appliance with batteries: Remove the batteries. For description, see Maintenance chapter.
If possible: Remove lamps without destroying them.
11.2 Disposing of the appliance in an environmentally friendly manner
The appliance still contains valuable materials and must be collected separately from unsorted municipal waste so it can be recycled.
Dispose of batteries separately from the old appliance. You can do this by returning the batteries free of charge to retailers or taking them to recy‐ cling centers and collection centers for recyclable materials.
Lamps Dispose of removed lamps via the respective collection systems.
For Germany: You can dispose of the appli‐ ance free of charge via the class 1 collection containers at the local recycling and recyclable material collection centers. When purchasing a new fridge/ freezer, if the sales area > 400 m2 , retailers will also take back the old appliance free of charge.home.liebherr.com/fridge-manuals
Refrigerators and freezers for integrated use

Part number index: 7088271-00
Issue date: 20221220
Liebherr-Hausgeräte Ochsenhausen GmbH
Memminger Straße 77-79
88416 Ochsenhausen
Deutschland

**** User Guide
Quality, Design and Innovationhome.liebherr.com/fridge- manuals

Please read the information in these instruc‐ tions carefully to understand all of the benefits of your new appliance.
| Full instructions on the internet
You can find detailed instructions on the internet using the QR code on the front of these instruction or by entering the service number at home.liebherr.com/fridgemanuals.
The service number can be found on the serial tag:

| Check appliance
Check all parts for transport damage. If you have any complaints, please contact your agent or customer service.
| Differences
These instructions apply to a range of models, so there may be differences. Sections that apply to certain models only are indicated by an asterisk (*).
| Instructions and results
Instructions are marked with .
Results are marked with .
| Videos
Videos about the appliances are available on the YouTube channel of Liebherr- Hausgeräte.

These operating instructions apply to:

Appliance at a glance

1.1 Scope of delivery
Check all parts for damage during transport. If you have any complaints, please contact your retailer or Customer Services (see 9.4 Customer Services) .
Your new appliance comes with the following parts:
– Built-in appliance
– Features (depending on the model)
– Installation materials (depending on the model)
– “Quick Start Guide”
– “Installation Guide”*
– Service Brochure
1.2 Overview of the appliance and its equipment Temperature range
(A) Fridge section
(B) BioFresh
(C) Coldest zone
Features

(1) Controls
(2) 4-star freezer*
(3) Fan with FreshAir active carbon filter
(4) Split shelf
(5) Shelf
(6) Space for baking tray
(7) Adjustable bottle shelf| (8) Fruit & Vegetable-Safe cover
(9) Fruit & Vegetable-Safe
(10) Drainage outlet
(11) Nameplate
(12) Meat & Dairy-Safe
(13) Door rack
(14) Bottle rack
---|---

Note
Shelves, drawers and baskets are arranged for optimum energy efficiency when the appliance is delivered. Changing how the shelves, for example, are inserted in the fridge compartment does not have any impact on energy consumption.
1.3 SmartDevice
SmartDevice is the networking solution for your refrigerator. If your appliance SmartDevice-enabled or compatible, you can quickly and easily connect your appliance to your WiFi. With the SmartDevice app, you can operate your appli‐ ance from a mobile device. Additional functions and setting options are available in the SmartDevice SmartDevice app.
General safety instructions
SmartDevicecompatible appli‐ ance: Your appliance is compatible for use with the SmartDeviceBox. You must first purchase and install the Smart‐ DeviceBox. In order to connect your appliance to the WiFi, you need to download the SmartDevice app.
More information about SmartDe‐ vice: smartdevice.liebherr.com
Purchasing the SmartDeviceBox in the LiebherrHausgeräte store: home.liebherr.com/shop/de/deu/smartdevicebox.html
Downloading the SmartDevice app: After installing and configuring the SmartDevice, you can connect your appliance to the WiFi using the SmartDevice app and the WiFi appli‐ ance function (see WiFi) .https://go.liebherr.com/4f27x2
Note
You cannot use the SmartDeviceBox in the following coun‐ tries: Belarus, Kazakhstan, Russia. The SmartDevice func‐ tion is not available.
1.4 Appliance range of use Intended use
The appliance is only suitable for cooling food products in a domestic or household-like environment. This includes, for example, use: – in staff kitchens, bed and breakfast estab‐ lishments,
– by guests in country houses, hotels, motels and other accommodation,
– for catering and similar services in the wholesale trade.
The appliance is not suitable for freezing food;*
All other types of use are not permitted.
Foreseeable misuse
The following applications are expressly forbidden:
– Storing and refrigerating medicines, blood plasma, laboratory preparations or similar substances and products based on the Medical Device Directive 2007/47/EC
– Use in areas at risk of explosions
Misusing the appliance may lead to damage to the goods stored or they may spoil.
Climate classifications
Depending on the climate classification the appliance is designed to operate in restricted ambient temperatures. The climate classifica‐ tion applying to your appliance is printed on the rating plate.
Note
Keep to the specified ambient tempera‐ tures in order to guarantee that the appli‐ ance works properly.

1.5 Conformity
The refrigerant circuit has been tested for leaks. When installed, the appliance complies with the applicable safety regulations and with the corresponding directives.
The full text of the EU Declaration of Conformity is available on the following website: www.Liebherr.com
The BioFresh compartment meets the requirements of a cold storage compartment as set out in DIN EN 62552:2020.
1.6 EPREL database
Details about energy labelling and ecodesign requirements will be available on the European product database (EPREL) from 1st March 2021. You can access the product database at the following link: https://eprel.ec.europa.eu/ You will be asked to enter the model ID. You can find the model ID on the nameplate.
General safety instructions
Please keep these operating instructions in a safe place so you can refer back to them at any time.
If you pass the appliance on, please hand these operating instructions to the next user.
Read these operating instructions carefully before use to ensure safe and correct use of the appliance. Follow the instructions, safety instructions and warning messages included at all times. They are important for ensuring you can operate and install the appliance safely and without any problems.
Danger for the user:
– This device can be used by children and people with impaired physical, sensory or mental abilities or with a lack of experi‐ ence and knowledge provided that they are supervised or have received instruction in the safe use of this device, and about the resulting hazards. Children must not play with this appliance. Cleaning and user maintenance work must not be carried out by children without adult supervision. Chil‐ dren aged between 3 and 8 are allowed to load and unload the appliance. Children below the age of 3 must be kept away from the appliance unless they are under contin‐ uous adult supervision.
– The socket must be easily accessible so that the appliance can be disconnected quickly from the electricity in an emer‐ gency. It must not be located in the area behind the appliance.
– When disconnecting the appliance from the supply, always take hold of the plug. Do not pull the cable.
– In the event of a fault pull out the mains plug or deactivate the fuse.
– Do not damage the mains power cable. Do not operate the appliance with a defective mains power cable.
– Only customer service or other specially trained staff may repair or perform other operations on the appliance.
– Only install, connect and dispose of the appliance according to the instructions.
– Only use the appliance when is installed.
Fire hazard:
– The coolant used (information on the model plate) is ecofriendly but also flammable.
Any leaking coolant may ignite.

• Do not damage the refrigerant circuit pipes.
• Do not handle ignition sources inside the appliance.
• Do not use electrical appliances inside the appliance (e.g. steam cleaners, heaters, ice cream makers, etc.).
• If the refrigerant leaks: remove any naked flames or ignition sources from the vicinity of the leakage point. Properly air the room. Inform customer services.

– Do not store explosives or sprays using combustible propellants such as butane, propane, pentane, etc. in the appliance. To identify these spray cans, look for the list of contents printed on the can, or a flame symbol. Gases possibly escaping may ignite due to electrical components.
– Keep burning candles, lamps and other items with naked flames away from the appliance so that they do not set the appli‐ ance on fire.
– Please be sure to store alcoholic drinks or other packaging containing alcohol in tightly closed containers. Any alcohol that leaks out may be ignited by electrical components.
Danger of tipping and falling:
– Do not misuse the plinth, drawers, doors etc. as a step or for support. This applies particularly to children.
Danger of food poisoning:
– Do not consume food which has been stored too long.
Danger of frostbite, numbness and pain:
– Avoid prolonged skin contact with cold surfaces or refrigerated/frozen goods or take protective measures, e.g wear gloves.
Danger of injury and damage:
– Hot steam can lead to injury. Do not use electrical heating or steam cleaning equip‐ ment, open flames or defrosting sprays to defrost.
– Do not use sharp implements to remove the ice.
Risk of crushing:
– Do not hold the hinge when opening and closing the door. Fingers may get caught.
Symbols on the appliance:
This symbol may be located on the compressor. It relates to the oil in the compressor and makes reference to the risk that: Swallowing or inhaling can be fatal. This advice is only relevant to recy‐ cling. There is no danger in normal opera‐ tion.
This symbol is located on the compressor and indicates the danger of flammable materials. Do not remove the sticker.
This or a similar sticker may be located on the rear of the appliance. It refers to the foam-padded panels in the door and/or the housing. This advice is only relevant to recycling. Do not remove the sticker.
Please note the warning messages and other specific advice in the other chapters:

| DANGER| indicates an immediately hazardous situation which will lead to death or serious injuries if it is not avoided.
---|---|---
| WARNING| indicates a hazardous situation which may lead to death or serious injuries if it is not avoided.
| CAUTION| indicates a hazardous situation which may lead to minor or moderate injuries if it is not avoided.
| NOTICE| indicates a hazardous situation which may lead to damage to property if it is not avoided.
| Note| indicates useful instructions and tips.

Putting into operation

3.1 Switching on appliance
Ensure that the following conditions are met:

• Appliance is installed and connected according to instal‐ lation instructions.
• All adhesive strips, adhesive and protective films as well as transport safety devices in and on the appliance are removed.
• All marketing leaflets are removed from the drawers.

Switch on the appliance using the control panel next to the display.
The status display appears.
The appliance starts in DemoMode:
If the appliance starts in DemoMode, you can deactivate DemoMode within the next 5 minutes. Press Confirm next to the display for 3 seconds.
DemoMode is deactivated.
Note
The manufacturer recommends:
Place the food inside: Wait for around 6 hours until the set temperature is reached.
Store frozen foods at -18 °C or colder.*
3.2 Inserting the components
Note
Accessories can be purchased from the LiebherrHausgeräte store at home.liebherr.com/shop/de/deu/zubehor.html.
Insert the supplied components to make the most of your appliance.
Foods management
4.1 Storing food
WARNING
Risk of fire
Do not use any electrical appliances in the food area of the appliance unless recommended by the manufacturer.
Note
The energy consumption increases and the cooling power goes down if ventilation is not sufficient.
Always keep air slots clear.
When storing food, always observe the following:

• Air vents on the inside rear wall are unobstructed.
• Air vents on the fan are unobstructed.
• Food is in sealed packaging.
• Foods that easily absorb or give off smell or taste are stored in sealed containers or covered.
• Raw meat and fish are in clean, sealed containers to prevent them coming into contact with or dripping onto other foods.
• Liquids are in sealed containers.
• Foods are not stored too closely together, as the air needs to circulate.

Note
Failure to follow these guidelines can lead to food perishing.
4.1.1 Fridge section
The natural air circulation creates a range of temperatures.
Arrange your food as follows:
In the top section and in the door: butter and cheese, preserves and tubes.
In the coldest zone Fig. 1 (C): easily perishable food such as prepared meals.
4.1.2 BioFresh
BioFresh helps certain fresh foods stay fresh for longer compared to conventional cooling methods.
In the case of foods with a minimum shelf life, the date indicated on the packaging still applies.
Note
If the temperatures drop below 0 °C foods may freeze to each other.
Store cold-sensitive vegetables such as cucumbers, aubergines, courgettes, and cold-sensitive tropical fruit, in the fridge compartment.
Fruit & Vegetable-Safe
This provides a fresh storage climate with the lid closed. A moist climate is suitable for storing loose foods with a high moisture content (e.g. salad, vegetables, fruit).
The air moisture in the compartment depends on the mois‐ ture content of the items being stored and the number of times the door is opened. You can adjust the air moisture.
Arrange your food as follows:
Store your loose fruit and vegetables.
Excessive air moisture: Regulate the air humidity (see 7.9 Adjusting the moisture levels) .
Meat & Dairy-Safe
Here a relatively dry storage climate is set. A dry climate is great for dry or packaged foods (e.g. dairy products, meat, fish, sausage).
Arrange your food as follows:
Place the dry or packaged foods inside.
**4.1.3 Freezer compartment*
The air temperature can vary in the compartment when shown on a thermometer or other gauges. The temperature varies more when the compartment is half-full or empty and can rise to more than -18 °C.
Freezing food
You can freeze as many kilograms of fresh food within 24 hours as is indicated on the model plate .
So that the food is rapidly frozen through to the core, keep to the following quantities per pack:
– Fruit, vegetables up to 1 kg
– Meat up to 2.5 kg
Arrange your food as follows:
CAUTION
Risk of injury from glass fragments!
Drink bottles and cans may explode if frozen. This applies particularly to carbonated drinks.
Do not freeze bottles and cans of drink!
Put the packaged food into the freezer compartment so that it is in contact with the floor or the side walls.
Defrost the food
– In the fridge
– In the microwave
– In the stove/oven
– At room temperature
WARNING
Risk of food poisoning!
Do not re-freeze thawed food.
Only take out the food you need at the time.
Cook defrosted food as soon as possible.
4.2 Storage times
Refer to the specified storage times as a guide.
In the case of foods with a minimum shelf life, the date indicated on the packaging still applies.
4.2.1 Fridge section
Always follow the best-before date stated on the packaging.
4.2.2 BioFresh
** Recommended storage periods in the Meat & Dairy-Safe

Note
Remember that high-protein foods perish quicker; shell‐ fish and crustaceans do not last as long as fish, and fish does not last as long as meat.
Recommended storage periods in the Fruit & VegetableSafe

Vegetables, salads

Artichokes| at 1 °C| up to 14 days
Celery| at 1 °C| up to 28 days
Cauliflower| at 1 °C| up to 21 days
Broccoli| at 1 °C| up to 13 days
Chicory| at 1 °C| up to 27 days
Lettuce| at 1 °C| up to 19 days
Peas| at 1 °C| up to 14 days
Kale| at 1 °C| up to 14 days
Carrots| at 1 °C| up to 80 days
Garlic| at 1 °C| up to 160 days
Turnip| at 1 °C| up to 14 days
Lettuce| at 1 °C| up to 13 days
Herbs| at 1 °C| up to 13 days
Leeks| at 1 °C| up to 29 days
Mushrooms| at 1 °C| up to 7 days
Radishes| at 1 °C| up to 10 days
Brussels sprouts| at 1 °C| up to 20 days
Asparagus| at 1 °C| up to 18 days
Spinach| at 1 °C| up to 13 days
Savoy| at 1 °C| up to 20 days
Fruit
Apricots| at 1 °C| up to 13 days
Apples| at 1 °C| up to 80 days
Pears| at 1 °C| up to 55 days
Blackberries| at 1 °C| up to 3 days
Dates| at 1 °C| up to 180 days
Strawberries| at 1 °C| up to 7 days
Figs| at 1 °C| up to 7 days
Blueberries| at 1 °C| up to 9 days
Raspberries| at 1 °C| up to 3 days
Currants| at 1 °C| up to 7 days
Sweet cherries| at 1 °C| up to 14 days
Kiwis| at 1 °C| up to 80 days
Peaches| at 1 °C| up to 13 days
Plums| at 1 °C| up to 20 days
Cranberries| at 1 °C| up to 60 days
Rhubarb| at 1 °C| up to 13 days
Gooseberries| at 1 °C| up to 13 days
Grapes| at 1 °C| up to 29 days

**4.2.3 Freezer compartment***
Recommended shelf-lives for various types of food

Saving energy

– Pay attention to good ventilation. Do not cover ventilation holes or grids.
– Always keep the fan air slits clear.
– Do not install the appliance in direct sunlight, next to an oven, radiator or similar.
– Energy consumption depends on the installation conditions, e.g. the ambient temperature (see 1.4 Appliance range of use) . A warmer ambient temperature can increase the energy consumption.
– Open the appliance for as short a time as possible.
– The lower the temperature is set the higher the energy consumption.
– Sort your food: home.liebherr.com/food.
– Keep all food properly packed and covered. This prevents frost from forming.
– Only take food out for as long as necessary so that it doesn’t warm up too much.
– Inserting warm food: allow to cool down to room temperature first.
– Thaw frozen food in the refrigerator.
– If there is a thick layer of frost in the appliance: defrost the appliance.
– For longer periods of absence, use HolidayMode (see HolidayMode) .

Controls

6.1 Controls and displays
The display provides a quick overview of the temperature setting and the status of functions and settings. You can control the functions and settings either by deacti‐ vating/activating them or by selecting a value.
6.1.1 Status display

(1) Temperature display of the fridge section
The Status display shows the set temperature and is the home display. From there, you can navigate to the options and settings.
6.1.2 Navigation
Navigate in the menu to access the individual functions. An audible signal sounds after confirming a function or setting. If no selection is made after 10 seconds the display switches to the Status display.
The appliance is operated with the buttons next to the display.

1. Navigation arrow left/right
2. Confirm

Navigation arrow left/right Fig. 5 (1):
– Navigating in the menu. After the last menu page, it goes back to the first one.
Confirm Fig. 5 (2):
– Activating/deactivating a function.
– Open a submenu.
– Confirm a selection. After confirmation the display switches back to the menu.
Back to Status display: in the fastest manner:
– Close and open the door.
– or wait 10 seconds. The display switches to the Status display.
6.1.3 Operating structure
The controls are explained by a template. The display changes depending on the function or settings.
Menus without a submenu

1. Status deactivated /status activated white bar in the top area
2. Symbol or activated value
3. Menu: Function name or menu: Setting name

Menus with a submenu

1. Menu: Function name or menu: Setting name
2. Status
3. Symbol or activated value
4. Submenu: function name or submenu: Setting name

(2) off / on
You can navigation as follows:
– Press the left/right Fig. 5 (1) arrow to navigate.
– Press Confirm Fig. 5 (2) to open the submenu Fig. 7 (4).

• Press the left/right Fig. 5 (1) arrow to navigate.
• Set a new value: Press Confirm Fig. 5 (2) to select an active value Fig. 6 (1).
• Back to the menu: Press Confirm Fig. 5 (2) to select the active value Fig. 6 (2).

6.1.4 Display symbols
Display symbols provide information on the current appliance status:

The appliance or temperature zone is switched off.
| Flashing number
Appliance is working. Temperature flashes until the set value is reached.
| Flashing symbol
Appliance is working. Setting is made.
| Bar grows steadily
Function is activated.

6.2 Control concept
6.2.1 Activating/deactivating the function
You can activate/deactivate the following functions:

x When function is on, the appliance works harder. This means appliance noise when operating may be louder for a short while, and more energy will be consumed.
  Press the navigation arrows Fig. 5 (1) repeatedly until the function is displayed.
  Press Confirm Fig. 5 (2).
You hear the confirmation tone.
Status appears in the menu.
Function is on/off.
6.2.2 Selecting function value
With the following functions you can set a value in the submenu:

Switch the appliance on/off

Tap the navigation arrows Fig. 5 (1) repeatedly until the function is displayed.
Press Confirm Fig. 5 (2).
Select the setting value with the navigation arrows Fig. 5 (1).
Setting the temperature
Press Confirm Fig. 5 (2).
You hear the confirmation tone.
Status: On Fig. 6 (1) appears briefly in the submenu Fig. 7 (4).
Display switches back to the menu.
6.2.3 Activating/deactivating settings
You can activate/deactivate the following settings:

Tap the navigation arrows Fig. 5 (1) repeatedly until the settings appear.

Press Confirm Fig. 5 (2).
Tap the navigation arrows Fig. 5 (1) repeatedly until the desired setting is displayed.
1 Activate setting (shortpress)
Press Confirm Fig. 5 (2).
You hear the confirmation tone.
Status appears in the menu.
Setting is on / off.
2 Activate setting (longpress)
To Confirm Fig. 5 (2), press for 3 seconds.
You hear the confirmation tone.
Status appears in the menu.
Display changes.

6.2.4 Selecting the setting value
With the following settings you can set a value in the submenu:

Tap the navigation arrows Fig. 5 (1) repeatedly until settings appears.
Press Confirm Fig. 5 (2).
Tap the navigation arrows Fig. 5 (1) repeatedly until the desired setting is displayed.
Press Confirm Fig. 5 (2).
Select the setting value with the navigation arrows Fig. 5 (1).
Press Confirm Fig. 5 (2).
You hear the confirmation tone.
  Status appears briefly in the submenu.
Display switches back to the menu.

6.2.5 Go to the Customer menu
You can see the following settings in the Customer menu:

Press the navigation arrows Fig. 5 (1) repeatedly until the settings appear.
Press Confirm Fig. 5 (2).
Press the navigation arrows Fig. 5 (1) repeatedly until the appliance information appears in the display.
Press Confirm Fig. 5 (2).
Enter the numerical code 151.
The customer menu appears.
Press the navigation arrows Fig. 5 (1) repeatedly in the customer menu until the desired setting appears.
1 Select the value
Press Confirm Fig. 5 (2).
You hear the confirmation tone.
Status appears briefly in the display.
Display switches back to the menu.

2 Activate the setting
ToConfirm Fig. 5 (2), press for 3 seconds.
You hear the confirmation tone.
Status appears on the display.
The symbol flashes as long as the appliance is working.
6.3 Functions
Turn off appliance
This setting turns off the whole appliance.
Switching off the entire appliance Activating/deactivating (see 6.2 Control concept) .
  Off: Display goes black.
WiFi
Use this function to connect your appliance to the WiFi. You can then operate it via the SmartDevice app on a mobile device. You can also use this function to disconnect or reset the WiFi connection. To connect your appliance to the WiFi, you need the SmartDeviceBox. For more information about the SmartDeviceBox and how to use the SmartDevice app: (see 1.3 SmartDevice)
Note
You cannot use the SmartDeviceBox in the following countries: Belarus, Kazakhstan, Russia. The SmartDevice function is not available.
Establishing a WiFi connection
Make sure that the following requirements are fulfilled:

• You have purchased and inserted a SmartDeviceBox. (see 1.3 SmartDevice)
• You have installed the SmartDevice app (see apps.home.liebherr.com).


Activate the setting. (see 6.2 Control concept)
  Connection is established: Status: activated Fig. 6 (1) and WiFi connecting appears. The symbol flashes.
Connection is established: Status: activated Fig. 6 (1) appears.
Connection failed: Status and Connect appear. The symbol is permanently visible.
Disconnecting from the WiFi
Deactivate the setting. (see 6.2 Control concept)There is no connection: Symbol is permanently visible.
Resetting the WiFi connection
  Reset settings. (see 6.2 Control concept)   The connection and other settings are reset to the factory settings.
Temperature
The temperature depends on the following factors:
– The amount of times the door is opened
– How long the door is open for
– The room temperature of the installation site
– The type, temperature and amount of food

Setting the temperature Set the value. (see 6.2 Control concept) .
  Set temperature is shown at the bottom right of the display.
Setting the temperature in the BioFresh
You can set the temperature using the BioFresh B-Value in the customer menu. (see BioFresh B-Value)
BioFresh B-Value
When delivered, the temperature in the BioFresh compart‐ ment is set to B5. The status indicator on the display shows the appropriate target temperature in the BioFresh.
You can change this value slightly if a higher or lower ambient temperature makes it necessary. When setting the value, note:

BioFresh B-Value
Choose the setting
Set the size in the Customer menu (see 6.2 Control concept) .
C-Value
The C-Value enables the 4-star freezer compartment to be set to a slightly warmer or colder temperature.
The C-Value is set to C5 by default.
The 4-star freezer compartment becomes colder if the value is set to less than C5. The 4-star freezer compartment becomes warmer if the value is set to more than C5.
**Selecting the setting value*
Set value in customer menu (see 6.2 Control concept) .
SuperCool
** This function selects the lowest cooling temperature. This gives you colder storage temperatures.
This function is relevant to the fridge section Fig. 1 (A)

You can also reach lower temperatures in the 4-star freezer.
Use:
– Cool large amounts of food quickly.
– Freeze food.
Activating/deactivating the function
Using the 4-star freezer: activate the function 3 hours beforehand.*
  Using the fridge section: activate the function when you add the goods.
  Activating/deactivating (see 6.2 Control concept) .
The function automatically turns off. The appliance goes back to normal mode. The temperature adjusts itself to the set level.
Party Mode
This option offers an assortment of special functions and settings that are useful if you are having a party.
The following functions are on:
– SuperCool
All the functions can be adjusted flexibly and separately.
Changes are discarded when the function turns off.
Activating/deactivating the function
Activating/deactivating (see 6.2 Control concept) .
On: All functions are activated at the same time.
  Deactivated: Previously set temperatures are restored.
After 24 hours the function turns off automatically.
HolidayMode
This function minimises the energy consumption during an extended absence. The temperature of the refrigerator compartment is set to 15 °C and this is displayed on the status screen when the temperature has been reached.
Use:
– Save energy if you plan to be away for a while.
– Avoid coming home to bad smells and mould.
Activating/deactivating the function
Empty everything from the fridge section.
Activating/deactivating (see 6.2 Control concept) .
On: Fridge temperature is raised.
  Off: the previously set temperature is restored.

SabbathMode
With this function you can activate or deactivate the SabbathMode. If you activate this function, some electronic functions will be switched off. This allows your appliance to meet religious requirements on Jewish holidays such as the Sabbath and comply with STAR-K Kosher certification.

Appliance status with active SabbathMode
The status display continuously shows SabbathMode.
All functions in the display except the Deactivate
SabbathMode function are locked.
Active functions remain active.
The display stays lit when you close the door.
The interior lighting is off.
Appliance status with active SabbathMode
Reminders are disabled. The set time intervals are paused.
Reminders and warnings are not displayed.
There is no door alarm.
There is no temperature alarm.
The defrost cycle only works for the specified time without taking account of appliance use.
After a power failure, the appliance returns to
SabbathMode.
Appliance status
Note
This appliance has certification from the “Institute for Science and Halacha”. (www.machonhalacha.co.il)
You can find a list of STAR-K-certified appliances at www.star-k.org/appliances.
Activating SabbathMode
WARNING
Danger of food poisoning from spoiled food!
If you have SabbathMode activated and a power failure occurs, no message appears in the status display about the power failure. Once the power is restored, the appliance continues to operate in SabbathMode. The power failure may mean that food spoils and the consumption of this food could lead to food poisoning.
After a power failure:
Do not consume food that was frozen and has thawed out.
  Call up the settings menu. (see 6.2 Control concept)
  Tap the navigation arrow repeatedly until the corresponding function is displayed. Complete the steps (see Fig. 1776) .
SabbathMode is activated.
Status display continuously shows SabbathMode.
Deactivating SabbathMode
Call up the settings menu. (see 6.2 Control concept)
Tap the navigation arrow repeatedly until the corresponding function is displayed.   Complete the steps (see Fig. 1777) .
  SabbathMode is deactivated.

E-Saver
This function activates or deactivates the energy-saving
mode. When you activate this function, the energy consumption decreases and the temperature increases by 2 °C in the appliance. The food remains fresh, but the shelf life is shortened.

Temperature zone

| Recommended setting (see Temperature)|

Temperature when       E-Saver activated

---|---|---
             Fridge compartment| 5 °C| 7 °C

Temperatures
Activating E-Saver
Tap navigation arrow repeatedly until corresponding function is displayed. Complete the steps (see Fig. 1778) .
Energy-saving mode is activated.

Deactivating E-Saver
Tap navigation arrow repeatedly until corresponding function is displayed.u Complete the steps (see Fig. 1779) .
w Energy-saving mode is deactivated.
CleaningMode
Use this setting to easily clean the appliance.
This setting refers to the fridge section Fig. 1 (A).
Use:
– Clean the fridge section by hand.
What happens on the appliance when this setting is on:
– The fridge section is switched off.
– The internal light is on.
– Reminders and warnings are not shown. There is no acoustic signal.
Activating/deactivating settings
Activating/deactivating the setting (see 6.2 Control concept) .
On: fridge section is off. Light stays on.
Off: preset temperature is restored.
After 60 min the setting turns off automatically. The appliance then continues running in normal mode.
Display brightness
Set the brightness level of the display.
You can set the following brightness levels:
– 40%
– 60%
– 80%
– 100%
Choose the setting
Set the level (see 6.2 Control concept) .
Door alarm
Set the time before the door alarm (see Close the door) sounds.
The options are as follows:
– 1 min
– 2 min
– 3 min
– Off
Choose the setting
  Set the time (see 6.4 Fault messages) .
Entry lock
This setting prevents unintentional use of the appliance, e.g. by children.
Use:
– Avoid settings being changed unintentionally.
– Avoid the appliance being switched off unintentionally.
– Avoid the temperature being changed unintentionally.
Activating/deactivating settings
Activating/deactivating. (see 6.2 Control concept) Info
This setting allows the appliance information to be read out as well as access to the customer menu.
It provides the following information:
– Model name
– Index
– Serial number
– Service number
Show appliance data
  Tap the navigation arrows Fig. 5 (1) repeatedly until the settings appear .
Press Confirm Fig. 5 (2).
  Tap the navigation arrows Fig. 5 (1) repeatedly until the information is displayed.
  Read the appliance info.

Reminder
Reminders are given out acoustically by a beep and visually by a symbol in the display. The signal gets louder until the alert stops.
Replace FreshAir active carbon filter
This message appears when the air filter needs replacing.
Change the air filter every six months.
Confirm the message with OK.
  The service interval resets.
  The air filter guarantees the air quality in the fridge.
Activating the setting
  Activating/deactivating (see 6.2 Control concept) .

Reset
This function resets all settings to the factory settings. All settings that you have made thus far will be reset to their original values.
Activating the setting
Activate (see 6.2 Control concept) .
6.4 Fault messages
Fault messages appear in the display. There are two categories of fault message:

eliminate the message.
Warning| Appears when there are malfunctions. A signal sounds in addition to the display. The signal becomes louder until you acknowledge by tapping the display. You can eliminate simple defects yourself. For more serious defects, you
must contact customer service.

6.4.1 Warnings
Close the door
This message appears if the door is open for too long.
You can set how long it takes for this message to appear .
  Stop alarm: Confirm the message.
-or
Close the door.
Error
This message appears if there is a fault with the appliance.
An appliance component indicates a fault.
Open the door.
  Note down the fault code.
Confirm the message.
  The signal tone stops.
  The status display appears.
  Close the door.
Contact customer service. (see 9.4 Customer Services)
6.4.2 DemoMode
If “D” appears on the display, demo mode is on. This option is designed for retailers, as it turns off all the cooling func tions.
Stopping DemoMode
If you see the following running in the display:
  Confirm the display within the countdown.
DemoMode is off. If the timer is not running:
  Unplug the appliance.
 Plug the appliance in again.
DemoMode is off.

Features

**7.1 4-star freezer compartment*
7.1.1 Opening/closing the freezer compartment Opening the freezer compartment:**

u Reach into the handle area from below.
u Push the handle plate while pulling the door towards you.
Closing the freezer compartment:
Close the door while pushing from the front.
  Door is engaged.

7.2 Door rack
7.2.1 Move/remove the door rack Slide the rack upwards.
Pull forwards.
  Re-insert it in reverse order.
7.2.2 Disassembling the door rack
The door rack can be taken apart for cleaning. Disassemble the door rack.
7.3 Shelves
7.3.1 Adjusting/removing the shelves
The shelves are prevented from being pulled out accidentally by pull out stops.   Lift the shelf and pull forward.
Line up the side runner.
  Adjust the height of the shelf: Lift or lower it to the desired height and slide it in.
-or-![LIEBHERR ILIEBHERR IXRF5125 Plus Integrated American Fridge Freezer

• fig 34XRF5125 Plus Integrated American Fridge Freezer - fig 34](https://manuals.plus/wp-content/uploads/2023/09/LIEBHERR-IXRF5125-Plus- Integrated-American-Fridge-Freezer-fig-34.jpg) Remove the shelf completely: Pull it out to the front.
  Easier removal: Set the shelf at an angle.
    Insert the shelf again: Slide it in all the way.
    The pull-out stoppers point downwards.
  The pull-out stoppers are behind the front support.
  7.4 Dividing shelf
  7.4.1 Using the dividing shelf
  The shelves are prevented from being pulled out accidentally by pull out stops.   Push the dividing shelf underneath as shown. Adjusting the height:
  Pull the glass panels out Fig. 23 (1) from the front, one at a time.
  Release the support rails and click in at the height you want.
  Slide in the glass panels one at a time.
    Flat pull-out stoppers at the front, right behind the support rails.
    High pull-out stoppers at the back.
  Using both shelves:
  Hold the glass panel with one hand and pull it to the front.
  The glass panel Fig. 23 (1) and trim strip are at the front.
    The stops Fig. 23 (3) point down.
  Appliances with freezer compartment:
  Do not place the support rails and dividing shelf in front of the fan.
  7.5 Space for baking tray
  There is space for a baking tray Fig. 1 (6) above the drawers.  Ensure that the following conditions are met:

  • Max. baking tray dimensions are adhered to (see 9.1 Tech‐ nical specifications) .
  • Baking tray is cooled to room temperature.
  • The lowest door rack is set at least one position higher.

With the door open to 90°:
  Slide the baking tray onto the lower side runners.
-orIf baking tray is uneven:
Use the supplied support rails. Snap support rails into the lowest runners.
With the door open to 90°:
  Slide the baking tray in on the support rails.
7.6 Adjustable bottle shelf
7.6.1 Using the bottle shelf
In the bottom of the fridge section you can either use the variable bottle shelf or the glass panel. Remove the glass panel and store in a safe place.
Lay bottles with their base towards the rear wall.
Note
If the bottles are protruding over the front of the bottle shelf:
  Move the lower door rack up a place.
7.6.2 Removing the bottle shelf
You can remove the bottle shelf for cleaning.
  Remove the glass panel above the bottle shelf.   Lift the bottle shelf at the front and pull out.
Note
Liebherr recommends the following:
Do not place any goods on the drawer cover below.
7.6.3 Inserting the bottle shelf   Slide in the bottle shelf until it engages and push down.
7.7 Drawers
You can remove the drawers for cleaning.
The way to remove/insert the drawers varies depending on the pull-out system. Your appliance can contain various pull-out systems.
Note
The energy consumption increases and the cooling power goes down if ventilation is not sufficient.
  Always leave the fan air vents clear on the back wall!
7.7.1 Drawer on rails
Removing drawer Remove drawer as shown in the illustration.
Inserting drawer   Insert drawer as shown in the illustration.
7.7.2 Drawer on telescopic rails
The drawer runs on extendible rails (telescopic rails). There are fully extendible telescopic rails and telescopic rails with partial pull-out. Drawers which are fully extendible can be pulled out fully from the appliance. Drawers with partial pull-out cannot be removed fully from the appliance. The system in your appliance depends on the type of appliance.
Fully extendible
If you have fully extendible rails, there is a clamp located at the back on the left and right of the rail.
Removing drawer Pull out drawer as far as it will go.
Lift left clamp and simultaneously pull drawer forwards on the left. Fig. 31 (1)
  Lift right clamp and simultaneously pull drawer forwards on the right. Fig. 31 (2)
  Remove drawer to the front. Fig. 31 (3)
Slide rails in.
Inserting drawer   Slide rails in.
Place drawer on rails.
  Slide in drawer to the back.
Drawer latches in audibly at the back.
Partial pull-out fridge compartment
Removing drawer   Pull out drawer half-way. Fig. 33 (1)
  Lift up drawer at the front. Fig. 33 (2)
Insert left rail. Fig. 33 (3)
  Insert right rail. Fig. 33 (4)
Remove drawer to the front. Fig. 33 (5)If the rails are not yet fully inserted after removing the drawer:
Push rails in completely.
Inserting drawer   Slide rails in.
Place drawer on rails.
  Slide in drawer to the back.
7.8 Fruit & Vegetable safe cover
You can remove the compartment cover for cleaning.
7.8.1 Removing the compartment cover
Ensure that the following conditions are met:
Bottle shelf is removed (see 7.6 Adjustable bottle shelf) .When the drawers are removed:
Pull the lid up at the front to the opening in the retaining parts Fig. 36 (1).
  Lift from the back and pull it up and out Fig. 36 (2).
7.8.2 Inserting the compartment cover If the text THIS SIDE UP points upwards:
  Insert the lip of the cover over the opening of the rear bracket Fig. 37 (1) and click into place Fig. 37 (2).
Position the cover where you want it (see 7.9 Adjusting the moisture levels) .
7.9 Adjusting the moisture levels
You can adjust the moisture in the drawer yourself by adjusting the compartment cover.
The compartment lid is attached to the drawer and can be hidden by a shelf or additional drawers.![LIEBHERR IXRF5125 Plus Integrated American Fridge Freezer

• fig 25](https://manuals.plus/wp-content/uploads/2023/09/LIEBHERR-IXRF5125 -Plus-Integrated-American-Fridge-Freezer-fig-25-1.jpg) Low air humidity
  Open the drawer.
    Slide the compartment cover forwards.
    With the drawer closed: Gap between the cover and the compartment.
    The air moisture in the Safe decreases.
  High air moisture
    Open the drawer.
  Slide the cover back.
  With the drawer closed: The cover seals the compartment.
    The air moisture in the Safe increases.
  If there is too much moisture in the compartment:
  Choose the setting “low air moisture”.
  -or
  Remove any excess moisture with a cloth.
  Note
  You can apply the “low air moisture” setting to the Fruit & Vegetable-Safe and the Meat & Dairy-Safe.
  Set the “low air moisture” option.
  7.10 Accessories
  7.10.1 Bottle holder
  Using the bottle holder   Push the bottle holder onto the bottles.
  The bottles are prevented from falling over.
  Removing the bottle holder Move the bottle holder all the way to the right.
    Push the bottle holder to the back to remove.

Maintenance

8.1 FreshAir carbon filter
The FreshAir carbon filter is in the compartment above the fan.
It guarantees the best air quality.

• Replace the carbon filter every 6 months.
  When the reminder is set, a message on the display prompts you to change it.

• The carbon filter can be disposed of with the regular household waste.

Note
FreshAir activated charcoal filters can be purchased from the Liebherr- Hausgeräte store at home.liebherr.com/shop/de/deu/zubehor.html.
8.1.1 Removing the FreshAir carbon filter   Pull out the compartment Fig. 41 (1).
Remove the carbon filter Fig. 41 (2).
8.1.2 Inserting the FreshAir carbon filter   Insert the carbon filter as shown in the diagram Fig. 42 (1).
The carbon filter clicks into place.
If the carbon filter is pointing downwards:
  Push the compartment in Fig. 42 (2).
  The carbon filter is now ready for use.
8.2 Disassembling / assembling pullout systems
8.2.1 Notes on disassembly
You can disassemble some of the pull-out systems for cleaning. Your appliance can contain a variety of pull-out systems.
The following pull-out systems can be disassembled or cannot be disassembled:

8.3 Defrosting the appliance
WARNING
Improper defrosting of the appliance!
Injuries and damage.
u Do not use mechanical equipment or other methods to speed up the defrosting process other than those recom‐ mended by the manufacturer.
u Do not use electrical heating or steam-cleaning appliances, naked flames or defroster sprays to defrost.
u Do not use sharp objects to remove ice.
Defrosting is performed automatically. The water from the thawing process drains through the outlet and evaporates. Water drops or a thin layer of frost or ice can form on the back wall; this is a completely normal part of the applian‐ ce’s function. This must not be removed.
u Clean the drain opening regularly (see 8.5 Cleaning the
appliance) .
**8.4 Defrosting the freezer compartment manually*
A layer of frost or ice forms after prolonged use.
The following factors promote the formation of frost or ice:
– The appliance is opened frequently.
– Hot food is put in.
Switch off the appliance .
Pull out the mains plug or switch off the fuse.
Wrap the frozen produce in newspaper or blankets and store in a cool place.
  Place a pan of hot water (not boiling) on the middle shelf.
This speeds up the defrosting process.
  Leave the compartment and appliance door open during defrosting.
  Remove loosened pieces of ice.
  Make sure that there is no melted ice water in the cabinet.
Soak up the melted ice water with a sponge or cloth several times as necessary.
Clean the appliance (see 8.5 Cleaning the appliance) .
8.5 Cleaning the appliance
8.5.1 Ready
WARNING
Danger of electric shock!
Remove the refrigerator connector or interrupt the power supply.
WARNING
Risk of fire
Do not damage the refrigeration circuit.
  Empty the appliance.
Remove mains connector.
-or
Activate CleaningMode. (see CleaningMode)
8.5.2 Cleaning the interior
NOTICE
Improper cleaning!
Damage to the appliance.
Only use soft cleaning cloths and ph-neutral all-purpose cleaners.
  Do not uses abrasive sponges or steel wool which may cause scratches.
Do not use any sharp or abrasive cleaning agents, nor any that contain sand, chloride or acid.
  Plastic surfaces: clean by hand with a soft clean cloth, lukewarm water and a little detergent.
Metal surfaces: clean by hand with a soft clean cloth, lukewarm water and a little detergent.
  Drain hole: remove deposits using a thin item (for example a cotton bud).
8.5.3 Clean the components
NOTICE
Improper cleaning!
Damage to the appliance.
  Only use soft cleaning cloths and ph-neutral all-purpose cleaners.
  Do not uses abrasive sponges or steel wool which may cause scratches.
Do not use any sharp or abrasive cleaning agents, nor any that contain sand, chloride or acid.
Clean with a soft, clean cloth, lukewarm water and some detergent:
– Door rack
– Shelf
– Dividing shelf
– Fruit & Vegetable safe cover
– Drawer
– Adjustable bottle shelf
Clean with a damp cloth:
– Retractable rails
Please note: The grease in the tracks is used for lubrication and must not be removed!
Wash in the dishwasher up to 60 °C:
– Bottle rack
– Holder of the dividing shelf
To disassemble components: see the relevant section.
  Clean the components.
8.5.4 After cleaning**
  Wipe the appliance and the components dry.
  Connect and switch on the appliance. The temperature is cold enough:
Place the food inside.
v  Repeat cleaning regularly.

Customer help

9.1 Technical specifications

Temperature range

Cooling| 3 °C to 9 °C
BioFresh| 0 °C to 3 °C
Maximum freezer quantity / 24 hrs

Freezer     compart‐ ment| See the type plate under “Freezer goods … /24 hours”
Maximum size baking tray

Width| 466 mm
Depth| 386 mm
Height| 50 mm
Lighting

Class1| Light source
This product contains one or more energy efficiency class F light sources.| LED

1 The appliance may contain light sources with different energy efficiency classes. The lowest energy efficiency class is indicated.
9.2 Operating noises
The appliance makes different noises when it is on.
– At higher temperatures the appliance uses less energy but works for longer. It is quieter.
– At lower temperatures the food is cooled faster. It is louder.
Examples:

• Functions on (see 6.3 Functions)
• Fan running
• Food recently added
• High ambient temperature
• Door open for a while

Defect

| Cause|

Remedy

---|---|---
The appliance is not working.| → The appliance is not switched on.| ▶ Switch the appliance on.
→ The power plug is not properly plugged into the socket.| ▶ Check the power plug.
→ There is something wrong with the power outlet fuse.| ▶Check the fuse.
→ Power cut| ▶ Keep the appliance closed.
▶ Protecting food: Lay freezer packs on top of the food or use another freezer if the power is off for a prolonged period.
| → The appliance plug does not fit the appliance properly.| ▶ Do not re- freeze defrosted food,
▶Check the appliance plug.
Temperature is not cold enough.| →The appliance door is not closed properly.| ▶Close the appliance door.
→ Not enough ventilation.| ▶Keep ventilation grille clear, and clean it.
→ The ambient temperature is too high.| ▶ Solution: (see 1.4 Appliance range of use) .
→ The appliance was opened too many times or for too long.| ▶Wait to see if the required temperature corrects itself. If not, contact Customer Service (see 9.4 Customer Serv‐ ices) .
→ The temperature is set incorrectly.| ▶Turn down the temperature and check after 24 hours.
→ The appliance is too close to a heat source (oven, radiator, etc).| ▶Move the appliance or the heat source.
→The appliance was not correctly installed in the recess.| ▶Check if the appliance was installed correctly and that the door closes properly.
The door seal is defective or needs to be replaced for another reason.| →The door seal can be replaced. It can be replaced without the need for special tools.| ▶Contact Customer Services (see 9.4 Customer Services) .
The appliance builds up too much ice or condensa‐ tion.| → The door seal may have slipped out of its groove.| ▶Check that the door seal is well fitted in the groove.

9.3.2 Features

Defect

| Cause|

Remedy

---|---|---
The internal light does not come on.| → The appliance is not switched on.| ▶Switch the appliance on.
→ The door was open for longer than 15 minutes.| ▶Interior lighting turns off automatically after approx. 15 min. with the door open.
→The LED interior light is faulty or the lid is damaged.| ▶Contact customer service (see 9.4 Customer Services) .
**The freezer compartment cannot be closed.***| →The lock is on when the door is open.| ▶Use the handle again.

9.4 Customer Services
First check if you can fix the error yourself (see 9 Customer help) . If you can’t, contact Customer Services.
Please refer to the enclosed “Liebherr-Service” brochure for the address.
WARNING
Unprofessional repair!
Injuries.
Have any repairs and action – not expressly specified on the appliance and mains cable carried out by service personnel only. (see 8 Maintenance)
A damaged mains cable may only be replaced by the manufacturer, the manufacturer’s Customer Service or a similarly qualified person.
In the case of appliances with an IEC connector, the change may be made by the customer.
9.4.1 Contact Customer Services
Make sure you have the following appliance data at the ready:

• Appliance name (model and index)

Shutting down

• Service no. (Service)
• Serial no. (S no.)

Look up the appliance information on the display (see Info) .
-oru
Referring to appliance info on the nameplate (see 9.5 Model plate) .
Note down the appliance information.
Notify Customer Services of the following: Give us the appliance data.
This will help us to provide you with a faster, more accu‐ rate service.
Follow any further instructions given by Customer Serv‐ ices.
9.5 Model plate
The model plate is behind the drawers on the inside of the appliance.

1. Appliance description
2. Service no.
3. Serial no.

Note the data on the model plate.

Shutting down

Empty the appliance.
Turn off the appliance .
Remove mains connector.
Remove appliance connector if required: Remove and move from left to right at the same time.
Clean the appliance (see 8.5 Cleaning the appliance) .
Leave the door open to avoid bad smells building up.
Disposal
11.1 Preparing appliance for disposal
Liebherr uses batteries in some of its appli‐ ances. In the EU, for environmental reasons, legislation obliges the end user to remove these batteries before disposing of old appli‐ ances. If your appliance contains batteries, a corresponding notice is attached.
Lamps If you can remove the lamps yourself without destroying them, also remove these before disposal.
11.2 Disposing of the appliance in an environmentally friendly manner
The appliance still contains valuable materials and must be disposed of separately from unsorted municipal waste.
Dispose of batteries separately from the old appliance. To do this, you can return the batteries free of charge to retailers as well as recycling centres and collection centres for recyclable materials.
Lamps: Dispose of removed lamps via the respective collection systems.
For Germany: You can dispose of the appli‐ ance free of charge via the class 1 collection containers at the local recycling and recyclable material collection centres. When purchasing a new fridge/freezer, if the sales area > 400 m2 , retailers will also take back the old appliance free of charge.
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly, but also flammable. The oil contained in the appliance is flammable. Escaping coolant and oil can ignite if the concentration is high enough and in contact with an external heat source.
Do not damage the pipelines of the coolant circuit and the compressor.
Transport the appliance without damaging it.
Dispose of batteries, lamps and the appliance according to the above specifications.home.liebherr.com /fridge-manuals
integrated fridge with BioFresh

Part number index: 7088263-00
Issue date: 20230119
Liebherr-Hausgeräte GmbH
Memminger Straße 77-79
88416 Ochsenhausen
Deutschland

References

• Welcome to Liebherr Appliances | Liebherr
• Welcome to Liebherr Appliances | Liebherr
• Lebensmittel im Kühlschrank richtig lagern | Liebherr
• Downloadable operating instructions | Liebherr
• SmartDevice: your entry into the Smart Home | Liebherr
• דף הבית - מכון מדעי טכנולוגי להלכה
• Sabbath Mode Appliances | Star-K
• Liebherr Appliances UK home | Liebherr
• Liebherr Shop: Original Zubehöre und Garantieverlängerung
• SmartDevice: your entry into the Smart Home | Liebherr
• דף הבית - מכון מדעי טכנולוגי להלכה
• Sabbath Mode Appliances | Star-K

Read User Manual Online (PDF format)

Read User Manual Online (PDF format)  >>

Download This Manual (PDF format)

Download this manual  >>
