STOCKLIN EDS-14 Lift Truck Specs
DRIVE
Maintenance-free, smooth-running three-phase AC motor with high torque at
lowest speed.
Charging during electronic brake application. The lateral drive and the
lateral support roller guarantees optimum stability in materials handling. All
wheels (load rollers inclusive) made of durable Vukollan.
ELECTRONIC SYSTEM
User-programmable microprocessor controller. COMBINED drive and lift control.
The AC travel drive and the variable-speed DC hoisting motor are energy-
saving. CAN BUS technology with best screening.
The LOS (Limited Operating Strategy) system allows limited travel motion in
case of failures that cause a standstill. The operational response and other
parameters can be easily adapted to the customer’s individual requirements by
means of a manual programming device.
DIMENSIONS
- Constructed using the latest in 3D computer aided design, it is extremely compact.
- What it lacks in size is made up for in serviceability.
- The removable protective cover facilitates the maintenance and adjustment.
STOCKLIN – YOUR ADVANTAGES
Compact and easy to handle
- Higher productivity
- Ideal handling
- High degree of flexibility
Modern electronic control
- A.C. drive motor with CAN BUS technology AC
- Safe handling even on slopes
- Smooth transport of materials and reduced vehicle wear
- Optimum response at all times
- Power saving
- Emergency driving system
Sturdy Swiss Quality
- Best quality and long service life
- High serviceability
- Best value for money
- Reasonable spare part prices
ERGONOMICS AND SAFETY
The laterally mounted steering handle provides for unobstructed visibility
when picking and positioning loads. The ergonomically designed tiller allows
for a precise handling even with working gloves.
The big-sized proportional buttons allow a precise control of the movements.
Handling in narrow spaces even with vertical steering handle due to the
additional bridging switch.
STRUCTURE AND EQUIPMENT
Developed from a new complex modular system with multiple use of standard components. Very rugged despite its compact design. Serially with double load wheels. There are various specially designed fork-lift frames available. EMERGENCY STOP button, combined working hours meter, battery controller with error code indicator. Built-in charger 30A/230V. Battery 24V – 160 Ah.
Options:
- Other battery sizes
- Short wheelbase K9
- Battery change from the side
- Protective grid
- Client-specific load parts
- Available in cold store version

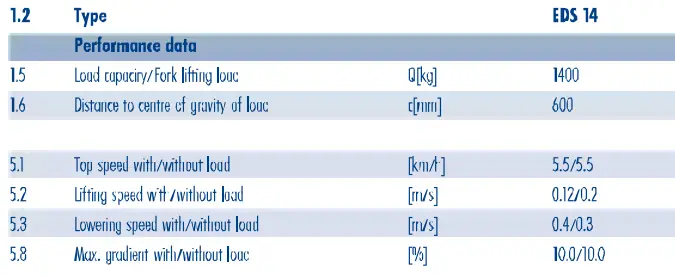

TECHNICAL DATA
