Stiroplus SP-2010 Pressure Ironing System User Manual

Stiroplus SP-2010 Pressure Ironing System User Manual

Read this manual thoroughly before using and save it for future reference

the following:

1. Read all
2. Before using check that the voltage of wall outlet corresponds to the one shown on the rating
3. Do not use the appliance if the main cord, plug, light or the appliance itself shows visible damage, or the appliance has been dropped or is leaking. Take it to the nearest authorized service facility or a qualified serviceman for examination and repair in order to avoid a hazard.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a
5. Do not allow the cord to come into contact with the soleplate when it is
6. Burns may occur from touching hot metal parts, hot water, or
7. Do not let cord hang over edge of table or hot surface.
8. To protect against a risk of electric shock, never immerse the iron in water or other liquids. If this has happened, do not use this appliance any more; dispose of the appliance.
9. Do not leave iron unattended while connected into power supply or on an ironing
10. Always place or use the appliance on a stable, level and horizontal
11. The use of accessory not recommended by manufacturer may cause injury to persons or damage to
12. When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.
13. Never fill the water tank with hot water, scent, vinegar, starch, descaler, fabric softener or other chemical
14. Unplug from outlet when not in use, before filling water or
15. Do not use the appliance for other than its intended
16. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a way and understand the hazards involved.
17. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without
18. The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is
19. Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.
20. Never touch the hot soleplate unless the iron is cooled down completely and
21. Do not use
22. Save these

HOUSEHOLD USE ONLY

KNOW YOUR STEAM STATION

TEMPERATURE DIAL

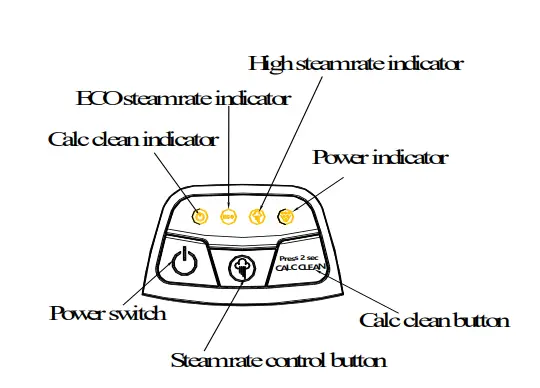

CONTROL PANEL

Power switch

Plug in the appliance and press down the Power switch, the power indicator will illuminate, the ECO steam rate is regarded as defaulted one and its indicator will flash. Hold and press the Power switch for about 2 seconds, and the appliance will be disconnected from the power supply.

Steam rate control button

Press the Steam rate control button to make switch between the High and ECO steam rates, and one beep can be heard when making switch. And the corresponding indicator of selected steam rate will light solidly.

Temperature dial

Turn the dial to set ironing temperature based on the garment needs to be ironed.

Temperature indicator

When the iron is heating up, the temperature indicator will illuminate. Once the iron has reached the selected temperature, it will extinguish. The temperature indicator will be cycled on and off as the iron maintains the selected temperature during ironing.

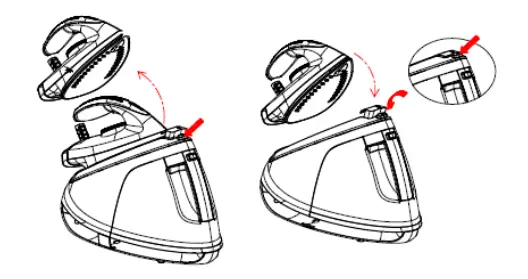

Iron lock and Iron lock release button

When the iron is locked on the thermal insulation stand, press the Iron lock release button “” to unlock the iron lock “  ”, then the iron can be removed from the thermal insulation stand for ironing. When the iron is placed on the thermal insulation stand, press down the iron lock “  ” and then the iron is locked on the thermal insulation stand, at that time, the whole appliance can be lifted up for carrying conveniently.

Steam trigger

When the steam is ready for being used, press the steam trigger with a little force, the steam will be sprayed from the soleplate continuously. When loosen the steam trigger, the appliance can only be used for dry ironing without steam.

Water tank release button

Press the Water tank release button and grasp the water tank handle to remove the water tank from the unit base.

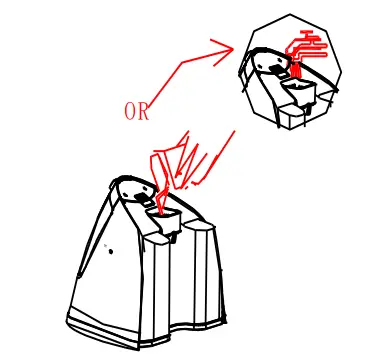

Filling aperture

Fill the water tank with water through the filling aperture. Make sure that the water shall not exceed the MAX mark of water tank

Clean indicator

When the appliance needs to be descaled, the clean indicator lights solidly. Please refer the instructions of paragraph “CLEANING & MAINTANANCE” to remove all calc residues and prolong the lifetime of the appliance.

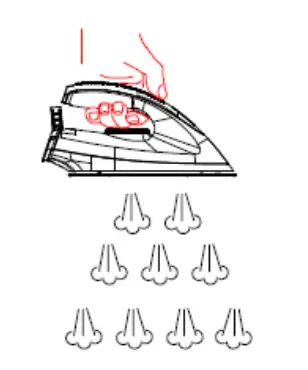

Shot of steam

Shot of steam can be activated after pressing the steam trigger twice continuously. An interval of at least 15 seconds must be maintained between two continuous cycles. The “Shot of steam” function can be only activated under ECO and Ηigh steam rate.

Cord winding groove

When not in use, the steam supply hose can be wound along the cord winding groove for storage and the power cord can be tied well with a cable tie. Follow the operation in the section of “CLEANING AND MAINTENANCE”.

Automatic power off

If there is no steam sprayed out of the soleplate, the appliance will turn off automatically if no operation within 10 minutes. To restart the appliance, just need to press the power button again.

Correct placement of iron on the thermal insulation stand

When the iron is put on the thermal insulation stand, it must be placed on it correctly.

Vertical steam

With vertical steam function for removing wrinkles from hanging garments, curtains, drapes, and more.

BEFORE FIRST USE

1. Remove any sticker or protective foil from the
2. Heat up the iron at the maximum temperature and iron over a piece of damp cloth for several minutes for the purpose of removing any residue on the soleplate according to the section of “Steam ironing”. NOTE: It is normal that strange odor comes out from the unit for the first use. This will cease after a short

NOTE: Some particles may come out of the soleplate when you use the iron for the first time. This is normal; the particles are harmless and stop coming out of the iron after a short while.

NOTE: After you switch on the appliance, the water pump in the unit base may produce a sound when spraying steam.

NOTE: During the heating process of the soleplate, there will be little water coming out from the soleplate automatically and this phenomenon will continue for about 3 seconds, This is normal.

USING YOUR STEAM STATION IRON

The appliance has two ironing ways. You can use dry ironing or steam ironing, the details refer to the following:

Dry ironing

1. Put the iron on the thermal insulation stand of unit
2. Connect the plug to wall outlet and press down the Power switch, the power indicator turns
3. Turn the temperature dial to your desired setting, which is depended on the fabric of garment, and the temperature indicator will The iron starts heating. Refer to “IRONING TIPS” and “ADDITIONAL TABLE” as below when select temperature.
4. When the temperature indicator turns off, the selected temperature is You can start ironing now.

WARNING: Never touch hot soleplate at any time before cooling down!

Steam ironing

The machine works with normal tap water. In case of very hard water (hardness above 27ºF) we suggest using 50% distilled water diluted with tap water. Alternatively, we suggest using normal bottled drinking water. The use of de-ionized water is not recommended.

1. Press the “Water tank release button” and grasp the water tank’s handle to remove the water tank, then fill it with water through the filling aperture. After it, replace the water tank properly. The maximum capacity of water tank is 8L, the water level shall not be exceeded the MAX mark.
2. Put the iron on the thermal insulation stand of unit
3. Connect the plug to the wall outlet, press down the Power switch and the power indicator lights up, and the defaulted ECO steam rate indicator will flash. And there are two modes including ECO and high steam rate available, you can select the desired steam rate for each garment according to your Make sure that there is enough water in the water tank.
4. Turn the temperature dial to your desired setting, which is depended on the fabric of garment, and the temperature indicator will The iron starts heating. Refer to “IRONING TIPS” and “ADDITIONAL TABLE” as below when select temperature.
5. After a few minutes, the temperature indicator will extinguish, it indicates the soleplate temperature has achieved the selected temperature, and the iron is ready for ironing garment with
6. Press the steam trigger with a little force, the steam will be sprayed from the soleplate, and then you can iron the garment with

NOTE: There may be dripping water during spraying steam when the temperature is at and lower than the second setting. This is normal.

CAUTION:

• Do not touch hot soleplate at any time before cooling down!
• Never direct the steam at people!

7. For hard creases, quickly press the steam trigger twice to produce shot of steam. An interval of at least 15 seconds must be maintained between two continuous The “Shot of steam” function can be only activated under ECO and Ηigh steam rate.
8. After ironing, hold and press the Power switch for about 2 seconds, the appliance will be turned off and all the indicators will Remove the plug from the wall socket. But the soleplate is still hot, never touch it with hand, place it on the thermal insulation stand until it cools down completely.

CLEANING AND MAINTENANCE

Before cleaning, firstly disconnect the power outlet and let the appliance cool down.
Wipe flakes and any other deposits on the soleplate with a damp cloth or a non-abrasive (liquid) cleaner.
NOTE: Do not use chemical, steel, wooden or abrasive cleaners to scrape the soleplate.
Clean the upper part of iron with a soft damp cloth. Wipe the water drop on the unit base and the thermal insulation stand with a dry cloth.
When do not use the appliance for a long time, empty the water in the tank, and put the iron on the thermal insulation stand and then press the iron lock “                                                                     ” to lock the iron well.
NOTE: The whole steam station iron can be lifted up by grasping the iron’ s handle after the iron being
properly locked on the thermal insulation stand.
The appliance needs to be cleaned when the “Clean indicator” lights solidly. Before cleaning, a container which can hold at least 300ml of wastewater shall be prepared. The iron should be placed on the container steadily. Turn the temperature dial to the “MAX” setting.
1.Hold and press “Clean button” on the control panel for 2 seconds. When the buzzer sounds, the user should keep away from the appliance to prevent from being burnt by hot steam. After the appliance enters into the cleaning condition, the “Clean indicator” flashes. After about 3 minutes, the cleaning is completed and the appliance will return to the working condition.

NOTE:

For better cleaning, please ensure that the temperature dial be turned to “MAX” setting before activate the “Clean” function. The cleaning effect may be not so good if the temperature dial is turned to
other temperature settings except “MAX” setting.
Follow the operation as below to store the steam supply hose and power cord: firstly, fold the steam supply hose in two and wind it along the cord winding groove, then fix it at the cord winding groove; secondly, tie the power cord with a cable tie.

IRONING TIPS

-Always check first whether a label with ironing instructions is attached to the article. Follow these ironing instructions in any case.
-The iron heats up quicker than cooling it down, therefore, you should start ironing the articles requiring the lowest temperature such as those made of synthetic fiber.
-If the fabric consists of various kinds of fibers, you must always select the lowest ironing temperature to iron the composition of those fibers.
-Silk and other fabrics that are likely to become shiny should be ironed on their inner side.
-Velvet and other textures that rapidly become shiny should be ironed in one direction with light pressure applied. Always keeps the iron moving at any moment.
-Pure wool fabrics (100% wool) may be ironed with the steam iron. Preferably set temperature dial to the third position and use a dry cloth as a mat.
– Never iron over zip, rivet in the cloth. This will damage the soleplate. Iron around any such object.
NOTE: When ironing woolen fabrics, shining of the fabric may occur. So it is suggested that you should turn the article inside out and iron the reverse side.

ADDITIONAL TABLE

TROUBLESHOOTING

Problem| Causes| Solutions
The appliance has

switched off

| The appliance will turn off automatically

after 10 minutes if no steam spray out from

| Press down the power switch, the power

indicator turns on.

Dirty water and mineral deposits come out of the

soleplate or the soleplate is dirty.

| Calcium particles and minerals present in the water have deposited in

the steam holes and/or inside the appliance.

| Use a damp cloth to clean the soleplate. Descale the appliance by following the operation in paragraph “CLEANING AND MAINTENANCE”.
The appliance does not produce steam.| There is not enough water in the water tank.| Fill the water tank with water.
The appliance is not hot enough to produce steam.| Wait until the temperature indicator extinguish on iron and the indicator of the defaulted steam rate changes from flashing

to illuminating on base.

The water tank is not placed correctly.| Reposition the water tank properly.
The appliance is not switched on.| Connect the plug to wall outlet and press down the power switch.
The appliance produces a pumping sound| Τhe sound tells you that water is pumped

into the boiler.

| If the pumping sound does not stop, switch off the appliance and remove the plug from the wall socket. Contact the authorized service center.
Water drops come out of the soleplate| There may be dripping water during spraying steam when the temperature is set at the second setting (●●) or lower than the second setting (●●) .| For steam ironing, turn temperature dial within the steam section, as shown in the TEMPERATURE DIAL paragraph.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection center or to a dealer providing this service.
Disposing of a household appliance separately avoids possible negative consequences for the environment and health, deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

[](https://manuals.plus/wp-content/uploads/2023/05/Stiroplus-SP-2010

-Pressure-Ironing-System-User-Manual_15.png)
www.vassilias.gr
