SONOS ARCG1US1BLK Arc Premium Smart Soundbar Owner’s Manual

ARCG1US1BLK Arc Premium Smart Soundbar

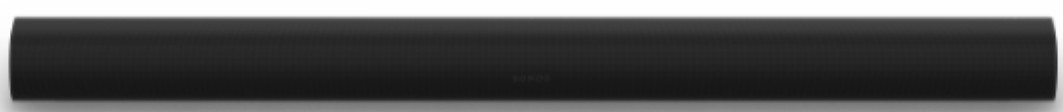

Owner’s Manual![SONOS ARCG1US1BLK Arc Premium Smart Soundbar

• icon](https://manuals.plus/wp-content/uploads/2023/04/SONOS-ARCG1US1BLK-Arc- Premium-Smart-Soundbar-icon.jpg)

Overview

The premium smart soundbar for TV, movies, music, and more—

• Feel sound all around you with the spacious 3D experience of Dolby Atmos.
• Stream music, radio, podcasts, and more when the TV is off.
• Effortless setup with just two cables and smart True lay™ tuning.
• Elegant design discreetly mounts to the wall or sits on a credenza beneath the TV.
• Flexibility to expand your system over time and enjoy true surround sound and multi-room listening.
• Control your Osnos system with the Osnos app (for Android and iOS).
• See Setup when you’re ready to add Arc to your system.

Controls and lights

Volume control

• Volume up (right)
• Volume down (left)
  Touch for small adjustments or hold to quickly adjust the volume.
  Note: You can also use the Sons app. your voice, or your TV remote.

Play/Pause

Touch to play or pause sound.

• Swipe right to skip to the next song.
• Swipe left to go to the previous song.
  Note: You can’t skip forward or go back when listening to a radio station.

Tap to turn the microphone on or off:

• When the microphone light is on, voice control is on and your voice service is ready to respond.
• When the light is off, voice control is off.

Note: If you’ve installed a voice service and the microphone is off, you Can still use voice commands. Just press and hold —no need to start with a wake word. When  you  release the microphone button, voice control turns off again.

Displays the product’s connection to WIE indicate when the volume is muted, and signals errors. Learn more
Note: If you don’t want to allow playback or volume adjustments using the speaker touch controls, you can disable them in the room’s settings.

Connector panel

computer, or network-attached storage (NAS) device (optional).
4| AC power (mains) input| Use only the supplied power cord (using a third- party power cord will void your warranty).
Note: Insert the power cord firmly until it is flush with the speaker.

Select a location
You can wall mount Arc below your TV or place it in or on a TV stand.
ITV stand placement

• Place horizontally on a stable and level surface.
• Keep 4″ (102mm) space (minimum) between the top of the soundbar and the bottom of your TV (if placing soundbar below the TV).
  • Don’t place vertically or on its side.
  • Make sure the touch controls are facing up.
    Wall mount
    You can secure the soundbar to a wall with a compatible wall mount. We recommend the custom-designed Sons Arc Wall Mount (sold separately). See wall mount.

Connect the cables
Before you start

• Disconnect existing home theater or surround sound equipment from your TV.
• Connect any external devices, like a cable box or DVD player, directly to your TV.
• Turn your TV on.

1. Connect the power cord and plug in the soundbar.
   Note: Use only the supplied power cord (using a third-party power cord will void your warranty).

2. Connect the HDMI cable (included) to the soundbar’s HDMI port.

3. Connect the HDMI cable to your TV:
   • If your TV has an HDMI ARC (or ear) port, connect the HDMI cable to it. (HDMI ARC is a special port that looks like a standard HDMI port—it may be on the  back or side of your TV. The ports look similar, but the ARC port will be labeled ARC, €ARC, or ADCILADS If war cantor tho Cannes soundbar to a standard HDMI port instead, you won’t hear any sound).

« If your TV doesn’t have an HDMI ARC or  ARC port, you’ll need to use the optical adapter:

•  Remove the protective cap from the optical adapter, then attach the optical adapter to the HDMI cable.
• Connect the optical adapter to your TV’s optical digital OUT port. (The TV’s optical adapter’s port is “D- shaped”—make sure the connector aligns correctly into the  port. Inserting the adapter incorrectly may damage the cable).

Voice services

Use your voice to control your Sons system with any voice-enabled Sons product—play and control content, turn the volume up or down, and more.

• Sons Voice Control: control your whole Sons system with hands-free ease and unmatched privacy. Sons Voice Control comes ready to use—it only takes a few seconds to add when you set up  your speakers. More information
• Amazon Alexa: you’ll need the Sons app and the Alexa app with the Sons skill enabled. You’ll make some changes in both apps during setup. Learn more
•   Google Assistant: you’ll need the Sons app and the Google Assistant app. You’ll make some changes in both apps during setup. Learn more
• Siri: you’ll need the Apple Home app. Add your AirPlay2-compatible Sons speakers to the Apple Home app and then use an iPhone, iPad, or Apple TV to ask Siri to play  music (currently limited to Apple Music). Learn more
  Note: Voice control isn’t supported in every country yet—this feature will be available as soon as Sons and a voice service launch together in your region.

Microphone on/off

The microphone is used for voice control and for microphone-dependent features like True lay tuning. Press to turn the microphone on or off—the microphone LED  light will let you Know when your voice assistant is listening.
When the microphone light is on:

• If you set up a voice service, voice control is on and ready to respond.
• Microphone-dependent features like True lay are available.

When the microphone light is off

• If you set up a voice service, voice control is off.
• Microphone-dependent features like True lay are unavailable.

True play ™
Every room is different. True lay tuning measures how sound reflects off walls, furnishings, and other surfaces in a room, then fine tunes your Sons speaker to make sure it sounds great no matter where you’ve placed it.
True play works on iOS mobile devices running iOS 8 or later. During tuning, you’ll move around the room holding your mobile device.

1. Select > System, and pick the room you want to tune.
2. Choose True lay Tuning to get started.
   Note: True lay tuning isn’t available if Voice Over is enabled on your iOS device. Turn Voice Over off in your device settings before tuning your speakers.

Auto True lay
Portable Sons products like Sons Roam and Move can tune themselves automatically. Auto True play uses your speaker’s microphone to detect the environment and make  periodic tuning adjustments so you get great sound wherever your speaker is and whatever you’re listening to.
Go to > System, and select your portable speaker to turn on auto True lay.

Product settings

You can customize Son s products for your surroundings. Go to > System and select a product.

Room Name| If you move your speaker to a new room, you can change its name in Settings.
---|---
Turn off WiFi
(not on portable products)| You can turn off your speaker’s WiFi when it’s connected to your network with an Ethernet cable. This reduces  power consumption and can improve  connectivity for some wired speakers. For products like Amp and Port,  turning off WiFi can reduce the internal temperature when they’re placed in a rack or stacked. Learn more
EQ| Sons products ship with preset equalization settings. You can change the sound settings (bass, treble,  balance, or loudness) to suit your personal preferences. Learn more
True play| True play adapts the sound for your surroundings and content. Portable products can tune themselves automatically. Learn more
Volume Limit| You can set a maximum volume for each room. Learn more
Status Light| Displays the speaker’s connection to WiFi, indicates when the volume is muted, and signals errors. Learn more
Note: lb the light is distracting, you can turn it off in Settings.
Touch Controls| You can disable the touch control on your speaker.
You may want to do this to prevent a child or curious pet from accidentally adjusting playback or volume. Learn more
Battery Saver (portable products)| To save battery life, you can set your portable speaker to power off automatically instead of going to sleep. It won’t appear in the  Sons app until it’s powered back on.
Line-In (products with line-in capability)| Connect an audio device like a timetable or stereo to an Amp, Port, or Five. Go to Browse > Line-In, and select the source to start  playback. You can adjust line-in settings like source name, audio level, and autopay.

Home theater

Sons products for your TV provide full-theater sound and play music too. Create a home theater system by adding a pair of rear surrounds and a Sub.
Home theater settings
Use the Sons app to adjust sound settings or change the way your home theater speaker works with your TV.

TV Dialog Sine| lf the TV audio is out of sync with the video, you can adjust the audio delay (lip sync) in your room’s settings. Learn more
---|---
Group Audio Delay| If you notice audio issues when playing to a group, you can adjust this setting. Learn more
TV Auto play| TV Auto play— if music or other content is playing when you turn on your TV, the audio automatically switches to TV audio  (default). If you don’t want this to happen, turn off TV Auto play in your room’s settings.
Ungroup on Auto play —if your home theater speaker is grouped with other products when you turn on the TV, it  automatically drops from the group (default). If you don’t want this to happen, turn off Ungroup on Auto play in your room’s settings.
Speech enhancement| Makes TV dialog easier to hear. Learn more
Night sound| Enhances quiet sounds and reduces the intensity of loud sounds. Turn on to reduce the volume while still experiencing proper balance and range. Learn more
Remote Control Setup| During setup, you’ll program a remote control. You can program a different remote control any time. Learn more

Set up surrounds
It’s easy to turn two Sons speakers (same model), or a Sons Amp and your favorite non-Sons speakers, into separate right and left channels for your home theater.

1. Place each surround speaker about 10ft from your favorite listening position, angling them toward the seating area.
2. Go to > System.
3. Select a room with a soundbar and choose Add Surrounds to get started.
   Note: If you group the rooms or create a stereo pair instead, you won’t have surround sound. Learn more

Surround audio settings
During setup, surround sound is optimized for your room. These settings are adjustable:

to Dolby Atmos Music playback.

Accessories

Find the perfect accessory for your Sons system—tailored to perfectly fit your Sons products.
For a full selection of Sons-compatible stands, wall mounts, chargers and cables, see Accessories on our website.

Wall mount
Guidelines

• Use the Sons Arc wall mount kit (Sold separately on www.sonos.com). Follow the instructions in the kit.
• Keep 4.0″ (102 mm) space (minimum) between Arc/Arc SL and your TV.
• Make sure the touch controls are facing up.
• For best sound quality, keep both ends of the soundbar at least 1′ (30cm) from a wall or other obstructions.

Mount kit contents

• Wall mount bracket
• Positioning guide (don’t discard—it may look like packing material)
• 2 knobs
• 6 wall anchors
• 6 screws

1. If your TV is wall-mounted, place the positioning guide against the wall, aligning the top edge with the bottom of your TV There should he 5 5″ (140mm) between the top of the wall mount bracket and the TV.

2. Mark the screw locations and remove the guide.

3. If you’re using the included wall anchors, use a 5/16″ drill bit to drill the pilot holes and then insert the wall anchors. Don’t use the anchors if you’re drilling into wood or plastic.

4. Position the wall mount bracket over the marked screw locations, using a level to confirm accuracy. Use a Phillips-head screwdriver or a power drill to screw the bracket  to the wall, making sure the arrows in the center are pointing up.

5. Screw the 2 knobs into the back of the soundbar until they are fully tightened.

6. Connect the power and HDMI cables to the back of the soundbar.
   Note: If you’re connecting the cables to the TV at this time, be sure to plug the HDMI cable into the HDMI ARC or €ARC port on your TV.

7. Slide the soundbar down so the knobs fit into the slots on the wall bracket. Make sure the touch controls are facing up and the soundbar is fully seated.

Specifications

playback of mid-range vocal frequencies plus deep. rich bass.
Tweeter| Three silk dome tweeters create a crisp and clear high-frequency response.
Microphones| ¢ Four microphone array.
e LED hardwired to voice microphones for privacy control so you Know when the microphone is active.
Voice control| Integrated voice control.
System requirements| TV with HDMI ARC or optical digital audio output, broadband internet, and the Sons app.
NETWORKING*|
Wireless connectivity| Connects to WiFi network with any 802.11 b/g/n, 2.4GHz broadcast-capable router.
Ethernet port| One 10/100Mbps Ethernet port. You can wire directly to your router if your WiFi is unstable.
SOFTWARE|
True play™| Dynamically tunes the speaker to the unique acoustics of the room or area (iOS device required).
Speech enhancement| Turn on this home theater setting in the Sons app to make TV dialogue even clearer.
Night sound| Turn on this home theater setting to reduce the intensity of loud TV sound effects.
GENERAL|
Power supply| Auto-switching 100-240V, 50-60Hz 3.5AAC universal input.
Dimensions (H x W x D)| 3.4 x 45 x 4.5in. (87 x 1141.7 x 115.7mm)
Weight| 13.78Ib (6.25kg)
Operating temperature| 32°F to 104°F (0°C to 40°C)
Storage temperature| -4°F to 122°F (-20°C to 50°C)
Control| You can use your TV remote, voice, speaker touch controls, or the Sons app.
Supported devices| Connects to TV with HDMI cable (with or without an attached optical adapter). Plays sources  connected to the TV, including cable boxes and game consoles.
Package contents| Sons Arc, power cord, HDMI cable, optical audio adapter, Quackster Guide.

*Specifications subject to change without notice.

Important safety information

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry soft cloth. Household cleaners or solvents can damage the finish on your Sons products.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat.
9. Protect the power cable from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
10. Only use attachments/accessories specified by the manufacturer.
11. Unplug this apparatus during lightning storms or when unused for long periods of time.
12. This product does not have any user-serviceable parts. Do not open or disassemble or attempt to repair it or replace any components. Refer all servicing to Sons  qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cable or plug is damaged, liquid has been spilled  or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
13. The Mains plug should be readily available to disconnect the equipment.
14. Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
15. Do not expose apparatus to dripping or splashing and do not place objects filled with liquids, such as vases, on the apparatus.
