3217607 X Teqball Table Instruction Manual
Installation
Please read and follow these instructions carefully. Before starting the installation, please make sure that all assembly instructions are completed properly and you have all the necessary screws and anchors as well as required installation tools listed.
IMPORTANT: Move the TEQ X table carefully. It always should be carried by at least four adult people lifting it. Never push or pull the TEQ X table on the floor as it can cause damage to its parts.
INSTALLATION CONDITIONS
if you wish to fix the TEQ X table to the ground, you can choose from the following recommended foundation options:
- Option “A”: at least 140 cm x 245 cm, 10 cm thick concrete base,
- Option “B”: 6 pieces of at least 30 cm x 30 cm, 30 cm thick concrete block.

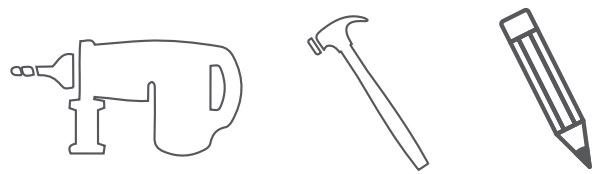

POWER REQUIREMENTS OF INSTALLATION TOOLS
Impact wrench
- Single impact energy: 2 Joule
- Full hammering frequency: 5200 impacts/min

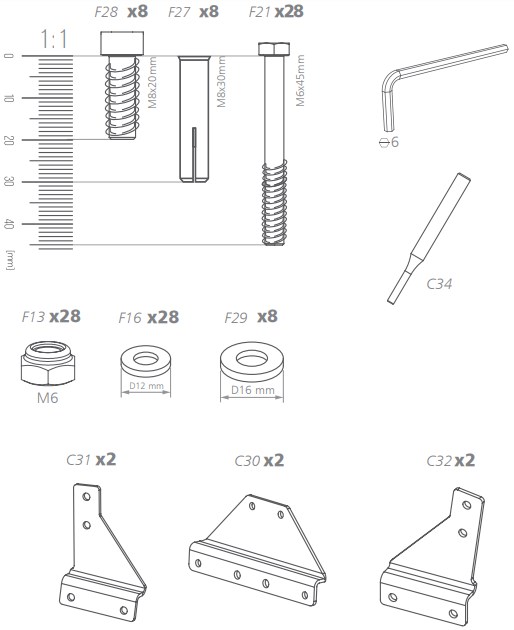

See the parts of the Fixing Kit. For more information and safety warnings about the TEQ X table, visit vvww.teqball.com or see the TEQ X .
Warning Instructions
Assembly
Blow out the generated dust from the holes
