SpaceLogic Sensors

Humidity Sensors – Analog and Temperature Sensors – Analog

Product Description

The SpaceLogic SLA Series of humidity and temperature sensors for living space is a flexible multisensor platform for use with BAS controllers designed to accept 4 to 20mA, 0 to
5Vdc or 0 to 10Vdc outputs. Housings are available in Medium matte white and Optimum faces available in black and white. All housing types are available with three user interface options: touchscreen, LCD with three buttons and blank. Temperature sensors are included with all SLA Series humidity sensors

Features

Medium matte white housing or optimum glass panel housing available in white or black
Humidity versions feature a replaceable RH element available in 1% & 2% with NIST certificate
Temperature output on all models
61 mm (2.4”) backlit color touchscreen and LCD, three button display options available
– Digital temperature indication (0.1° display resolution of°F or °C
– Digital humidity indication (0.1% RH display resolution)
– Selectable temp, RH and fan speed setpoint (0-10V)
– Configurable screen/button lock and display timeout
– Override
Selectable 4 to 20mA, 0 to 5V and 0 to 10V analog outputs
18-24 AWG screw terminals

Available Products Matrix

*Replaceable RH module available to be ordered separately per table below

Replaceable RH Elements

Model	RH Accuracy	Calibration Certificate	Description
SLXRHS1N	±1%	X	Replaceable RH Sensor, 1% w/NIST Cert
SLXRHS2N	±2%	X	Replaceable RH Sensor, 2% w/NIST Cert
SLXRHS2X	±2%		Replaceable RH Sensor, 2%

Specifications

Dimensions mm (in.)

Installation

Remove the cover from the base at the bottom of the device.
Position the sensor base vertically on the wall 1.35 m (4.5
ft.) above the floor with the “UP” arrow facing upward. Locate away from windows, vents and other sources of draft.
If possible, do not mount on an external wall, as this may cause inaccurate temperature readings.
Pull 18 or 22 AWG cable(s) through the hole in the backplate.
Mount the backplate onto the wall using the screws provided.
Connect the wires to the screw terminals. Do not over-tighten the screw
Wiring for models with RH and Temperature:
- Momentary to ground.
  ** 0-10V DIP switch selectable for temperature, RH (if equipped) or fan speed (Off 0V, Auto 1.5V, Low 3.3V, Medium 6.7V or high 10V).
  Wiring for models with LCD and Temperature transmitter only (SLASLXX, SLABLXX and SLAWLXX):

SpaceLogic Sensors, Humidity Sensors – Analog and Temperature Sensors – Analog Installation Instructions

Installation (cont.)

Set the DIP switches

With sensor base fully installed, align top of cover to
mounting tabs on top of sensor base. Swing cover downward until it latches at the bottom.

Install locking screw to secure cover in closed position.

Touchscreen Operation

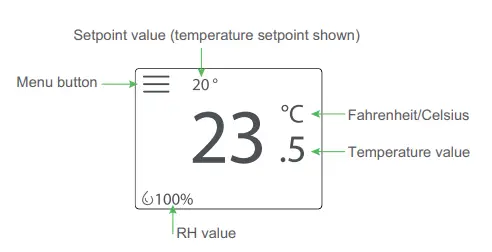

Main Screen
The touchscreen user interface displays applicable sensor output values (temperature and RH), setpoint value and menu button.

The menu screen opens when pressing the Menu button on the main screen. Integrator’s submenu, occupancy/override,
Fahrenheit/Celsius, settings and setpoint submenu (temp, RH or fan, determined by DIP switch settings) are displayed on the menu screen
