Vietcard SPA P30
Smart POS Terminal
Product Usage Instructions
Getting Started
Before using the product, ensure that it is properly assembled according to
the provided instructions.
Powering On
Connect the product to a power source using the provided cable. Press the
power button to turn it on.
Setting Up
Follow the on-screen prompts to set up the product according to your
preferences.
Using the Product
Refer to the user manual for detailed instructions on how to use the
product’s features and functionalities.
Maintenance
Regularly clean the product using a soft, damp cloth. Avoid using harsh
chemicals that may damage the surface.
Please read the below information before using your device:
Since you take the device out of package, the battery is off.
- When using the device for the first time, please perform a full charge and discharge. In order to ensure the charging effect of the device, please use the original power adapter and USB data cable. The device is built with removable battery and back cover, please remove the battery before turn power off.
- Do not open or disassemble the device or attempt to repair it or replace any components. if you attempt open your device, you risk damaging the device and such damage isn’t covered by the limited warranty on your device.
- The pre-made software of the product includes settings, gallery, hardware testing and file management. The detailed information of the software can be queried through “SettingsApplications and Notifications-View All”.
- For altitude 5km below use ONLY.
Note: There is a danger of explosion when replacing the battery with the wrong type. Please be sure to dispose of the used battery according to the instructions on the battery.

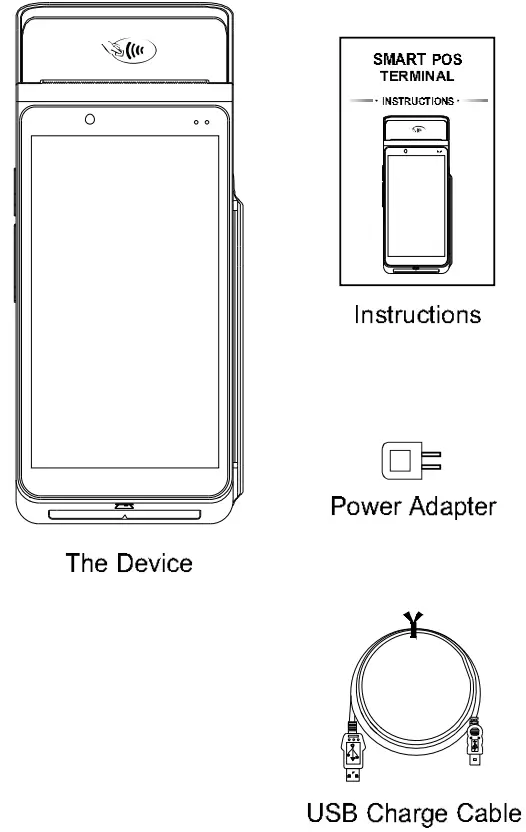

ACCESSORIES
DEVICE KNOWLEDGE
- Printer Case
- Front-Facing Camera (Optional)
- Power Button
- Volume Button
- Type·C U58 OTG
- Microphone
- NFC Reader
- Indicator Lamp
- Magnetic Card Reader
- IC Card Socket
- Rear Camera
- Flashlight
- Battery
- Speaker
CHARGE THE BATTERY
Note: It is recommended that charge the battery before starting to use the device.
- Insert the Type-C connector of the USS data cable into the Type-C interface of the device.
- Insert the other end of the USB data cable into the port at the end of the power adapter.
- Insert the power plug of the power adapter into the power socket to start charging the battery.
INSTALLSIM/SAM/TFCARD
Note: Please make sure that the power of the device is turned off.
- Lay the device flat with the reverse side facing up.
- Open the back cover and take out the battery.
- Please insert the SIM/SAM/TF card In the direction shown in the figure.
- Install the battery and close the back cover.
INSTALL PRINTER PAPER
This device supports 58mm thermal paper with the specifications of 57mmt0.5mm·4omm.
- Please open the paper container with the uncovering handle, please do not force open the paper container to avoid print hard gear wear;
- Feed the paper correctly into the paper container in the direction as shown and pull some paper outside the cutter;
- Close the cover of the paper container to finish printing paper feeding.
OPERATION
Swipe The Card
Please insert magnetic strip card into card slot. Please keep the magnetic
strip forward the display and swipe the card smoothly and stably. Please do
not lift the card during the transaction.
Swipe The IC Card
Please keep the chip back to the display while insert the card into slot
Touch The Contactless Card
Please use the card near the contactless card reader area.
WARRANTY TERMS
Name of Product____
Model of Product____
Warranty Terms & Conditions
- We will provide you with excellent after sales service.
- Damage such as a user due to human factors. the company’s repair charge maintenance fees.
- Please keep this card. the warranty will based on it, copyright:
CERTIFICATE OF QUALITY
The product has been tested and proved o be qualified for delivery .
Inspector :
Inspection Date:
Copyright
The author of this manual reserves all copyright exclusive rights In
accordance with the Copyright Law. Without the prior consent or the author,
copying, additions, deletions, excerpts, reprints or reprints or part or all
of this manual are not allowed. The content of this manual only explains the
use of the products manufactured by the author. Regarding the contents of this
manual, the author does not bear any express or Implied guarantee or guarantee
responsibility.
Statements
The company does not assume responsibility for the following actions:
Damages caused by use and maintenance without complying with the conditions
specified in this guide. The company will not assume any responsibilities for
the damages or problems caused by optional items or consumables rather than
the initial products or approved products of the company). The customer is not
entitled to change or modify the product without our consent. The product’s
operating system supports official system updates, but if you change the
operating system into a third part ROM system or alter the system files by
system cracking, it may cause system instability and security risks and
threats.
Disclaimer
As a result of product upgrading, some details in this document may not
match the product, and the actual product shall govern. The company reserves
the right of interpretation of this document. The company also reserves the
right to alter this specification without prior no1ice.
FCC Warning Statement
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
Specific Absorption Rate (SAR) information:
This smart phone meets the government’s requirements for exposure to radio
waves. The guidelines are based on standards that were developed by
independent scientific organizations through periodic and thorough evaluation
of scientific studies. The standards include a substantial safety margin
designed to assure the safety of all persons regardless of age or health.
This equipment should be installed and operated with minimum distance of 5mm the radiator your body.
Frequently Asked Questions
Q: How do I reset the product?
A: To reset the product, locate the reset button on the back and press it
with a small pin or paperclip.
Q: Can I use this product outdoors?
A: This product is designed for indoor use only and should not be exposed
to outdoor elements.
