Stoov Charge6 Assembly Instructions

: June 6, 2024
: Stoov

Table of Contents

Product information
What’s included?
Assembly instructions
Documents / Resources
- Read User Manual Online (PDF format)
- Download This Manual (PDF format)

Assembly instructions
Charge6

Product information

WARNING: Read carefully before use

Only use the AC adapter enclosed with your Stoov® products. Using a different charger may cause irreparable damage to the product and can be dangerous.
Do not expose the product to excessive heat from other sources.
Do not use if wet
Examine the electrical cords frequently for signs of weakness or damage. If there are such signs, please replace these parts.

What’s included?

Metal frame
Metal inlay tray
Wooden board
Power strip
1x large strain reliever
6x small strain reliever
4x nylon washers
4x wood screws

Assembly instructions

Step 1

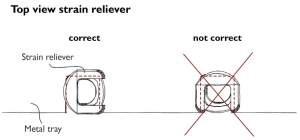

Place the large strain reliever around the wire of the power strip. And place the strain reliever with the wire on the metal inlay tray. See illustration for the position of the power strip and the large strain reliever.

Stoov Charge6 Assembly-Step 1 | Stoov
Charge6 Assembly-reliever
---|---

Step 2
Place the 6 smaller strain relievers around 6 power cords of your Stoov® chargers. Place the cords with the strain reliever on the metal tray. We advise placing to strain reliever 25cm from the end of the wire.

Stoov Charge6 Assembly-Step 2

Step 3
Tie up the extra length of the cords with a tie-wrap or an elastic. And place the chargers in the sockets of the power strip. See the image on the previous page or the position of the chargers.
Step 4
Now place back the metal tray in the frame with the power strip and all the chargers.
Step 5
Place 4 round black nylon washers on the tray above the holes. See the image below on where to place the washers.

Stoov Charge6 Assembly-Step 5

Step 6
Place the wooden board on top of the washers and the tray. Screw the wooden board to the tray and metal frame with the 4 wood screws. See the image below to see how to place the wooden screws.

Stoov Charge6 Assembly-Step 6 | Stoov
Charge6 Assembly-Step
---|---
