DAKOTA MICRO InnoPro HD Industrial Ruggedized IP Camera User Manual

InnoPro HD Industrial Ruggedized IP Camera

User Manual

C (Composite Plastic Tail Connector) Series Part Number(s):

Cameras – DMIP-CO4
Camera Tails – DMIP- CP
Cat5e Extension Cables – DMIP-CEC

M (Metal Tail Connector) Series Part Numbers(s):

Cameras – DMIP-MC
Camera Tail – DMIP-MCT
Cat5e Extension Cables – DMIP-MEC

Always read the manual prior to operating this equipment. Also, please follow all safety signs and precautions. See the Dakota Micro, Inc. website for installation training videos at www.dakotamicro.com

Thank you for purchasing the InnoPro® Camera from Dakota Micro. The InnoPro camera is a ruggedized IP camera that can survive just about anything the world has to throw at it. Do not expect the InnoPro to be a “fast and easy” way to view a camera from your smart phone. If this camera were easy to access from the outside world then anyone would be able to log in and see what it sees. The InnoPro® is a high security, high durability IP camera.

I. INCLUDED INNOPRO CAMERA KIT COMPONENTS

II. STANDARD INNOPRO® CAMERA FEATURES

• IP69 Anodized Aluminum camera body – Waterproof, shockproof, and suitable for nearly any use
• Self-adapting H.264 Video compression allows for reduced video file size without compromising video image quality
• Fully adjustable mainstream and substream resolution allows for complete control of video quality and size
• 4mm on board camera lens provides true 82-degree horizontal field of view at 4MP
• Minimum focal distance of 3 inches
• Available with optional onboard memory of 16GB or 64GB (64GB only available on C series) allows for local storage of recorded video and image snapshots
• 4 Megapixel CMOS sensor with progressive scan
• Video Stream options include RTSP, H264, H265 & MJPG
• 50HZ/60HZ selectable video format allows easy camera integration
• IR has effective range of 50’+ in complete darkness.
• Built-in CDS light-source sensor automatically turns the IR’s on/off by detecting the light intensity in the environment
• Removable/replaceable camera tail includes audio in/out

III. CAMERA MOUNTING

Once the camera is securely mounted, plug the camera pigtail into rear of InnoPro® camera. You can now plug the remaining end of the pigtail into your CAT5 w/ RJ45 and power supply. Make sure all connections points are securely attached.

IV. VIEWING INNOPRO CAMERA VIA CAT5 w/ RJ45

Items that are required but are not included:

✓ Networking Knowledge
✓ Open Ethernet Connection (available on your Router, Switch, hub, etc.)
✓ Ethernet cable (Cat5 or greater) with RJ45 connections
✓ Viewing Device: options you can utilize are:

• Computer (Windows 7 or later)
• NVR (Network Video Recorder, not sold by Dakota Micro)

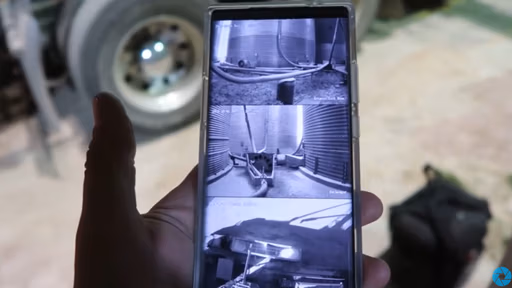

• Tablet or Smart Phone – Dakota Micro does not provide an app for viewing the InnoPro camera. There are many free apps available for all platforms (we have had success with “OnVifer”, “IP Camera Viewer Lite” and “Tiny Cam”). Use the “scan Camera” function when you add a camera to the app to find your InnoPro camera. Dakota Micro does not provide support for this function.

If you are not an advanced network user, consult a network provider for assistance.

• Default InnoPro Camera Username: Admin
• Default InnoPro Camera Password: 123456

√ External Microphone

A. Connect Your Components and plug in your power adaptor to a wall outlet (if not using 12V POE)

NOTE: Depending upon how the InnoPro camera is hooked up, camera can take up to 90 seconds to fully boot.

B. Install Your Software

X. SPECIFICATIONS

XI. WARNINGS

• When selecting a camera system from Dakota Micro, be sure to utilize the appropriate system for your use. InnoPro, AgCam and EnduraCam cameras are designed for high impact, moisture, vibration, and a variety of other rough conditions. OverView cameras and kit components are designed for light use, low vibration, and low moisture. OverView equipment is not warranted when used in situations outside of the above-mentioned parameters. We always request that customers keep in mind that our less expensive OverView product line is cheaper because it does not feature the reliability and durability of our InnoPro, AgCam and EnduraCam lines. The warranty available on these products reflects that durability.
• To avoid electrical shock and maintain optimal functionality, do not open the enclosures. High voltage may be present and there are no user serviceable parts inside. All warranties will be void should any enclosures be tampered with in any way.
• Do not use any harsh chemical solvents, cleaning agents or corrosive detergent to clean away dirt on the surface of the screen or lens.
• On AgCam and EnduraCam products, the photo-chromic camera lenses have been made impact-resistant and have been drop-ball tested according to Sec. 3.84,21 CRF BUT ARE NOT UNBREAKABLE. Because they have been hardened chemically, they show no stress pattern. Inspect your lenses frequently. Chipped or scratched surfaces will reduce protection. Such lenses should be replaced only by the manufacturer.
• Power to cameras is not interrupted by turning off monitor; 12v power source must be terminated when not in use to avoid battery drain. To avoid this problem be sure when hard wiring a unit, use a fused circuit.
• Do not use your Dakota Micro camera system for anything other than legal surveillance and observation uses. Dakota Micro, Inc. is not liable for any illegal or nefarious usage.

XII. PRODUCT WARRANTY/REPAIR PROCESS

1. For Technical Support call 1 701-538-4403 OR email techsupport@dakotamicro.com
2. Technician will assist in troubleshooting product malfunction.
3. If product malfunction cannot be remedied and a repair is deemed necessary, Technician will issue a Repair Authorization (RA) number.

IMPORTANT NOTE:
The Technician will note on the RA form if the repair APPEARS to be a warranty or non-warranty issue based on customer description of the issues at hand. No final determination can be made until inspection and testing of the equipment is completed at the factory.

4. To ensure fast and effective repairs, customer is required to send:

• Dakota Micro Product that Technician has requested/deemed necessary in the proper diagnosis and repair of malfunction. This may include some or all components of the kit.
• Original/Copy of purchase receipt.
• For serialized items ONLY: If a copy of the original purchase receipt cannot be provided, then DAKOTA MICRO will use the product manufacture date.
• Customer information, including return address & phone number. If the phone number is not included, the customer will be sent a letter requesting the needed information.
• RA Number provided by Dakota Micro Technical Support
• Shipping and associated costs to ship product to DM factory to be borne by the customer unless otherwise specified.

5. Customer should mail product to:

Dakota Micro, Inc. RA # XXXXX
8659 148th ½ Ave. SE Cayuga, ND 58013

6. Upon receipt and evaluation of product at Dakota Micro Factory, it will be established if the repair is warranty or non-warranty. If requested, customer will be called and notified of any applicable charges.
7. If the repairs are deemed non-warranty and require a service/repair fee of any kind, a credit card number will be requested by Order Processing after the repair is completed.
8. If customer is unable to be contacted over the course of 3 weeks regarding required non-warranty repairs, product will be returned, unrepaired, to the customer.
9. Any product returned without proper documentation may be returned at customer’s expense.
10. Product returned with unconfirmed problems will be assessed a $60 evaluation fee per unit
11. Return shipping costs will be borne by the party at fault; in other words, if Dakota Micro determines that the defective product was covered under warranty, Dakota Micro pays the shipping charges. If Dakota Micro determines that it was the customer caused, the customer will pay shipping charges. If a particular circumstance cannot be determined than the cost of shipping charges will be decided on a discretionary basis depending on the situation at hand.

THIS PAGE INTENTIONALLY LEFT BLANK

XIII. CONSUMER LIMITED WARRANTY

LIMITED WARRANTY
Subject to the disclaimer, limitations and other directions stated hereafter, Dakota Micro, Inc. warrants that the Product will be free from defects in material and workmanship for periods as stated hereafter from the date of original purchase. THIS WARRANTY IS EXPRESSLY MADE IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS. THE EXCLUSIVE REMEDY OF THE BUYER IS LIMITED TO REPAIR OR REPLACEMENT OF THE PRODUCT. EXCEPT AS STATED IN THIS WARRANTY, DAKOTA MICRO SHALL NOT BE LIABLE FOR ANY LOSS, INCONVENIENCE, OR DAMAGE, INCLUDING DIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, RESULTING FROM THE USE OR INABILITY TO USE THE PRODUCT, WHETHER RESULTING FROM BREACH OF WARRANTY, NEGLIGENCE, STRICT LIABILITY OF ANY OTHER LEGAL THEORY. Any oral statements or representations made by anyone which are contrary to or at variance with the terms stated in this LIMITED WARRANTY are void.
Dakota Micro will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period of three (3) years for AgCam® /EnduraCam® and InnoPro® cameras; two (2) years for AgCam®/ EnduraCam® monitors, and Wireless components; Twelve Months (12) for all Overview Cameras & Monitors, cables and all other accessories.
The Dakota Micro limited warranty periods outlined above apply throughout the United States and Canada only. A one (1) year maximum limited warranty for all Products applies to all other geographic locations unless otherwise stated in writing by Dakota Micro.
This limited warranty does not apply to any issues connected with appearance that have no relation to the performance of the Product nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction.
In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth in the complete Dakota Micro “Product Warranty & Repair Process” listed on page 15 – section XIII , and provide proof of purchase to Dakota Micro.
Neither the sales personnel of Dakota Micro nor any dealer or any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time periods described herein.
The warranties described herein shall be the sole and exclusive warranties and remedies provided by Dakota Micro. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Dakota Micro to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims. In no event shall Dakota Micro be liable or in any way responsible for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than Dakota Micro.
Some states do not allow the limitation or exclusion of incidental or consequential damages, so said limitation may not apply to you.
Any action at law, suit in equity, or other judicial proceeding for the enforcement of any right provided for herein or otherwise, or with respect to any claim that a purchaser may have against Dakota Micro shall be instituted only in the Courts of the State of North Dakota, either in the state district court located in Wahpeton, North Dakota or in Federal District Court location in Fargo, North Dakota. Without regard to conflicts of law principles, the laws of the state of North Dakota shall govern the interpretation and enforcement of the terms of this Limited Warranty and all aspects of the relationship between Dakota Micro and the purchaser.
This warranty gives you specific legal rights and you may also have other rights, which may vary from state to state.

XIV. DISCLAIMER

Dakota Micro Inc. products, specifications, pricing, and programs are subject to change without prior notice. Dakota Micro Inc. reserves the right to make design changes at any time without obligation to retroactively install them on previously sold units.

XV. CONTACT US

Dakota Micro, Inc.
8659 148th ½ Ave. SE.
Cayuga, ND 58013
Management System Registered to ISO 9001
www.dakotamicro.com
