ANPODE FM01 Foot Massager User Manual

ANPODE FM01 Foot Massager

Specifications:

• Product Name: Foot Massager (FM)
• Model: FM / FM
• Rated Voltage: DC V/A
• Rated Power: W
• Rated Working Time: min

Product Information

Thank you for choosing our Foot Massager product. It is designed for relaxation and massage purposes, offering various modes and functions to cater to different needs.

Product Usage Instructions

Usage Diagram:

Sit in a comfortable environment (sofa, office chair, etc.), plug in the power, and operate with one button for quick massage and relaxation.

Timer Function:

The product has a timer function that allows you to set the duration of your massage session.

Product Composition:

The Foot Massager includes features such as Power, Mode selection (Low, Medium, High), Air Compression levels, Vibration function, Heat settings, and Speed adjustment.

Mode Selection:

Choose between Low, Medium, and High-intensity modes for different levels of relaxation and massage. You can also cycle through different plantar massage modes (M1, M2, M3) for varied experiences.

Air Compression:

The product offers three levels of air compression intensity – Low, Medium, and High. Use with caution at the highest setting.

Vibration Function:

The Foot Massager features a vibration function that can be turned on/off. This function is available in specific modes.

Heat Settings:

Adjust the heat settings between low and high levels for added comfort during your massage session.

Speed Adjustment:

You can adjust the speed of the massage heads between Low, Medium, and High settings to suit your preference.

Product Care and Maintenance:

Maintenance Method:

When not in use, disconnect the power supply and store the product in a safe, dry, and cool place. Avoid contact with sharp objects or corrosive liquids. Do not expose the product to high temperatures or direct sunlight to prevent damage.

Cleaning Method:

Before cleaning, turn off the power and gently wipe the product with a soft, slightly wet sponge or cloth. Do not soak the product in liquid or use harsh cleaning agents.

Frequently Asked Questions

Q: How do I change the massage mode on the Foot Massager?

A: To switch between massage modes, press the designated button on the device to cycle through the available options.

Q: Can I use the Foot Massager without plugging it in?

A: No, the Foot Massager requires a power source to operate. Please ensure it is plugged in before use.

Thank you for choosing our products! This product has 2 models. Please confirm the specifications of the product you purchased before reading this manual. Please keep the manual properly for future reference.

Dear customers,

Thank you very much for purchasing this product, which has been strictly tested and proved to be safe and reliable. Please read this manual carefully before use, so as to master the correct use of this product. Please pay special attention to important safety warnings when reading, and keep this manual properly for reference.
Note: Due to different batches, product design and color may be subject to partial adjustment without notice.

Usage diagram

Timer function

15 minutes automatic timing standby For the health of you and your family, we set the running system of the foot therapy machine to 15 minutes, avoid long- time overload work and prolong the service life of the machine. If you feel uncomfortable during use, click the “power” button to turn off the machine early without waiting for full operation.

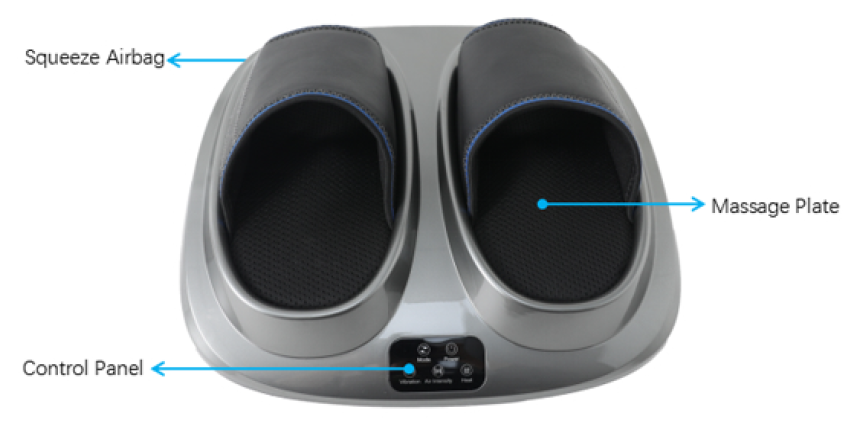

Product composition

• Ventral surface: 5 independent control buttons – control the massage function of the product
• Surface and interior: Squeeze massage – air pressure wraps the instep for acupoint squeezing and the heating plate can quickly heat up to relax your feet
• Front end of the massage plate: Kneading massage – acupoint massage and kneading scraping of the soles of the feet
• The middle part of the massage plate: Top pressure massage – acupoint massage and top-pressure massage on the arch area of the foot
• The end of the massage plate: Acupuncture massage – imitation acupuncture massage on the heel area
• Overall massage plate: Vibration massage – vibrates the soles of the feet and legs to achieve relaxation and body shaping (FM02 Only)

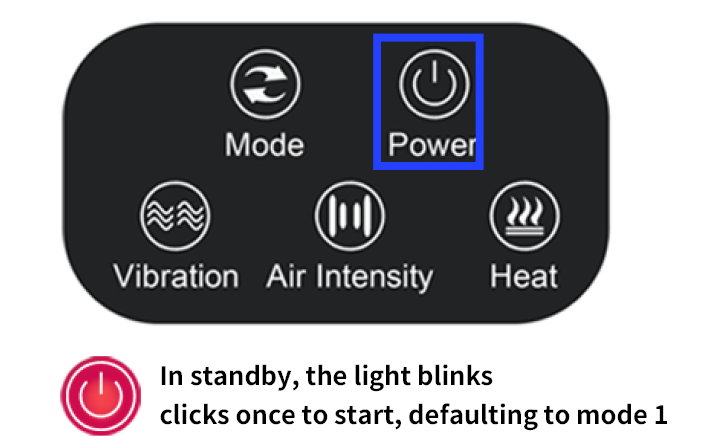

Power

• In standby mode, the indicator light of is red and flashing.
• Press in standby mode, the system will default to foot mode M1, low intensity, heating on and time for 15 minutes. At the end of the massage, all massage actions stop and the system returns to standby mode. (Press in start-up mode to stop all massage actions and return to standby mode).

Mode

Press in massage mode to cycle through the M1/M2/M3 plantar modes.

M1 (colour: blue) is a low-intensity massage mode, suitable for daily relaxation; M2 (colour: magenta) is a medium-intensity massage mode, suitable for mild pain relief and relaxation after light exercise; M3 (colour: red) is a high-intensity massage mode, suitable for pain relief or deep relaxation after exercise.

Air compression

The product startup status defaults to low-level air pressure(Color: blue). Press to switch the air pressure intensity in order: medium (Color: magenta), high(Color: red), and turn off (The indicator light is off). If the squeezing of the airbags is too strong for you, click continuously until the light goes out to switch off the function and enjoy a pure foot massage!

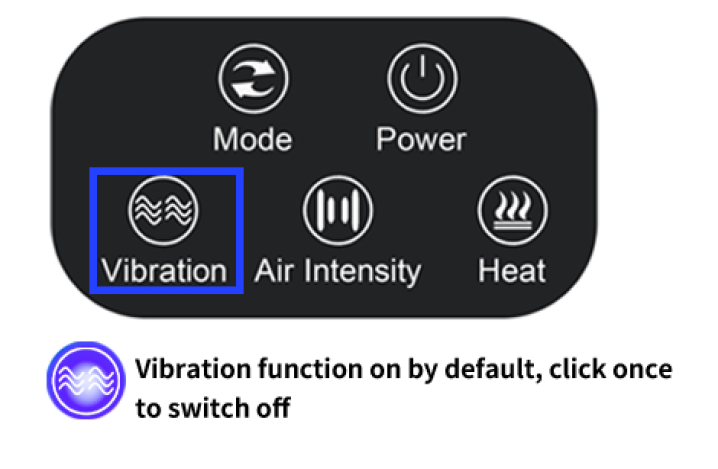

Vibration

The default startup state of the product is vibration(Color: blue). Press this to switch the vibration function on and off. (Only available in FM02 mode)

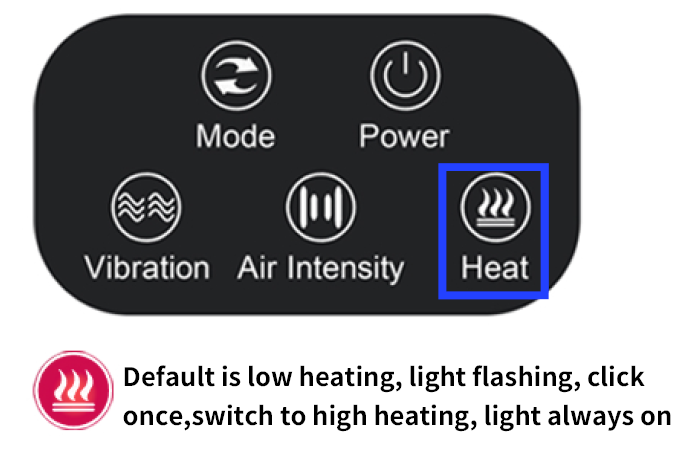

Heat

The product startup status defaults to low-level heating (the indicator light is red and flashes quickly). Press this to switch to higher-level heating (the indicator light is red and remains on). Press this again to turn off the heating function (the indicator light goes out).

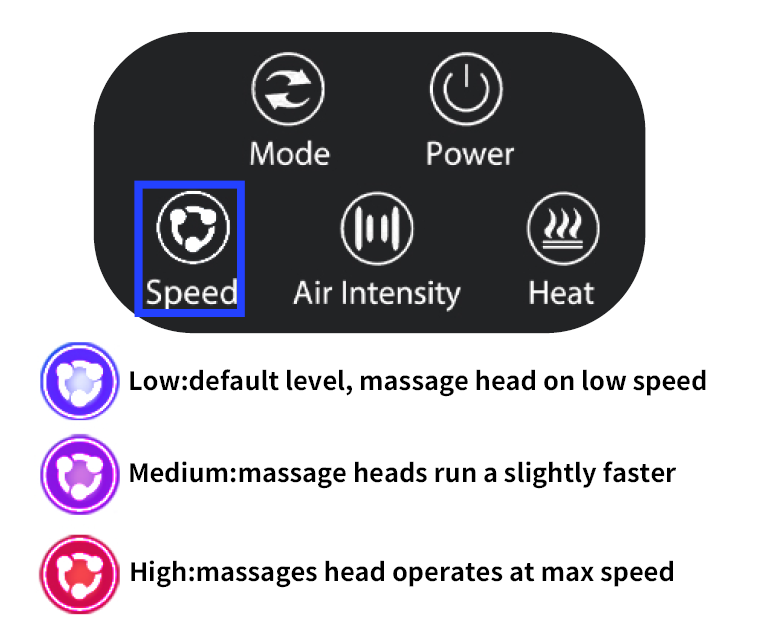

Speed

The product startup status defaults to low speed (Color: blue). Press to switch the kneading speed adjustment in order: medium speed (Color: magenta), high speed (Color: red). (Only available in FM01)

Matters needing attention

The power plug must be unplugged after use or before cleaning. This machine is not allowed to be used in damp environments and bathroom. Please keep it in a dry place without direct sunlight after use. Do not use kneading massage area during sleep to prevent long-term stimula- tion of a part from affecting health. Do not use the massager within half an hour after meals, otherwise adverse consequences will occur due to different human constitution. In case of discomfort caused by excessive stimulation during use, stop using immediately. After massage, please drink 500CC boiled water or hot tea to promote the excretion of metabolic substances in the body. Do not replace the unqualified cord by yourself. Do not cover the motor for use, so as to avoid failure or damage caused by excessive motor temperature. Please keep away from sharp objects. Do not continue to use the product when the cloth cover is damaged, so as to prevent toes from getting involved in the machine and causing personal injury. Do not operate the control switch with wet hands. Do not let the control switch touch water and other liquids. Do not use this product continuously for more than 30 minutes, and do not warm your feet for more than two hours. If the product is not used for a long time, please cover the product with a dust cover (to be purchased by yourself) to prevent dust falling.

Product parameters

• Product name: Foot MassagerFM01)
• Rated voltage: DC12V/ 2A
• Rated power: 24W
• Rated working time: 15min
• Product name: Foot Massager(FM02)
• Rated voltage: DC12V/4A
• Rated power: 48W
• Rated working time: 15min

Disabled People

For people with weak physiques, such as those who are old and weak, who have been ill for a long time, or who have been lying in bed for many years, please consult a doctor before use; Prohibited for pregnant women, menstruating women and infants; For people with blood disease and bleeding tendency, early acute closed soft tissue injury, purple spot disease and fracture are prohibited; It is not recommended to use it on an empty stomach. On the contrary, it is also not recommended to use it on a full stomach. It is also not rec- recommended to use it after excessive drinking or just after strenuous exercise; Those who are in the recovery period of nerve anastomosis or have open injury are prohibited; Critical patients, such as patients with various malignant tumours; It is forbidden for patients with acute spinal injury; Massager is not recommended for patients with poor heart, gastric ulcer, gastric bleeding, lung disease, severe heart disease, liver disease, malignant tumour, acute abdomen, suffer from osteoporosis, etc; Those with severe infection, such as septic arthritis and osteomyelitis, should not be used; Patients with tumour should avoid its location.

Product Care

Maintenance method

• When not in use, disconnect the power supply and place the product in a safe, dry and cool place.
• Avoid contact with sharp objects to avoid piercing or damaging the product. Do not store this product near high temperatures, open flame or direct sunlight, otherwise, it will cause discolouration and damage.
• Avoid contacting this product and accessories with benzene, thinner or other corrosive liquids.
• When storing, please do not bundle the product with wires or hang the product with wires.

Cleaning method

• Please turn off the power before cleaning, and gently wipe with a soft, slightly wet sponge or soft cloth.
• The product shall not be soaked in any liquid, and shall not be directly washed with water or any liquid.
• Do not use a sharp brush, gasoline, kerosene, furniture cleaning fluid, etc. to wipe this product.

Product characteristics

• Ergonomic design allows you to enjoy a professional foot massage at any time
• Designed according to ergonomic principles, the unique shape design and acupoint distribution fully match the foot structure of the human body, just like inviting professional foot therapists home, you can relax your feet every day before going to bed and watching TV programs.
• Double security protection, more comfortable to use
• The double guarantee of overheat circuit breaker protection and current overload protection is safe and reliable, allowing you to enjoy foot massage happily.
• Five buttons (Power, Mode, Vibration/Speed, Air intensity, Heat)
• Foot scraping, massage, undulating massage, with heating function;
• Airbag wrapping and squeezing massage function on instep and heel
• There are 3 modes in total, and each mode has strength that can be freely selected;
• The rated working time is 15 minutes.

WARNING

This instrument is not intended to be used by people (including children) with physical disabilities, sensory or neural defects or lack of relevant experience and common sense unless they are supervised and guided by a guardian. Children must be supervised to ensure that they do not play with equipment. If the surface of the machine is hot during use, people who are not sensitive to heat must pay attention when using the machine.
