Wallwerx 90 Degrees Clockwise Until Locked Instruction Manual
Installation Instruction
-

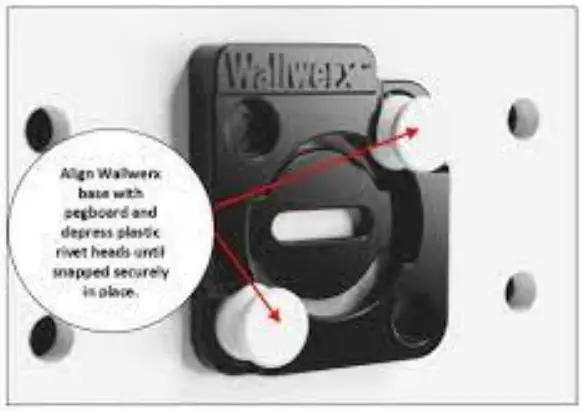

Align Wallwerx base with pegboard and depress plastic rivet heads until snapped securely in place.
-

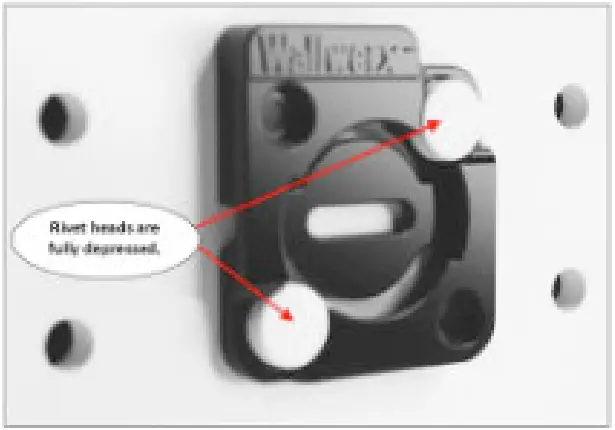

Rivet heads are fully depressed.
-
Install flex bracket as shown and rotate 90 degrees clockwise until locked in place.
-

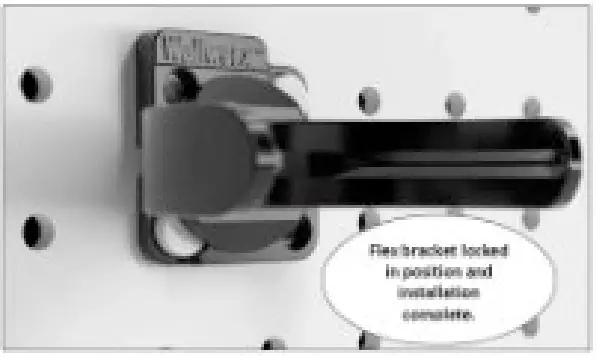

Flex bracket locked in position and installation complete.
For additional information visit wallwerx.com
Removal
-

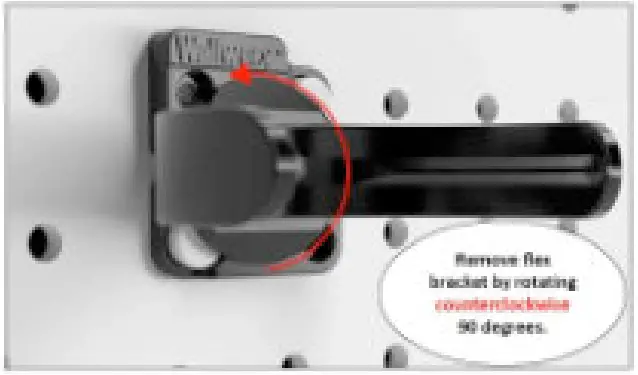

Remove flex bracket by rotating counterclockwise 90 degrees.
-

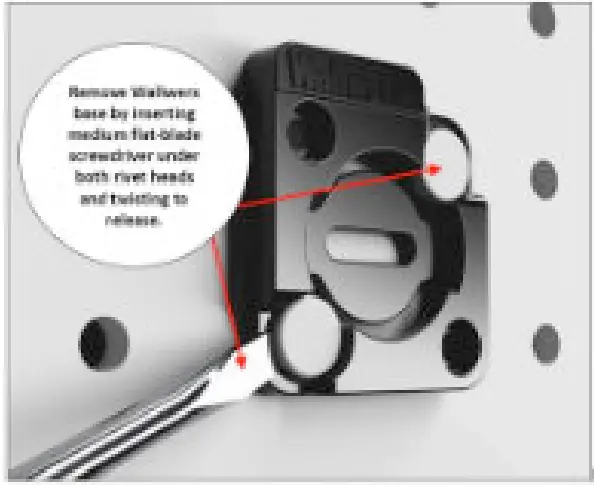

Remove Wallwerx base by inserting medium flat-blade screwdriver under both rivet heads and twisting to release
. -
Once both rivet heads have been released, the Wallwerx base can be removed from the pegboard.
