Uitpon 210015-1G-US2 Automatic Plant Watering System Instruction Manual

Uitpon 210015-1G-US2 Automatic Plant Watering System Instruction Manual

Thank you for purchasing our product
Please read this instruction manual carefully before use, and as per the manual to operate. Additionally, please pay attention to the precautions.

Description

The device is based on modern micro-electronic technology and adopts the smart drip irrigation technology. Watering is controlled by automatic controllers instead of Artificial watering.
As per plant attributes and flowerpot size, you can set watering frequency and time. watering once a day, and the watering time is up to 99 seconds once.
Through the watering spikes the water via soil slowly penetrates into the roots of plant to ensure that the plant and flower obtain enough water and nutrient.
Suitable for the potted flower, plant, bonsai in the plant room, family, residence, hotel, club, office etc. (indoor environment).

Specification

Watering frequency set: once a day, once every two/ three days …
Watering quantity set: support 10-15 pots plant, adjust the water volume as per the Watering time;
Power supply mode: USB Charging
Power: 3.7 W (DC5V 1A)
Battery capacity: 1000MA
Battery standby time: depend on watering frequency and quantity.
(e.g: normal watering once a day, each time is 99 seconds, it can be used for 20 days)
Water pump flow: 0.85L/min
Shell material: ABS fire-retardant plastic

Machine Maintenance

1. Please turn off the device before clean.
2. Please use the soft dry cloth to make device surface clean.
3. If there is stubborn stain on the device surface, please use the wet cloth to wipe, and then use the dry cloth to do the second cleaning.
4. Forbidden to use organic solvents such as benzene, thinner or gasoline etc. to wipe the device, which will damage the machine shell or discolors the device surface and keys.

NOTES:

1. Please place the device on a firm, well-ventilated, dry air, no direct sunlight, no strong magnetic field and dust;

2. Use clean, soft, dry cloth to wipe the surface. rather than use chemicals.

3. Forbidden to disassemble the machine without any permission. Please contact technical department of our company if there is any fault that needs to be repaired.

4. metal hook

5. USB charging port

6. watering frequency

7. charging indicator

8. watering volume (S)

9. water inlet

10. water outlet

11. watering frequency setting key

12. minus

13. power

14. plus

15. watering volume setting key

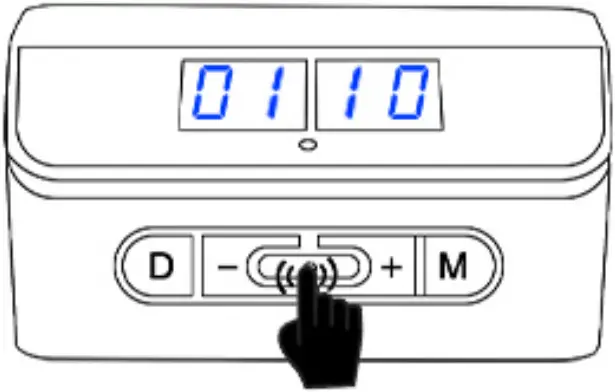

Easy Operation

1. Press for 3s to Turn ON/OFF


2. Press “D” to adjust the watering frequency by +/-


3. Press “M” to adjust the watering time by +/-


4. Press” to confirm your setting


5. Simultaneously press”D” & “M” for 10s to enter into the reset


Easy Installation

1. Measure and Cut the Tube to the Size You Need.

2. Insert the tubes to “in” and “out” porls of the device.

3. Attach the Needed T-joints

4. Place the Watering Stakes

5. Setup a Watering Times


6. Start to Work
