Heart of Tafiti Aqua 50 5 HD Baby Monitor Instruction Manual
- May 15, 2024
- Heart of Tafiti
Table of Contents
Instruction Manual
Setup and use your digital video baby monitor
Installing Baby Unit
- Connect the small plug of power adapter to the Baby unit and push the DC plug to the end. Only use the enclosed adapter (5V DC 1000mA). You will see green LED is turned on.
- Place Baby Unit on a flat surface, such as a desk or shelf or mount the camera on a wall.
- Connect the small plug of power adapter to Parent unit and push the connector the end. Only use the enclosed adapter (5V DC 2000mA). Recommend charging time of at least 3 hours before first time use.
Precaution: use of battery for Parent Unit
When battery level is low, the power on off LED ftlashes red, monitors comes
with sound alert and battery icon on LCD display flashes red.
Extend life cycle of battery : Only charge the battery when the battery life
indicator is low. Constant recharging of your battery before the low battery
indicator light comes on will decrease the life of your batteries.
Optimize battery life : Louder speaker level consume more battery power and
shorten battery life. Switch on power saving mode and tune speaker sound level
to level 1 to have optimized battery life.
Frequently Asked Questions
Q Monitor cannot hold camera connection
A Please check whether monitor is selected to CAMERA SCAN mode. Monitor switches between paired cameras around every 10 seconds. When monitor switch the camera which is not powered on, monitor display Lost Link.

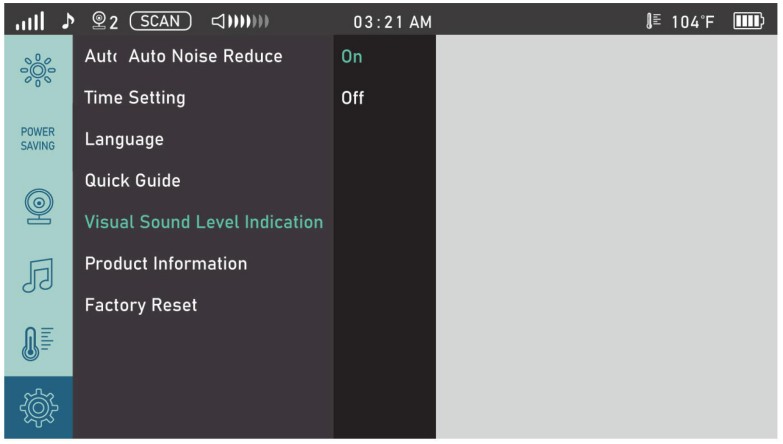

Q Sound Bar
A This sound bar is designed for deaf parents to reflect sound level picked up from camera. You could disable this display in menu.
Q Ssave more battery energy with ECO mode by switching off both screen and audio
[](https://manuals.plus/wp-content/uploads/2024/03/Heart-of-Tafiti-Aqua-50-5 -HD-Baby-Monitor-Precuation-3-1.jpg "Heart of Tafiti Aqua 50 5 HD Baby Monitor
- Precuation 3")
Q Switch off “Quick Guide”
[](https://manuals.plus/wp-content/uploads/2024/03/Heart-of-Tafiti-Aqua-50-5 -HD-Baby-Monitor-Precuation-4-1.jpg "Heart of Tafiti Aqua 50 5 HD Baby Monitor
- Precuation 4")
A When you are familiar with this monitor, you could switch off this Quick Guide IN menu.
Q Pairing Camera
A Choose from unpaired cameras in Menu first, you would see pairing message shows up on screen. During the pairing message is on screen, press camera pairing button 3 seconds. When camera and monitor is paired, video is on screen automatically.
Q Audio Scan
A Press MENU button to activate Audio Scan function in split screen display mode. Press MENU button again to deactivate Audio Scan function. Monitor switches audio between each camera sequentially every 10 seconds. Red frame indicates the camera where the audio comes from.
THIS PRODUCT CANNOT REPLACE RESPONSIBLE ADULT SUPERVISION
WARNING
- When an AC Adapter is plugged into an electrical outlet, do not the exposed end.
- Test baby monitor before first use, periodically, and when changing location of the baby unit(Camera).
- Do not use monitor near water (Such as bathtub, Sink, etc)
- Keep parent unit away from heat sources (Such as stoves, radiators, etc)
- Make sure there is proper ventilation around baby unit and parent unit.
- This product is not a toy. Do not allow children to play with it.
- The mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
- The baby monitor should not be considered as a medical device. While using the baby monitor, it is strongly recommended to have an adult directly checking on your baby. Premature babies or children considered at risk must be supervised by your pediatrician or other medical staff.
Wanrning Information
- Keep this instruction manual for future reference.
- For adult use only.
Battery Warning
- Use only the original rechargeable battery provided.
- Do not shot-circuit supply terminals.
- Remove battery when product is stored for long periods of time or when battery is exhausted.
- Dispose of exhausted battery properly.
- Keep all batteries away from children.
- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
- Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
- Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
Precautions
- Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electrics shock.
- The baby monitor works better in temperature ranging between 0°C and 40°C (32°F and 104°F)
- Do not dismantle the appliance. It does not contain any parts that may be used independently.
- Never Expose the baby monitor for long period to sun’s direct rays and never place it next to a source of heat, in a damp or very dusty room.
- Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
- Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
- The product should be mounted to a wall or ceiling inly as recommended by the manufacturer.
Caution: risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions
For mobile products
RF Exposure Information (MPE)
This device meets the EU requirements and the International Commission on Non-
Ionizing Radiation Protection (ICNIRP) on the limitation of exposure of the
general public to electromagnetic fields by way of health protection. To
comply with the RF exposure requirements, this equipment must be operated in a
minimum of 20 cm separation distance to the user.
Frequency: 2410 MHz ~2473 MHz
Maximum output power. Camera: 19.14 dBm(e.i.r.p.)
Receiver: 16.77dBm (e.i.r.p.)
Nominal input values: 100-240 V AC, 50/60 Hz, 0.2A
Nominal output values: 5.0V DC-1A
Model: AWO006WR-0500100VH, AW006WR-0500100BH
Nominal output values: 5.0V DC-2A
Battery: LI-ION Polymer 3.7V /3000mAh
Model: AW010WR-0500200VH, AW010WR-0500200BH
Manufacturer: Shen Zhen A-WIN Technology Co., Ltd
Device Version: VO1
EU/EC DECLARATION OF CONFORMITY
The undersigned, representing the following manufacturer
Manufacturer: IMODESTY TECHNOLOGY CORP.
Address: 7F., No. 257, Wenxing Rd., Zhubei City, Hsinchu County 302, Taiwan
(R.O.C.)
hereby declare that the following product(s)
Video Baby Monitor
Model Number: Camera 55355T, Monitor 55355R is (are) in conformity with the
regulations of the following marked EC-directive(s) and bear(s) the ****– mark
accordingly & meet EU 2019/1020
| reference number| title
---|---|---
| 2014/53/EU| Radio equipment Directive
The conformity of the product(s) with (above ticked) EC directives is provided
by the compliance with the following standard(s):
Standard(s):/date
RF
EN300 328 V2.2.2
EMC
EN301 489-1: V2.2.3 (2019-11)
EN301489-17: \/3.2.4(2020-09)
Safety/Health
EN62368-1: 2014/COR1:2015 and EN 62368-1:2014/A11:2017
EN62311:2020 YI-CHENG, TANG /VICE PRESIDENT
IMODESTY TECHNOLOGY CORP.
ISSUE DATE AND PLACE: TAIWAN / MAY 10, 2021
UK legislation of Conformity
The undersigned, representing the following manufacturer Manufacturer:
IMODESTY TECHNOLOGY CORP.
Address: 7F., No. 257, Wenxing Rd., Zhubei City, Hsinchu County 302, Taiwan
(R.O.C.)
hereby declare that the following produci(s)
Video Baby Monitor
Model Number: Camera 55985T, Monitor 55985R is (are) in conformity with the
regulations of the following marked UK legislation UK and bear(s) the ****–
mark accordingly & meet EU 2019/1020
| title
---|---
| Radio equipment Regulations 2017
The conformity of the product(s) with (above ticked) UK legislation is
provided by the compliance with the following standard(s):
Standard(s):/date
RF
EN300 328 vV2.2.2
EMC
EN301 489-1: V2.2.3 (2019-11)
EN301489-17: V3.2.4(2020-09)
Safety/Health
EN62368-1: 2014/COR1:2015 and EN 62368-1:2014/A11:2017
EN62311:2020 YI-CHENG, TANG /VICE PRESIDENT
IMODESTY TECHNOLOGY CORP.
ISSUE DATE AND PLACE: TAIWAN / MAY 10, 2021
iModesty Technology Corp.
7E, No. 257, Wenxing Rd., Zhubei City,
Hsinchu County 302, Taiwan (R.0.C.)
tafiti.service@gmail.com
Heart of Tafiti ‘s baby monitor warranty policy
Heart of Tafiti will repair or replace (at our option) your unit free of
charge for 24 months from the date of purchase if the unit is defective in
workmanship or materials. To claim your repair/replacement, the product must
be returned to Heart of Tafiti together with a copy of the purchase receipt.
In the absence of the purchase receipt, the warranty will be 24 months from
the date of manufacture. This warranty does not apply to normal wear or damage
from misuse, abuse, improper storage and handling, installation, accident,
unauthorized repair or alteration. Please contact our Customer service by
Facebook Heart of Tafiti or via email for details.
