RAM MOUNT RAM-HOL-UN10B-462 Large Phone Holder Instruction Manual
- June 17, 2024
- RAM MOUNT
Table of Contents
RAM MOUNT RAM-HOL-UN10B-462 Large Phone Holder
![RAM-MOUNT-RAM-HOL-UN10B-462-Large-Phone-Holder-PRODUCT-
IMAGE](https://manuals.plus/wp-content/uploads/2024/02/RAM-MOUNT-RAM-HOL- UN10B-462-Large-Phone-Holder-PRODUCT-IMAGE.png)
Product Information
Specifications
- Model : RPR-INS-462
- Assembly Parts Included: #10-32 x 7/8 (x1), #10-32 x 7/16 (x2)
- Patent Status : Pending
Product Usage Instructions
Assembly Instructions
- Identify parts A, B, and C as shown in the diagram.
- Attach part A to the mounting surface using the provided #10-32 x 7/8 screw.
- Attach parts B and C to part A using the provided #10-32 x 7/16 screws.
- Ensure all components are securely fastened.
Disclaimer
- To explore additional mounting options, please visit rammount.com.
- This document, along with its images, cannot be reproduced either partially or fully without the express written consent of National Products, Inc.
FAQ
-
Q: Can I use this product for outdoor applications?
A: This product is suitable for both indoor and outdoor applications, but it is recommended to protect it from extreme weather conditions. -
Q: How do I clean the product?
A: Use a soft, damp cloth to wipe the product clean. Avoid using harsh chemicals or abrasive materials that may damage the surface.
- rammount.com
- 1.800.497.7479
- support@rammount.com
Parts Index
not to scale
- Connect Diamond Ball Adapter to the two-hole pattern of the (A) RAM® Vibe-Safe™ using (C) screws.Grayed out components not included

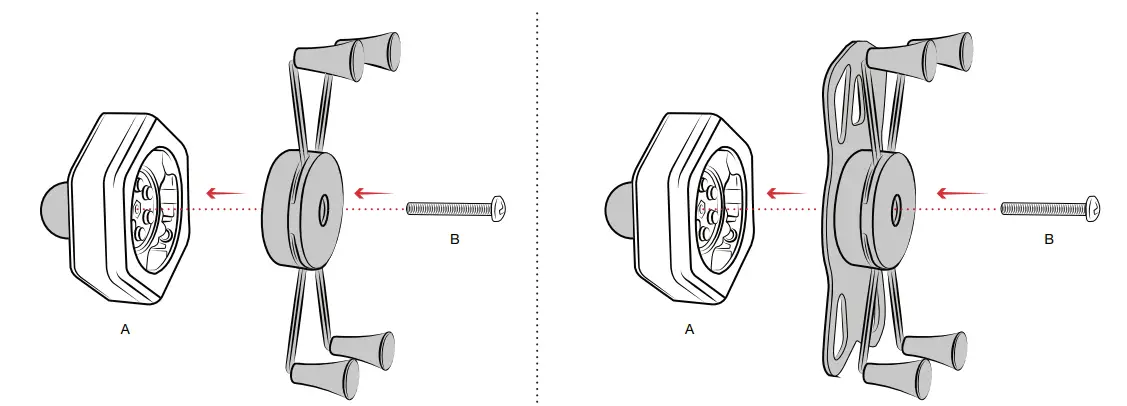

- Connect RAM® X-Grip® to front side of (A) RAM® Vibe-Safe™ using (B) Screw. Optional tether is recommended for any rough environments and/or open cockpit applications. To apply tether, wrap around back of RAM® X-Grip® housing before connecting to RAM® Vibe-Safe™.
RPR-INS-462
Disclaimer
A reduction in vibration does not guarantee full protection of device.
External immeasurable factors may cause damage to phones, cameras, and other
devices while mounted in the RAM® Vibe-Safe™. National Products, Inc does not
assume responsibility or liability for any such personal injury, death or
property damage. RAM® mounts lifetime warranty is limited to RAM® mounts and
components. The warranty does not include any device mounted or attached to a
RAM® mount, such as a phone, GPS, camera, computer or other device.
- To see more mounting options, visit rammount.com
- This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.
