WESLOWESLO Pursuit 720S Exercise Bike User Manual

WESLOWESLO Pursuit 720S Exercise Bike

Specifications

• Model No.: WLEX29190
• Serial No.: [Write the serial number in the space above for reference.
• Patent Pending

Important Precautions

1. Read all instructions in this manual before using the exercise cycle.
2. It is the responsibility of the owner to ensure that all users of the exercise cycle are adequately informed of all precautions. Use the exercise cycle only as described in this manual.
3. Use the exercise cycle indoors on a level surface. Keep the exercise cycle away from moisture and dust. Place a mat under the exercise cycle to protect the floor or carpet.
4. Inspect and tighten all parts regularly. Replace any worn parts immediately.
5. Keep children under the age of 12 and pets away from the exercise cycle at all times.
6. The exercise cycle is intended for in-home use only. Do not use the exercise cycle in a commercial, rental, or institutional setting.
7. The pulse sensor is not a medical device. Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aidin determining heart rate trends in general.
8. The exercise cycle should not be used by persons weighing more than 250 pounds.
9. Wear appropriate clothing when exercising; do not wear loose clothing that could become caught on the exercise cycle. Always wear athletic shoes when using the exercise cycle.
10. Always keep your back straight when using the exercise cycle. Do not arch your back.
11. If you feel pain or dizziness while exercising, stop immediately and cool down.

USER’S MANUAL

Model No. WLEX29190
Serial No.

Write the serial number in the space above for reference.

QUESTIONS?
As a manufacturer, we are committed to providing complete customer satisfaction. If you have questions, or if there are missing parts, we will guarantee complete satisfaction through direct assistance from our factory.
TO AVOID UNNECESSARY DELAYS, PLEASE CALL DIRECT TO OUR TOLL-FREE CUSTOMER HOT LINE. The trained technicians on our customer hot line will provide immediate assistance, free of charge to you.

CUSTOMER HOT LINE:

• 1-800-999-3756
• Mon.ÐFri., 6 a.m.Ð6 p.m. MST

CAUTION
Read all precautions and instructions in this manual before using this equipment. Keep this manual for future reference.

Visit our website at www.weslo.com new products, prizes, fitness tips, and much more!

IMPORTANT PRECAUTIONS

WARNING : To reduce the risk of serious injury, read the following important precautions before using the WESLO¨ PURSUIT 720s.

1. Read all instructions in this manual before using the exercise cycle.
2. It is the responsibility of the owner to ensure that all users of the exercise cycle are adequately informed of all precautions. Use the exercise cycle only as described in this manual.
3. Use the exercise cycle indoors on a level surface. Keep the exercise cycle away from moisture and dust. Place a mat under the exercise cycle to protect the floor or carpet.
4. Inspect and tighten all parts regularly. Replace any worn parts immediately.
5. Keep children under the age of 12 and pets away from the exercise cycle at all times.
6. The exercise cycle should not be used by persons weighing more than 250 pounds.
7. Wear appropriate clothing when exercising; do not wear loose clothing that could become caught on the exercise cycle. Always wear athletic shoes when using the exercise cycle.
8. Always keep your back straight when using the exercise cycle. Do not arch your back.
9. If you feel pain or dizziness while exercising, stop immediately and cool down.
10. The exercise cycle is intended for in-home use only. Do not use the exercise cycles in a commercial, rental, or institutional setting.
11. The pulse sensor is not a medical device. Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.
12. CAUTION DECAL PLACEMENT: The decal shown below has been placed on the exercise cycle. If the decal is missing, or if it is not legible, please call our Customer Service Department toll-free at 1-800-999-3756 to order a free replacement decal. Apply the decal in the location shown.

WARNING : Before beginning this or any exercise program, consult your physician. This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

BEFORE YOU BEGIN

Thank you for selecting the innovative WESLO¨ PURSUIT 720s. The PURSUIT 720s offers a unique form of low-impact exercise that offers greater cardio- vascular benefits and increased muscle toning. And the 720s features adjustable resistance to let you tailor your exercise to the level that is perfect for you.
For your benefit, read this manual carefully before you use the PURSUIT 720s. If you have additional questions, please call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please mention the product model number and serial number when calling. The model number is WLEX29190. The serial number can be found on a decal attached to the PURSUIT 720s (see the front cover of this manual for the location of the decal).
Before reading further, please look at the drawing below and familiarize yourself with the parts that are labeled.

ASSEMBLY

Place all parts of the exercise cycle in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed.

Assembly requires the included tools and your own adjustable wrench and Phillips  screwdriver

PART CHART

Use the drawings below to identify the small parts used in assembly. The number in parenthesis below each drawing refers to the key number of the part, from the part list on page 14; the second number refers to the
quantity used in assembly. Note: Some small parts may have been pre-attached for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.

1. Carefully slide the Handlebar Post (3) onto the Frame (1) while pulling the excess Reed Switch Wire (42) up through the Handlebar Post. Attach the Handlebar Post with three M10 x 25mm Button Head Screws (53) and three M10 Split Washers (54). Be careful not to pinch the Reed Switch Wire or the Resistance Cable.
2. Loosen the Frame Knob (29) on the right side of the Frame (1). Slide the Seat Frame (2) out until it stops. Tighten the Frame Knob.
3. The Console (33) requires two ÒAAÓ batteries (not included)Ñalkaline batteries are recommended. Open the battery door on the back of the Console. Press two batteries into the Console. Make sure that the negative (Ð) ends of the batteries are touching the springs. Close the battery door.
4. Connect the Reed Switch Wire (42) to the console wire. Next, attach the Console (33) to the Handlebar Post (3) with four M4 x 16mm Screws (43).
5. Attach the Seat Upright (64) to the Seat Frame (2) with four M8 x 54mm Carriage Bolts (11), four M8 Flat Washers (51), and four M8 Nylon Locknuts (55). Note: It may be helpful to tip the exercise cycle on its side to attach the Seat Upright.
6.  Attach the Stabilizer (30) to the Seat Frame (2) with two M10 x 70mm Carriage Bolts (27) and two M10 Nylon Locknuts (26).
7. Attach the Seat Bracket (63) to the Seat Upright (64) with four M8 x 65mm Carriage Bolts (52), four M8 Flat Washers (51), and four M8 Nylon Locknuts (55).
8.  Attach the Seat (44) to the Seat Bracket (63) with four M6 x 16mm Screws (46).
9. Attach the Seat Handles (25) to the Seat Bracket (63) with two M10 x 97mm Hex Head Bolts (12) and two M10 Nylon Locknuts (26).
10. Attach the Backrest (45) to the Seat Upright (64) with four M6 x 16mm Screws (46).
11. Identify the Left Pedal (39) (there is an ÒLÓ on the Left Pedal for identification). Using an adjustable wrench, firmly tighten the Left Pedal counterclockwise into the left arm of the Crank (8).
    • Firmly tighten the Right Pedal (not shown) clockwise into the right arm of the Crank (8).
    • Adjust the Pedal Strap (71) on the Left Pedal (39) to the desired position. Press the Pedal Strap onto the adjustment tab on the Left Pedal.
    • Adjust the Pedal Strap on the Right Pedal (not shown) in the same manner.
12. Make sure that all parts are properly tightened before you use the exercise cycle. Note: There may be some hardware left over after the assembly is completed. Place a mat under the exercise cycle to protect the floor or carpet.

HOW TO USE THE EXERCISE CYCLE

HOW TO ADJUST THE POSITION OF THE SEAT FRAME
The Seat Frame (2) can be adjusted to the position that is the most comfortable for you. To adjust the Seat Frame, first loosen the Frame Knob (29) on the right side of the Frame. Slide the Seat Frame forward or backward to the desired position. Tighten the Frame Knob.

HOW TO ADJUST THE PEDAL STRAPS

• To adjust each pedal strap, first pull the pedal strap off the adjustment tab on the pedal.
• Align a different hole in the pedal strap with the adjustment tab.
• Press the pedal strap onto the adjustment tab.

HOW TO ADJUST THE PEDALING RESISTANCE

• The pedaling resistance can be adjusted with the Resistance Knob (32) located on the 32 3 Handlebar Post (3). To increase the resistance, turn the Resistance Knob clockwise; to decrease the resistance, turn the Resistance Knob counterclockwise.

DIAGRAM OF THE CONSOLE

The console is designed to help you get the most from your workouts. As you exercise, you can watch your progress around the LED ÒtrackÓ in the center of the console. In addition, the upper LCD display will show how many calories you have burned, the number of laps you have completed, your current speed, the elapsed time, and the distance you have pedaled. The lower LCD display will show your heart rate when the pulse sensor is used. The modes of the displays are described below.

CalorieÑThis mode displays the approximate number of calories you have burned.
LapsÑThis mode displays the total number of 1/4-mile laps you have completed.
SpeedÑThis mode displays your pedaling speed, in kilometres per hour.
TimeÑThis mode displays the length of time you have exercised.
DistanceÑThis mode displays the total number of kilometers you have pedaled during your workout.
PulseÑThis mode displays your heart rate when the pulse sensor is used.

HOW TO OPERATE THE CONSOLE

1. To turn on the power, press the on/reset button or simply begin pedaling. When the power is turned on, the entire display will appear for two seconds. The console will then be ready for use.

2. When the power is turned on, the upper LCD display will begin displaying the Calories, Laps, Speed, Time, and Distance modes. Each mode will be displayed for five seconds in a repeating cycle. Flashing arrows in the display will show which mode is currently displayed.

3. The LED track represents a distance of 1/4 mile. As you exercise, the indicators around the track will light one at a time until you have completed 1/4 mile. A new lap will then begin.

4. To measure your pulse, stop pedaling and place your thumb on the pulse sensor as shown. The pulse sensor is pressure-activated-edÑfully press down the pulse sensor. Do not press too hard, or the circulation in your thumb will be restricted, and your pulse will not be detected. Next, slightly raise your thumb until the heart-shaped indicator in the lower LCD display flashes steadily. Hold your thumb at this level. After 5 to 10 seconds, three dashes will appear in the display and your pulse will be shown. Hold your thumb on the sensor for another 15 seconds for the most accurate reading. Try the sensor several times until you become familiar with it. If the displayed pulse appears to be too high or too low, or if your pulse is not displayed, lift your thumb off the sensor and allow the display to reset. Press down again on the sensor as described above.
   WARNING : The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.

5. To reset the upper LCD display, press the on/reset button.

6. To turn off the power, simply wait for about six minutes. Note: The console has an Òauto-offÓ feature. If the pedals are not moved and the console buttons are not pressed for six minutes, the power will turn off automatically in order to conserve the batteries.

HOW TO SELECT KILOMETERS AND MILES
The console can display distance and speed in either kilometers or miles. The letters ÒKPHÓ or ÒMPHÓ will appear in the upper LCD display to show which unit of measurement is selected.

To change the unit of measurement, first look underneath the console and locate the square hole. Look inside the square hole and locate the small switch on the printed circuit board. Move the switch to the opposite side to change the unit of measurement.

After changing the unit of measurement, remove one of the batteries from the console for about five seconds and then reinsert it. This will reset the console.

MAINTENANCE AND STORAGE

Tighten all parts of the exercise cycle regularly. The exercise cycle can be cleaned with a soft, damp cloth. To prevent damage to the console, keep liquids away and keep the console out of direct sunlight.

CRANK ADJUSTMENT
If the arms of the Crank (8) become loose, they should be tightened in order to prevent excessive wear.
Loosen the Hex Crank Nuts (14) 14 on the left arm of 8 the Crank. Place the tip of a stan dard screwdriver in one of the slots in the slotted crank nut. Tap the screwdriver with a hammer to turn the slotted crank nut counterclockwise until the arms are no longer loose. Do not overtighten the slotted crank nut. When the slotted crank nut is properly tightened, tighten the Hex Crank Nuts.

HOW TO ADJUST THE REED SWITCH

If the console does not display correct feedback, the reed switch may need to be adjusted.
To adjust the reed switch, you must first remove the Left Side Shield (20).

Using an adjustable wrench, turn the Left Pedal (39) clockwise and remove it. Next, remove the indicated M4 x 12mm Screws (72) and M4 x 38mm Self-tapping Screws (13). Grasp both Side Shields and gently pull them apart. Turn the left arm of the Crank (8) to the position shown, and then carefully slide the Left Side Shield forward and remove it.

With the left side shield removed, locate the Reed Switch (42) (see the drawing below). Turn the Crank (8) until the Magnet (61) is aligned with the Reed Switch. Loosen but do not remove the M4 x 16mm Screw (43). Slide the Reed Switch slightly closer to or away from the Magnet. Retighten the Screw. Turn the Crank for a moment. Repeat until the console displays correct feedback. When the Reed Switch is correctly adjusted, reattach the left side shield and the left pedal.

BATTERY REPLACEMENT
If the console does not function properly, the batteries should be replaced. See assembly step 3 on page 6.

CONDITIONING GUIDELINES

WARNING : Before beginning this or any exercise program, consult your physician. This is especially important for individuals over the age of 35 or individuals with pre-existing health problems.
The pulse sensor is not a medical device. Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.

The following guidelines will help you to plan your exercise program. For more information about exercise, consult your physician or obtain a reputable book.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recommended heart rates for fat-burning and aerobic exercise.
To find the proper heart rate for you, first find your age at the left side of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers to the right of your age.
The three numbers define your training zone.Ó The lowest two numbers are recommended mended heart rates for fat burning; the highest number is the recommended heart rate for aerobic exercise.

Fat Burning
To burn fat effectively, you must exercise at a relatively low-intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for energy. Only after the first few minutes does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest number in your training zone.
For maximum fat burning, adjust the intensity of your exercise until your heart rate is near the middle of your training zone.

Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be Òaerobic.Ó Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone.

HOW TO MEASURE YOU HEART RATE
To measure your heart rate, first exercise for at least four minutes. Then, stop pedaling and measure your heart rate using the pulse sensor on the console.

WORKOUT GUIDELINES
Each workout should include the following three important parts:
A Warm-UpÑBegin each workout with five to ten minutes of stretching and light exercise to warm up. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise.
Training Zone ExerciseÑAfter warming up, increase the intensity of your exercise until your heart rate is in your training zone for 20 to 30 minutes. Breathe regularly and deeply as you exercise hold your breath.
A Cool-downÑFinish each workout with 5 to 10 minutes of stretching. This will increase your flexibility and will help to prevent post-exercise problems.

EXERCISE FREQUENCY
To maintain or improve your condition, plan three workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each week if desired. Remember, the key to success is make exercise a regular and enjoyable part of your everyday life.

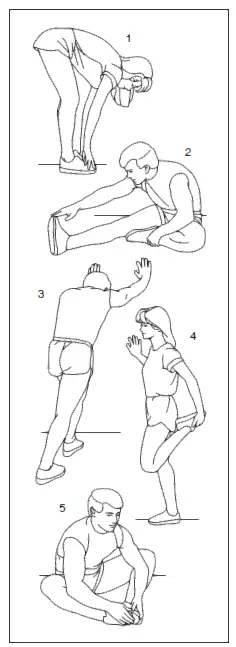

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right. Move slowly as you stretchÑnever bounce.

1. Toe Touch Stretch
   Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees and back.

2. Hamstring Stretch
   Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower back, and groin.

3. Calf/Achilles Stretch
   With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward, and move your hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To cause further stretching of the Achilles tendons, bend your back leg as well. Stretches: Calves, Achilles tendons and ankles.

4. Quadriceps Stretch
   With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch
   Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.

PART LISTÑModel No. WLEX29190

Note : Ò#Ó refers to a non-illustrated part. Specifications are subject to change without notice. See the back cover of this manual for information about ordering replacement parts.

EXPLODED DRAWINGÑModel No. WLEX29190

ORDERING REPLACEMENT PARTS

To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give the following information:

• ¥ The MODEL NUMBER of the product (WLEX29190)
• ¥ The NAME of the product (WESLO¨ PURSUIT 720s exercise cycle)
• ¥ The SERIAL NUMBER of the product (see the front cover of this manual)
• ¥ The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST on page 14 of this manual).

LIMITED WARRANTY

• ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON’s obligation under this warranty is limited to replacing or repairing, at ICON’s option, the product through one of its authorized service centers.
• All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center, products used for commercial or rental purposes, or products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.
• ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
• The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
• This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
• ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

Part No. 161093 R1099A Printed in China © 1999 ICON Health & Fitness, Inc.
