Overview

Altronix TM400 enclosure lets you easily integrate Altronix power distribution with Mercury/LenelS2 access controllers and accessories. TM400 simplifies board layout and wire management and reduces installation time and labor costs.

Specifications

Agency Listings

• CE European Conformity.

Features

• 16 Gauge black enclosure with ample knockouts for convenient access.
• Twelve (12) double knockouts 1.125” (3/4” Conduit) / 1.375” (1” Conduit).
• Enclosure Dimensions (H x W x D): 15.5” x 12.0” x 4.5” (393.7mm x 304.8mm x 114.3mm).
• Includes tamper switch (Altronix Model TS112 or equivalent), cam lock, and mounting hardware.

Enclosure Accommodates a Combination of the Following
Altronix

• ne AL400ULXB2, AL400ULXB2V, AL600ULXB, AL600XB220, AL1012ULXB, AL1012XB220, eFlow4NB, eFlow4NBV, eFlow6NB, eFlow6NBV, eFlow102NB, eFlow102NBV.

Mercury

• Up to three (3) MR50 (LNL-1300).
• One (1) LP1501 (LNL-2210) or MR62e (LNL-1300e).
• One (1) LP1502 (LNL-2220), LP4502 (LNL-4420), MR52 (LNL-1320), MR16IN (LNL-1100) or
• MR16OUT (LNL-1200).

Hardware and Accessories

![Altronix TM400 Trove Compact Enclosure For Power Distribution And Mercury LenelS2 Boards Installation Guide

Featured Image:

No file chosen

Update Post

Add MediaVisualText

Paragraph

P

Close dialog

Add media

Actions

Upload filesMedia Library

Filter mediaFilter by type

Uploaded to this post

Filter by date

All dates

Search

Media list

Showing 9 of 9 media items

UPLOADING

7 / 9 – Altronix-TM400-Trove-Compact-Enclosure-For-Power-Distribution-And- Mercury-LenelS2-Boards-fig-5.JPG

ATTACHMENT DETAILS

Altronix-TM400-Trove-Compact-Enclosure-For-Power-Distribution-And-Mercury- LenelS2-Boards-fig-1.jpg

September 11, 2023

17 KB

669 by 49 pixels

Edit Image

Delete permanently

Alt Text

Learn how to describe the purpose of the image(opens in a new tab). Leave empty if the image is purely decorative.Title

Altronix-TM400-Trove-Compact-Enclosure-For-Power-Distribution-And-Mercury- LenelS2-Boards-fig-1

Caption

Description

File URL:

https://manuals.plus/wp-content/uploads/2023/09/Altronix-TM400-Trove-Compact- Enclosure-For-Power-Distribution-And-Mercury-LenelS2-Boards-fig-1.jpg

Copy URL to clipboard

ATTACHMENT DISPLAY SETTINGS

Alignment

Center

Link To

None

Size

Full Size – 669 × 49

Selected media actions

1 item selected

Clear Insert into post

No file chosen](https://manuals.plus/wp-content/uploads/2023/09/Altronix-TM400 -Trove-Compact-Enclosure-For-Power-Distribution-And-Mercury-LenelS2-Boards- fig-1.jpg)

Installation Instructions
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction. The product is intended for indoor use only.

1. Mark and predrill holes on the wall to line up with the top two keyholes in the enclosure. Install two upper fasteners and screws in the wall with the screw heads protruding. Place the enclosure’s upper keyholes over the two upper screws; level and secure. Mark the position of the lower two holes. Remove the enclosure. Drill the lower holes and install the two fasteners. Place the enclosure’s upper keyholes over the two upper screws. Install the two lower screws and make sure to tighten all screws.

2. Mount included UL-listed tamper switch (Altronix Model TS112 or equivalent) in the desired location, opposite hinge. Slide the tamper switch bracket onto the edge of the enclosure approximately 2” from the
   right side (Fig. 1, pg. 1). Connect the tamper switch wiring to the Access Control Panel input or the appropriate UL-listed reporting device. To activate the alarm signal open the door of the enclosure.

3. Mount Altronix and Mercury (LenelS2) boards to an enclosure, refer to page 3.

Installation Instructions for Power Supply and Sub-Assemblies
Altronix Power Supplies/Chargers and/or Sub-Assemblies:

1. Fasten 5/8” spacers (provided) to poems that match the hole pattern for Altronix Power Supply/Charger or Altronix Sub-Assembly boards (Fig. 2, pg. 3). Fasten metal spacers in the correct locations to provide
   proper grounding (Fig. 2, pg. 3).

2. Mount boards to spacers utilizing 5/16” pan head screws (provided) (Fig. 2, 2a, pg. 3). LenelS2 Sub-Assemblies:

3. Fasten spacers onto metal poems configuration (C), (D), or (E) of enclosure depending on the sub-assembly module (Fig. 2, pg. 2).

4. Position the access controller module over corresponding spacers and depress it onto snap-on spacers (Fig. 2a, pg. 2).

5. Fasten the backplane to the Trove1 enclosure utilizing lock nuts (provided).

Access Controller Position Chart for the Following Models

AL400ULXB2, AL400ULXB2V, AL600ULXB, AL600XB220, AL1012ULXB, AL1012XB220,

eFlow4NB, eFlow4NBV, eFlow6NB, eFlow6NBV, eFlow102NB, eFlow102NBV

| A
---|---
ACM4, ACM4CB, LINQ8PD, LINQ8PDCB, MOM5, PD4UL, PD4ULCB, PD8UL, PD8ULCB, PDS8, PDS8CB, VR6| B
MR50 (LNL-1300)| C
LP1501 (LNL-2210), MR62e (LNL-1300e)| D
LP1502 (LNL-2220), LP4502 (LNL-4420), MR52 (LNL-1320), MR16IN (LNL-1100), MR16OUT (LNL-1200)| E

Fig. 2 – Altronix and Mercury configurations

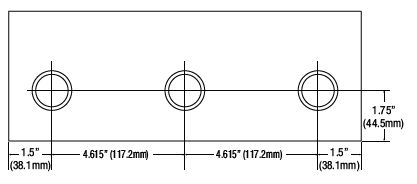

TM400 Enclosure Dimensions
15.5” x 12.0” x 4.5” (393.7mm x 304.8mm x 114.3mm)

Altronix is not responsible for any typographical errors. 40 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty IITM400 K29U
