blind C700 Chemicals and Gas Abatement Plus Air Purifier

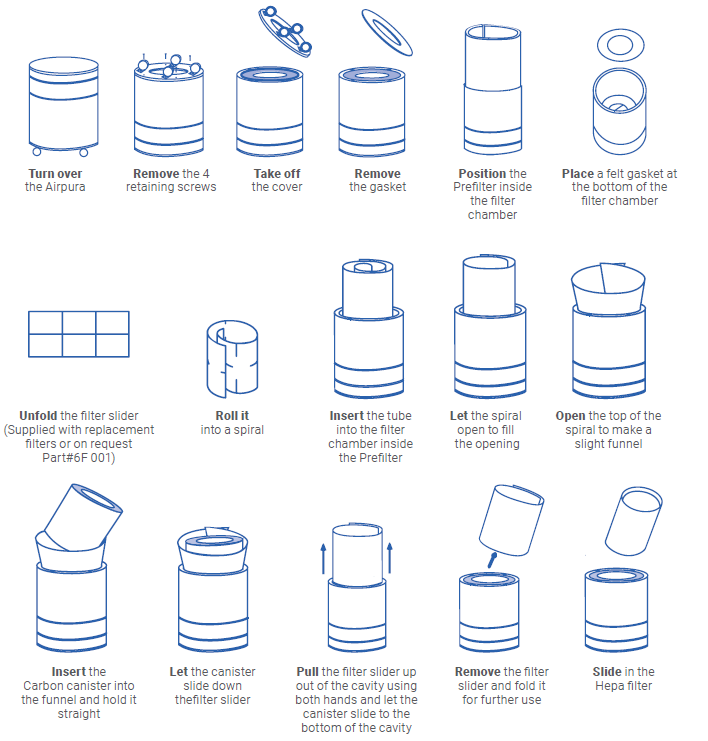

To open the filter chamber

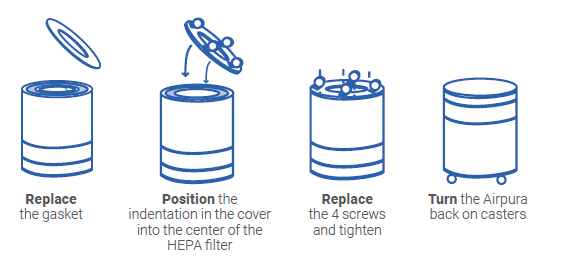

To close the filter chamber
AIRPURA
Inspect the exterior of your Airpura to verify there is no damage from
shipping. If any damage is noted, please follow the instructions from the
distributor returns policy. Wipe the unit with a damp cloth to remove any dust
from packaging Plug the unit into a regular grounded 110 volt outlet Turn on

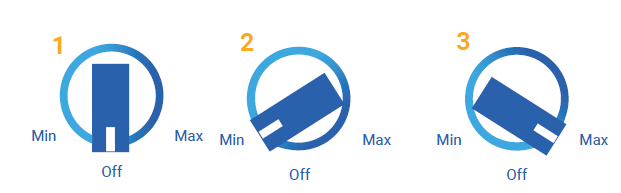

the unit to MAX and allow it to run for at least 30 minutes Set the variable
speed control to the level you wish The most efficient way to use your Airpura
for regular air quality maintenance is to run it at a low speed 24 hours a day
7 days a week. Always maintain a humidity level of approximately 40% to ensure
the unit is operating at optimal levels. When using purifier with a
dehumidifier, please keep dehumidifier at least 6 feet away.
FILTER MAINTENANCE AND REPLACEMENT
The Prefilter
Can be vacuumed from the exterior of the unit once a month or more often.
Should be replaced at least after 12 months of use
To vacuum the Prefilter
Use the brush attachment on your vacuum cleaner Vacuum slowly around the mesh
surface of the filter chamber
IMPORTANT SAFETY NOTE
Please ensure air purifier is turned OFF when plugging into a power source.
Failure to do so may result in motor potentially stalling and/or
burning.
Technical specifications
-
Odors, airborne chemical control
26 lbs activated Carbon 13″H in x 13.25″OD in x 7″ID -
Carbon Bed
3” deep -
Particle removal
HepaBarrier -
Air Flow 635 cfm
More cfm than any other home unit available -
Prefilter
570 in2 x 1 in -
Housing
Powder coat steel -
Size
23 in x 15 in -
Weight
45 lbs total -
Watts
120 on high / 40 on low -
Sound Level
30.2 db on low (at 6 feet) 63.0 db on high (635 cfm) at test conditions

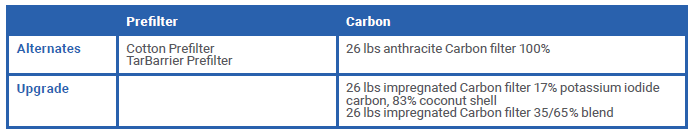

Air purifiers models and filter configurations
