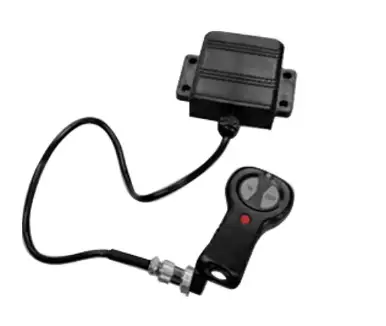

JIMEO JM203112 Wireless Winch Remote Control Instruction Manual
- June 9, 2024
- JIMEO
Table of Contents
JIMEO JM203112 Wireless Winch Remote Control Instruction Manual
Manual
- Type winch remote control
- Brand :Jinmiao (JIMEO)
- Model JM203112
- Working voltage Another 24V / 48V (optional)
- Operating frequency 434 MHZ / 315 MHZ
- Total load power 120W
- Remote distance 0-30 m
- Operating temperature-40-80 (℃)
- Scope of application 2000 LB-20000LB ATV, Marine winch, electric gourd
- Operating current: 10 A
- 0-30 m operation distance
- Rolling Additional learning code, fixed code can also be customized
- Color: optional
- Receiver 4 core wire, respectively: black (GND) red (VCC) yellow (output) white (output)
- The code way: receiver on the power, immediately at the same time long press (5 seconds) transmitter IN and OUT, hear the receiver relay tick a response, namely the code success. Note: This process must be completed within one minute after the receiver is powered on. After the time, the program will close the pair code. At this time, the receiver is powered off again, and then the power on can activate the pair code
FCC Warnning:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures:
- Reorient or relocate the receiving
- Increase the separation between the equipment and
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
- Consult the dealer or an experienced radio/TV technician for
Caution: Any changes or modifications to this device not explicitly approved
by manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1)This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause
undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 0cm between the radiator and your body.
