tGenot 3XL Foot SPA Massager User Guide

tGenot 3XL Foot SPA Massager

FOOT SPA MASSAGER

Keep this manual for future reference

READ AND SAVE IMPORTANT SAFETY INSTRUCTIONS
Read the following safety instructions carefully before using this massager.

SAFETY NOTE:

Attention: Never try to turn on the power or operate this device without having water inside the water container.

Attention: This device is designed for private use, not intended for medical or com-mercial purpose. Children should be supervised to ensure that they do not use this device as a toy.

CAUTION:

• Never try to turn on the power or operate this device without having water inside the water container.
• DO NOT immerse the device into water for cleaning.
• DO NOT attempt to stand up on this device or its water container or walk into the foot bath container. Use it only when you are being seated on a chair or sofa.
• DO NOT try to plug or unplug the power source if your hands are wet. Do not try to touch the control panel if your hands are wet.
• DO NOT use the device if you have wound or after surgery and not yet fully recov-ered on legs or feet.
• DO NOT use this device continuously for more than 60 minutes at a time. It is rec-ommended to take a 10 to 15 minutes break for every 60 minutes of use.
• DO NOT use this product while you are sleeping and avoid falling asleep while the product is operating.
• Always remove the plug from the power outlet after use. Never leave this device unat-tended while power is connected.
• Never use the device close to heater, fireplace, stove or other heat source.
• Always escort and pay attention while children, patients, disabled and elderly people are using this device. This device is not for children under age 18.
• Never use the device if the plug or wire is damaged, not in a smooth operation as it should be, broken or wet.
• People with heart disease or prohibited to have excited exercise should not use this device unless you have consulted with your doctor.
• People with skin allergy, wounded or after surgery and not well recovered should not use this device unless you have consulted with your doctor.
• Unauthorized person is not allowed to reconstruct or replace the component of this device.
• DO NOT use this device in sauna room or bath room, or in area where has high hu-midity or wet floor.
• Close supervision is necessary when this appliance is used by, close or next to chil-dren, invalids, or disabled person.
• Never let children, mental retarded and people with difficulty in action to operate this device and to reach the power source.
• If the device was not used for a long time, check it first before use again.
• Extensive use could lead to the product’s excessive heating and shorter life. Should this occur, discontinue use, unplug the power source and allow the unit to cool before operating again.
• DO NOT use this product as a substitute for medical attention or treatment.
• This product is designed for home use only.

MEDICAL NOTES

1. To avoid excessive stimulation of skin, the massage time should not exceed the rec-ommended 60 minutes at a time.
2. If your doctor / orthopedist does not particularly forbidden foot spa massage, you can enjoy the massage following your doctor’s instruction.
3. A massage should never feel unpleasant. Should pain or discomfort result, discontinue use and consult your doctor.
4. Over exaggerated massage can also harm the body.
5. People who are unable to feel normal temperature, the ill persons undergoing medical treatment and children should not use this device. In case of injuries to legs and feet, a massage can be dangerous. If in doubt, talk to your doctor beforehand.

WARNING⼀TO REDUCE RISK OF BURNS, FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS:

1. This device should never be left unattended when plugged in. Unplug from outlet when not in use.
2. Use device only for its intended use as described in this manual.
3. Never operate this unit if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the product to ser-vice center for examination and repair. Never try to repair this device by yourselves.
4. DO NOT carry this unit by the supply power cord or use the power cord as a handle.
5. Turn all controls to OFF position, before removing plug from outlet.

NOTICE: this massager should not be used in the following cases:

• Massage should be comfortable and pleasant. Should pain or discomfort result, dis-continue use and consult your doctor.
• Avoid the use of an extension cord because the extension cord may overheat and cause a risk of fire.
• This product should never be used by an individual with a medical condition that would limit the user capability to operate the controls.
• Never use this product directly on swollen or inflamed areas of the skin or on areas where skin eruptions are present.
• DO NOT operate after taking pain killers, sedatives or alcohol. Consult your doctor if under these medications.
• Always unplug the power cord from the electrical outlet after using it and before cleaning it.
• Keep power cord away from heat or wet sources.
• DO NOT immerse this device in water or with any other liquid.
• DO NOT use it when you have insensitive skin in your targeted areas or in the envi-ronment of poor air circulation. The unattended use of heat by children or incapacitat-ed persons may be dangerous.
• It is recommended not to use the device 30 minutes before or after meal.

SPECIAL WARNING:

• DO NOT place or store this device where it can fall or be pulled into a tub or sink.
• DO NOT place in or drop into water or other liquid.
• DO NOT attempt to plug or unplug the power source while your feet are in the water container.
• Always unplug the power source when loading water or moving the unit.
• Consult your doctor before using this device if you have diabetes, as diabetes can con-tribute to foot problems including decreased feeling or circulation to the feet.
• If you take foot spa everyday, you should rub lotion or skin moisturizer and wear socks for keeping warm after taking foot bath.

ATTENTION

• This device is being tested with water at factory, if there is any water drops left inside water container, it is normal.
• Optional: To speed up water heating time and save electricity, it is fine to put warm water into water container, but the warm water temperature should be less than 40℃.
• Do not leave water inside the water container if the room temperature is lower than 0℃. Frozen water inside the device may cause damage to its components.

PRODUCT PARTS

Figure 1: Control Panel

Temp +/-

| To increase or de- crease water tempe- rature|

35℃

|

35℃ to 48℃

Red Light

| To turn on or off red light|

Off

|

Red light on

Bubble

|

To turn on or off bubble

|

Off

|

Bubble on

LED screen

Massage

| Constantly displays current water temperature inside water contai- ner

Press Massage button to turn On/Off the rolling massage func- tion.Default time is 15minutes,3massage modes to choose

for slow or fast rolling massage speed

OPERATION INSTRUCTION

NOTE: You must fill in water before turning on the foot bath massager. Never try to op-erate this device without having water inside the water container.

1| Put the Device together| ·         Check and make sure there is no any damage on the pro- duct such as its case and power cord.
---|---|---
2| Stabilize the Device| ·         Allocate the massager on the flat, dry floor where you want to use.

·         Make sure you are being seated on chair or sofa before star-

ting the foot spa massager.

·         Do Not plug in power cord to wall outlet now.

3| Filling in Water| ·         You must fill in water before turning on the foot bath mas- sager. Never try to operate this device without having water inside the water container.

·         Filling in water with water bucket. Do NOT put your mas-

sager under faucet directly.

·         Be careful NOT to spill water onto the control panel.

·         To save electricity or speed up water heating, you can put in warm water but the warm water temperature should be

less than 40℃.

Water Level:

·         The maximum water level is 70% of the water container or to its maximum water level indicator.

·         It is recommended to fill in water up to 60% of water container.

·         Plug in power cord to wall outlet.

---|---|---
4| ON/OFF| ·         Press ON/OFF button once to turn on power, the two-digit LED display immediately shows the current water tempera- ture inside the water container.

·         Press the ON/OFF button again to turn off power complete-

ly.

·         The default maximum water heating temperature is 35℃ once the power is turned on.

·         Heating function is ON automatically if the current water temperature is lower than its default 35℃.

5| Heating| Automatic water temperature balancing system:

·         The default maximum water heating temperature is 35℃ once the power is turned on.

·         If the just-filled-in water temperature is lower than 35℃, the Heating function will be turned on automatically and stopped when its water temperature reaches 35℃. When its water temperature cools down below 35℃, the Heating function will be turned on automatically again, and so on.

·         When the water temperature reaches its default maximum temperature (35℃), the Keep Warm function takes effect.

Note: the Heating function will not be on if your fill-in water tem- perature is already higher than its default maximum 35℃.

Changing the Default Water Heating Temperature:

·         If you prefer to change its default maximum water tempera- ture to be higher than 35℃, you can press the TEMP + / TEMP – to reset the maximum water heating temperature.

·         The highest heating temperature you can set is 48℃.

·         The lowest heating temperature you can set is 35℃.

---|---|---
6| Temp+/-| When to use Temp+/- :

·         The Temp+/- button can be used to change maximum water heating temperature under any massage modes.

·         Press TEMP + to increase water heating temperature you

want (such as 46℃). After 3 seconds, your just-set tempe- rature will disappear from LED screen, and its LED display will switch back to show its current water temperature.

·         Press TEMP – to decrease water heating temperature (such as 38℃). After 3 seconds, your just-set temperature will disappear from LED screen, and its LED display will

switch back to show its current water temperature.

·         To protect the heating device, it is recommended NOT to set temperature to the maximum level (48℃).

Minimum and Maximum Water Temperature :

·         The highest heating temperature you can set is 48℃.

·         The lowest heating temperature you can set is 35℃.

·         The Automatic Water Temperature Balancing System will

be initiated to turn on/off the Heating function automati- cally to keep water temperature at 35℃.

7| Two-Digit dis- play| ·         When the power is turned on, the LED screen displays its current water temperature inside water container and its default working time (30 minutes).
---|---|---

8

| ****

Bubble

| Press Bubble button to turn on bubble:

·         Press Bubble button once: Bubble is on.

·         Press Bubble button twice: Bubble is off.

9| Red light| ·         Press Red light button to turn on red light

·         Press Red light button once: light is on.

·         Press Red light button twice: light is off

10| Clean up| ·         Make sure your hands are not wet when unplugging power cord from outlet.

·         After each use, before trying to clean up the container with

dry towel, always turn off power on control panel and un- plug the power cord from wall outlet first.

·         Allocate power cord properly to make sure not to immerse

water.

·         Do not use the power cord as a hanger to pull or drag away the massager.

·         Use only soft, dry towel to clean up the control panel or the water container.

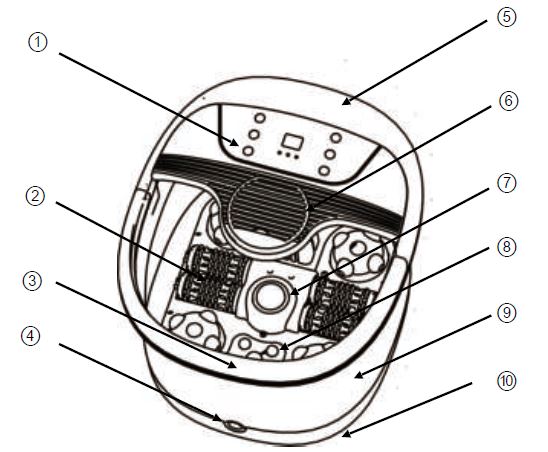

Detailed explanation of product structure

1. Control Panel
2. Massage wheel
3. Handle
4. Drainage outlet
5. Front cover
6. Nail case
7. Grinding stone
8. Red light
9. Barrel
10. Floor

Control Panel

Universal wheel installation

• Install two unlocked universal wheels at① place and two unlocked universal wheels at ② places A schematic diagram of the universal wheel installation

Cleaning and Maintenance

• Before cleaning, you must turn off the device and unplug the power cord from the electric outlet.
• Make sure the water drainage valve is closed and the power cord is properly stored onto the back of the case.
• Clean the water container only with a soft, dry towel. Never use strong abrasives, detergents or cleaning agents for cleaning.
• Do NOT immerse the massager in water or under faucet to do cleaning or filling in water.

Storage

• Unplug the appliance from the electric outlet and allow it to cool down and get dried.
• Store it in its box or in a clean, dry place.
• Do NOT drag or hang the unit with the power cord.
• This appliance is designed for indoor use only.
• Never put the appliance close to fireplace or other heating sources.

Troubleshooting

Heating not working

| Heating function is turned off. It may reach the preset maxi- mum water temperature. The adjusted highest water tempe- rature may be too low.

The current water temperature inside water container is al- ready higher than your preset water temperature.

| ****

Press the Temp+ to adjust the preset highest water temperatu- re.

Device stops wor- king

| ****

The water temperature is hig- her than your preset highest temperature.

| Try to put in some cold water to cool down the water tempe- rature. Or, reset the highest wa- ter temperature.

Technical Parameters
