LICITTI LIBM500 Smart Battery Monitor Instruction Manual

LICITTI LIBM500 Smart Battery Monitor

Product Information

Specifications:

• Model : XYZ-2000
• Dimensions : 10 x 5 x 3 inches
• Weight : 2 lbs
• Power Source : AC adapter or 4 AA batteries
• Material : Plastic

Product Usage Instructions

1. Powering On/Off:
   To power on the device, press the power button for 3 seconds. To power off, press and hold the power button again.

2. Setting Up:
   Place the device on a flat surface. Connect the power source using the provided AC adapter or insert 4 AA batteries into the designated compartment.

3. Functionality:
   Use the control panel to navigate through different modes and settings. Refer to the user manual for specific functions and features.

4. Maintenance:
   Regularly clean the device with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials that may damage the surface.

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum 20cm distance between the radiator and your body: Use only the supplied antenna.

Model

Ll-BMSOO ►
For different types of batteries, different voltages, new and old batteries, in order to better and easier to understand the use of the battery state and remaining capacity information, we developed this advanced battery display Combined with complex software algorithms, we collect and calculate the voltage and current of a battery and display it with simple numbers and icons . Compared with other similar products on the market, LI-BM500 has the following advantages :

• Easy to program
  Clear display interface and operation interface, combined with four physical buttons, easily set capacity, maximum voltage, minimum voltage, capacity alert to meet different needs Meanwhile, download the Android or 10S APP to do fast and easy settings.

• Easy to install
  Clear installed diagram, clear at a glance. The installation card with the monitor makes the installation hole position simple and clear.

• Wireless, smart and simple
  With the Bluetooth connection, to monitor the battery information on the Android or 10S APP .

Features

• Suitable a wide variety of battery systems
• Battery capacity, capacity percentage, voltage, current, power, time remaining
• Two screen interface, four buttons, easy to operate
• Simple installation
• Programmable alarm, high volt alarm, low volt alarm & low capacity alarm
• 500Amps quick connect shunt with PCB
• Wide voltage range: 10V – 120V, wide capacity range: 10 – 1000.0Ah
• Color LCD display, dear at a glance
• Advanced APP download from Apple store or Google store
• One-button clear battery capacity calibration; one-button make battery capacity full calibration

Applications

• Solar power systems
• Off-grid power systems
• Commercial vehicles
• Marine applications
• Industrial power supply
• Camper/utility vans

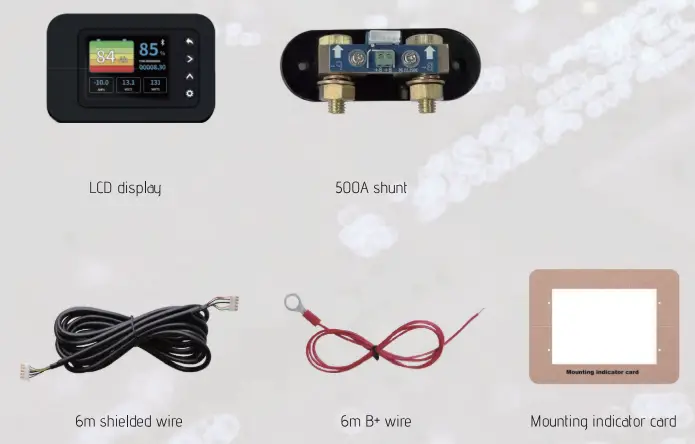

Identification of Parts

Display information

Wiring diagram

Specifications

Operation

1. During the screensaver, press any button to light up LCD screen, and it’s main screen, showing battery capacity,capacity percentage, voltage, current, power, time remaining
2. In the main screen, press button to enter setting screen.
3. In the setting screen, press button to back to main screen;
4. In the setting screen, press button again to do setting The selected items will turn red and flicker;
5. In the setting screen, press button to choose items, press button to modify its data;
6. In the setting screen, after modify data, please press button to save all modification, and then back to main screen:
7. Note: in the setting screen, press button back to main screen directly, all modified data won’t besaved.
8. In the main screen, long press to clear battery capacity calibration.
9. In the main screen, long press to make battery capacity full calibration.
10. “Full charge calibration voltage”, during charging, the voltage reaches preset value, battery capacity and percent- age are both full 100%.
11. “LCD-on time”, default time is “000T* (1 minute): Setting “9999” means LCD is always on.

Smart Monitor with Bluetooth *

FAQs

Q: How do I change the language settings?
A: Language settings can be changed in the menu options. Refer to the user manual for detailed instructions.

Q: Is the device waterproof?
A: No, the device is not waterproof. Keep it away from water to prevent damage.
