Senhaiyunye DM-810 Ultrasonic Barking Collar
Ultrasonic Barking Collar User Manual
Thank you for purchasing our products, please feel free to contact us with any
questions.
We are committed to providing the best quality products and service!
Packing list:
- Receiver.
- Type-cc charging cable.
- User manual
Product Parameters:
| Product Name: | Ultrasonic Barking Collar. |
|---|---|
| Power supply: | universal SV charger |
| Input voltage: | 5v |
| In put current: | 1000 MA |
| Battery: | 3.7V 1500MA ICR18650 NH |
| Waterproof IP rating: | lp65 |
| Sensor: | Sound detection |
| Sensor distance: | 15 meters |

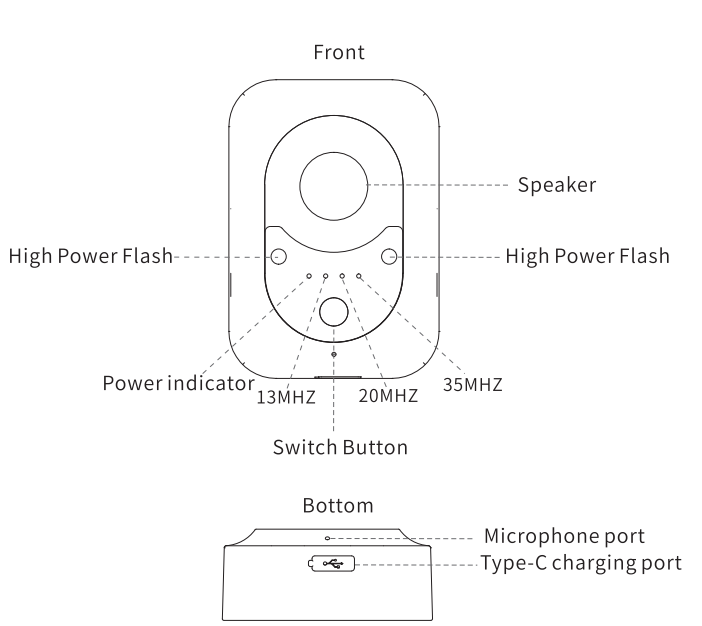

Key Function:
How to use
- Long press the “Power” button for 3 seconds, the machine is switched on, the red and green indicator lights are on, the red indicates the power supply, the green indicates the currently selected frequency band, and then long press the button for 3 seconds, the machine is switched off.
- Short press the “Power” button to select the frequency band you want. You can choose to adjust the corresponding ultrasonic frequency band.
- Triggered by the sound of the dog and start working.
- The red light is blinking fast, which means the battery is low, please charge it as soon as possible.
- Type-c Connect the device to a laptop PC or charger (max. SV 2000MA)Fully charged within 5 hours The device can work continuously for 30 days when fully charged.
- During charging Red light flashing means charging, long light means full.
Main Points
- The maximum detection distance is 10 metres If the dog is more than 10 metres away from the device it will not be triggered to work by the sound of the dog barking.
- The device broadcasts ultrasound waves to deter dogs from barking, if the dog has hearing problems the device may not work.
- The device is suitable for dogs between 6 months and 8 years of age.
- It is not recommended to use the device on dogs of the opposite sex
- it is not recommended to use a device against two or more barking dogs at the same time.
- It is not recommended to use the same ultrasound frequency on the same dog for 10 days or more, dogs may be resistant to the same ultrasound frequency, please change the ultrasound frequency every 7-10 days
- Please check the battery power once a month, if the power is too low, please charge it in time.
- Built-in 1500MA rechargeable lithium battery.
- Chargingtime3-4 hours Working time: 30 days .Standby time: 60 days
Warning:
- Please fully charge the appliance before using it for the first time.
- Do not install the device in water.
- The device cannot be used while charging
- If the device is not used for a longtime and cannot be switched on Please plug in the charging device and wait for 2-5 minutes after the device is charged normally.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. Any changes or
modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
NOTE : This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation.
