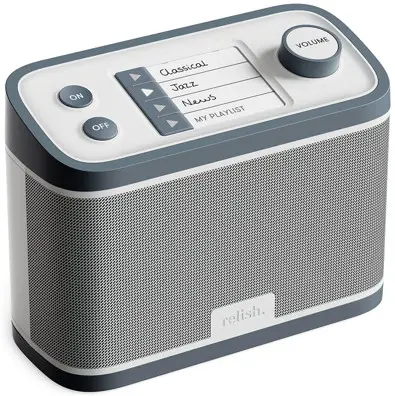

relish AC-02 DAB+-DAB-FM Radio and Music Player Stereo User Manual

AC-02 DAB+-DAB-FM Radio and Music Player Stereo
User Manual

Please read this user manual carefully before using the radio

About our Radio & Music Player

Why Relish Radio is different?
The Relish Radio has been designed specifically to enable people with all abilities to listen to the music that they want to independently. With three buttons to pre-set to your favourites, it means you can easily find the stations or playlist you love. Unique to the Relish Radio, the top panel can be personalised to whatever makes most sense to you. Whether it’s ‘60’s Jazz’, ‘Relaxing Music’, ‘Upbeat Afternoons’ or simply ‘News’, enjoy the music that’s exactly right for you.
Tune in and enjoy the power of music!

Getting Started

How to set up your radio?
Step 1 Assemble the power adaptor with US or UK plug.

Step 2 Connect the power adaptor to the DC socket on the radio and the other end into a wall socket. Alternatively, use 4 x D-type battery for power supply. Extend the aerial as far as it can go. Step 3 Press ON button to turn on the radio. Make sure the volume is turned up.

Step 4 Remove the back cover on the radio to reach the display panel.

Step 5 Press MODE button to switch between FM radio and Digital radio modes.
NOTE: Digital radio service is not available in North America. Visit http://www.worlddab.org/ for more information about digital radio reception in your area.

Step 6 If you are on FM mode, tune manually by pressing the < or > buttons.
If you are on Digital mode, press and hold the SELECT button to auto-scan for stations. After the scanning is over, press the < or > button to browse through the stations. Press SELECT button to tune into the station you want to listen to.

Saving Stations

How to save stations on memory buttons?
There are 3 memory buttons on the top panel of the radio. You can save your favourite radio stations on these buttons to find them easily every time.

Step 1 Go back to the display panel at the back of the radio. Choose either FM or Digital Mode. Browse the stations and find the station you want to save. If you are in Digital mode, press SELECT to listen to the station. While listening to a radio station, press and hold a MEMORY button to store the station. Step 2 When you are happy with the saved stations, remove the plastic cover on the label by bending it slightly and write a personalised description that makes the most sense to you. For example ‘Afternoon relaxation’ or ‘Classical’. Place the plastic back over the label.NOTE: Please find replacement labels in your packaging. Use a new label if you decide to change the recorded station. Please contact us, if you need extra labels. email: info@relish-life.com

Playing Your Own Audio

How to play music or audio books via USB drive?
Step 1 To be able to play your own playlist or audio books, first you need to save the tracks on your USB drive via your laptop or computer.
Step 2 Go back to the display panel at the back of the radio. Plug in the USB drive, then press MY PLAYLIST button (4th button) on the top panel. The tracks will be played on shuffle mode automatically. If you want them in order, press the “SELECT/ SHUFFLE” button on the display panel to SHUFFLE OFF.

Frequently Asked Questions

Why is my radio reception poor?****

– 1. Make sure the aerial is extended for the maximum signal strength.
– 2. Move the radio to an alternative location to see if the reception improves.
– 3. Check that you do not have other electrical equipment too close to your radio, this may cause interference.
– 4. Re-scan the stations by pressing and holding the SELECT button at the back.

Why is my radio not working?****

– 1. Make sure your radio is connected to a power supply. Check the DC and mains sockets. If you are using batteries, make sure they are fully charged.
– 2. Check the volume and adjust it as needed.

How can I go back to factory settings?****

– There is a factory reset button near to the USB socket, use a pin to click the button for a factory reset. Please note all the memory will be erased once the reset is done.

Precautions

| The radio should not be used in a high temperature or high humidity environment over prolonged periods of time as this may damage the unit
---|---
| Avoid using or storing the unit in a dusty or sandy environment
| Keep the radio away from liquids. Switch off the radio and disconnect it from the mains immediately if any liquid is spilled on the radio
| Clean only with dry cloth
| Use only the AC/DC adaptor supplied with the radio. Connecting a power supply with a different rating will cause permanent damage to the radio and may be hazardous
| Do not open and repair the radio by yourself
| Don’t treat the radio as household waste. Check your local electronic waste disposal service for right information

CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
WARNING: To prevent fire or electric shock hazard, do not expose this product to rain or moisture
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE RADIO COVER. NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
THE LIGHTNING FLASH AND ARROWHEAD WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF “DANGEROUS VOLTAGE” INSIDE THE RADIO.
THE EXCLAMATION POINT WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF IMPORTANT INSTRUCTIONS ACCOMPANYING THIS RADIO
The mains plug or an appliance couple is used as the disconnect device, the disconnect device shall remain readily operable

Specifications

Digital and FM Radio & Music Player
Digital Frequency: 174.928MHz(5A) – 239.200MHz(13F)
FM Frequency: 87.5MHz-108MHz
Input: 5.9V DC power adaptor socket (110-230V supplied)
Power Consumption: 8.85W
Speakers: 4Ω/3W/2” driver
Audio Output Power: 2 x 1.5W RMS
Output: 3.5mm stereo headphone
Mains Power Adaptor: Input AC 100-240V~ 50/60Hz, 1.5A
Output: DC 5.9V 1.5A
Battery: 4 x Type D (not included)
Display: 3 line LCD display
Presets: 3 radio stations
USB Playback: MP3
Operational Temperature: Between 00C to +400C (320F to 1040F)
Aerial: Captive telescopic aerial
Dimensions: 245 x 108 x h182 mm
