ELECWISH US-HW1002 175 CFM Indoor Portable Evaporative Cooler User Manual

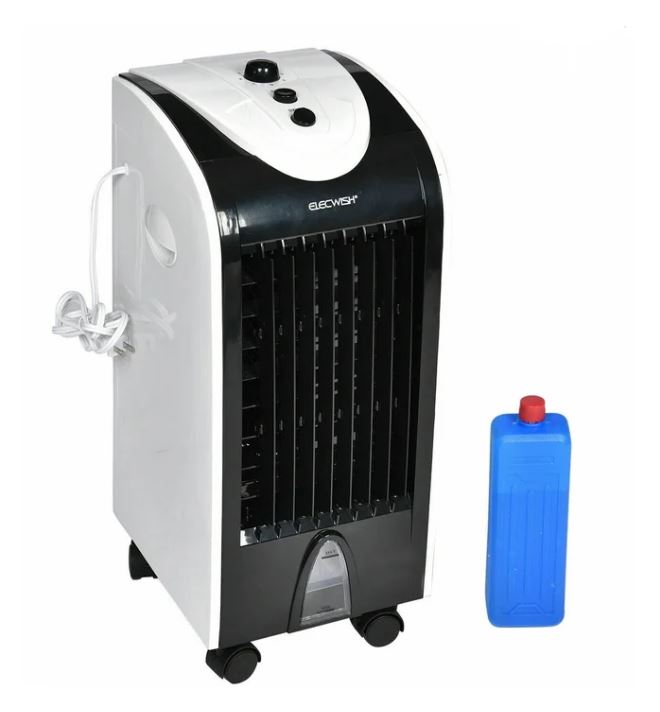

ELECWISH US-HW1002 175 CFM Indoor Portable Evaporative Cooler

INTRODUCTION

• Thank you for purchasing our air cooler.
• Each unit has been manufactured to ensure safety and reliability.
• Before first use, read the instructions carefully and keep them for further reference.

PERFORMANCE PARAMETERS

Model| Rated power supply| Rated power| Noise level| Max. water volume to be filled| Remark
---|---|---|---|---|---
US-HW1002| 120V~60Hz| 75W| ≤60dB| 4L| Mechanical type

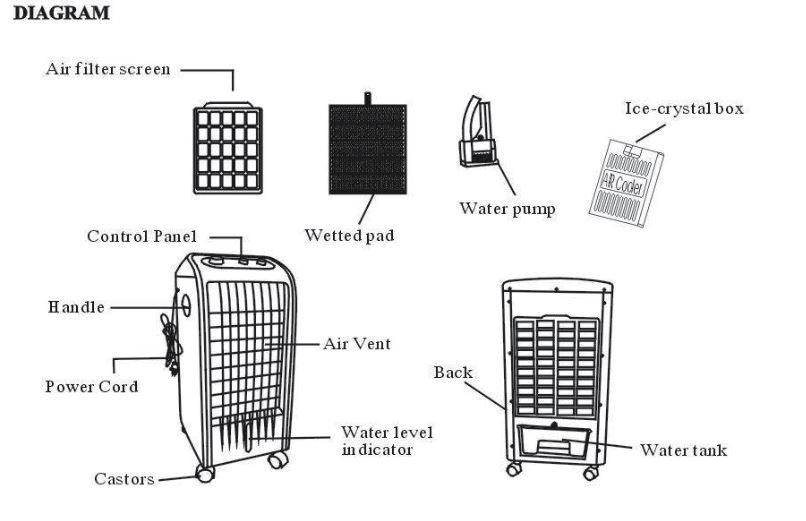

FUNCTIONS

• Principle of cool humidifies: take cool water from the water tank by pump, after reaching the top the cool water will flow through the wet pad, then blow off humid cool air rounding the wet paddy rotational wind wheel. Use the water evaporation principle.
•  Mechanical control: safe and durable, attractive appearance.
•  Adjustable speed: have three speeds, blow at wide-angle.
•  Cool/humidify: Adopting ice crystal refrigeration and air humidifying technology, can cut down the temperature from the air vent and raise relative humidity, preventing air drying.
•  Deliver wind at a wide angle: swing the blades automatically, deliver wind at a horizontal wide angle. Also can swing the blades vertically manually, and select the direction discretionarily.

ASSEMBLING AND WATERING

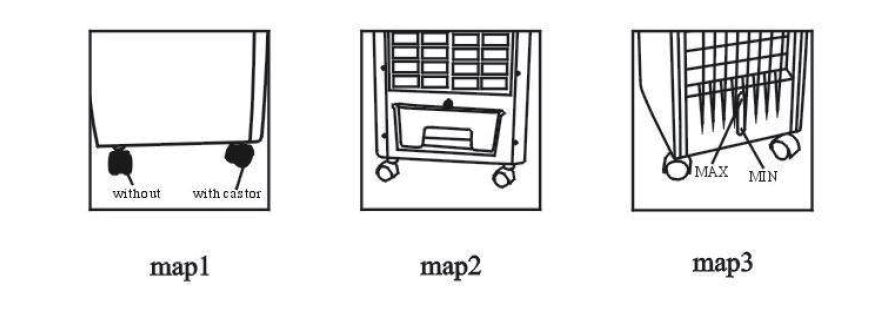

1. 1. Assemble castors: put the appliance on a flat surface, take out the wrench from the foam box, then assemble the pastor’s attention: the back castor is with brake, but the front one is not.(map1)
2. 2. Watering: unlock the water tank at the bottom of the backside, draw the water tank, then add water into it, then push the water tank into the unit, and lock the water tank .(map 2)
   Attention:

•  Pay attention to the level of the water tank when adding water.(map 3) The level of the water tank should not be over the “MAX” scale at any time, when humidifying, the
• the total level of the water tank should not below the “MIN” scale.
• Put ice or ice-crystal box into the water tank if you want to strengthen the efficiency of cooling. But the total level of the water tank should not be over the “MAX” scale

OPERATION

• ON/OFF/SPEED: Connect the plug of the air cooler with the power, it will be ready. Rotate the speed button at “1” (Low Speed), at 2(Middle Speed), at 3(High Speed), it has 3 speeds, you can adjust the speed according to your need. At “0”, it will be OFF.

• Swing: press the key of the swing, the wind swings horizontally automatically. Cancel this function when press again. Swing the blades vertically manually, select the direction discretionarily.

• Cool/humidify: press the key to cool, if add frozen ice crystal box, the temperature from air vent can lower about 3℃ after a few minutes. Cancel this function when pressing again.

• COOLER MODE :
  0—OFF, 1—LOW, 2—MIDDLE, 3—HIGH

• SWING: Under the swing mode, the wind can be swung automatically on left and right and choose the wind-up and down by hand.

THE USE OF AN ICE-CRYSTAL BOX
The ice-crystal box has a particular feature of keeping cool, it can absorb heat and let the water temperature below the environmental temperature.

Using methods ：

•  Put the ice-crystal boxes into the refrigerator to make sure that they iced absolutely.
•  Unlock the water tank, draw the water tank, then put a frozen ice-crystal box into it. And push the water tank into to the unit. Then lock the water tank. .
•  There have two ice-crystal boxes, so can use circularly. The ice-crystal box has a particular feature of keeping cool, it can absorb heat and let the water temperature below the environmental temperature.

Using methods：

• Put the ice-crystal boxes into the refrigerator to make sure that they iced absolutely.
•  Unlock the water tank, draw the water tank, then put a frozen ice-crystal box into it. And push the water tank into the unit. Then lock the water tank.
• There have two ice-crystal boxes, so can use circularly.

CAUTION

•  Use as per the rating voltage.
• Do not repair or remake the appliance by yourself, it should be repaired by the repairmen.
•  Do not operate the appliance with wet hands, in order to avoid damage.
•  If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard when the appliance is not in use, switch off and unplug it Do not insert foreign things to air outlets and inlets, in order \Do not use the appliance near explosive and combustible gas. Avoid long-term direct solar radiation.
•  Use the appliance only on a flat surface.
•  Do not use outdoors.
•  The level of the water tank should not over the “MAX” scale at any time when humidifying, the total level of the water tank should not below the “MIN” scale.
•  Do not turn over the appliance. If it is toppled over and there is some water in the body, should unplug the power supply first. Then send it to the repair department or after-sales service and overhaul.
•  Clean the appearance with a damp cloth lightly. Do not use any type of detergents or solutions.
• Do not rinse the appliance.
•  Do not make air outlets near the do not knock or shake the body when using, otherwise, it may cause stop automatically.
• The water of the tank will easily metamorphose and has odor in summer, please renew the water frequently.
•  This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance
• To avoid the risk caused by the instability of the unit, you must fix the unit firmly according to manual book.
•  Do not use this appliance in the immediate surroundings of a bath, a shower, or a swimming pool.
•  Should it be necessary to move the unit after the water has been added, roll gently to the required Position and activate the bracket of the castors.
• WARNING : Ensure that the fan is switched off from the supply mains before removing the air filter screen.

Attention: cut off the power supply when cleaning the appliance

WARNING: Ensure that the fan is switched off from the supply mains before removing the air filter screen.

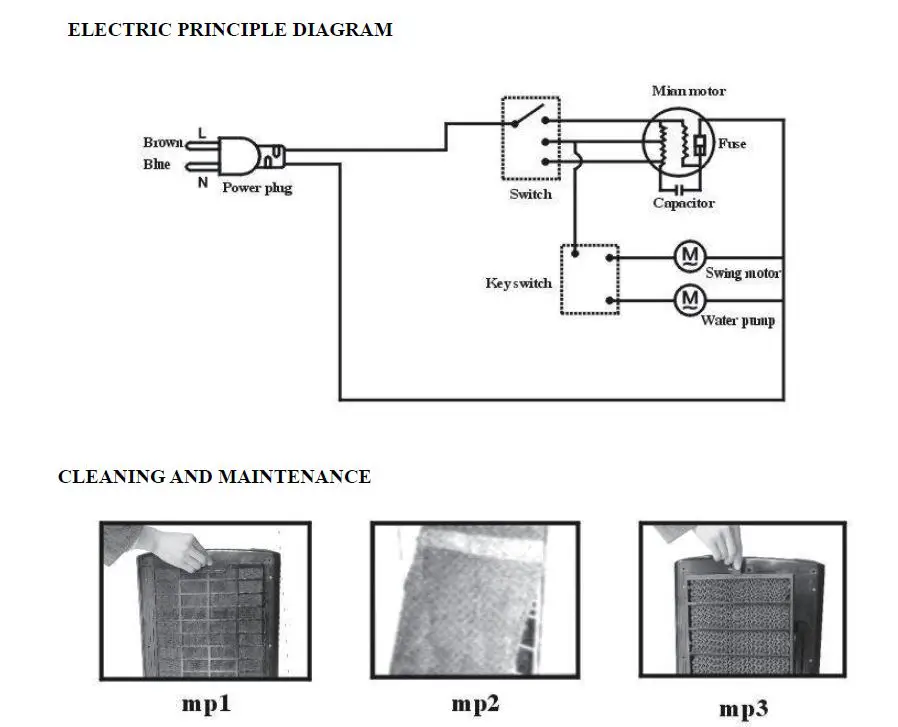

1.  Clean the air filter screen (map 1)Cut off the power supply, unscrew the screw on the top edge of the air filter screen, pull the handle of the air filter screen, and remove it from the appliance. Clean the air filter screen with neutral
   detergent and banister brush, then clean it with clear water. Finally, reinstall the appliance. Then screw the screw on the top edge of the air filter screen.

2.  Clean the wetted pad (map2, map3)Cut off the power supply, unscrew the screw on the top edge of the air filter screen, take down the air filter screen, unlock the wetted pad and its support, and take out them, then draw the wetted pad from the support. Clean the wetted pad with neutral detergent and banister brush, then clean it with clear water. Finally, reinstall the appliance and lock the support with a wetted pad. Then screw the screw on the top edge of the air filter screen. Attention: the wetted pad must be installed horizontally, in order to avoid leaking.

3.  Clean the shell clean with neutral detergent and a soft cloth. Attention: cut off the power supply when cleaning the appliance, as there has high pressure in the body. Do not leave any water on the surface of the control panel.

| Power off or poor connection.

Not rotate the “SPEED” on the control panel.

| 1.

| Plug the power cord and make sure it connects well.

Rotate the “SPEED” on

the control panel.

Poor effect of dedust| 1.

| Block the air filter screen with dust.

Block the air inlet with

corpus alienum.

| 1.

| Purify the air filter screen. Remove corpus alienum from the air inlet.

Repair the appliance under the situation as follows:

1.  Abnormal action or no action. It is invalid by the above approach.
2.  Abnormal action caused by ingress of water or corpus alienum.
