AFIREWATER AWPR Prestige Series 40 Inch Built-In Electric Fireplace Insert Installation Guide

AFIREWATER AWPR Prestige Series 40 Inch Built-In Electric Fireplace

Insert

Planning Information / AWPR PRESTIGE Series

AFIREWATER® water vapor fireplace modules are extremely easy to install, simple to operate, and easy to maintain. When designing your fireplace, feel free to send us your plans for review and comments.
Important Considerations:

• Determine best configuration for your installation:
  1. Recessed
  2. Proud (in front of wall)
  3. Free-Standing.

Note: If light cast upwards to ceiling is undesirable, create recessed hearth in wall for a traditional hearth appearance,

•  Provide electrical power (120 V outlet) and 1/4’’ water line in cutout cavity if it is to be direct plumbed.
• For easy removal of fireplace and periodic maintenance, follow suggested clearances. We recommend you do not install the units prior to completion of all construction to avoid construction debris and dust entering the unit which can cause problems with operation, and potentially damage components voiding the warranty. (important)
• Determine materials and finishes you expect to use; There are no issues created by heat, so choice of materials is limitless.
• Avoid placement where there are air currents from doors, windows, and from the HVAC system.
•  Water Hardness: Only use moderately hard tap water between 3.5 to 8.5 Grains Per Gallon (7 is ideal). It’s best to have water tested before prolonged use; excessively hard water will coat internal parts with calcium & mineral deposits and shorten life of equipment and possibly void the factory warranty.

Note: Do not use RO water (reverse osmosis). A moderate amount of minerals are needed to optimize flame effect. If water is too hard, use an inexpensive in-line water softener. Inexpensive hardness test kits are available on Amazon.

• Installing the water vapor insert: Cutout dimensions are critical because modules suspend from the flanges that span the opening. Too small and fireplace will not fit; too large and fireplace module may fall thru the opening. See ‘How To’ YouTube Videos: search for ‘Lumina Products Inc’ and then watch the AFIREWATER® PRESTIGE ‘How To’ Videos.
• Do not install fireplace until construction is complete. Equipment must be protected from dust and debris getting inside.
• Consult Owners Manual shipped with unit for more information. Manual is also available online; our office can send you a link to the most recent version. That’s it! Enjoy an extraordinary fireplace experience every day of the year!

NOTE! Failure to follow these guidelines may diminish resulting flame effect, cause light to be cast onto ceiling, may cause excess light to ‘bleed’ into room. Installation must allow easy access and removal of units for maintenance.

DIMENSION

1. Controls
2. Fill & Drain Connection
3. Air Intake Vents (top)
4. Alternate Air Intake Vents (side)
5. Flange Support (suspension)

flanges run full length of unit)

Note: Dimension in Plan View These values have been calculated so that the light projected upwards is contained by the recessed light trap and do not shine up onto the ceiling of the room. To increase height of hearth opening requires the depth of the hearth to be increased See 68º and 53º light paths in Side Section below.

for AFIREWATER PRESTIGE series 20’’ / 40’’ / 60’’ units

TYPES OF FIREPLACES INSTALLATION GUIDELINES

GLASS ENCLOSED HEARTH INSTALLATION GUIDELINES

CAN BE GLASS FRONT ONLY OR FRONT + BACK

Important Notes for glass enclosed hearth:

• Only necessary when drafts or weather are an issue.
• Glass must not restrict airflow. Allow space for circulation into room.
• air must be able to flow in and out of enclosure.
• glass is optional and not required.

ROOM DIVIDER EXAMPLE

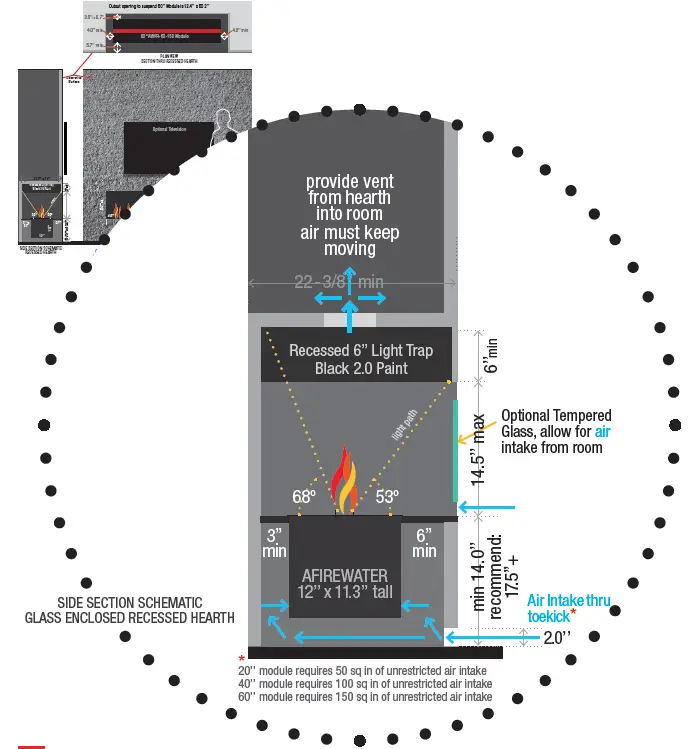

Note: Overall dimensions of this example of a room divider fireplace is 78“ wide x 20“ deep. Hood extends 4” past fireplace base on both sides. In this case it is shown 9 feet tall. Configuration designed to minimize light that would otherwise be cast up to the ceiling in the room. The upper wall section is a large hollow hood painted inside with flat black paint. Optionally the top of the AFIREWATER® unit can be covered with granite or other decorative material. If so, then this AWPR 60-150-60“ fireplace insert will require 150 sq in of unobstructed air intake thru the toe kick as shown in the schematic at the right. If a grill or grate covers the air intake you must compensate for the solid mass of the grill in your calculations. Do not cover the control buttons with stone. Stone should be easy to removal and allow the unit to be removed for service if necessary.

INSTALLATION GUIDELINES

TYPICAL LONG MULTIPLE MODULE FIREPLACES

**CUTOUT DIMENSIONS REFERENCE Chart: ***

• 20’’ AWPR-20-50: 12.25’’ x 20.2’’
• 40’’ AWPR-40-100: 12.25’’ x 40.2’’
• 60’’ AWPR-60-150: 12.25’’ x 60.2’’
• 80’’ AWPR-80-200: 12.25’’ x 80.3’’
• 100’’ AWPR-100-250: 12.25’’ x 1 00.3’’
• 120’’ AWPR-120-300: 12.25’’ x 1 20.3’’
• 140’’ AWPR-140-350: 12.25’’ x 1 40.3’’
• 160’’ AWPR-160-400: 12.25’’ x 1 60.3’’
• 180’’ AWPR-180-450: 12.25’’ x 1 80.3’’

(up to 20 feet controlled by one remote)

Minimum Depth of Cutout for all sizes: 11.75“ (when power converter is placed ‘beside’
insert: front, back, right, or left)
Normal Depth of Cutout for all sizes: 13.62“ (when power converter is placed ‘below ’insert)
* Note: CUTOUT dimensions are critical! modules are suspended in opening

AWPR PRESTIGE MODULES DESIGNED TO BE FLUSH MOUNTED

WATER HARDNESS + CHECKLIST FOR BEST RESULTS

Suggested Range for Water Vapor Fireplaces 3.5 to 8.5 Grains Per Gallon, Ideal is 7.0 (moderately hard)

• Water that is too hard will produce scaling, shorten transducer life, and require more frequent cleaning.
• Water that is too soft will have reduced flame effect.
• If water hardness needs to be adjusted, consult local water conditioning professional.

REVERSE OSMOSIS is NOT RECOMMENDED, it removes ALL minerals and vapor will be greatly diminished.

CHECKLIST FOR BEST RESULTS: REMEMBER

• protect fireplace insert during construction / dust & debris that gets inside the equipment is a major problem.
• have water tested for water hardness or use a water hardness kit purchased on line.
• water that is too hard will shorten life of equipment and could void warranty in extreme cases.
• water without enough minerals (too soft) will greatly limit size and quality of flames.
• flames look best against a dark background.
• drafts from HVAC vents and entrance doors will diminish quality of flames.
• if light cast onto the ceiling of the room is an issue, design a hearth, hood, or light trap to contain the light.
• mist-makers have a life of 2,000 to 3,000 hours and should be cleaned with vinegar 2 to 3 times a year.
• water tanks should be flushed with vinegar and rinsed out with water at least once a year.
• regular cleaning will prolong the life of the fireplace, see recommended Preventive Maintenance Plan.
