Blue-White Industries F-2000 Series MD1 Multi Diaphragm Metering Pump Instruction Manual

Operating Manual
CHEM-FEED®
Multi-Diaphragm Metering Pump

Series MD1

READ THE INSTRUCTION MANUAL PRIOR TO INSTALLATION AND USE.

+1 (714) 893 – 8529
sales@blue-white.com
customerservice@blue-white.com
5300 Business Drive
Huntington Beach, CA 92649

INTRODUCTION

Congratulations on purchasing the 1 variable speed Multi Diaphragm Metering Pump.
Please Note: Your new pump has been pressure tested at the factory with clean water before shipping.
This is part of our stringent quality assurance program at Blue-White.

1.1 Available Models

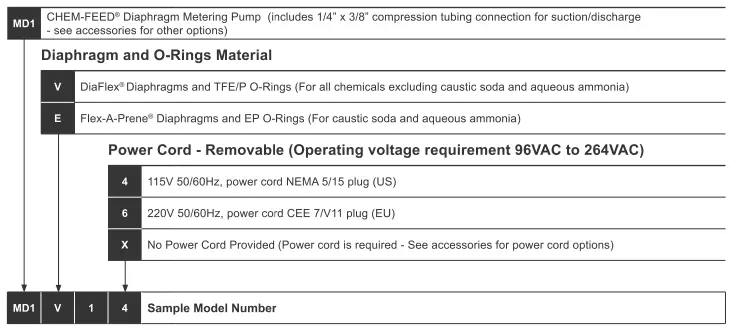

CHEM- FEED® Model Number

1.2 What’s In The Box

MD1 Multi-Diaphragm Pump with Cover

Wall Mounting Bracket

Note: The MD1 Pump does not ship with suction or discharge tubing (per NSF61 requirements). Order these separately. See Accessories pages for details.

Instruction Manual

Parts Kit

• Injection Fitting
• Foot Valve
• Screws
• Ceramic Weight
• Tube Nuts

ENGINEERING SPECIFICATIONS

220V50Hz 1 PH (0.3A max.)
230V60Hz 1 PH (0.3A max.)
230V50Hz 1 PH (0.3A max.)
240V50Hz 1 PH (0.3A max.)
Power Cord Options| 115V50/60Hz = NEMA 5/15 (USA)
230V50/60Hz = NEMA 6/15 (USA)
220V50/60Hz = CEE 7/VII (EU)
240V50/60Hz = AS 3112 (Australia/New Zealand)
230V50/60Hz = BS 1363/A (UK)
Motor| Brushless DC, 50W
Duty Cycle| Continuous
Motor Speed Adjustment Range| 10,000:1 (0.01% – 100%) Max rpm = 100 rpm
Enclosure| NEMA 4X (IP66), Valox®(PBT) & PA12
Maximum Overall Dimensions| 9.5” W x 9.5” H x 10.40” D (21.4 W x 21.4 H x 26.4 D cm)
Product Weight| 8.5 lb. (3.8 Kg)
Approximate Shipping Weight| 15.5 lb. (5.9 Kg)
Approximate Shipping Dimensions| 10.5” W x 11.75” H x 13” D (26.7 W x 29.8 H x 33 D cm)

CONSTRUCTION MATERIALS

3.1 Wetted Components
Pump Head Assembly

Injection / Back-Flow Check Valve
Body & Insert| PVDF
Check Ball| Ceramic
Spring| Hastelloy C-276
Ball Seat & Static Seal O-Ring| TFE/P (optional EP)
Foot Valve / Strainer
Body & Adapter| PVDF
Check Ball| Ceramic
Spring| Hastelloy C-276
O-Ring Seal| TFE/P (optional EP)
Filter Screen| PVDF

3.2 Non-wetted Components

FEATURES

•  Smooth chemical dosing, no pulsation dampener needed.
• Automatic Degassing Valve (ADV) System reduced the risk of vapor lock.
• Diaphragm Failure Detection (DFD) system which senses diaphragm failure.
• Rated for continuous duty.
• Compatible with Blue-White Industries, Flow Verification Sensor (FVS) system.
•  Remote Start/Stop – One non-powered dry contact closure.
•  Speed Control: Manual Speed Adjust and Scalable 4-20ma Input
• Outputs: 4-20mA, single 250V/3A (FVS, DFD), and a solid state “motor on” (0-60 VDC sinking)
• Multi diaphragm metering with industry best turndown at 10,000:1 (Brushless DC Motor)
• Built for long life at high pressures up to 150 PSI (10.3 bar)
•  Output rates up to 8.50 GPH (32.2 LPH) @ 0 PSI, 8.34 GPH (31.6 LPH) @ 30 PSI, 7.50 GPH (28.4 LPH) @ 150 PSI.
• Convenient M12 Connectors (IP67) for Input/Output Communications.

4.1 Agency Listings

This pump is ETL listed to conforms to the following: UL Standard 778 as a motor operated water pump. CSA Standard C22.2 as process control equipment
**** This pump complies to the Machinery Directive 2006/42/EC, BS, EN 60204-1, Low Voltage Directive 2014/35/EU BS EN 61010-1, EMC Directive 2014/30/EU, BS EN 50081-1/BS EN 50082-1.
This pump is certified to NSF/ANSI Standard 61- Drinking Water System Components – Health Effects

ENCLOSURE RATING
NEMA 4X Constructed for either indoor or outdoor use to provide a degree of protection to personnel against incidental contact with enclosed equipment; to provide a degree of protection against falling dirt, rain, sleet, snow, windblown dust, splashing water, and hose-directed water; and that will be undamaged by external formation of ice on enclosure.
IP66 No ingress of dust; complete protection against contact. Water projected in powerful jets against enclosure from any direction shall have no harmful effects.

INSTALLATION

The pump should be serviced by qualified persons only. If equipment is used in a manner not specified in this manual, the protection provided by the equipment may be impaired.
Always wear protective clothing, face shield, safety glasses and gloves when working on or near your metering pump. Additional precautions should be taken depending on solution being pumped. Refer to MSDS precautions from your solution supplier.
All diagrams are strictly for guideline purposes only. Always consult an expert before installing metering pump on specialized systems. Metering pump should be serviced by qualified persons only.
Check system pressure and piping pressure limits before installation.
The pump should be supplied by an isolating transformer or RCD (operating current less or equal 30 mA).

5.1 Mounting Location

1. Choose an area located near the chemical supply tank, chemical injection point, and electrical supply. Also, choose an area where the pump can be easily serviced.
   NOTE: Suction and Discharge manifolds can be removed and rotated so the suction and/or discharge connections are on opposite sides. Pump performance will not be affected by suction or discharge location.
   For best De-gassing and Priming efficiency, locate suction connection on same side as degassing cart.

2.  Finding a secure surface and using the provided mounting hardware, mount the pump close to the injection point. Keep the inlet (suction) and outlet (discharge) tubing as short as possible. Longer discharge tubing increases back pressure at pump head.
   NOTE: Mounting the pump lower than the chemical container will gravity- feed chemical into it. This “flooded suction” installation will reduce output error due to increased suction lift. A shut-off valve, pinch-clamp, or other means to halt gravity-feed to the pump must be installed during servicing.
   NOTE: Install a back flow prevention check valve at the discharge side of the pump to prevent the system fluid from flowing back through pump during maintenance.
   NOTE: It is recommended to have a pressure relief valve at the discharge side of the of pump to prevent premature wear and damage to the pump, in the event that the discharge line becomes blocked.
   NOTE: The pump does not require back pressure. Back-pressure valve may be desired to maintain consistent flow into inconsistent system pressure.

5.2 Pump Dimensions

5.3 Wall Mounting

1. Using the provided #10 self-tapping screws, mount the bracket to a secure wall that is located where it can be easily serviced


2. Lower the pump so that the tab on the wall mount is inserted into the slot located on the back of the pump. The pump will now be secured to the wall mount bracket. To remove pump, pull tab and lift pump.


5.4 POWER CONNECTIONS
Risk of electric shock – cord connected models are supplied with a grounding conductor and grounding-type attachment plug. To reduce risk of electric shock, be certain that it is connected only to a properly grounded, grounding-type receptacle.
Electrical connections and grounding (earthing) must conform to local wiring codes.
Risk of electric shock – Disconnect electricity before removing wiring compartment cover.
Ensure to connect the pump to the proper supply voltage. Using the incorrect voltage will damage the pump and may result in injury. The voltage requirements is printed on the pump serial label.

• Use the voltage for which the power cord is rated.
• Do not strap together control (input/output) cables and power cables.
•  When there is a power interruption, the pump, which has an auto-restart feature, will restore the pump to the operating state it was in when the power was lost.
•  POWER: 115V60Hz (0.6A max.), 220V50Hz (0.3A max.), 230V60Hz (0.3A max.), 230V50Hz (0.3A max.), 240V50Hz (0.3A max.)
  NOTE: Contact a licensed electrician when there is doubt regarding the electrical installation.

Pump (Right Side Panel)

5.5 IO Connection
WARNING
Risk of electric shock – All wiring must be insulated and rated 60V minimum.

M12 cables not included with product. See accessories for cable options.
Blue-White requires any A-Type M12 connector with 5 position female sockets

5.6 M12 Connections

M12 Input Connector I/O 1

PIN                                                           Function Specifications Reference

M12 Input Connector I/O 2
PIN| Function| Specifications| Reference
P1| Remote Start / Stop| Dry Contact Closure (Do Not add voltage)| Green Light = Normally Open Red Light = Normally Closed
P2| Ground| DC Ground| 0 VDC
P3| FVS (+)| 15 VDC @ 60 mA| To power FVS sensor
P4| FVS (-)| DC Ground (0 VDC)| FVS Ground Input
P5| FVS (Signal)| Input Signal| Input for FVS Signal

M12 Output Connector I/O 3

Solid State Contact Closure
P2| Pump Motor Running  (-)| 0-60VDC sinking output (-)
Solid StateContact Closure
P3| N.O. (closes with DFD or FVS alarm)| Relay Out, N.O. Contact
3 Amp @ 250 VAC
P4| COM| Relay Out, COM Contact
P5| N.C. (opens with DFD or FVS alarm)| Relay Out, N.C. Contact
3 Amp @ 250 VAC

TOUCHPAD LAYOUT

SET-UP AND PROGRAMMING

off
2| Press and hold Remote Start/Stop button for 5-7 seconds
3| Light will turn Red for “Normally Closed” Operation
4| To put pump is Ready state, press Start/Stop button
5| Display will show “SIG” when waiting for contact closure to Open
6| Display will show pump speed (or RPM, 4-20mA) when signal is Open

7.2 Programming FVS (Flow Verification Sensor)
Flow Verification System (FVS) uses a pulse signal from flow meter/sensor. When the FVS feature is activated, if running pump does not receive signal/pulse in the programmed delay time, the pump will stop and activate Alarm Output Relay. Display will read “FuS”. (Contact Blue-White for FVS sensor options. )

Activate by pressing FVS button once. Light On indicates activation. Press again to de-activate.
NOTE: Alarm Delay Time range 1-20 seconds

7.3 Pump Lockout
Pump Lockout feature allows the user to “lock out” the ability to change pump controls, such as Pump Speed, Prime, FVS, Remote Start/Stop, Manual/4-20ma Modes. User will still be able to start and stop the pump.

4-20MA INPUT

7.1 Selecting 4-20mA input mode

Directions

1. Confirm that pump is in the OFF position
2.  Press 4-20mA Input button

7.2 Programming 4-20mA input mode

Directions

1. Confirm that pump is in the OFF position.
2. Press and hold 4-20mA Input button.
3. MIN mA light will illuminate. Use arrow keys to toggle min mA value for the pump to operate at
4. Press 4-20mA Input button for MIN % Speed light to illuminate
5. Use arrow keys to toggle MIN % Speed value for the pump to operate.
6.  Press 4-20mA Input button for MAX mA light to illuminate.
7. Use arrow keys to toggle MAX mA value for the pump to operate.
8.  Press 4-20mA Input button for MAX % Speed light to illuminate.
9. Use arrow keys to toggle MAX % Speed value for the pump to operate.
10.  Press and hold 4-20mA Input button to exit programming mode.

PUMP OPERATION

Need help calibrating your pump?
Click on … or scan the QR code.

https://www.blue-white.com/bw-videos/the-blue-white-academy-how-to- calibrate-the-1-series-peristaltic-metering-pump/

8.2 Manual Speed/Flow Adjust
Pump speed can be adjusted manually using “Manual Adjust” Run Mode.

8.3 4-20 Input Speed/Flow Control
Pump speed can be adjusted remotely using “4-20ma Input” Run Mode.

OUTPUTS

MOTOR ON – Active when motor is running in Manual or 4-20ma Mode.
RELAY OUTPUT – Active when either DFD or FVS has triggered. Stop pump to reset.
4-2mA OUTPUT – Non-scalable full scale output proportional to pump speed.

DFD (DIAPHRAGM FAILURE DETECTION)

The MD1 is equipped with a Diaphragm Failure Detection System which is designed to stop pump and provide an output alarm in event diaphragm should rupture and chemical enters pump head.
This system is capable of detecting presence of a large number of chemicals including Sodium Hypochlorite (Chlorine), Hydrochloric (muriatic) Acid, Sodium Hydroxide, and many others. System will not be triggered by water (rain, condensation, etc.) or lubricants.
If system has detected chemical, pump diaphragm must be replaced and pump head must be thoroughly cleaned.
Failure to clean pump head will void warranty.
If DFD alarm occurs, pump will stop, close an alarm output, and screen will flash DFD with an alarm icon.

PUMP MAINTENANCE

Prior to service, pump clean water through pump and suction / discharge line to remove chemical.
Always wear protective clothing, face shield, safety glasses and gloves when working on or near your metering pump. Additional precautions should be taken depending on solution being pumped. Refer to MSDS precautions from your solution supplier.
11.1 Routine Inspection and Maintenance
Pump requires very little maintenance. However, pump and all accessories should be checked weekly. This is especially important when pumping chemicals. Inspect all components for signs of leaking, swelling, cracking, discoloration or corrosion. Replace worn or damaged components immediately.
Cracking, crazing, discoloration during first week of operation are signs of severe chemical attack. If this occurs, immediately remove chemical from pump. Determine which parts are being attacked and replace them with parts that have been manufactured using more suitable materials. Manufacturer does not assume responsibility for damage to pump that has been caused by chemical attack.

11.2 Cleaning Pump
Pump will require occasional cleaning, especially Injection fitting, Footvalve / Strainer, and pump head valves.
Frequency will depend on type and severity of service.

• Inspect and replace pump head valves as required.
• Periodically clean injection / check valve assembly, especially when injecting fluids that calcify such as sodium hypochlorite. These lime deposits and other build ups can clog fitting, increase back pressure and interfere with check valve operation.
• Periodically clean suction strainer.
• Periodically inspect pump housing (enclosure) for chemical attack. Protect pump housing from continuous exposure to chemicals, such as drips or fumes from surrounding equipment and plumbing.

11.3 Replacing the Pump Diaphragm

• When changing the diaphragm, the pump head chamber and pump head cover should be wiped free of any dirt and debris. The pump stroke must be FORWARD when installing the diaphragm (hand tighten), and BACK when installing and tightening the pump head. Tighten screws on pump head evenly and incrementally. Final tightening to be done with a torque wrench rating at 20 in-lbs.
• When replacing the pump diaphragm, note the order of parts per the illustration below:

Updating The Firmware

REQUIREMENTS: Download & Install the MD1 Programmer file by visiting the Firmware Update section of the MD1 product page at www.blue- white.com as well as download the Firmware Update File.

1. Connect the Pump to a computer via USB-A / USB-C cable (Pump must not be powered before starting.)

2. Power up the Pump

3.  Open the MD1 programer

4.  Select “Enable” USB in the Communication settings window

5. Click on Connect
   http://www.blue-white.com/bw-videos/the-blue-white-academy-how-to- perform-a-firmware-update-for-the-1-series-pumps/
   Watch this Video for further assistance.


6. Select “Load Hex File”


7.  Select “.HEX” file

8. Click on “Erase-Program-Verify”


9. Once Hex file is loaded successfully

10. Click on “Disconnect”. Your firmware has now been updated.


REPLACEMENT PARTS LIST

13.1 EXPLODED VIEW

ACCESSORIES

TROUBLESHOOTING

restart pump once cooled to ambient temperature
E05| Inverter Error| Contact Blue-White 714-893-8529 customerservice@blue- white.com
E06| No Motor Connection| Contact Blue-White 714-893-8529 customerservice@blue- white.com
E08| Motor Stall| Ensure that diaphragm is installed properly
E10| Capacitor bank charging error| Contact Blue-White 714-893-8529 customerservice@blue- white.com
**E17| ** Communication error at display| Contact Blue-White 714-893-8529 customerservice@blue- white.com

WARRANTY

16.1 Limited Warranty
Your Blue-White product is a quality product and is warranted for a specific time from date of purchase (proof of purchase is required).
The product will be repaired or replaced at our discretion. Failure must have occurred due to defect in material or workmanship and not as a result of operation of the product other than in normal operation as defined in the product manual. Warranty status is  determined by the product’s serial label and the sales invoice or receipt. The serial label must be on the product and legible. The warranty status of the product will be verified by Blue-White or a factory authorized service center. CHEM-FEED® MD1 pumps are warranted for 5 years from date of purchase (proof of purchase is required). Pumps will be repaired or replaced at our discretion.
16.2 DIAFLEX® Warranty
DIAFLEX® diaphragms are warranted for the life of the pump. Blue-White will replace a damaged diaphragm at no cost to the customer provided the pump was at all times operated within the guidelines included in the pump’s operation manual. This warranty  only applies to DIAFLEX® diaphragms, not the pumps themselves. Blue-White pumps are separately covered by warranties specific to them.
16.3 What is not Covered

Flex-A-Prene diaphragm and rubber components – They are perishable and require periodic replacement
Pump removal, or re-installation, and any related labor charge.
Freight to the factory, or service center
Pumps that have been tampered with, or in pieces.
Damage to the pump that results from misuse, carelessness (such as chemical spills on the enclosure), abuse, lack of maintenance, or alteration that is out of Blue-White control.
Pumps damaged by faulty wiring, power surges, or acts of nature.
Blue-White does not assume responsibility for any loss, damage, or expense directly or indirectly related to or arising out of the use of its products. Failure must have occurred due to defect in material or workmanship and not as a result of operation of the product other than in normal operation as defined in the pump operation manual.
The warranty status is determined by the pump’s serial label and the sales invoice or receipt. The serial label must be on the pump and be legible. The warranty status of the pump will be verified by Blue-White or a factory authorized service center.
16.4 Procedure for In-Warranty Repair
Warranty service must be performed by the factory or an authorized service center. Contact the factory or local repair center to obtain a RMA (Return Material Authorization) number. It is recommended to include foot strainer and injection/check valve fitting  since these devices may be clogged and part of the problem. Decontaminate, dry, and carefully pack the product to be repaired. Please enclose a brief description of the problem and proof of purchase. Prepay all shipping and insurance cost. COD shipments will not be accepted. Damage caused by improper packaging is the responsibility of the sender. When In-Warranty repair is completed, the factory pays for return shipping to the dealer or customer.
16.5 Product Use Warning
Blue-White products are manufactured to meet the highest quality standards in the industry. Each product instruction manual includes a description of the associated product warranty and provides the user with important safety information. Purchasers, installers, and operators of Blue-White products should take the time to inform themselves about the safe operation of these products. In addition, Customers are expected to do their own due diligence regarding which products and materials are best suited for their intended applications. Blue-White is pleased to assist in this effort but does not guarantee the suitability of any particular product for any specific application as Blue-White does not have the same degree of familiarity with the application that the customer/end user has. While BlueWhite will honor all of its product warranties according to their terms and conditions, Blue-White shall only be obligated to repair or replace its defective parts or products in accordance with the associated product warranties. BLUE-WHITE SHALL NOT BE LIABLE EITHER IN TORT OR IN CONTRACT FOR ANY LOSS OR DAMAGE WHETHER DIRECT, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL, ARISING OUT OF OR RELATED TO THE FAILURE OF ANY OF ITS PARTS OR PRODUCTS OR OF THEIR NONSUITABILITY FOR A GIVEN PURPOSE OR APPLICATION.
16.6 Chemical Resistance Warning
Blue-White offers a wide variety of wetted parts. Purchasers, installers, and operators of Blue-White products must be well informed and aware of the precautions to be taken when injecting or measuring various chemicals, especially those considered to be  irritants, contaminants or hazardous. Customers are expected to do their own due diligence regarding which products and materials are best suited for their applications, particularly as it may relate to the potential effects of certain chemicals on Blue-White products and the potential for adverse chemical interactions.
Blue-White tests its products with water only. The chemical resistance information included in this instruction manual was supplied to Blue-White by reputable sources, but Blue-White is not able to vouch for the accuracy or completeness thereof. While Blue-White will honor all of its product warranties according to their terms and conditions, Blue-White shall only be obligated to repair or replace its defective parts or products in accordance with the associated product warranties.
BLUE-WHITE SHALL NOT BE LIABLE EITHER IN TORT OR IN CONTRACT FOR ANY LOSS OR DAMAGE, WHETHER DIRECT, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL, ARISING OUT OF OR RELATED TO THE USE OF CHEMICALS IN CONNECTION WITH ANY BLUE-WHITE PRODUCTS.

ACRONYMS

°C
°F
AC
bar
CIP
cm
COD
D
DC
DFD
EEE
EP
ETL
EU
FDA
FKM
FVS
GF
GPD
GPH
H
Hz
IO
Kg
lb.
LLDPE
LPH
mA| Celsius
Fahrenheit
Alternating current
Unit of pressure
Clean-in-place
Centimeters
Cash on Delivery
Depth
Direct current
Diaphragm Failure Detection
Electrical and electronic equipment
Ethylene propylene
Electrical Testing Labs/Intertek
European Union
Food and Drug Administration
Fluoroelastomer
Flow Verification Sensor
Glass fiber
Gallons per day
Gallons per hour
Height
Inside diameter
Input/Output
Kilogram
Pound
Linear low-density polyethylene
Liters per hour
Milliampere
---|---
min
mL
MSDS
N.C.
N.O.
NPT
NSF
OD
P.N.
PBT
PE
PSI
PVC
PVDF
RCD
Rev.
RMA
RPM
SIP
SS
TFD
TFE/P
UL
US
V
W
W
WEEE| Minute
Milliliters
Material Safety Data Sheet
Normally Close
Normally Open
National Pipe Thread
National Sanitation Foundation
Outside diameter
Part Number
Polybutylene Terephthalate
Polyethylene
Pounds per Square Inch
Polyvinyl chloride
Polyvinylidene fluoride
Residual-current device
Revision
Return Material Authorization
Revolutions per minute
Steam-in-place
Solid state
Tube Failure Detection
Tetrafluoroethylene propylene
Underwriters Laboratories
United States
Volt
Watt
Width
Waste Electrical and Electronic
Equipment

Model Number Matrix
CHEM – FEED® Model Number

NOTES

Users of electrical and electronic equipment (EEE) with the WEEE marking per Annex IV of the WEEE Directive must not dispose of end of life EEE as unsorted municipal waste, but use the collection framework available to them for the return, recycle, recovery of WEEE and minimize any potential effects of EEE on the environment and human health due to the presence of hazardous substances.
The WEEE marking applies only to countries within the European Union (EU) and Norway. Appliances are labeled in accordance with European Directive 2002/96/EC.
Contact your local waste recovery agency for a Designated Collection Facility in your area.

5300 Business Drive
Huntington Beach, CA 92649
USA
P.N. 80000-614
TEL: 714-893-8529
FAX: 714-894-9492
www.blue-white.com
sales@blue-white.com
customerservice@blue-white.com
Rev. 14 20231117

References

• white.com is for sale | www.brandforce.com
• The Blue-White Academy - How To Calibrate the 1 Series Peristaltic Metering Pump - Blue-White Industries
• The Blue-White Academy - How to perform a firmware update for the 1 series pumps - Blue-White Industries

Read User Manual Online (PDF format)

Read User Manual Online (PDF format)  >>

Download This Manual (PDF format)

Download this manual  >>
