FANYE S43 Smart Wi-Fi Camera User Manual

June 13, 2024
FANYE

FANYE S43 Smart Wi-Fi Camera

FANYE-S43-Smart-Wi-Fi-Camera-product

Thank you for purchasing a Smart Camera. Get started using your new devices by downloading TuyaSmart, one convenient app that manages everything straight from your phone. Easily connect to your home Wi-Fi and control multiple devices from the touch of your fingertips

What’s in the Box

  • Smart Camera ×1
  • USB Cable ×1
  • User Manual ×1
  • Mounting Bracket ×1
  • Adapter ×1
  • Screw bag x1
  • Punched sticker ×1

Different products have different accessories, please refer to physical packing.

Get Ready

  • Know your Wi-Fi network and password
  • Make sure your mobile device is running iOS® 9 or higher or Android ™ 4.1× or higher
  • Make sure you’re connecting to a 2.4GHz Wi-Fi network (It can’t connect to 5GHz networks)

Download the TuyaSmart app from the App Store or Google Play.
Register an account on your TuyaSmart app

FANYE-S43-Smart-Wi-Fi-Camera-fig-1

STEP 1
Enter vour mobile phone number or email address.

STEP 2
Enter the verification code and create a password.

Plugin
How do I reset my device?

  • Press the Reset Button for several seconds until the camera starts to beep.
  • Optional: Insert Micro SD card

Add device

FANYE-S43-Smart-Wi-Fi-Camera-fig-3

  • Open the TuyaSmart APP, click “+” on the top right corner of the page “HOME”, then select “Smart Camera”.
  • Make sure the indicator light on the device is flashing red quickly, then press “Next Step”
  • Enter your “Wi-Fi network and password”. click “OK”.

Add device

FANYE-S43-Smart-Wi-Fi-Camera-fig-4

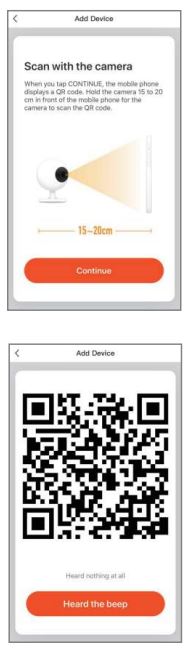

  • Read the instructions about “Scan with the camera”, and click “Continue”.
  • Scan the QR Code on your phone with a camera. Heard a prompt tone, click “Heard the beep”.

Add device
When the indicator light on the device turns from a flashing red light to a steady green light, the network configuration is complete refer to the specific APP interface if there are any differences.

Frequently Asked Questions

Can I share with family and friends?
Yes, you can share your cameras with family and friends who will have access to view the camera and control your bulbs, plugs, and other devices. In the app, press the Profile button and click on the “Home
Management” button, and you will be able to give or revoke sharing permissions. In order to share, the other user should already have downloaded the app and registered a new account.

What’s the Wireless Range?
The range of your home Wi-Fi is heavily dependent on your home router and the conditions of the room. Check with your router specifications for exact range data.

How many cameras can I control?
TuyaSmart app can control an unlimited amount of devices in an unlimited amount of locations. Your router may have a limit on how many devices can be connected to one router.

My device can’t be connected to a network with the App
Make sure the device is under the config status (the indicator light is flashing quickly)

  • Make sure the Wi-Fi is available and not too far away from the router
  • Make sure the Wi-Fi password you input is correct

Technical Specifications

  • Audio: Internal Speaker and Microphone
  • Storage: supports up to 128G Micro SD card (not included)
  • Wi-Fi: IEEE 802.11b/g/n, 2.4GHz(not compatible with 5GHz Wi-Fi networks)

My device shows offline in my App

  • Make sure the device is powered on
  • Make sure the network is stable and the Wi-Fi name and password are not modified. If not, add the device again.
  • If the network is normal, but it’s still offline. Check if there are too many Wi-Fi connections. You can restart your router to check the status of the device.
  • You can find much more useful information in the Help Center on the App.

FCC Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and the receiver.
  • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

This device complies with part IS of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment complies with FCC exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
