BPOWER GBC1500 Pro Multi Functional Jumper Starter User Manual

GBC1500 Pro

User Manual
Thank you for purchasing the Multi-functional Jump starter. Read and understand the User Manual carefully for specifications, proper operation procedures, safety warnings and other useful information before operating the product. Please keep this User Manual for easy reference.

Product Layout:

1. Battery Indicator Light
2. Power Button
3.  LED On/Off Light
4. 12V Jump Start Output
5. LED Torch
6. USB-A Output 1 & 2
7. Micro USB Input USB-C
8. Input & Output
9. DC 12V Output

Parts List:

Specifications:

Battery Capacity 59200mWh / 59.2Wh / 16000mAh
Battery Type : Lithium-Ion Peak Current : 12V / 3000A•;
Jump Start Current : 12V / 1500A Micro USB Input : 10W Max. (5V / 2A)
USB-C Input Port : PD 30W Max. (5V / 3A, 9V / 3A. 12V / 2.5A. 15V / 2A, 20V / 1.5A)
USB-C Output Port : PD 45W Max. (5V / 3A, 9V / 3A. 12V / 2.5A. 15V / 2A, 20V / 2.25A)
USB-A Output 1 & 2: Total OC18W Max. (5V / 3A, 9V / 2A)
DC Output : 96W (12V-16.8V / 8A Max.)
Weight : 680g Size : 221 x 95 x 39mm Operating Temperature : -20°C to 60°C Charging Temperature : 0°C to 40°C Standby Time : Up to 9 – 12 Months
Recommended Vehicle Engine Displacements for Jump Starting
   For 12V Engines Up To 10.0L Gasoline and 8.0L Diesel. *Theoretical Short Circuit Current
Battery Indicator Lights:

Remarks. USB Wall Charger and Car Charger is NOT included Only use quality PD USB-C charger to perform fast input charging Use Minimum 5V/2A (10W) to charge How To Jump Start a Vehicle:

Jump Start ing Warnings!

Caution: Disconnect the charging cable when fully charged to avoid reverse charging via USB•C port. Fast charge capability may not be compatible with all devices. Only use quality USB cable to perform input charging.
Using 12V DC Output Port:
Caution: Only use provided Cigarette Lighter Adaptor to pillow—DC output charging. Do not exceed the rated output power. 4
Note: Fully discharge the battery via USB output port and recharge to full every 3 months to prolong its battery life.
Turn Off the GBC1500-PRO: When detect no LOAD for 30 seconds or press power button for 6 seconds, the GBC1500-PRO will turn off by itself. Make sure Jumper cable is NOT connected to jump starter when storage.

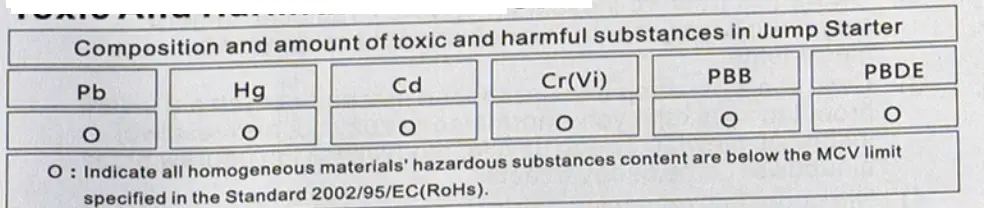

Toxic And Harmful Substances:

Instructions Pertaining to Risk of Fire, Electric Shock, or Injury to Persons.
Warning:

• Always wear safety glasses when jump starting a battery (to protect your eyes), and gloves when handling a battery (to protect your hands). When jump starting a vehicle please ensure that the blue plug is securely fitted into the jump start socket on the jump starter. Ensure the battery clamps are connected correctly, and the connectors are free from rust and dirt.
• Do not allow this product to become wet. Exposure to excessive moisture will damage the unit.
• Do not immerse the product in water.
• Do not operate the product in explosive atmospheres, such as in the presence of flammable liquid, gas or dust. Do not modify or disassemble this product. Do not store in locations where the temperature may exceed 40°C (104°F).
• Only charge within rated specifications.
• Under extreme heat conditions, battery leakage may occur. Avoid contact with your skin. In case of skin or eye contact, rinse immediately with clean water and seek medical attention.
• If battery leakage occurs, take it to your local battery recycling center for disposal. Do not attempt to use. Do not place the jump starter on the floor, or at a height less than 457mm(18 inches ) above the floor, during use in a repair facility. This car jump starter is for use with 12V vehicles only. Using on non-12V vehicles may cause serious damage to the vehicle, jump starter, or injury to the user. Refer to the owner’s manual for the vehicle if you are uncertain what voltage the vehicle runs on. s

Important Safety Instructions:

WARNING – When using this product, basic precautions should always be followed, including the following: a) Read all the instructions before using the product. b) To reduce the risk of injury, close supervision is necessary when the product is used near children. Children should not operate this device unless under strict supervision by a person responsible for their safety. c) Do not put fingers or hands into the product. d) Do not use any attachment that is not sold by jump starter manufacturer which may result in a risk of fire, electric shock, or injury to persons. e) To reduce risk of damage to the electric plug and cord, pull the plug rather than the cord when disconnecting the jump starter. f) Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury. g) Do not operate the jump starter with a damaged cord or plug, or a damaged output cable. h) Do not disassemble the jump starter: take it to a qualified service person when service or repair is required. Incorrect reassembly may result in a risk of fire or electric shock. To reduce the risk of electric shock, unplug the jump starter from the outlet before attempting any instructed servicing. Risk of explosive gases. Working in vicinity of a lead acid battery is dangerous. Batteries generate explosive gases during normal battery operation. For this reason, it is of the utmost importance that you follow the instructions each time you use the jump starter. To reduce risk of battery explosion, follow these instructions and those published by battery manufacturer and manufacturer of any equipment you intend to use in vicinity of the battery. Review cautionary marking on these products and on engine. k) Personal precautions.

• Consider having someone close enough by to come to your aid when you work near a lead-acid battery.
• Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing, or eyes.
• Wear complete eye protection and clothing protection. Avoid touching eyes while working with battery.
• If battery acid contacts skin or clothing, wash immediately with soap and water. If acid enters eye, immediately flood eye with running cold water for at least 10 minutes and get medical attention immediately.
• NEVER smoke or allow a spark or flame within the vicinity of battery or engine.
• Be extra cautious to reduce risk of dropping a metal tool onto battery. It might spark or short-circuit battery or other electrical part that may cause explosion.
• Remove personal metal items such as rings, bracelets. necklaces, and watches when working with a lead-acid battery. Alead-acid battery can produce a short-circuit current high enough to weld a ring or the like to metal, causing a severe burn. I) When charging the internal battery, work in a well ventilated area and do not restrict ventilation in any way.
  m) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. n) Do not expose a jump starter to fire or excessive temperature. Exposure to fire or temperature above 130°C (266°F) may cause explosion. o) Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained. P) Attach output cables to a battery and chassis as indicated below. Never allow the output clamps to touch one another. 9) Dropping, hitting, or other excessive amounts of force to the Jump Starter may damage the unit (external and internal), which may result in loss of operation, electrical fire, or cause other serious damage. r) Conduct visual inspection of this product to check for the presence of any abnormalities (such as swelling of the main unit, cracks, any damaged parts etc.) before use. DO NOT use this product in case you notice any.

Save this Instruction:

WARNING: This Jump Starter is only intended to jump start 12V Gasoline / diesel cars, trucks, boats, or motorcycles with an internal combustion engine and single lead-acid battery systems. Do not use this device to jump start batteries outside of these four types of vehicles; doing so may cause a fire or other serious injuries. Refer to the user manual for additional safety information.

Warranty Information:

We offer a limited warranty for this product against any defects in material and workmanship for a period of 1 year from the date of purchase by the end user/consumer. The conditions of the warranty are as follows:

1. The warranty is only valid upon presentation of the original receipt (from dealer/retailer) by the original purchaser with the product to be repaired or replaced.
2. The warranty is void if the serial number, date of purchase and label are removed.
3. The warranty does not cover damage or product failure resulting from normal wear and tear, physical abuse, improper installation, misuse, modification or repairs by unauthorized third parties.
4. We do not assume responsibility for any loss or damage incurred during shipment or as a result of a force majeure.
5. We are not liable for any incidental or consequential damages arising from the use or misuse of this product.
6. All warranty claims are limited to repair or replacement of the defective product and at the sole discretion of us.
7. If we repair or replace the product, the product will be covered for the remaining time of the original warranty period. Repair or replacement may involve the use of reconditioned units which are equivalent in function. Replaced part or product becomes the property of us.
8. Consumable components such as batteries are not covered by the warranty.
   202210008
