YATON ST-CF220706 Ceiling Fan with Light Instruction Manual

ST-CF220706 Ceiling Fan with Light
Instruction Manual CEILING FAN WITH LIGHT
VTL105
MOD: ST-CF220706 Ref:060-00039

ST-CF220706 Ceiling Fan with Light

Read these instructions carefully and keep them for future consultation.
It will be the only way to get the best results and maximum safety of use.

SAFETY INSTRUCTION

READ THESE INSTRUCTIONS CAREFULLY AND KEEP THEMFOR FUTURE CONSULTATION.
WARNING:TO REDUCETHE POSSIBLE RISH OF FIRE.ELECTRICAL DISCHARGES OR PERSIONAL INJURY，TAKETHE FOLLOWING INTO ACCOUNT:

1. Proceed with care. Read the instructions in full before starting the installation.
2. WARNING! This fan can only be used with a bipolar switch with a contact opening of 3mm.
3. The installation process must only be carried out by an authorized electrician.
4. The installation height, i.e. the distance between the blades and the floor, should be at least 2.3 meters.
5. Make sure there are no obstacles within the area of rotation.
6. Make sure the fan is securely attached to the ceiling.
7. WARNING! Do not use a switch with a voltage regulator to control the speed of the fan.
8. WARNING! To avoid damage, make sure that the blades are not bent over and that there are no foreign objects within the area of rotation.
9. WARNING! If the fan is installed close to the ceiling, the ceiling may not be lowered using rails in accordance with European safety regulations. This could cause serious injuries. If you have any doubts in relation to these essential safety requirements, consult local by -laws.
10. Keep all electronic appliances away from children or impaired persons. Do not allow them to handle these appliances without supervision.
11. Suitable for use enclosed spaces.
12. Make sure that the appliance is not connected to the power supply before taking apart the components of the ‘ lamp. Connect to the power supply only after the installation has been completed.
13. Do not remove the shade from the lamp if the LED is on.
14. Change the LED only after the lamp has cooled down
15. When you switch on the appliance, make sure that the lampshade is secured.
16. The fan is designed for use interior spaces. It is not suitable for installation in a bathroom or habitually humid areas. Please make sure that the lamp never comes into contact with water.
17. You must make sure that children do not play with this lamp.
18. Always switch off the appliance and disconnect it from the power supply before installation, maintenance and cleaning.
19. This appliance can be used by children aged 8  years and above and persons with reduced physical, sensory or mental capabilities or lack of  experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with appliance. Cleaning and user maintenance shall not be made by children without supervisions.
20. The means for disconnection from the supply mains having a contact separation in all poles that provides full disconnection that must be incorporated in the fixed wiring in accordance with the wiring rules.
21. The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.

Description of symbol:

You will find all the symbols related to this lamp on both the product label and the box in which it came.
Insulation class I . **This fan must be connected with its ground wire (green and yellow cable) to the earthing conductor.
AC – Alternating current voltage
Hz Frequency (Hertz)
V voltage in volt
W Intensity of current in watts
** Exclusive use in enclosed spaces.
Level of protection against intrusion. You can find the corresponding protection level on the label of the lamp.

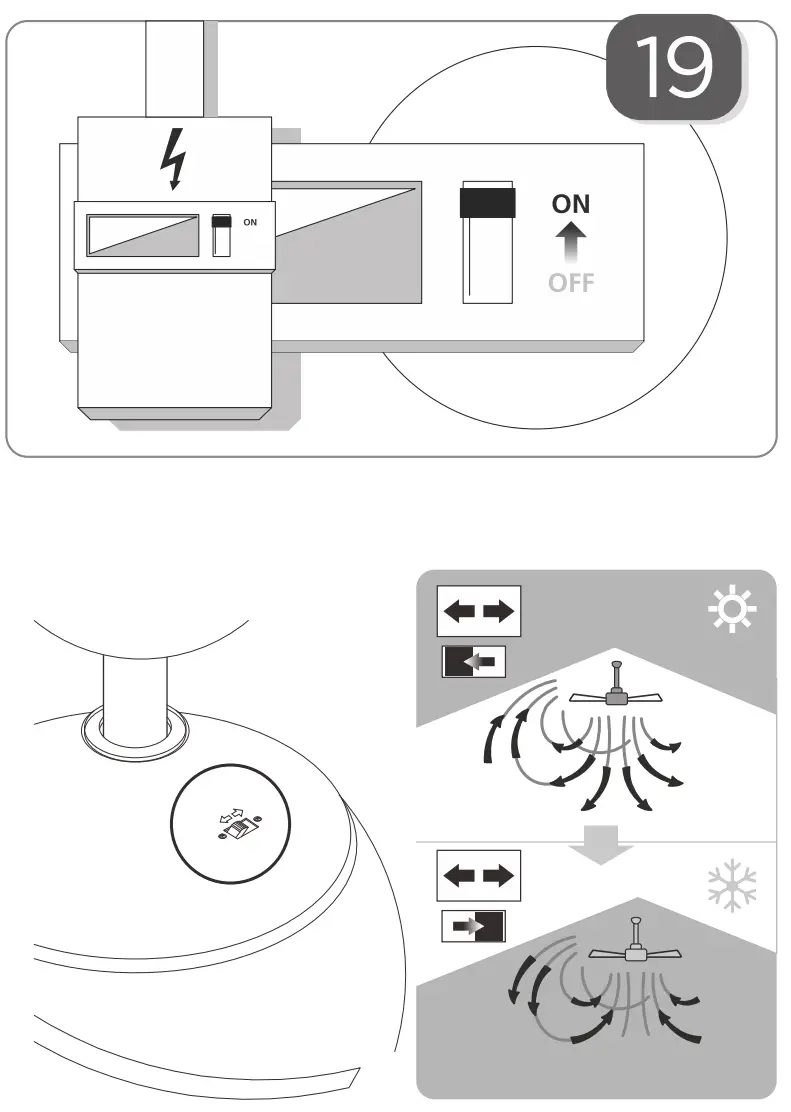

Hot temperatures – (forward) The fan. turns anticlockwise. The downward air current creates a cooling effect .
This enables you to set the air conditioning to a higher temperature without compromising on comfort.
Low temperatures – (backward) The fan turns clockwise. The upward air current causes the warm air in the upper part of the room to move to other areas.
This enable you to set the heating to a lower temperature without compromising on comfort.
(Before using your fan in this position, consult point 10 of the safety instruction).
NOTE: Switch the fan off and wait until. it has stopped completely before hanging the position of the sliding switch forward or backward.
Characteristics of the appliance

Information requirements regarding the eco-design

ST-CF220706
Description| Symbol| Value| Unit
Maximum fan flow rate| F| 110| m3/min
Fan power input| P| 50| W
Service value| SV| 2.| (m3/min)/W
Standby power consumption| PSB| 0.47| W
Seasonal electricity consumption| Q| 19.| kWh/a
Fan sound power level| LwA| 50| dB(A)
Maximum air velocity| c| 2.| m/seg
Measurement standard for service| Regulation No: 206/2012 IEC 60879: 2019
EN 50564:2011
EN 60704-2-7:2020
EN 60704-1:2010 +A11:2012
Contact for more information| Importado por/Imported by El Corte !ogles S.A.
Hermosilla,112 – 28009 Madrid • Espana

INSTALLATION PRECAUTIONS

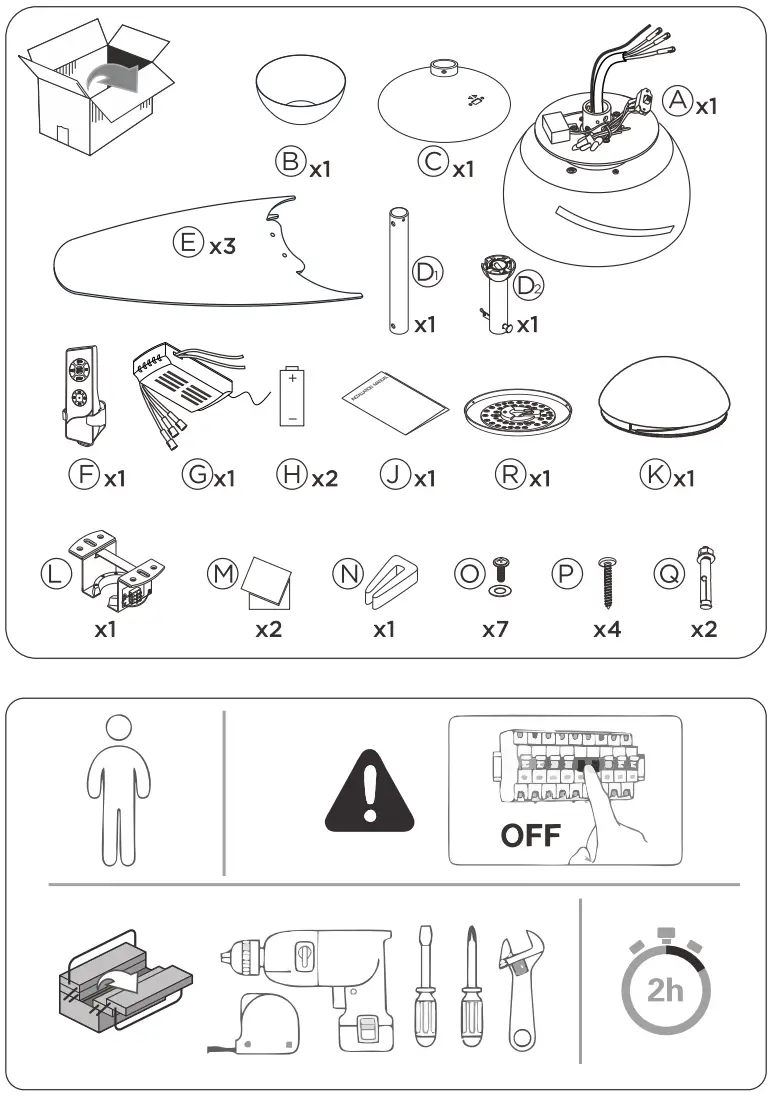

• Unpack your fan lamp carefully. Remove all parts and hardware.
• Lay out all the components on a smooth surface and make sure there are no components missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement.
• Check whether the ceiling fan has been damaged during transport. Do not operate/install any product which appears damaged in any way.

USE THIS FAN

This fan lamp is controlled via the remote control. 2x AAA 1.5V(size) batteries are required to operate the remote control. Remove the battery cover from the back of the remote and insert 2 x AAA batteries Ensure the polarities are correct as shown in the battery compartment. (Batteries included.) OPERATING THE REMOTE: Before you start using the remote, take the time to read through this section and get familiar with the buttons and function of each button.

Description of how the fan lamp works with the remote control unit

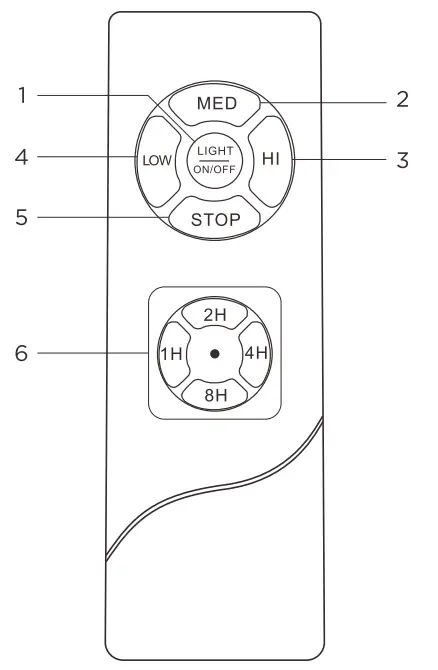

1.Light ON/ OFF Press the button to turn ON/OFF the light. The light will be changed color temperature when you turn on the lighting twice within 15 seconds. Lamp color Temp a) Brightness 100% 3000K b) Brightness 100% 6500K c) Brightness 100% 4000K The light will not be changed the color temperature when you turn on the lighting twice over 15 seconds, and will keep same the color temperature as the last one before you turn off the light
2, 3 & 4. The device has 3 different output levels. Press these buttons to set fan running at High/Medium/Low speed. 5. Fan OFF Press the button to turn OFF the fan.
6. Setting Fan working time Timer is 1H, 2H, 4H, 8H

CARE & CLEANING

NOTE Always turn OFF the per at the mains switch before performing any maintenance or attempting to clean your fan lamp.

• Every 4 months periodic cleaning of your fan lamp is the only maintenance required. Use a soft brush or lint free cloth to avoid scratching the paint finish. Please turnoff electricity power when you do so.
• Do not soak or immerse your fan lamp in the water or other liquids. It could damage the motor or create the possibility of an electrical shock.
• Ensure that the fan lamp does not come in contact with any organic solvents or cleaners. To clean the fan lamp, wipe with only a damp clean cloth with NO organic solvents or cleaners.
• The motor has a permanently lubricated ball bearing so there is no need to oil.

SAFETY PRECAUTIONS FOR BATTERY

– WARNING – Keep new and used batteries away from children.
– CAUTION – Do not ingest battery—Chemical burn hazard.
– Always use 2 x AAA battery type with this fan lamp remote controller.
– Ensure the batteries are inserted with the correct polarity.
– To prevent false operation during battery insertion or replacement, this fan lamp must be disconnected from the supply mains. Remove batteries from the product when not in use for long periods of time.
– Batteries must be removed from the remote transmitter before it is discarded.
– Dispose of exhausted batteries immediately and safely (so they cannot be retrieved by children). Batteries can still be dangerous. Contact your local council to safely dispose of the battery. Regularly check the product and make sure the battery box lid is correctly secured. If the battery compartment does not close securely, stop using the product and keep it away from children.
– If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. If you suspect your child has swallowed or inserted a button battery, call the emergency number of your country if you are in Europe for fast, expert advice.
Battery Leaks: Battery contains chemicals and should be treated as any chemical would. Take precautions when handling leaked battery chemicals. Battery chemicals should not be placed near the eyes or ingested. call the emergency number of your country if you are in Europe for fast, expert advice.
EU DECLARATION OF CONFORMITY
We, El Corte Inglis with address C/ Hermosilla 112, 28009 Madrid (Espana) y N.I.F. A28017895 declare under our sole responsibility that the product
to which this declaration relates is in conformity with the essential requirements and other relevant requirements of the Directive 2014/53/UE, relating to RED (Radio Equipment Directive).
This product is in conformity with the following standards and/or other normative documents:
Article 3.1(a) Safety
EN 60335-1:2012+A11:2014+A13:2017+Al:2019+A14:2019+A2:2019+A15:2021
EN 60335-2-80:2003+A1:2004+A2:2009
EN 62233:2008+AC:2008
EN 62479:2010
Article 3.1(b)EMC
EN 301 489-1 V2.2.3
EN 301 489-3 V2.1.1
Article 3.2 Radio EN 300 220-2 V3.2.1
EL CORTE INGLES S.A. retains the complete technical file which will be available upon request.
Signed by or for El Corte Inglis, S.A.:

INTALLATION

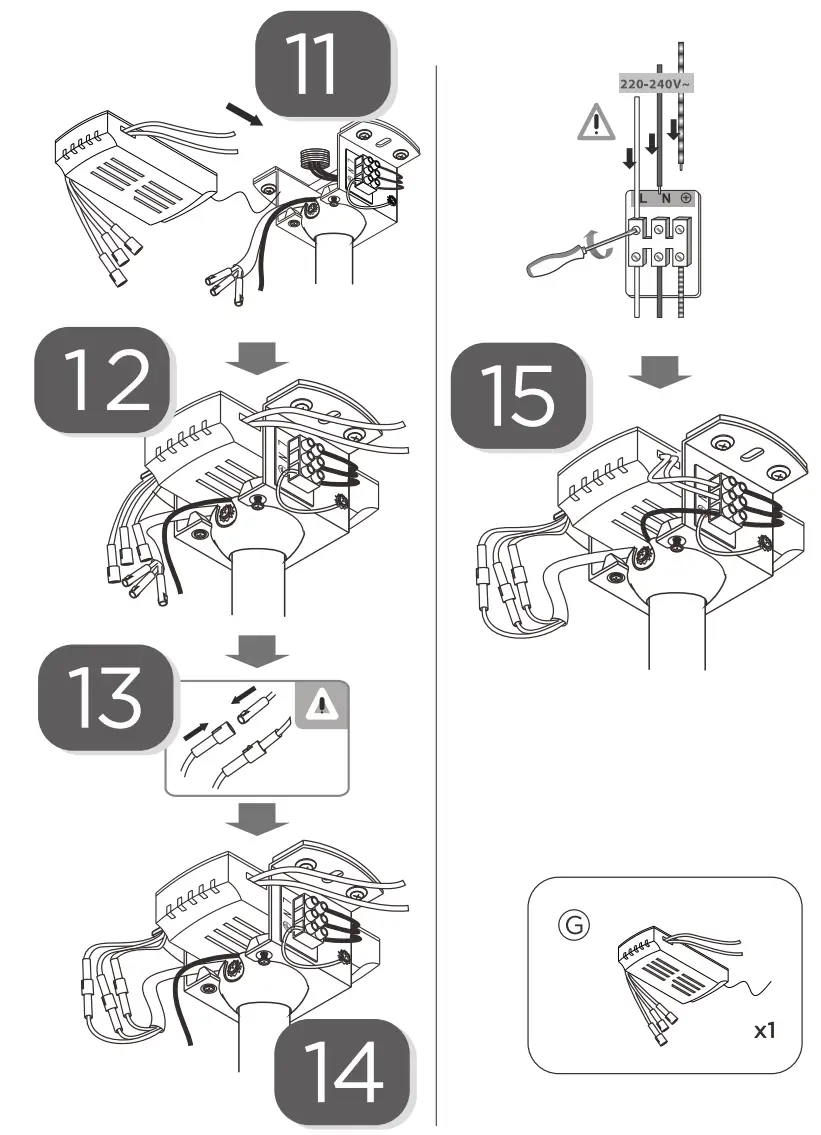

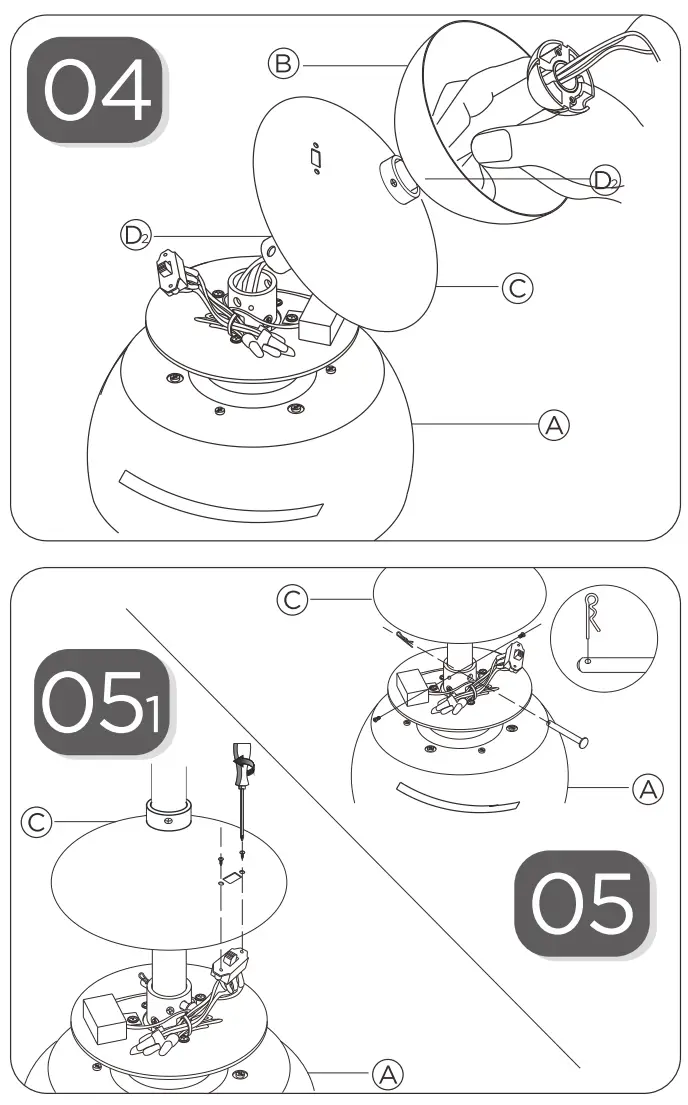

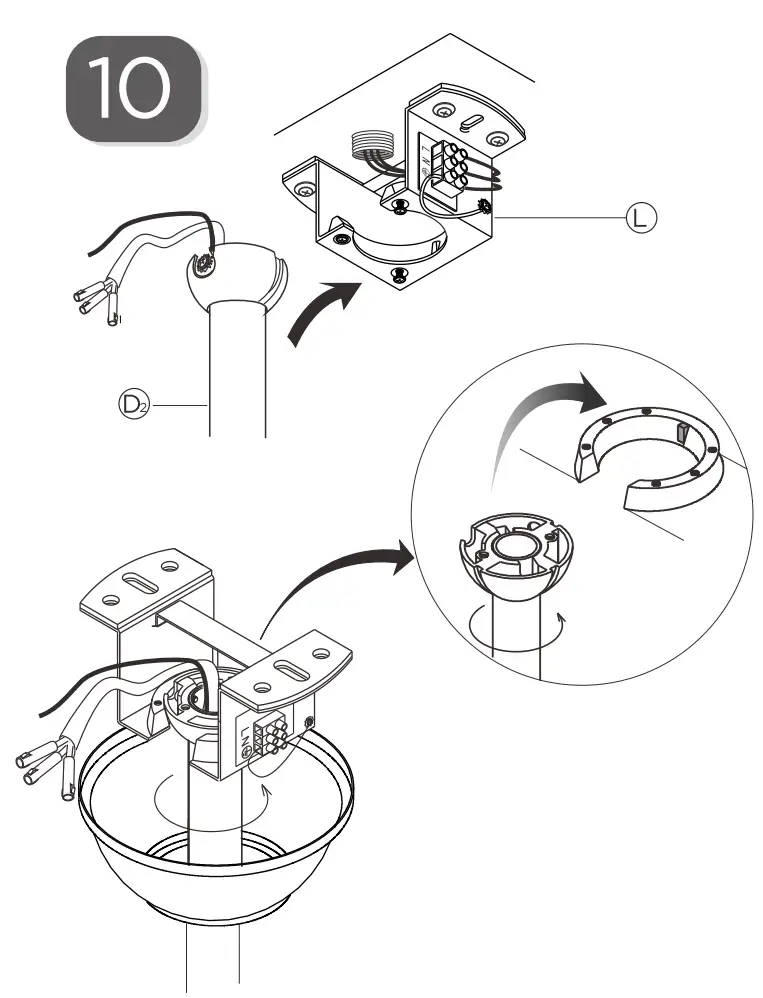

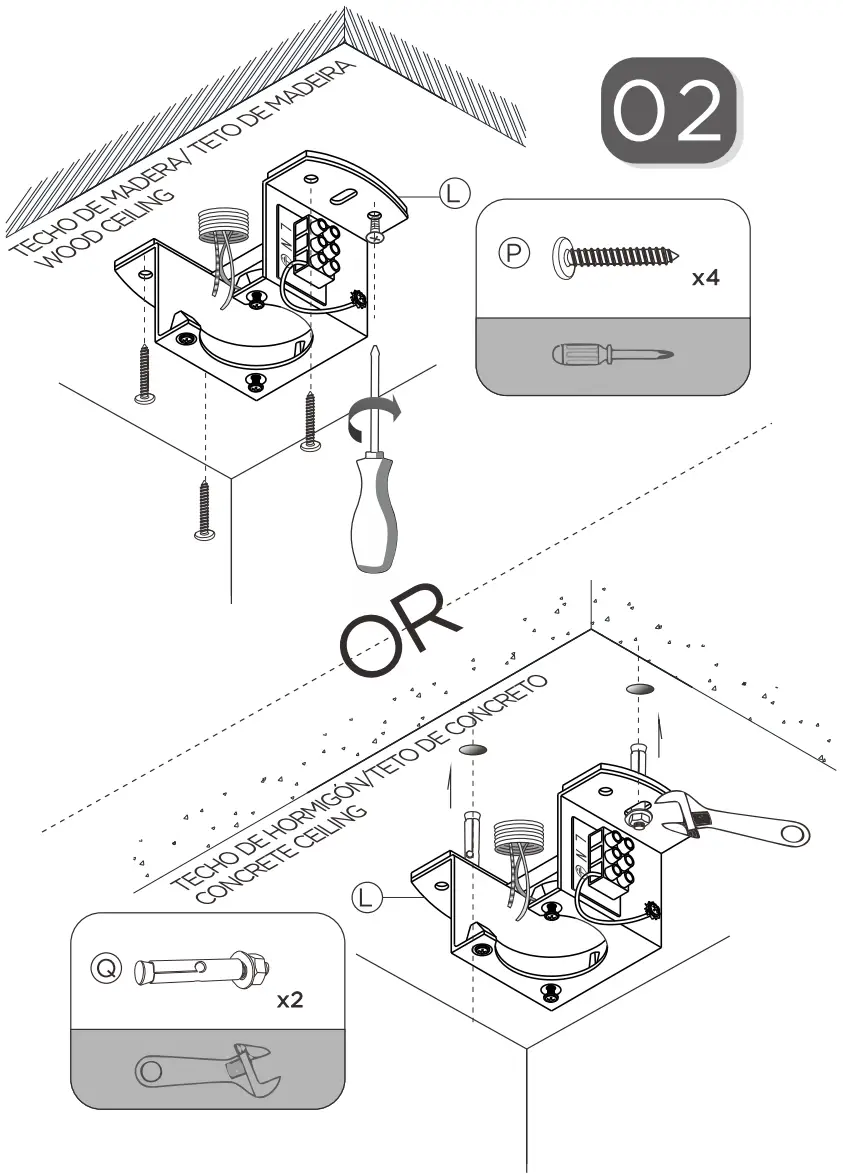

Use screws and dowels suited for your backing

When the time comes to eliminate this product, please consider the environmental impact and take it to recognised recycling facility instead of disposing it with general household waste. Take the equipment to a waste disposal site. Plastic and metal parts that are used in the construction of this appliance can be separated into pure grade which allow recycling. Ask to your service center for details. Everyone of us can participate on the environmental protection.

Imported by El Corte Ingles,S.A.
Hermosilla 112,28009,Madrid
Espana/Espanha/Spain NIF:A-28017895
Made in China
