NAPCO iBridgeVideo ISV2-DOME-WIFI
HD Indoor / Outdoor Wired / Wireless Dome Camera with Active Deterrence
Installation Guide
333 Bayview Avenue, Amityville, New York 11701
For Sales and Repairs, 800-645-9445
For Technical Service, 800-645-9440 or
visit us at
http://tech.napcosecurity.com/
(Note: Technical Service is for security professionals only)
Publicly traded on NASDAQ Symbol: NSSC
WI2461ALF 11/21
© NAPCO 2021
Description
The NAPCO ISV2-DOME-WIFI is an HD 1080P indoor/outdoor, network wired / wireless dome video camera that allows the viewing of live and recorded video clips through the bridge video App (Android or iOS). The ISV2-DOME-WIFI also allows for motion-triggered video clip push notifications. The camera is equipped with Active Deterrence, namely an integral spotlight and a 110dB siren. The selective Smart Detection option helps to reduce false alerts. In addition, the Two-way Talk feature includes an integral speaker and micro- phone with echo cancellation technology to allow the homeowner to clearly interact with pets and family or dissuade unwelcome guests. To activate the camera, an active NAPCO ComNet Dealer account at www.NapcoComNet.com is required.
- Wi-Fi Support (IEEE802.11b/g/n)
- Dual Internal Antenna 2×2 MIMO
- Wired Ethernet Connections Supported
- Maximum 30fps@ 2.0MP (1920 x 1080)
- True Day/Night Vision
- 2.8mm Fixed Lens
- Smart IR 30m (98ft.)
- Outdoor Rated IP67
- Active Deterrence: Integral Spotlight and 110dB Siren
- Smart Motion Detection
- Two-way talk: Integral speaker and microphone
Included Components
- ISV2-DOME-WIFI Camera
- Mounting Plate and Template
- 12V Power Adapter

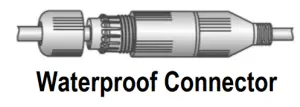

- Waterproof Connector
- Mounting Screws and Expansion Bolts
- Installation Guide (these instructions)
Compatible Accessories
ISV2-WIFI-BOX ………………. Round Back Box for ISV2-DOME-WIFI
ISV2-DOME-BKT ……………. Wall Mounting Bracket for ISV2-DOME-WIFI
Quick Install Summary:
a.Activate camera at www.NapcoComNet.com.
b.Install the bridge video app on the mobile device.
c.Power camera.
d.Connect the mobile device to a 2.4MHz Wi-Fi network.
e.Launch the bridge video app and log in.
f.Add the camera to the app via the wireless method (Wi-Fi
connection) or wired (hardwired) options in the app.
g.Mount camera at the desired location.
Camera Mounting
The mounting surface must support a minimum of 3lbs.
1. Match the Template to the Mounting Plate holes to locate the correct
mounting holes for proper camera position.
2. Affix the Template to the ceiling or wall. For wall mounting, position the
UP arrow at the top. Mark the 3 mounting holes.
3. Using a drill bit slightly smaller than the diameter of the Expansion
Bolts, drill 3 holes into the mounting surface. Fully insert the 3 Expansion
Bolts.
4. Secure the Mounting Plate using the 3 Mounting Screws inserted into the
three Expansion Bolts.5.Route the Power and Ethernet Cable: Connect the
Waterproof Connector to the Ethernet plug. Snake both cables through the
center of the Mounting Plate (drill a 3/4″ hole) run the cable through the
notch in the Mounting Plate and along the mounting surface.
6. Align the notch in the Camera base with the front of the Mounting Plate. Push the Camera base into the Mounting Plate and slide away from the tab until it snaps securely in
place.
7. Adjust the Tilt,
Pan angle, and lens Rotation.
Camera Wi-Fi Enrollment Using the App
First, activate the camera(s) at
www.NapcoComNet.com, then perform the steps
below. The camera must be powered and its green LED must be lashing
continuously. Proceed as follows:
1. Connect the smart device to the local Wi-Fi network.
2.Open the iBridgeVideo app. Type a Username (full email address) and Password
and tap Login.
3. Tap “+” to add the camera
4. Scan the QR code located on the base of the camera, then tap OK. If you
have trouble scanning the code, tap Manually enter SN and type the serial
number.
5. Tap Next to connect the camera to a network.
LED Status Indications
When the camera is powered and operating normally, the green LED remains
solid. Other LED indications are:
Off …………………………….. Camera powered off or reboot (after reset) in progress
Read On ……………………… Boot in progress or camera error
Green Flashing …………… Waiting for network connection
Red Flashing ………………. Network connection failed
Green/Red
Alternate Flashing ……….. Firmware update in progress
Green Solid ………………… Normal operation
Specifications
Video Compression …….. H.265/H.264
Image Sensor …………….. 1/2.7″ 2 Megapixel Progressive CMOS
Lens ………………………….. 2.8mm
Field of View ………………. Field of View: 114°(H), 59°(V), 135°(D)
Night Vision ………………… 30m (98ft) Distance
Audio Compression …….. G.711
Audio Input ………………… Omnidirectional Mic
Audio Output ……………… Built-in Speaker
Bidirectional Talk ………… Supports 2-way Bi-directional talk
Network
Wi-Fi …………………………. IEEE802.11b/g/n, 2.4GHz
Ethernet Port ……………… 1×100 Mbps
General
Ingress Protection ………. IP67
Memory Slot ………………. Micro SD SDHC 32GB included; maximum size 256GB
Installation …………………. Surface
Material …………………….. Metal + Plastic
Power Supply …………….. 12VDC / 1A
Power Consumption ……. Standby<3W, Work <7W
Working Environment ….. -30°C ~ + 60°C (-22°F ~ 140°F)
Dimensions ……………….. 109.9 x 109.9 x 102.2mm (4.3 x 4.3 x 4 inches)
Weight ………………………. 352g (0.78lb.)
Working Humidity ……….. 10% ~ 95%RH
ISV-DOME-WIFI Parts
*SD card
not included; SD card required for local motion detection storage in the
iBridge app.
Device Info Screen Features
The Device Info screen includes the following additional features:
General Record Schedule:
Set a schedule for the internal SD card to continuously record video. When the
SD card is full, the video overwrites the old recorded video to ensure
continuous recording.
Storage Status: Check the status and remaining storage space of the
internal SD card and in the Cloud.
Customize Video Encryption : Customize the video recording encryption
settings.
Device Indicator: Turn on or turn off the camera status
LED. Device Sharing: View/change users authorized to share camera video.
Cloud Update : Allow software updates when available.
Wi-Fi Config: View / select a new Wi-Fi network.
Alarm Screen Features
The Alarm screen includes the following additional features:
Smart Detection: Enable the smart motion detection feature to help reduce
false alerts.
Alarm Schedule: Set a schedule to select when to allow motion detection
events (default setting is enabled 24/7)
Spotlight Trigger: Enable/disable camera spotlight triggered upon a
motion event (a component of Active Deterrence feature).
Siren Trigger: Enable / disable 30-second 110dB siren triggered upon a
motion event (component of Active Deterrence feature).
Format the SD Card
The SD card is used to store local video recordings. To format the card:
1. In the Device “Home ” screen, tap the “>” icon to open the Device Info
screen.
Note: You can tap the “>” icon or anywhere on the title bar to open this
screen.
2. Tap Storage Status.
3. Tap the blue Format Storage Device button.
The SD card will be formatted within a few seconds.
Note: If the message “SD card not found” or “Device storage is ‘OFF'”,
ensure the Micro SD card is installed properly and the ISV-DOME-WIFI is
running the latest firmware.
Reset to Factory Default Settings
The camera MUST be powered before proceeding.
Press and hold the Reset button for 12 seconds or until you hear a beep, then
release the button.
6. The camera’s green LED will be flashing, indicating it is not connected to
a network.
If using a hardwired connection without Wi-Fi, tap No, I want a wired
connection (skip steps 7-10).
If using a Wi-Fi connection, in the screen below (left) tap Yes, go to Wi-Fi
settings , then tap Next.
Helpful hint: Have the password ready for the Wi-Fi network that you want
the camera to use.
7. The app will now prompt you to connect to the camera’s hotspot. With iOS
devices, the screen below will appear. Tap Join to continue.
With Android devices, the screen below will appear. Tap Connect to continue.
8. Select the 2.4GHz Wi-Fi network that you want the camera to use. Note:
5GHz Wi-Fi is not supported.
9. Type the SSID password of the Wi-Fi network (tap the “eye” icon to the
right of the Password field to display the characters). The app will remember
this password if the Save password is checked. When finished, tap Connect (the
camera’s LED will start to flash). The password must be typed correctly or the
camera will not connect to the wireless network. To select another network,
tap Select another network.
10. Wait for the Wi-Fi connection process to complete. If successful, the LED
on the camera front will stop flashing and will turn on solid green. Tap Yes
in the screen below (left) to continue. If unsuccessful, try again by tapping
Add Again (it may take up to a minute to connect).
If the Camera Does Not Connect (LED keeps Flashing) Check the Wi-Fi
signal strength at the camera location using the smart device to ensure there
is sufficient signal strength (3 bars or more is recommended). Also, verify
the Wi-Fi network password. If needed, tap the Add Again button to repeat
steps 6-11.
11. A successful connection will display the confirmation screen (below).
Confirm your Time Zone (tap the arrow to the right and select the from the
pull-down list). You can also enable Daylight Saving Time (DST). To save these
time settings in the app when connecting to future cameras, enable Set to
default and tap Next.
12. Live video feed will appear.
The circular buttons in the above image are:
Top row, left to right:
Snapshot – Saves a snapshot to your device.
Microphone – Enables 2-way communication.
Recording – Records live video to your device.
Bottom row left to right:
Spotlight – Enables camera spotlight for 30 seconds.
Siren – Triggers camera siren for 30 seconds.
Set Up Motion Detection
By analyzing and detecting changes in pixel properties, selecting Activity
Zones allows the app to send push notifications and video clips when movement
is sensed in a selected area.
1. While viewing the camera live, open the Camera Settings screen (tap the
“gear” icon).
2. In the Device Info screen, tap Alarm.
3. Ensure Motion Detect is enabled, then
tap Motion Sensitivity:
4. Use the screen below to adjust the Motion Sensitivity of the
Activity Zones to be selected in step 6 ( Motion Sensitivity can be
adjusted at any time). The higher the sensitivity, the less motion is needed
to trigger an event. Note: Higher sensitivity may increase the number of
notifications. Enable Smart Detection to help reduce false alarms caused by
moving bushes, tree branches falling leaves, etc.
At the top, tap the checkmark to save. Tap the “<” arrow to return to the
Device Info screen.
5. In the Device Info screen, tap Activity Zones.
6. In the video image (see example image below) “tap and hold” to select the
matrix boxes where you want the camera to detect changes. The areas that will
detect motion activity will turn red.
To clear ALL red boxes, tap Clear Zone and
start again.
7. When finished, tap Create Zone to save.
Helpful Tip : To avoid nuisance triggers, the selected red detection
areas must be limited to areas of anticipated activity. Changes in
pixels may be caused by blowing tree branches, falling leaves, motion
floodlights, sun and shade changes caused by cloud cover, etc. Be sure to
exclude (clear) these areas from the selected (red) detection areas.
Smart Detection
Notes: 1. Covers the whole field of view regardless of the selected
(red) motion activity zones.
2. The effective performance may yield different results based on the camera
view light and weather conditions.
