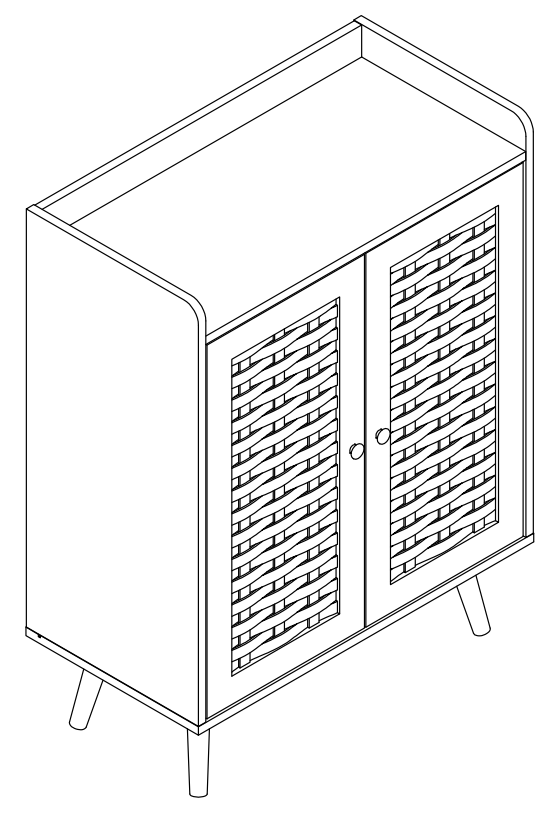

LEVNARY Shoe Cabinet with Woven Doors 5 Tier Shoe Storage Organizer Instruction Manual
- May 15, 2024
- LEVNARY
Table of Contents
LEVNARY Shoe Cabinet with Woven Doors 5 Tier Shoe Storage Organizer
Assembling
Estimated time for assembly
45: 00
What you need
- Use the packaging carton as a working surface to prevent product damage during assembly
- Phillips head screwdriver
Weight Limitation
What’ included
| Code | Description | Qty |
|---|---|---|
| A | Cam Bolt M6X35MM | 10 |
| B | Cam Lock 15X12MM | 10 |
| C | Wooden Dowel M8X30MM | 6 |
| D | Screw M4X40MM | 9 |
| E | Screw M3.5X14MM | 22 |
| F | Metal shake hands handle | 2 |
| G | Nylon Strap | 2 |
| H | Screw M3.0X14MM | 16 |
| I | Cam Bolt M4X18MM | 2 |
| U | The back button | 8 |
| K | Anchor | 2 |
| L | The bolt | 4 |
| M | Ron absorption | 2 |
| N | Metal handle | 4 |
| O | Five hole iron sheet | 4 |
| P | Fort nail | 4 |
| Q | Shelf Holder | 12 |

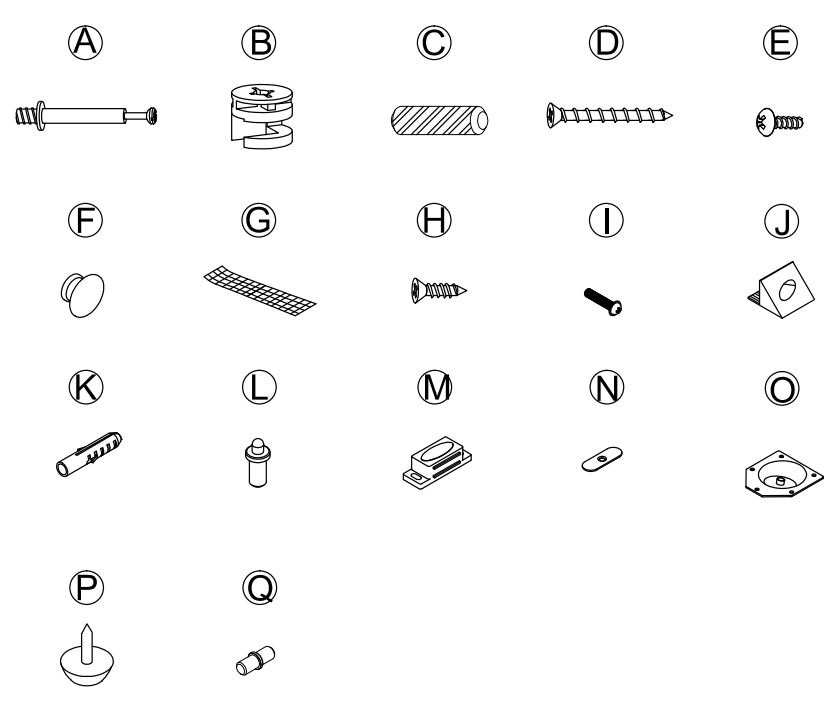

The Hardware’s
IMPORTANT:
- Do not tighten bolts / screws completely until all bolts / screws are lined up and inserted into holes.
- Do not over tighten screws and bolts to avoid stripping
- Please use hand tools to assemble this product. Do not use power tools.
Included Accessories
| Code | Description | Qty |
|---|---|---|
| 1 | Cabinet Top | 1 |
| 2 | Bottom Panel | 1 |
| 3 | Left Side Panel | 1 |
| 4 | Right Side Panel | 1 |
| 5 | Top brace | 1 |
| 6 | Movable laminated plate | 3 |
| 7 | Backboard | 2 |
| 8 | Metal Door | 2 |
| 9 | Back brace | 1 |
| 10 | Supporting foot | 4 |

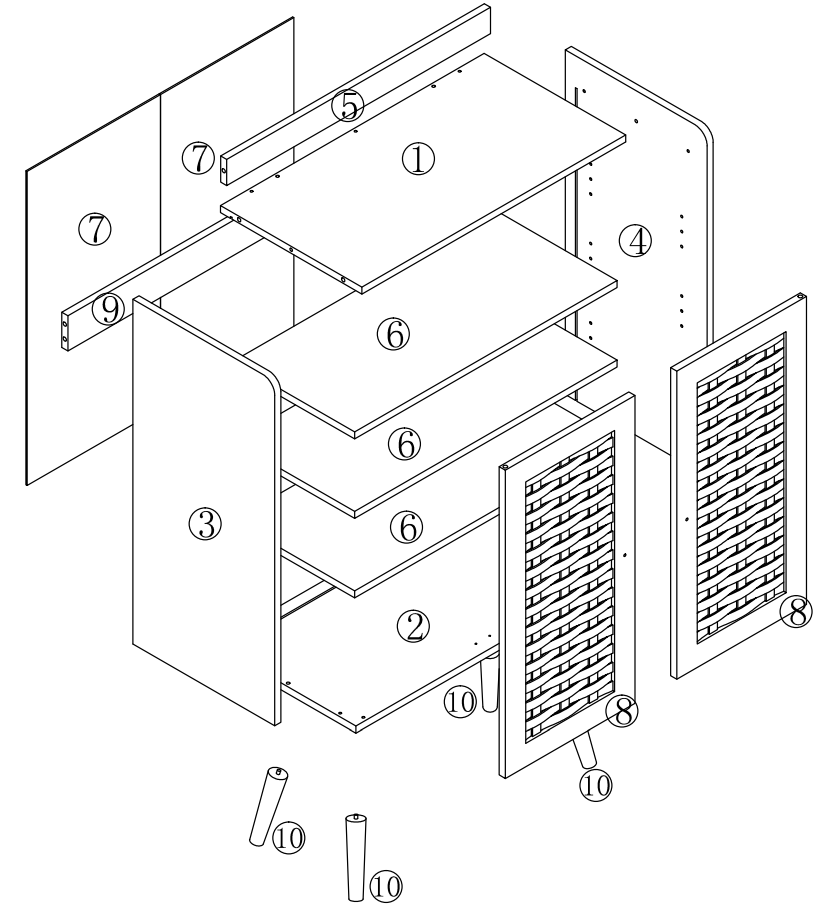

The Accessories

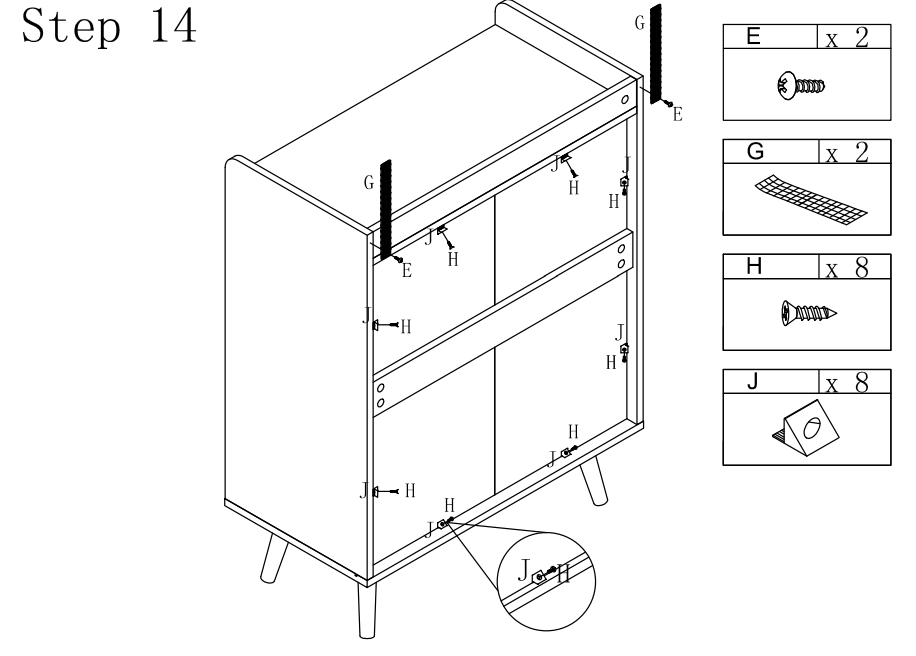

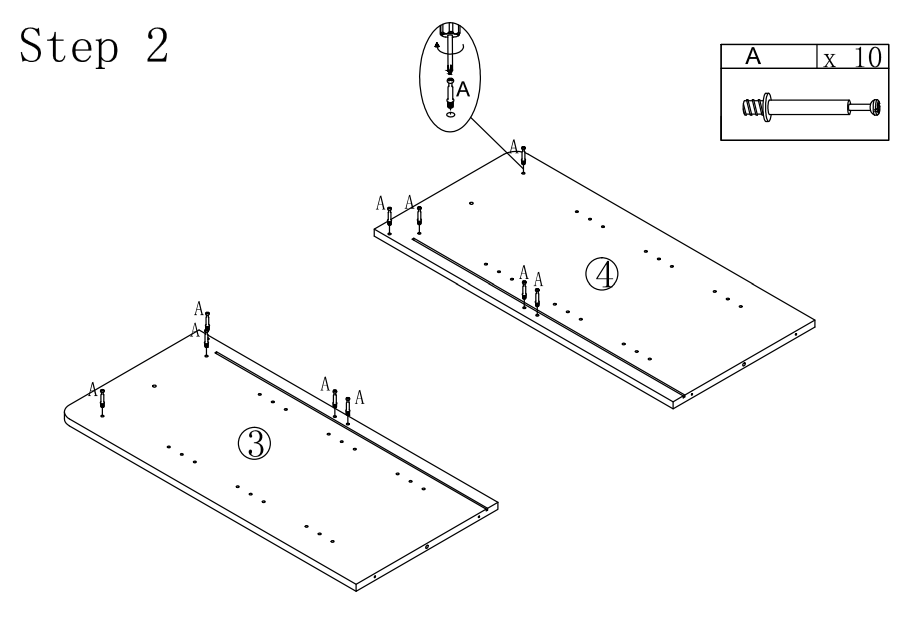

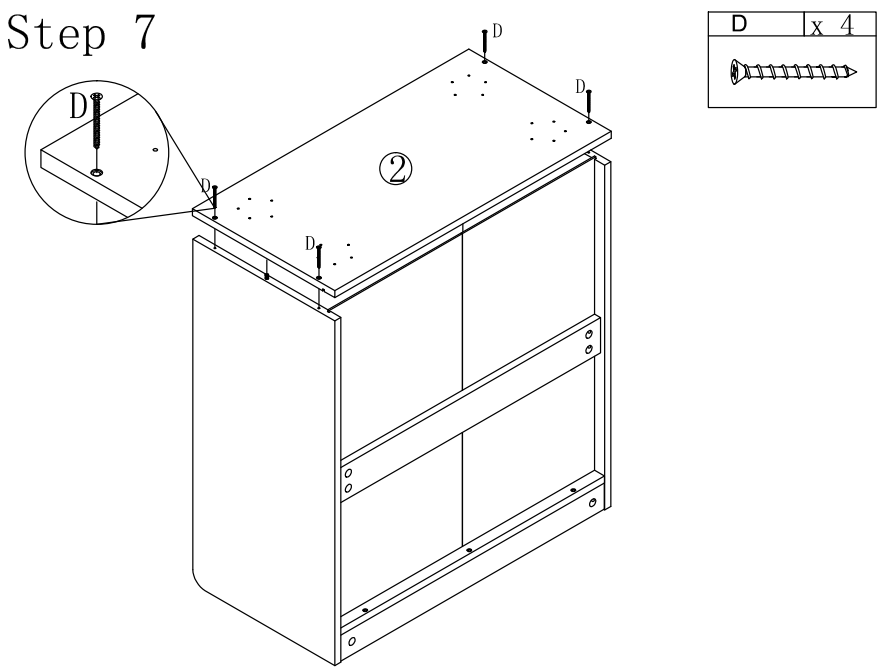

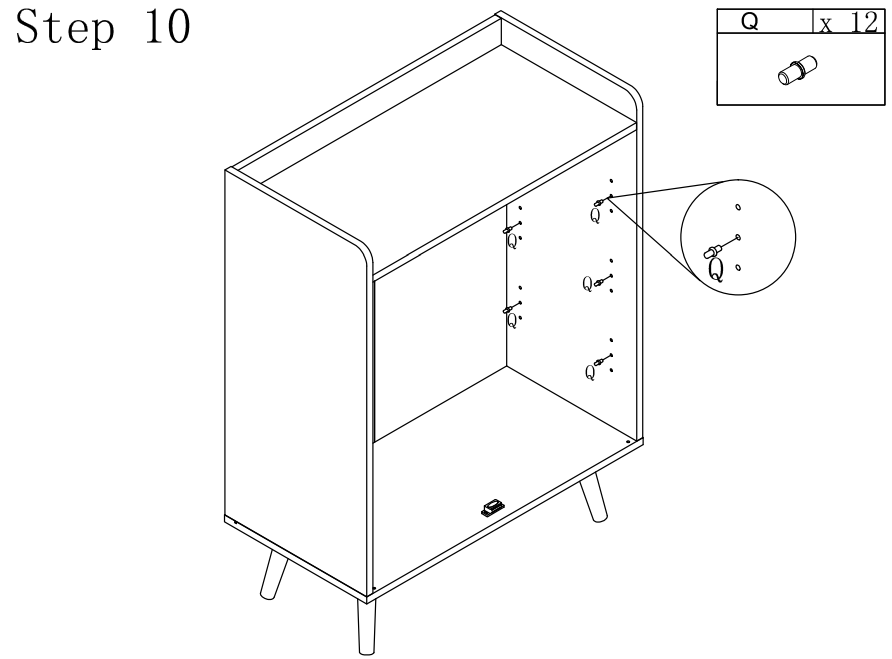

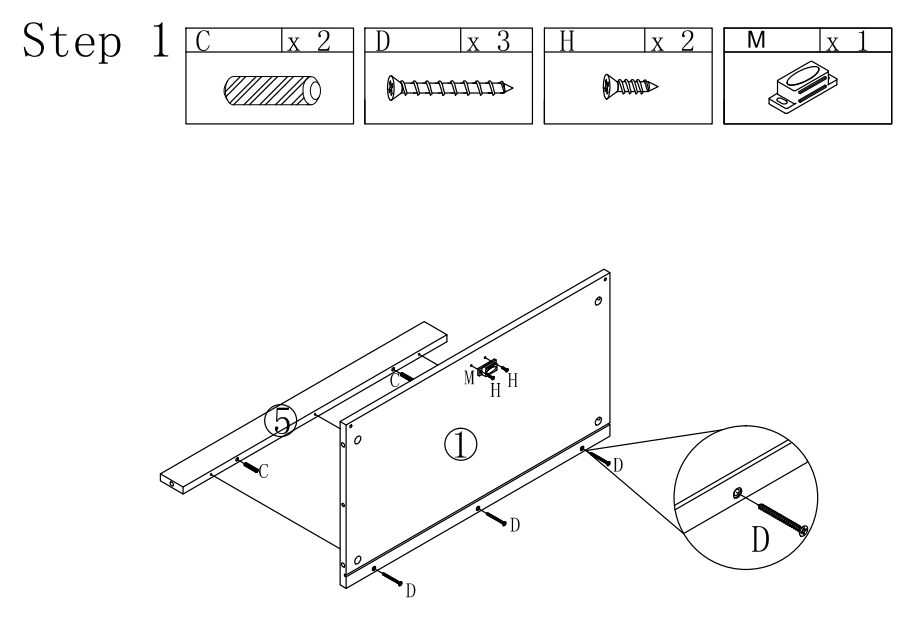

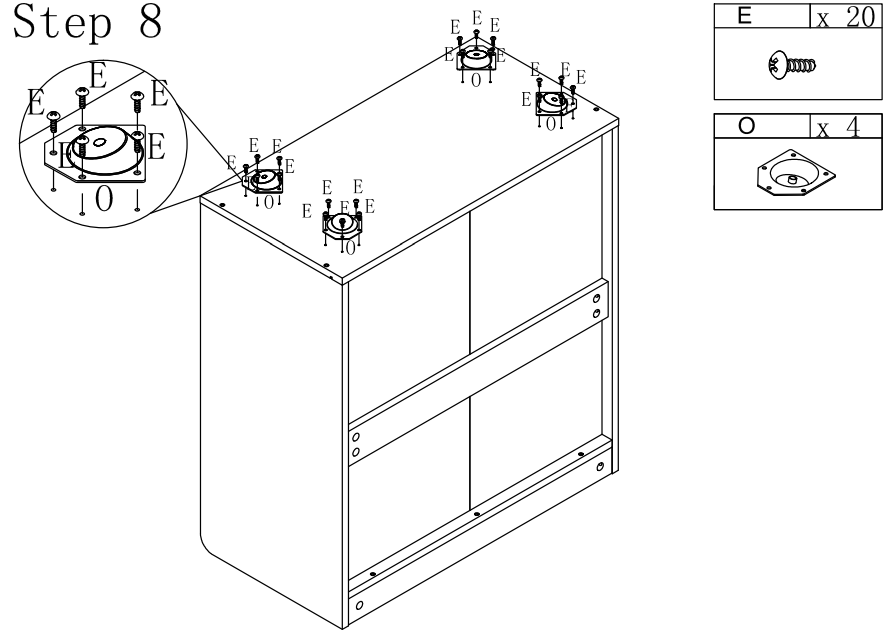

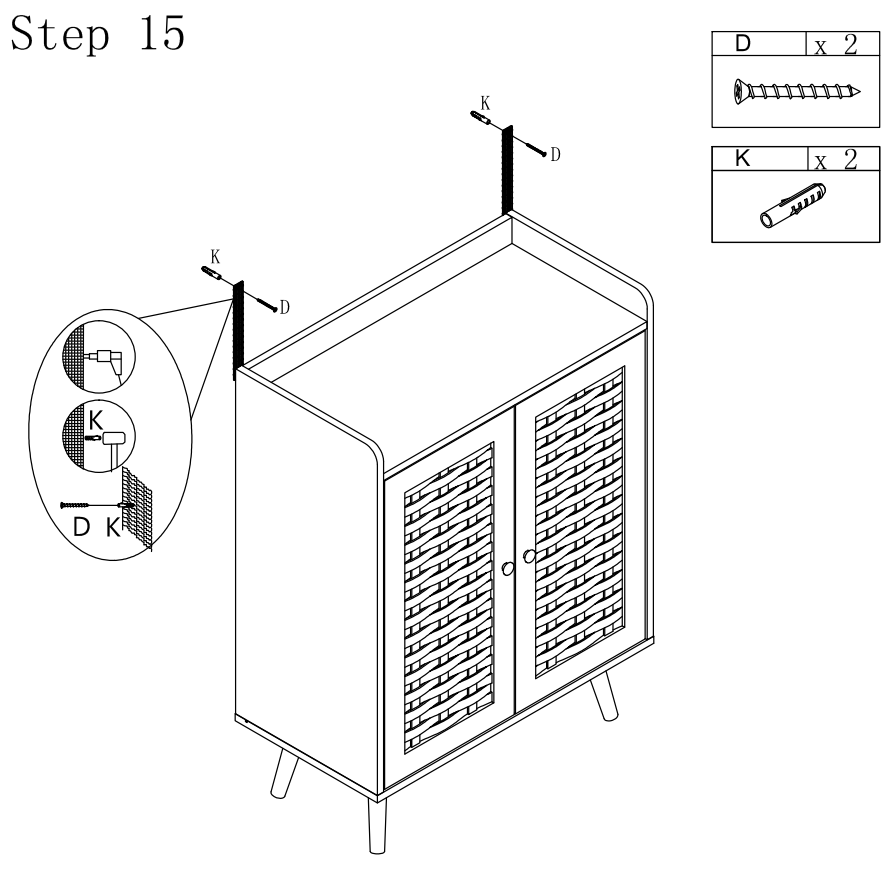

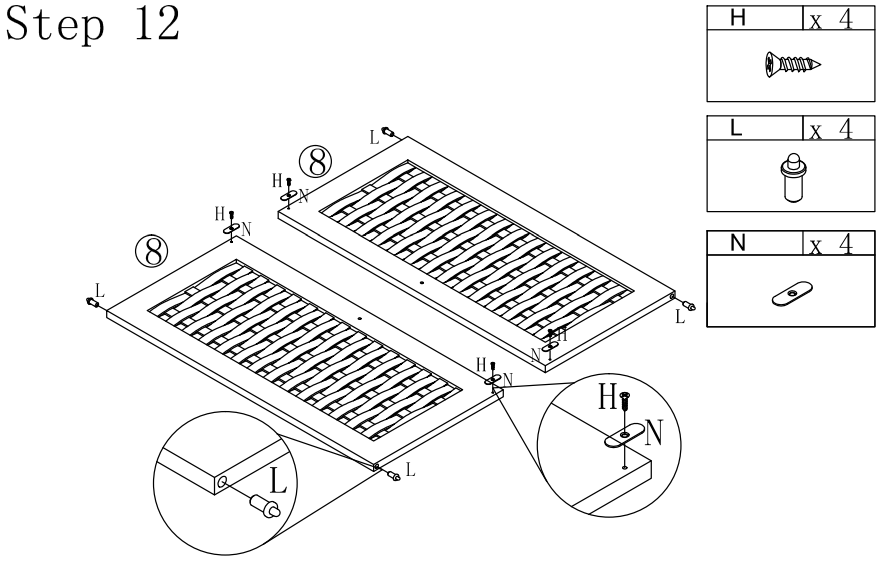

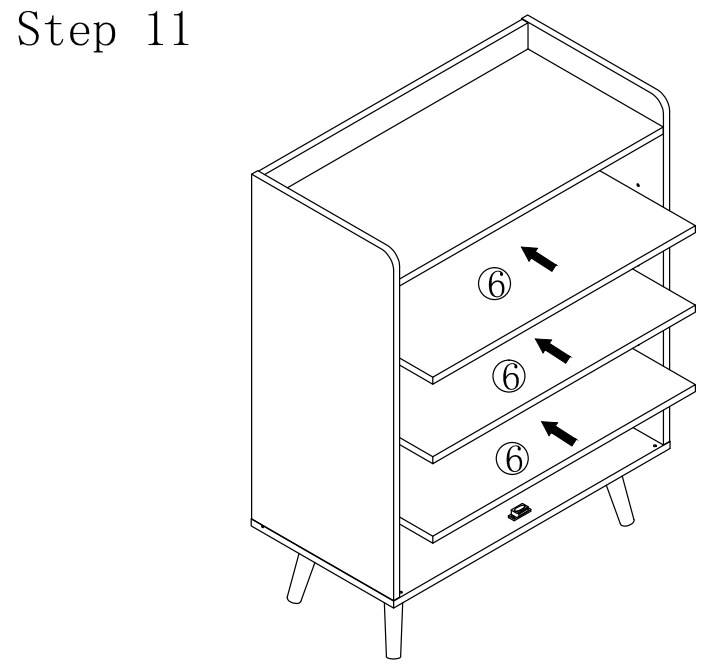

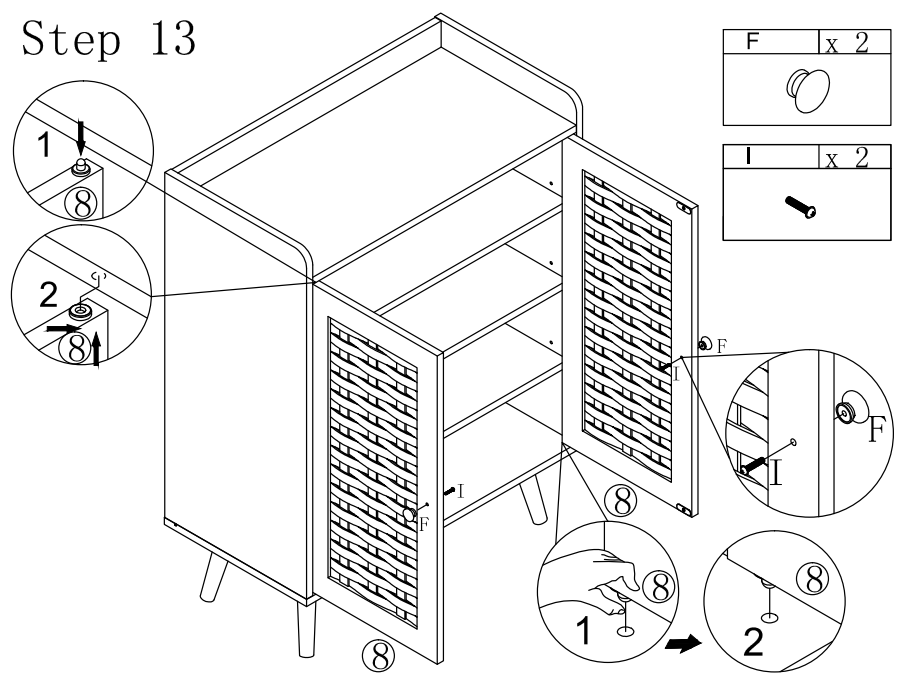

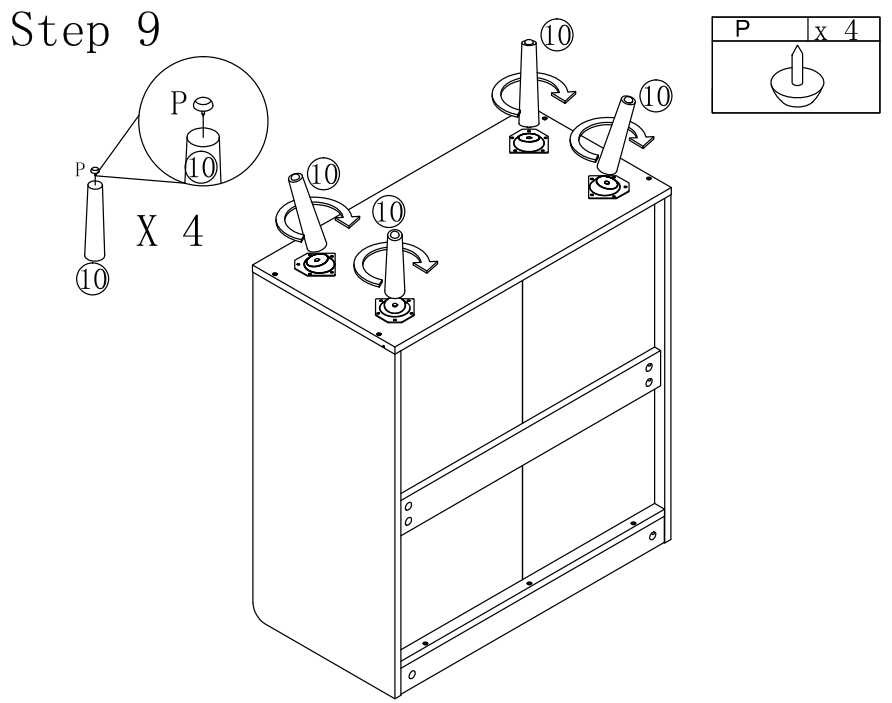

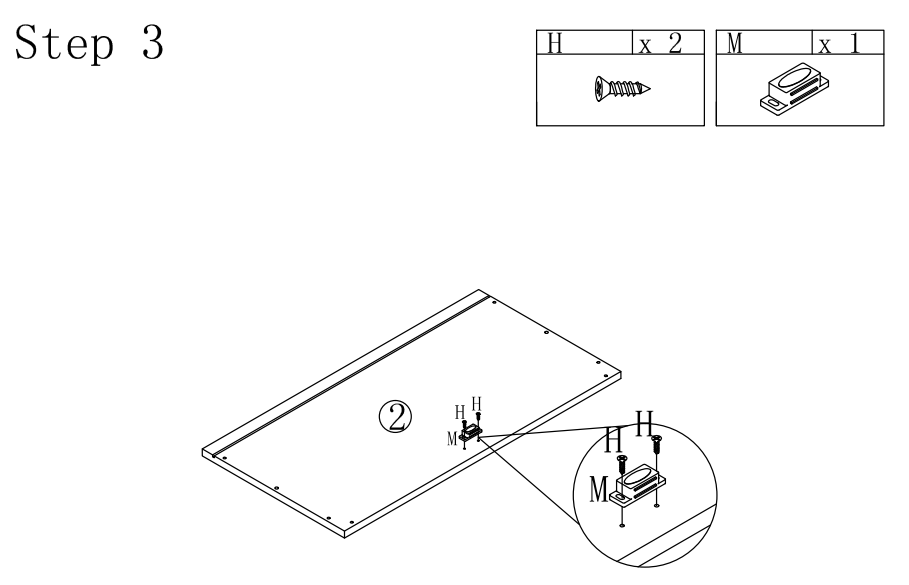

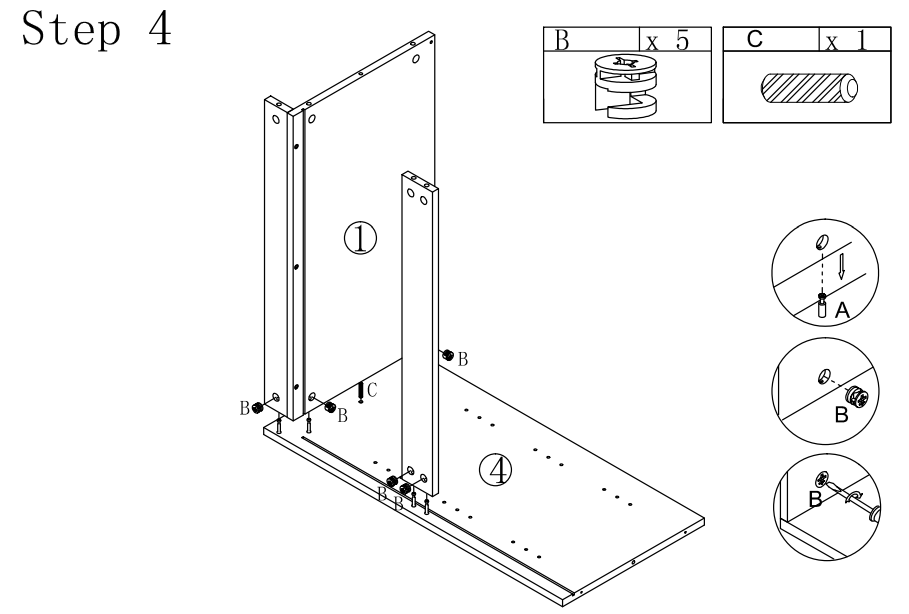

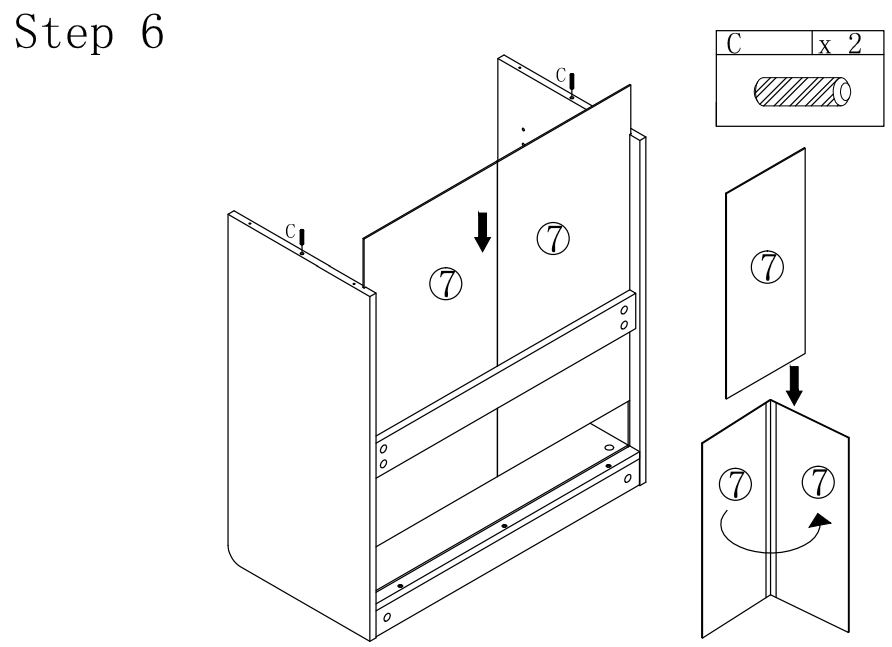

Assembly Instructions
