EZCast Beam J4 DLP Projector User Guide

EZCast Beam J4 DLP Projector

This EZCast Beam J4 Quick Start Guide provides a guideline for basic operation. Please read the guide thoroughly before operating the projector. Please visit www.EZCast.com for additional information. Product information is subject to change without prior notice.

Thank you for purchasing the EZCast Beam J4 DLP projector. Our product combines the easy-to-use interface, portability, and cross-platform compatibility, to let you enjoy projecting media from Android, iOS phones and tablets, and laptops, anytime, anywhere.

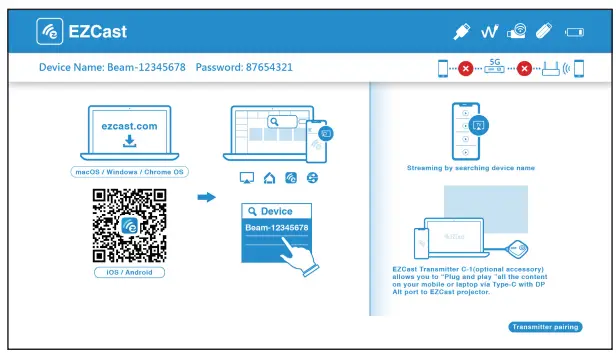

EZCast app installation

Please visit www.EZCast.com/app to download EZCast app for every supported platform. Mobile devices can proceed to the relevant download area by scanning the QR code below. (iOS users can search for EZCast in the App Store to download the app) (Android users can search for EZCast in Google Play to download the app)

Precautions

How to use the projector

1. Do not point the projector lens towards human eyes. The bright light can cause damage to eyes.
2. Do not block the air vents. Blocked ventilation may cause overheating and damages to the projector electronics and components.
3. Do not use chemicals, detergents or water to clean the projector. Moisture and chemicals may corrode the projector circuit boards.
4. Do not place the projector within reach of children.
5. Only use the projector in dry environment with good ventilation.
6. Do not store the projector in extremely hot or extremely cold temperatures. Extreme heat and cold can reduce the component lifetime of projector. Recommended working environment is between 5℃~30℃.
7. Do not attempt to dry the projector in heating devices, such as dryer, microwave etc.
8. Do not squeeze or apply excess pressure to the projector. The projector may be damaged from the pressure.
9. Do not throw, knock or shake the projector. The projector may be damaged from the vibration.
10. Do not attempt to open the projector. Please refer to qualified customer support.
11. Do not attempt to service the projector. Please refer to qualified customer support in the event of projector malfunction.

Never look directly into the projector lens when the lamp is turned on. The bright light can damage your eyes. Never let children look into the lens when it is on.

EZCast Beam J4 body and remote

How to set up EZCast Beam projector

Preparation

1. Insert the wireless adapter into the wireless kit port of the projector.
2. Plug the power to the projector, and the power button will light up.
3. To turn on projector, hold the power button of the projector for 3 seconds till the light turn green.
4. Adjust focus ring until the projection image is clear and focused.

About portrait mode

The projector supports full-screen vertical videos automatically when both the mobile and the projector are displayed by portrait mode.

1. Enter “Settings” and find “Image” settings.
2. Switch “Portrait mode” option to “Auto”.
3. Go “Keystone calibration” if needed.

First time settings

1. Select the start-up language.
2. Wi-Fi setting: connect the projector to your router and enter the password. (Important)
3. After starting up, enter the main menu and select the functions by arrow keys on the projector or remote control: Android, iOS, MacOS, Windows, bluetooth, EZCast, Multimedia, HDMI, and Setting, as below shown.

Power off: Hold the power button for 3 seconds.

Multimedia playback

1. Insert a USB flash drive into USB1 port on the projector.
2. Select the “Multimedia”>>”USB Disk”>>”Video”, “Music” or “Photo” to enter the file folder.
3. Select the file to play with the up and down arrow keys, and press “OK” to confirm.
4. When playing media, press “OK” to see the menu, and select item by the left and right keys.
5. Support format: video, audio, and image.

Settings

Select the “Setting” key on the projector or remote control, and press “OK” to confirm.

1. Wi-Fi setting: Select the “Wi-Fi setting” menu and enter the Wi-Fi setting interface, select the “Internet”, press “OK” key to confirm, and select the router from AP list and enter the password.
2. Display mode: Swtich ECO/ Standard/ Bright mode.
3. Portrait mode: Switch on to project vertically. Please make sure NOT to block the ventilation.
4. V. Keystone: Manually vertical keystone adjustment up to ±30 degrees.
5. H. Keystone: Manually adjust horizontal keystone up to ±14 degrees.
6. 4 Corner Correction: Choose the corner to be adjusted and use arrows to change the location.
7. Color Setting: Change brightness, Contrast, Saturation, Sharpness, R/G/B Gain, and R/G/B Offset.
8. Firmware Upgrade: Upgrade via USB drive or through internet.
9. Projector Location: Switch to Front/ Front Ceiling/ Rear/ Rear Ceiling.
10. Language: Change language with arrows.
11. Reset All: Choose yes to reset projector to factory default. All saved changes to Setting are lost. The projector will be restored to the factory settings, and the data adjusted by the user will not be saved.

How to Plug and Play (via USB cable)

Android

1. Select Android on main menu of the projector, and then select Plug and Play by pressing “OK” key.
2. Connect your mobile to the projector via mobile USB data cable.
3. Download and install MiraPlug app.
4. Replug the cable and it will start casting automatically.

iOS

1. Select the iOS on main menu of projector, and then select Plug and Play menu by pressing “OK” key.
2. Connect your mobile to the projector via mobile USB data cable, and then choose “Trust This Computer” to start your projection.

Note: If there’s a black screen after connecting to mobile, please reboot your mobile and then try again.

Windows

1. Select Windows on main menu of projector, and then select Plug and Play menu by pressing”OK” key.
2. Install EZCast app on your PC. Please visit https://www.ezcast.com/app to download EZCast app.
3. Connect your PC to the projector via USB A-to-A cable.
4. Launch EZcast app on your PC and click the icon.
5. Find and select “Beam-XXXX” from “Search device”, and click to mirror.

MacOS

1. Select MacOS on main menu of projector, and then select Plug and Play menu by pressing “OK” key.
2. Install EZCast app on your PC. Please visit https://www.ezcast.com/app to download EZCast app.
3. Connect your PC to the projector via USB A-to-A cable.
4. Launch EZcast app on your PC and click icon.
5. Find and select “Beam-XXXX” from “Search device”, and click to mirror.

How to Wireless Display

Android

1. Select Android on main menu of projector, and then select Wireless menu by pressing “OK” key.
2. Select mirroring function in the setting of your phone and find”Beam-XXXX” device shown on device list to start mirroring.

Note

• The naming of mirroring function varies different brands. Visit https://www.ezcast.com/usage/android/ezmirror for demos.
• Compatibility: Android 8.0 or above.

iOS

1. Select iOS on main menu of projector, and then select Wireless menu by pressing “OK” key.
2. Make sure both of your projector and mobile are connected to the same WiFi router.
3. Go for Screen Mirroring of your mobile and select device name ”Beam-XXXX” shown on the list to start projection.
   • Note: Compatibility: iOS 12 or above.

Windows 10

1. Select Windows on main menu of projector, and then select Wireless menu by pressing “OK” key.
2. Make sure both of your projector and computer are connected to the same Wi-Fi router.
3. Click quick key by on the computer, and connect to the device named by “Beam-XXXX” to start your projection.

Note: Please upgrade your windows 10’s operation system to the lastest version.

MacOS

1. Select MacOS on main menu of projector, and then select Wireless menu by pressing “OK” key.
2. Make sure both of your projector and computer are connected to the same Wi-Fi router.
3. Click for Screen Mirroring icon on your computer and select the ”Beam-XXXX” shown on the list to start your projection.

Google Home Screen Mirroring (Android Only)

1. Select Android on main menu of projector, and then select Google Home menu by pressing “OK” key
2. Make sure both of your projector and mobile are connected to the same Wi-Fi router
3. Download and install Google Home app from Google Play Store.
4. Launch Google Home app and wait for 20 seconds for device searching. Choose device name: Beam-xxxx > Cast my screen > Cast screen.

Bluetooth

Select “bluetooth” to use Beam projector as a bluetooth speaker.

Connection: Turn on bluetooth of your mobile or computer, and find Beam- XXXX to connect. The projection screen will turn black during connection.

Disconnection: Press “back” key on projector chassis/ remote control, or disconnect from the bluetooth list of your mobile or computer. The projection screen will turn on again after disconnected.

EZCast

1. Select EZCast on main menu of projector and make sure both of your projector and mobile are connected to the same Wi-Fi router.
2. Install EZCast app on your device. Please download the app from application market for your mobiles or visit https://www.ezcast.com/app to download EZCastapp for PC.
3. Launch EZCast app on your device, and then click icon and select the ”Beam-XXXX” shown on the list to start your projection.

DLNA streaming

1. Select EZCast on main menu of projector and make sure both of your projector and mobile are connected to the same Wi-Fi router.
2. Launch the app that supports DLNA, such as QIY, and QQTV.
3. Click the DLNA icon on the video you’d like to play, and select “Beam-XXXX”.

Note: DLNA icon usually shows in the corner of the video, and looks like a tv which depends on different apps.

FAQ

1. Check whether the power cord is connected properly.

2. Press the Power button for 3 seconds till you hear the “beeping” sound, and then release the button and wait for the projector to start up.

Unable to screen mirroring| 1. Make sure wireless adapter has been installed to wireless kit port on the projector.

2. Refer to the Quick Guide to make sure you are using the correct screen mirroring function.

3. If the screen stutters or lags, the distance between source and projector is too far.

4. Make sure the phone is connected to the SSID of the projector.

Unable to play online media| 1. Check whether the network connection is normal.

2. Check whether the wireless adapter is inserted into the Wireless kit port.

Abnormal casting/ black screen| 1. Make sure the ventilation works without blocked.

2. Long press the Power button to shut down.

3. Wait for the projector to cool down, and then press Power button to turn on again.

Unable to upgrade online| 1. Check if the Wireless adapter is inserted into the Wireless kit port.

2. Check whether the network connection is normal.

3. Select OTA upgrade in the Setting.

4. Check whether there is a newer firmware version available to upgrade.

Cannot focus image| 1. Confirm whether the projecting distance is appropriate, and try to extend the distance between projector and screen.

2. Check whether the lens is clean.

Remote control not functional| Replace the batteries of remote control.
Unable to shut down| Press the Power button for about 10 seconds to force the shut down.

Warranty

1. The defective product is valid for refund and replacement if claimed with proof of purchase and warranty card within 7 days of purchase, and the defect was not caused by inappropriate usage or mishandling of product.
2. Product warranty is limited to 12 months within the purchase date, and covers the main projector only. The warranty does not cover accessories and defects caused by inappropriate usage or mishandling of product. The warranty claim is only valid with proof of purchase and warranty card.
3. Register the warranty online to ensure your rights:

Contact Information

support@ezcast.com

Note: The shipping fee to service center is at your own expense.
