homdiy HD1003BSS76 3 inch Cabinet Pulls Instruction Manual

June 17, 2024
Homdiy

HD1003BSS76 3 inch Cabinet Pulls

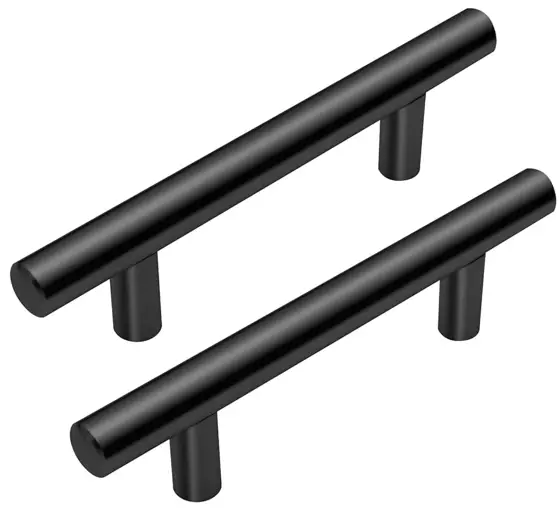

homdiy HD1003BSS76 3 inch Cabinet Pulls

INSTRUCTIONS FOR BREAKAWAY SCREWS

homdiy HD1003BSS76 3 inch Cabinet Pulls - fig 1

Step 1: Measure the thickness of the cabinet door where you need to install the handle or knob.
homdiy HD1003BSS76 3 inch Cabinet Pulls - fig 2 Step 2 : Confirm the depth of the installation hole for the handle or knob by using the provided bamboo-shaped screw. Tighten the screw into the installation hole until it’s secure.![homdiy HD1003BSS76 3 inch Cabinet Pulls

  • fig 3](https://manuals.plus/wp-content/uploads/2024/02/homdiy-HD1003BSS76-3 -inch-Cabinet-Pulls-fig-3.png) Step 3 : Mark and measure the dimensions. Use a marker or pencil to mark the center position of the installation hole and then measure the precise distance between these marks.
    homdiy HD1003BSS76 3 inch Cabinet Pulls - fig 4 Step 4: Confirm the required length of the bamboo-shaped screw. ensuring that it meets the following criteria: Cabinet door thickness + 5 millimeters < Screw length < Cabinet door thickness + installation hole depth.
    homdiy HD1003BSS76 3 inch Cabinet Pulls - fig 5 Step 5 : Trim any excess length of the bamboo-shaped screw. If the required screw length is longer than the sum of the door thickness and installation hole depth, use scissors or cutting tools to trim the excess.homdiy HD1003BSS76 3 inch Cabinet Pulls - fig 6 Step 6: Successful installation. Place the handle or knob on the cabinet door and insert the bamboo-shaped screw through the marked center position. Then, use a screwdriver or wrench to tighten the screw. homdiy HD1003BSS76 3
inch Cabinet Pulls - fig 7
