Li l Pengyu BC218 Baby Bassinet Bedside Sleeper User Manual

Baby Bassinet
User Manual

Read all instructions BEFORE assembly and USE of product.
KEEP INSTRUCTIONS FOR FUTURE USE. Prior to using the product, check that the product and all parts were not damaged during delivery. Use from birth until infant begins to push up on hands and knees, can roll over, or has has reached 20 lbs (9.1 kg),  whichever comes first.

Care & Instructions

Contents

Check that you have all the parts for this model BEFORE assembling your product.
If any parts are missing, call Customer Service.

WARNING

FAILURE TO FOLLOW THESE WARNINGS AND THE INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. DO NOT USE THIS PRODUCT IF YOU CANNOT EXACTLY FOLLOW THE INSTRUCTIONS THAT COME  WITH IT. THIS PRODUCT SHOULD BE FULLY ASSEMBLED PRIOR TO USE.

SUFFOCATION HAZARD
Infants have suffocated:

• In gaps between extra padding and side of the bassinet, and
• On soft bedding.
• Use only the pad provided by li’l pengyu.
• Never add a pillow, comforter, or another mattress for padding.
• If a sheet is used with the pad, use only the one provided by Baby Delight, Inc..
• Ensure that the side panel is locked when child is left unattended.
• Never leave infant in bassinet with side down unless it is securely positioned in sleeper mode attached to the adult bed with anchors securely in place.
• To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to sleep, unless otherwise advised by your physician.

ENTRAPMENT HAZARD:

• To prevent death from entrapment, bedside sleeper must be properly secured to adult bed using the attachment system.
• To avoid death from the infant’s neck being caught on the top rail on the side that is next to the adult bed, the top rail must be no higher than the adult bed mattress.
• There must be no more than 1/2 inch (13mm) gap between bedside sleeper and adult bed.
• Check tightness before each use by pulling bedside sleeper in a direction away from adult bed.
• If gap exceeds 1/2 inch (13mm), DO NOT use product. Do not ll the gap with pillows, blankets or other items that are suffocation hazards.
• Always read and follow assembly instructions for each product use mode (bedside sleeper/bassinet).
• Always use ALL required parts for each use mode (bedside sleeper/bassinet).
• Check instruction manual for a list of required parts. Regularly check product before each use for loose, damaged, or missing parts. DO NOT use it if any part is loose or missing, or if there are any signs of damage. DO NOT  substitute parts.
  Contact Baby Delight, Inc. if replacement parts or instructions are needed.

WARNING

FALL HAZARD:

• To help prevent falls, do not use this product when the infant begins to push up on hands and knees, can roll over or has reached 20 lbs., whichever comes rst.
• Always use all required parts for each use mode (bedside sleeper/bassinet).
• Strings can cause strangulation! NEVER place product near window blinds or patio doors with cords where a child could reach the cord and be strangled, or hang strings over the product or place items with a string around an  infant’s neck such as hood strings or pacier cords or attach strings to toys.
• DO NOT place any cord or strap or similar item in or near this product that could become wrapped around a child’s neck.
• In Bassinet Mode – Assure Side Panel is locked.

SUFFOCATION, ENTRAPMENT AND FALL HAZARDS:

• ALWAYS raise side with zipper (completely closed) to use bassinet mode.
• ALWAYS push adult mattress against bedside sleeper after securing to bed with safety strap and anchor plates.
• NEVER leave infant in bassinet mode with sides down. Ensure that the side panel is locked/zipped when child is left unattended.
• This bedside sleeper is designed for use only with adult beds that are between 17” – 25” (43cm – 63cm) from oor to top of adult mattress.
• The anchor plate and straps assembly must always be used in bedside sleeper mode. Product in bedside sleeper mode must be tightly attached to adult bed mattress to ensure safe use.
• It is recommended to make the strap shorter than the width of the mattress to ensure bedside sleeper is pressed securely against the adult bed, without any gaps.
• A bedside sleeper is designed to provide a sleeping area for an infant until he or she begins to push up on hands and knees or approximately 5 months of age. Move your child to another sleeping product when your child reaches this stage.

Assembly/Operating Instructions

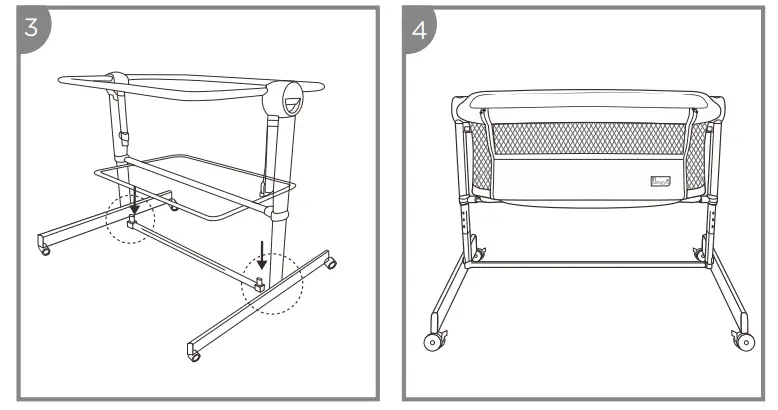

Assembling the bassinet:

Lay the SLEEPER FRAME face down on a flat surface.
Holding the CENTRAL SUPPORTING  STRUCTURE, open both of theLEGS outward.
Insert MIDDLE SUPPORT BAR into FRAME on each side until you hear a click. NOTE: You may need to spread the FRAME slightly to insert the MIDDLE SUPPORT BAR.

Insert BOTTOM SUPPORT BAR up into the FRAME until it is snapped in.
Installation done!  Once the FRAME is secure, place the MATTRESS with SHEET into the BASSINET with the curved edge of the MATTRESS facing the curved edge of the BASSINET.

Height adjustment of the bassinet:
The BASSINET has height positions.
Press the HEIGHT ADJUSTER BUTTONS on the top and side of the frame on each side to lift or lower the BASSINET until a you hear a click. ALWAYS make sure the BASSINET IS ADJUSTED to the same height (by looking at the  numbers) on each side.
The BEDSIDE SLEEPER is designed for use only with adult beds that are between 17″ and 25″ (43cm – 63cm) from floor to top of adult mattress.

Bedside Sleeping Mode

WARNING – IMPORTANT FOR THE SAFETY OF YOUR CHILD:
THIS METHOD IS ONLY POSSIBLE WITH BED TYPES THAT COMPLY WITH ALL OF THE CONDITIONS DESCRIBED IN THIS PARAGRAPH.
IN PARTICULAR, THE SIDE SUPPORT OF THE BEDSIDE SLEEPER SHOULD ALWAYS BE PUT CLOSE TO THE PARENT’S MATTRESS AND THE MATTRESS SHOULD ALWAYS BE ALIGNED WITH THE HEIGHT OF THE SIDE  SUPPORT FOR RESTRAINT OF THE BEDSIDE SLEEPER. FURTHERMORE, THE BEDSIDE SLEEPER SHOULD BE FIRMLY FIXED TO THE STRUCTURE OF THE PARENT’S BED OR TO THE MATTRESS SUPPORT.

WARNING!
CHECK TO MAKE SURE THAT THE BEDSIDE SLEEPER IN THE BEDSIDE SLEEPER MODE DOES NOT INTERFERE WITH THE PARENT’S BED.
WARNING!
DURING USE, MAKE SURE THAT THE PARENT’S BED SHEETS, BLANKETS ETC, DO NOT ENTER AND COVER THE INTERIOR OF THE BEDSIDE SLEEPER.

Bedside sleeper mode (attaching to the bed):

Unzip the SIDES of the BEDSIDE  SLEEPER until they are completely unzipped.
Slide the TOP BAR LOCK LEVER away from the top bar and lift TOP BAR out of GROOVE on both sides and fold down.
Move the bedside sleeper close to the parent’s bed and check the height of the BEDSIDE SLEEPER compared with the mattress on the bed. The SIDE SUPPORT of the sleeper should always be placed close to the parent’s mattress and the mattress should always be aligned with the height of the SIDE SUPPORT for restraint of the sleeper.

WARNING:
IN THE BEDSIDE SLEEPER MODE THE TWO LEGS OF THE BEDSIDE SLEEPER SHOULD ALWAYS BE ADJUSTED TO THE SAME HEIGHT.
In order to attach the bedside sleeper to the parent’s bed in BEDSIDE SLEEPER mode, use the attached pair of ANCHORS provided.
Slide the ANCHORS between the top mattress and the base across the opposite side of the bed using a back and forth ‘sawing’ motion and at the same time pulling downward until the STRAPS and ANCHOR PLATES are in the desired position.
WARNING: ENSURE THE ANCHORS ARE STRAIGHT.
Tighten the LOOP by pulling the BELTS firmly. Adjust the ANCHOR STRAPS separately until the BEDSIDE SLEEPER is firmly in contact with theparent’s mattress.

Care & Cleaning

Removing the cover:

Remove the MATTRESS and release the hook and loop tabs from the MIDDLE SUPPORT FRAME on the underside of the bassinet.

Release the hook & loop tabs from the TOP RAIL COVER of the bedside sleeper as per image. Locate the ZIPPER underneath the FABRIC LIP of the structure and unzip.

Gently remove the LINING from the UPPER TUBULAR STRUCTURE, making sure not to damage the internal part of the LINING.

Maintenance

Check screws, rivets, screws and other fasteners regularly to ensure their firmness and safety, and replace any defective parts.
Check the crib locking device regularly.
Do not use the crib if any parts of the crib are damaged and contact our customer support immediately.
Low viscosity oils or lubricants can be used as lubricants on moving parts.
Do not use machine cleaning. Use a sponge, neutral detergent and warm water for cleaning.

Warning

• Users and guardians should read this instruction carefully before using the product and keep the manual for future reference. The baby’s safety maybe affected if instructions are not followed correctly.
• Be alert to the danger of fire or other strong heat sources near the crib (such as sparks, gas flame and so on)
• Please check the crib regularly to see if any accessories need to be replaced.
• Please feel free to ask the customer care team for help. Do not use irregular replacement parts. Please lock the crib in a fixed position when the baby is unattended.
• Don’t let the baby use the crib alone when the baby can sit up, kneel or climb.
• Be sure to use the crib on a horizontal floor and make sure the baby is attended.
• Please keep the crib far away from the window to prevent the potential hazard of a curtain.
• Please keep the plastic cover away from the baby to avoid asphyxia.
• The thickness of the selected sleeping pad ensures that when the sleeping surface is in the highest position the vertical height between the crib tube and the sleeping surface is at least 7.85 in.
• The maximum load-bearing of the crib is 20lb.
• Suitable age: 0-5months.
• Assemble the product according to the manufacturer’s instructions for both the bedside sleeper mode and the crib mode.
• To avoid death from the infant’s neck being caught on the top rail, the top rail must not be higher than the adult bed mattress, on the side that is next to the adult bed.
  If a sheet is used with the pad, please use one that fits the dimension of the crib.
