SAGITINE Shanghai 14 Box Stand Instructions

SAGITINE Shanghai 14-Box Stand

Specifications:

• Product Name: SHANGHAI 14 BOX STAND
• Tools Required for Assembly: No 2 Phillips Head Screwdriver, No 4 Allen Key (Hex)
• Parts Included:
  • Vertical Frame – Mid x 1
  • Vertical Frame – Side L x 1
  • Vertical Frame – Side R x 1
  • Timber Top x 1
  • Base Plate x 2
  • Rear Brace Short x 2
  • Rear Brace Long x 1
• Hardware Included:
  • Self-tapping screws 13mm long x 12
  • Machine Screws 20mm long x 13
  • Screw-In Feet x 4

Assembly Instructions

Step 1:
Place a clean towel or blanket on the ground first to place the Timber Top on to avoid scratching or marking the timber.

1. Place the Timber Top upside down on top of the towel or blanket on the ground so that the holes are showing.
2. Place the Vertical Frame – Mid on top of the Timber Top making sure the holes in the timber and the brackets are aligned.
3. Fasten the Frame to the Timber Top with the 6x Self Tapping screws.

Step 2:

Attach both Vertical Frames – Side L and R to the Timber Top as shown using 6x Self Tapping screws.

1. Ensure all Frames are in line with the rear edge of the Timber Top.
2. Fasten the Frame to the Timber Top with the 6x Self Tapping screws.

Step 3:

Place the Base Plates across the three Vertical Frames as shown, aligning the holes with the Threaded Inserts.

1. Fasten the Base Plates to the Vertical Frames with 6x Machine Screws and 4x Screw-In Feet.

Step 4:

Install the Rear Braces by aligning holes in the brace with the Threaded Inserts in the Vertical Frames.

1. Fasten with 7x Machine Screws.

Flip your Shanghai Stand so that the Timber Top is upright,
insert your 14 Milan Boxes and enjoy your new Sagitine piece.

FAQ (Frequently Asked Questions):

• Q: Do I need any additional tools for assembly?
  A: No, you will only need a No 2 Phillips Head Screwdriver and a No 4 Allen Key (Hex) as provided.

• Q: Can I assemble the stand-alone?
  A: It is recommended to have assistance when assembling to ensure stability and ease of assembly.

TOOLS REQUIRED

To complete the assembly of your Shanghai Stand you will need the following tools:

• A No 2 Phillips Head Screwdriver
• A No 4 Allen Key (Hex)

Within your delivery, you’ll find the following parts and hardware

Parts

Hardware:

INSTALLATION

• Step 1 Place a clean towel or blanket on the ground first to place the Timber Top on to avoid scratching or marking the timber. Place the Timber Top upside down on top of the towel or blanket on the ground so that the holes are showing.
  Place the Vertical Frame – Mid on top of the Timber Top making sure the holes in the timber and the brackets are aligned.
  Fasten the Frame to the Timber Top with the 6x Self Tapping screws.
  Note : Ensure the Threaded Insert in the Frames is facing the rear.

• Step 2 Attach both Vertical Frames – Side L and R to the Timber Top as shown using 6x Self Tapping screws.
  Note : Ensure all Frames are in line with the rear edge of the Timber Top.
  Note : Ensure the Threaded Insert in the Frames is facing the rear.

• Step 3 Place the Base Plates across the three Vertical Frames as shown, aligning the holes with the Threaded Inserts.
  Fasten the Base Plates to the Vertical Frames with 6x Machine Screws and 4x Screw-In Feet.

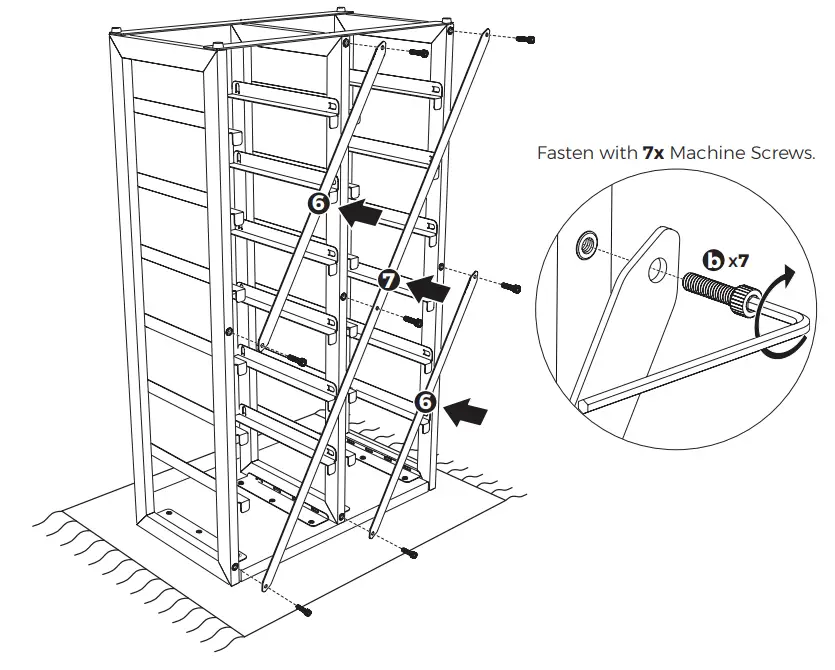

• Step 4 Install the Rear Braces by aligning holes in the brace with the Threaded Inserts in the Vertical Frames.
  Flip your Shanghai Stand so that the Timber Top is upright, insert your 14 Milan Boxes, and enjoy your new Sagitine piece.

Sagitine – Storage you want to see www.sagitine.com
