XDCOLLECTION P329.85X Recycled Plastic 5W Wireless Speaker Instructions
- June 17, 2024
- XDCOLLECTION
Table of Contents
RCS certified recycled plastic
5W Wireless speaker
Instructions
Copyright© XD P329.85X

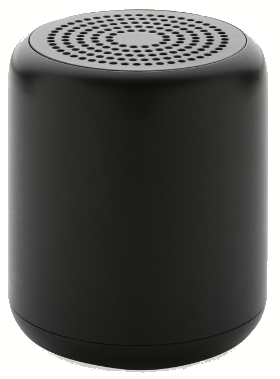

P329.85X Recycled Plastic 5W Wireless Speaker
Congratulations on your 5W Wireless speaker!
This BT speaker allows you to enjoy your music without wires. Please read this
manual before use.
PRODUCT DESCRIPTIONS:
1. Power ON/OFF
2. Vol 3.
Pause/Play button
4. Vol +| 5. Charging indicator
6. Type-C
7. MIC
8. AUX in
---|---
CHARGING THE SPEAKER:
A full charge is approximately 2 hours and plays continuously 5 hours.
Connect the speaker to the Type-C charging cable to charge.
When the LED indicator is RED, the speaker is charging.
The LED indicator goes off when the device is fully charged.
HOW TO USE:
If you want to pair your mobile device with the speaker, please make sure the
BT mode on your device is switched on. Switch the power on/off button on to
pair the device. After doing so the speaker will be visible in the Bluetooth
devices overview of your device. Please select “3W Mini speaker’ to pair your
mobile device with the speaker.
SPECIFICATIONS:
Pairing name: “RCS 5W speaker”
S/N Ratio : <70dB
Speaker driver : 45mm
Output power: 5W
Wireless frequency: 20Hz – 20KHz
Battery capacity: 1200 mAh
Bluetooth version: V5.0
Charging time : 2 hours
Playing time: about 5 hours
Transmission distance: 10m
IMPORTANT SAFETY INSTRUCTIONS
- DO NOT DROP, APPLY EXCESSIVE FORCE TO THE CONTROLS, OR PUT HEAVY OBJECTS ON TOP OF THE BT SPEAKER.
- DO NOT ATTEMPT TO REPAIR, DISASSEMBLE OR MODIFY THE PRODUCT. There are no user-serviceable parts inside this unit.
- Young children under the age of 7 years should be supervised to ensure they do not play with the product. Close supervision is necessary when any appliance is used by or near children under the age of 7.
- If you do not use the speaker for long periods of time, be sure to store it in a dry place, free from extreme temperature, humidity and dust.
- Keep speaker away from any heat source.
EU Declaration of Conformity
Xanadu B.V. hereby declares that this product is in compliance with the
essential requirements and other relevant provisions of Directive 2014/53/EU.
The complete Declaration of Conformity can be found at
www.xindao.com > search on item number.
www.fsc.org
MIX
Packaging from
responsible sources
FSC’ C173055
