SALUTUY ZF-360 Wireless Audio Transceiver Instruction Manual

SALUTUY ZF-360 Wireless Audio Transceiver

Product Information

Specifications

• Product Name: TX Wireless Audio Transceiver
• Model: ZF-360A
• Version: 5.0
• Battery: 300mAh
• Distance: 33ft
• Made in: China

Product Usage Instructions

Transmitter Mode (TX)

• Turn on/off:
  • Long press the power button for more than 3 seconds to turn on/off the transmitter.
  • Make sure that the headset is waiting for pairing (refer to the headset manual for details). Pairing with your Bluetooth device:

For wireless headsets:
For AirPods:

• Plug one end of the 3.5mm audio cable into the audio interface (marked TX) on the transceiver.
• Plug the other end into the AUX interface on the TV or other equipment.Connect with audio source devices:

With the 3.5mm audio cable:
With the data cable:

• Pair your Bluetooth device with the transceiver by turning on the Bluetooth of your device and searching for the device named ZF-360 to connect.Connect with audio devices:
  For mobile phones, tablets, MP4 players, notebooks, and smart TVs:

• For wired earphones, computer speakers, and wired headphones:

• Receiver Mode (RX)

1. Turn on/off:

   • Long press the power button for more than 3 seconds to turn on/off the receiver.

2. Pairing with your Bluetooth device:
   Turn on the Bluetooth of your mobile phone or other Bluetooth device and search for the device named ZF-360 to connect.

3. Plug one end of the 3.5mm audio cable into the audio interface (marked RX) on the transceiver.

4. Plug the other end into the AUX interface on the TV or other equipment. Connect with audio source devices:

For mobile phones, tablets, MP4 players, notebooks, and smart TVs:

• Pair your Bluetooth device with the transceiver by turning on the Bluetooth of your device and searching for the device named ZF-360 to connect.

For wired earphones, computer speakers, and wired headphones:

• Plug the 3.5mm audio cable of the wired headset or wired speaker into the audio interface (marked RX) on the Bluetooth transceiver.

FAQ

• Q: Can’t connect?
  A: Long press the power button for 8 seconds to clear the pairing record of the transceiver. Restart and make sure that the distance between the transceiver and the Bluetooth device is not more than 1 meter before trying to pair.

• Q: How do I charge the transceiver?
  A: Connect the transceiver to a power source using the provided micro USB charging cable. The red light will be on while charging and off when fully charged.

Dear friends, thanks for choosing our products.
In order to better use the functions of this product, please read this user manual before use.

Transmitter Mode

1. Turn on / off

2. Pairing with your Bluetooth device

3. For wireless headsets: Make sure that the headset is waiting for pairing (refer to the manual of the headset  for details).

4. For AirPods: Put AirPods in the charging compartment. Open the cover, then press and hold the button on the back of the charging compartment until the indicator light flashes white.

5. Connect with audio source devices

6. With the 3.5mm audio cable
   Plug one end of the 3.5mm audio cable into the audio interface (marked TX) on the transceiver, and the other end into the AUX interface on the TV or other equipment

7. With the data cable
   Plug one end of the data cable into the charging port of the transceiver, the other end into PC, PS4, Switch dock and other devices that support USB audio output.（Some USB ports only support charging, Not for audio transmission .）

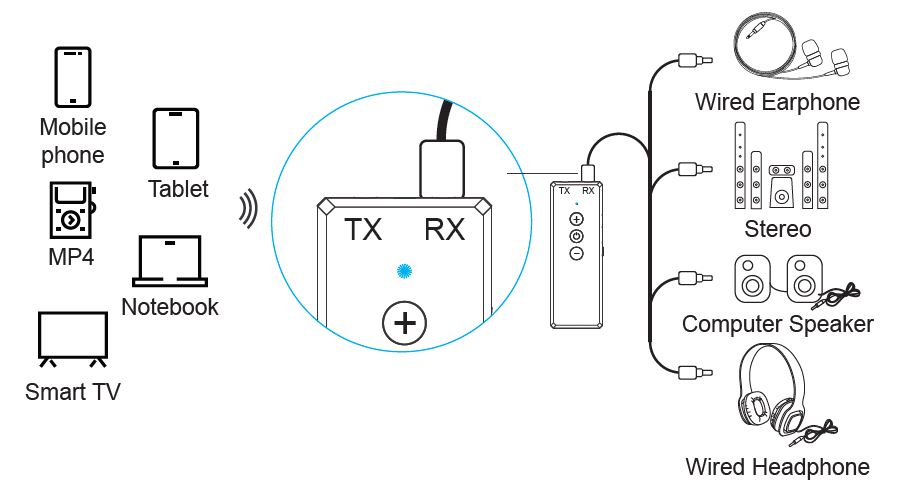

Receiver mode

1. Turn on / off

2. Pairing with your Bluetooth device
   Turn on the Bluetooth of the mobile phone or other Bluetooth device, searching for the device named “ZF-360” to connect.

3. Connect with audio devices

4. Plug the 3.5mm audio cable of the wired headset or wired speaker into the audio interface（marked RX） on the Bluetooth transceiver.

5. After power on, the transceiver will automatically connect to the last connected device. If the connection is unsuccessful, it will enter the searching status.

6. Connecting to another device, please turn off the Bluetooth of the connected device first, or press and hold “+” “-” buttons at the same time to enter the searching status. The transceiver will search for a new pairing.

Can’t connect?
Long press the power button for 8 seconds to clear the pairing record of the transceiver. Restart and make sure that the distance between the transceiver and the Bluetooth device is not more than 1 meter before trying to pair.

Charging

MADE IN CHINA
